EVID-PC8.2
8" 2-way ceiling speaker
- High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
- High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
- Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
- Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
- Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.
The PC8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

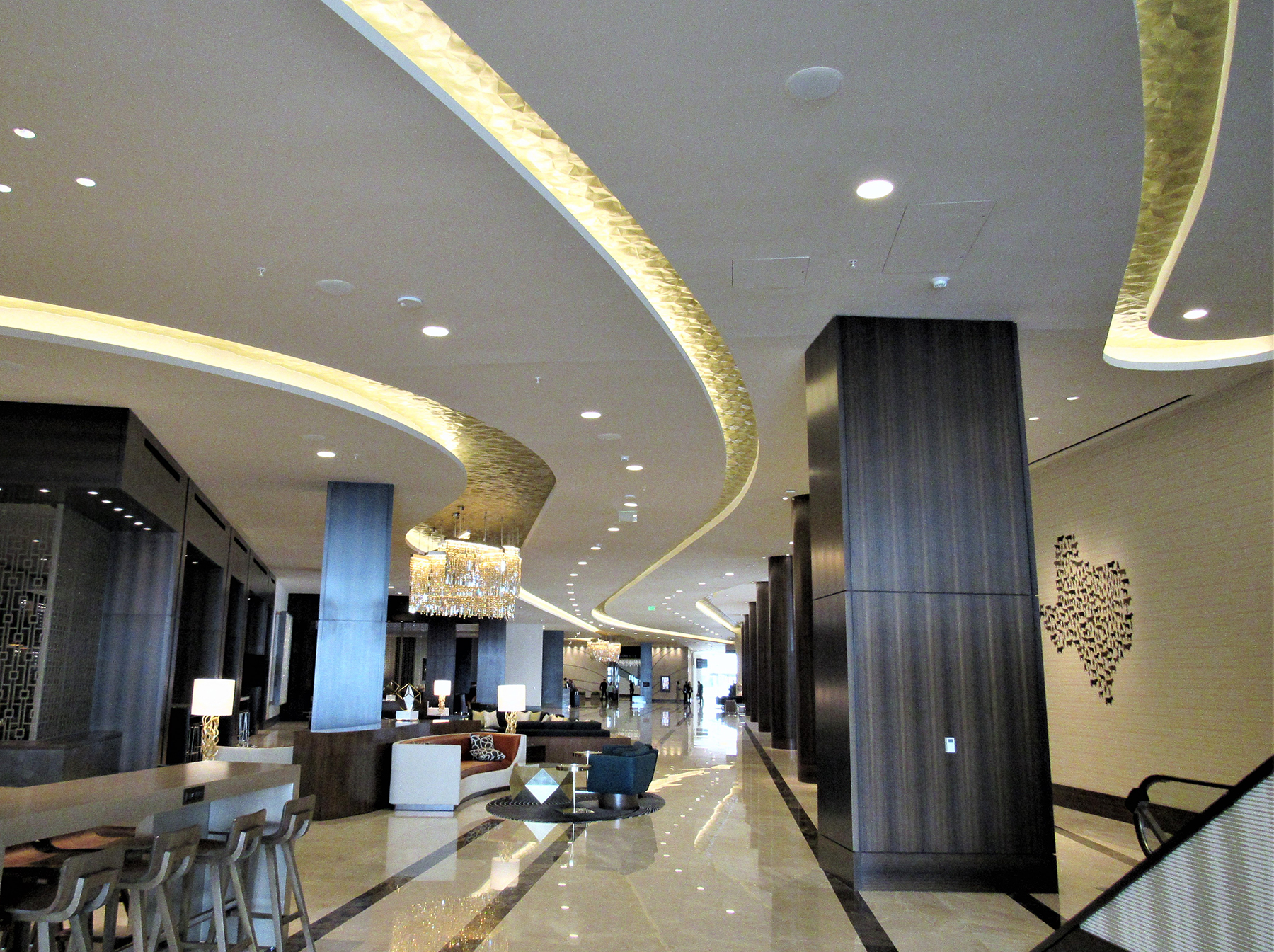

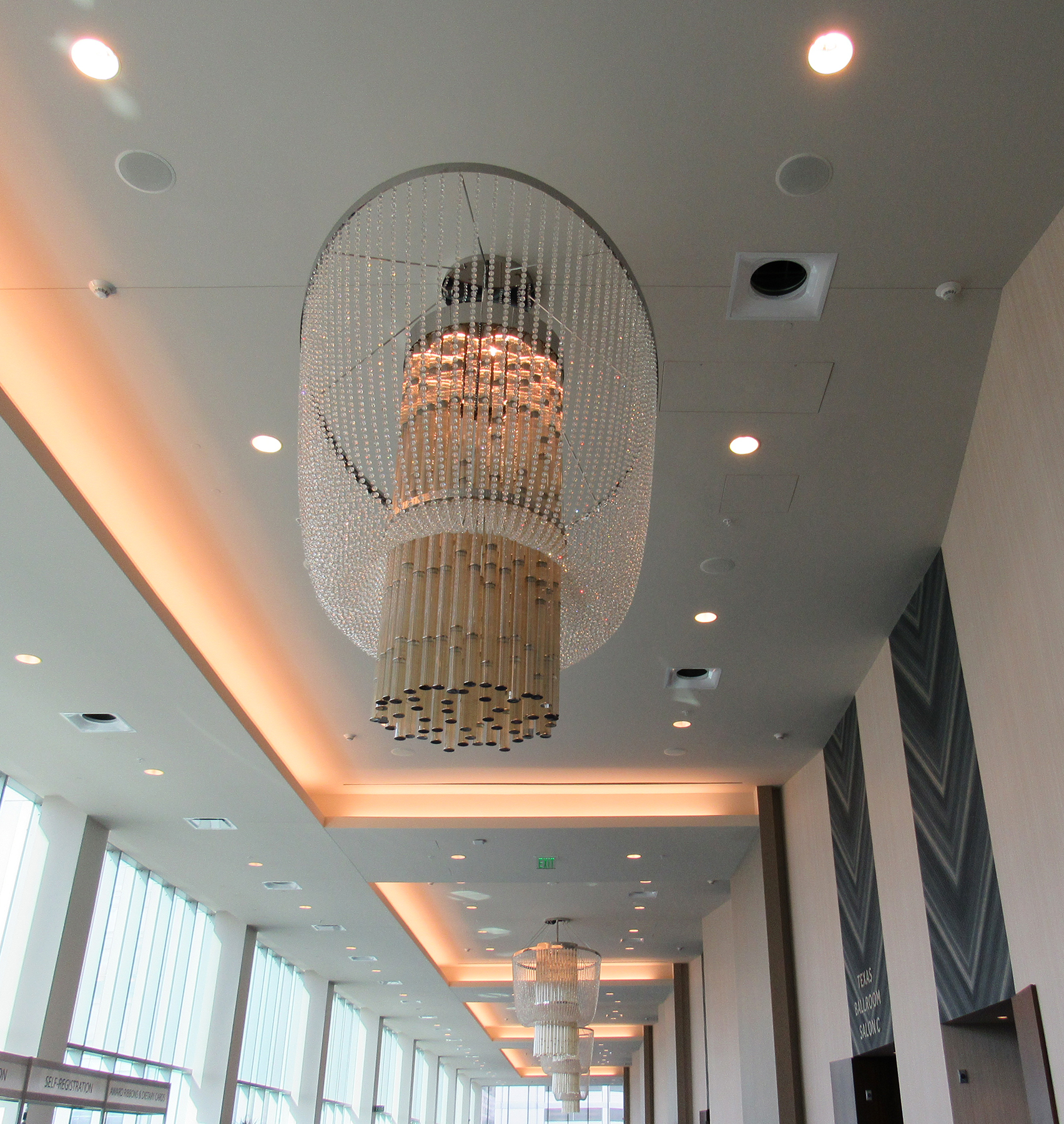

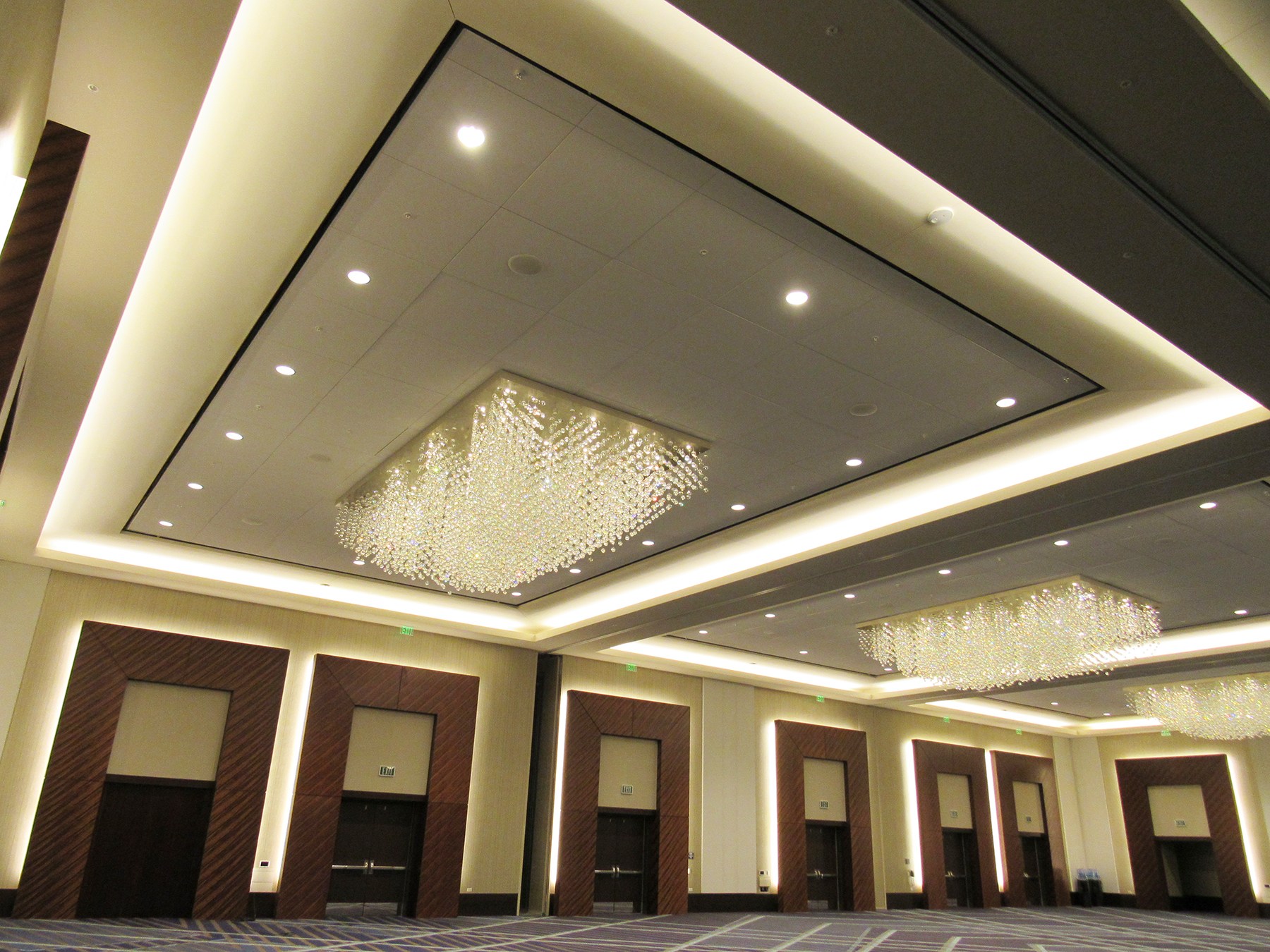

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120˚ / 105˚) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.
Specifications
| Weatherized | No |
| HF Transducer | 35 mm compression driver |
| Frequency Range (-10 dB)¹ | 40 - 20kHz |
Specifications |
|
| Max. SPL/1m (calc)² | 108 db avg, 114 pkdB |
| LF Transducer | 200 mm (8 in) |
| Power Rating | 200W |
| HF Power Handling | 200W program, 100W pink noiseWatts |
| Connector Type | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size |
| Enclosure Material | ABS plastic (UL94V-0) baffle, steel back can |
| Grille | Color-matched steel grille with fabric |
| Sensitivity 1 W/1 m | 88dB |
| Available Color | White |
| Height | 324mm (12.76") |
| Weight Net | 8kg (17.64 lbs) |
| Shipping Weight | 20.23kg (44.6 lbs) |
| Mounting Systems | C ring, tile bridge |
| Impedance | 8Ω |
| Cutout Size | 294.3mm (11.59") |
| Regulatory Approvals | UL1480; UL2043 |
| Diameter (Max) | 327mm (12.87") |
| Transformer Taps (Transformer Version Only) | 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω |
| Coverage (Nominal -6 dB) | 100° |
Recommended Amplifiers
As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.
For optimal sound system performance, Electro-Voice recommends the following amplifiers.
|
Two-channel power amplifiers for fixed install |
Multi-channel power amplifier for commercial installations |
CPS contractor precision series amplifiers |
PA series multi-channel power for fixed install applications |
|
|---|---|---|---|---|
| Two-Channel | ✓ | |||
| Multi-Channel | ✓ | ✓ | ✓ | |
| powerTANK | ✓ | |||
| DSP | ✓ | |||
| Direct Drive | ✓ | ✓ | ✓ | |
| OMNEO (Dante, OCA) | ||||
| Installation | ✓ | ✓ | ✓ | ✓ |
