ELX200-12SP

12インチ・パワード・サブウーファー

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • EV QuickSmart Mobileアプリケーション: 最大6台のELX200ラウドスピーカーを同時に迅速かつワイヤレスで構成、コントロール、モニタリングし、重大なパフォーマンス条件時には即時に通知を受信します。
  • Bluetoothを使用できない国もあります。
  • QuickSmartDSPは、クラス最高の処理能力を実現
  • 3種類のプリセット、サブ/トップシステム・マッチ、ユーザーがプログラム可能な5種類のプリセット、リミッターのステータスのビジュアル・モニタリング、入力レベルのコントロールとメーター、ゲイン構造を最適化するマスター・ボリューム・コントロールを使用し、いずれもLCDから容易にセットアップできます。
  • 高効率1,200 WクラスDパワーアンプは、EVが設計・開発した超効率的な高感度トランスデューサーを利用すると、最大129 dBのピークSPLを実現
  • ポータブル用途と設備向け途に最適

ELX200-12SPは、高効率クラスDパワーアンプ (最大1,200 W) と統合型QuickSmartDSPを備えており、EVが設計・開発したトランスデューサー (12インチEVS-12Lウーファー) を利用すると、最大129 dBのSPLを実現。

パワード・サブウーファー・モデルは、3種類のプリセット (Music、Live、Club)、サブ/トップシステム・マッチ・クロスオーバー、スリーバンドEQ、ユーザーがプログラム可能な5種類のプリセット (StoreとRecall設定)、リミッターのステータスのビジュアル・モニタリング、入力レベルのコントロールとメーター、ゲイン構造を最適化するマスター・ボリューム・コントロールを使用して容易にセットアップできます。

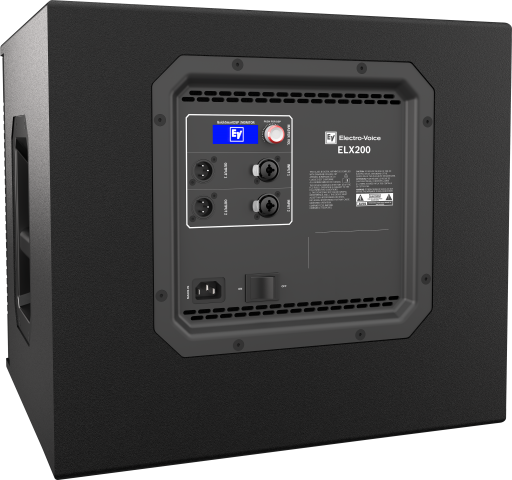

ELX200パワード・モデルは、軽量かつコンパクトな15 mm木製エンクロージャー、統合型M20ネジ山付きポールマウント・プレート、持ち上げやすい2ハンドル・デザインによって、ポータブル用途と設備向け途に最適です。

新しいQuickSmart Mobileワイヤレスコントロールとモニタリング・アプリケーションは、BTLE (Bluetooth Low Energy) テクノロジーを用いて、システムを直感的にコントロールし、最大6台のパワードELX200ラウドスピーカーを同時に構成・モニタリングします。

システムがオーバードライブ状態になった場合にアラートを受信し、スピーカーの後ろではなく前にあるシステムをコントロールします。

Bluetoothを使用できない国もあります。

Specifications

Speaker Type Subwoofer
Woofer Size 12inch
Powered or Passive Powered

Frequency Response (-3 dB)¹ 49 Hz – 135Hz
Frequency Range (-10 dB)¹ 41 Hz – 165 Hz
Max. SPL/1m (calc)² 129dB
LF Transducer EVS-12L 300 mm (12 in)
Power Rating 1200W

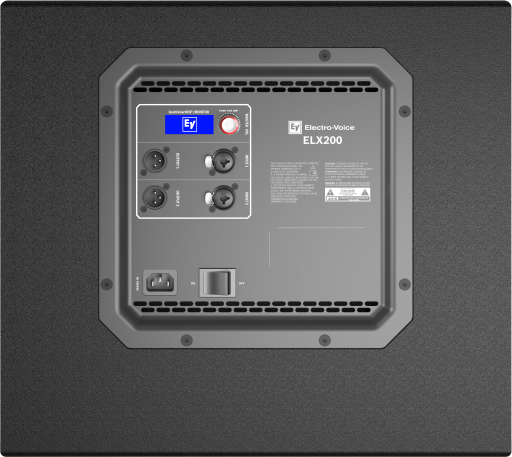

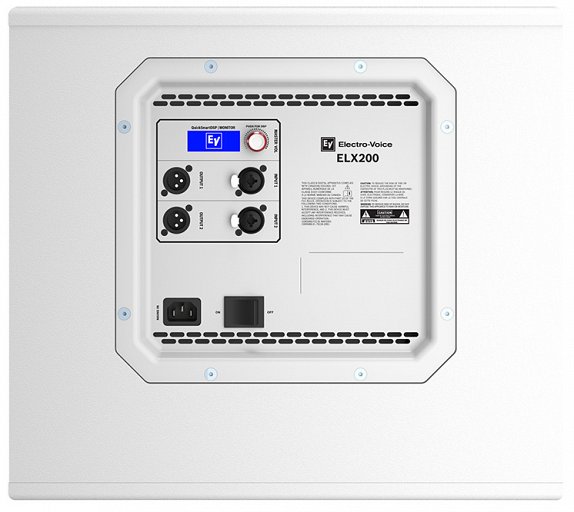

Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Available Color Black or White
Height 397mm (15.63")
Width 445mm (17.52")
Depth 457mm (17.99")
Weight Net 19.1kg (42.11 lbs)
Shipping Weight 22.3kg (49.16 lbs)
Power Consumption³ 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A
Family ELX200
Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
