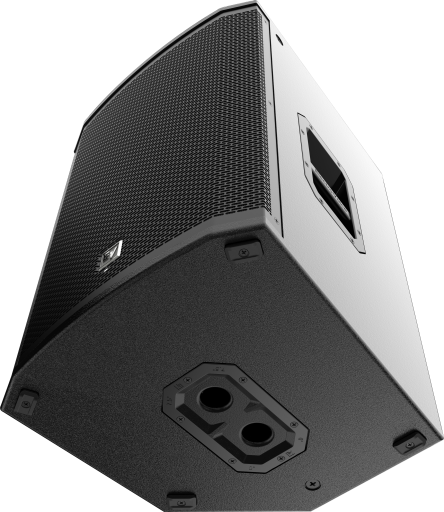

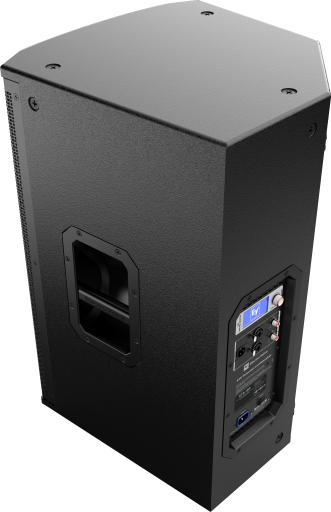

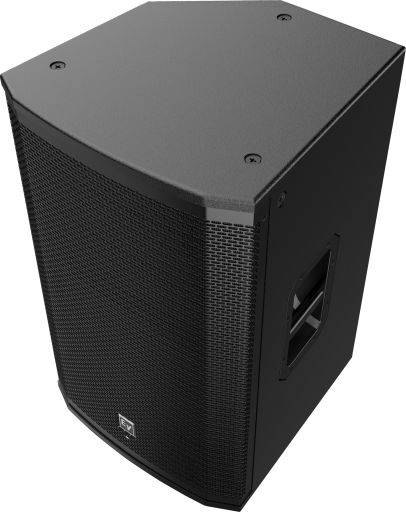

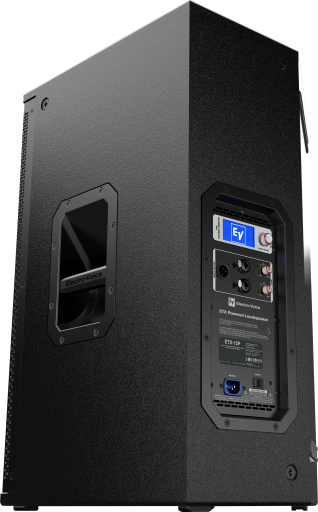

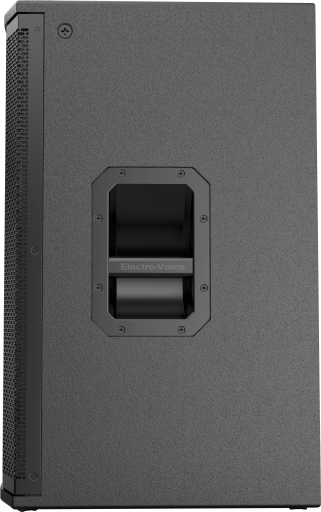

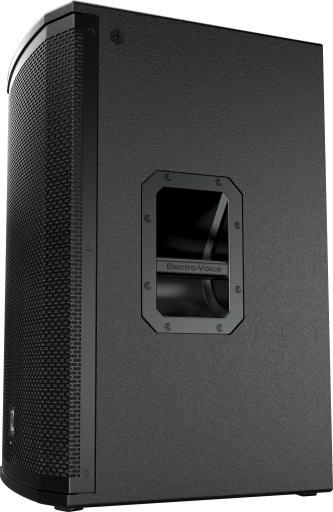

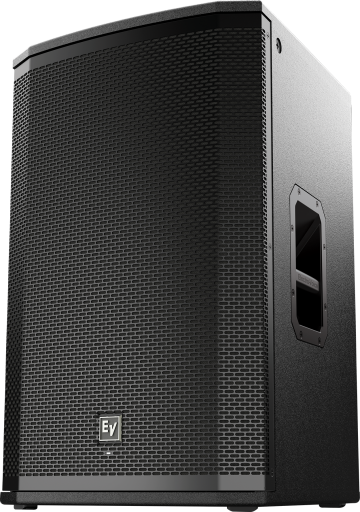

ETX-15P
15"" 2ウェイ・パワード・ラウドスピーカー
- 15インチLF SMXウーファー
- 1.25インチHFチタン製コンプレッションドライバー
- 統合型FIR-Drive DSPを組み合わせた2,000 WクラスDパワーアンプ
- ピークSPL 135 dB
Specifications
| Suspension | (8) M10 suspension points |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Speaker Type | Full-Range, two-way, powered speakers |
Specifications |
|
| Woofer Size | 15inch |
| Powered or Passive | Powered |
| Frequency Range (-10 dB)¹ | 40 Hz – 20 kHz |
| Max. SPL/1m (calc)² | 135dB |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 60° |
| LF Transducer | SMX2150 380 mm (15 in) |
| Power Rating | 2000W |
| Crossover Frequency | 1500Hz |
| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 691mm (27.2") |
| Width | 431mm (16.97") |
| Depth | 447mm (17.6") |
| Weight Net | 27.7kg (61.07 lbs) |
| Frequency Response (-3 dB) | 48 Hz – 20 kHz |
| Shipping Weight | 31.5kg (69.45 lbs) |
| Power Consumption³ | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Family | ETX |
| Maximum SPL | 135 dB peakdB |
