ELX200-18SP
18英寸有源超低频扬声器
Specifications
| Speaker Type | Subwoofer |
| Woofer Size | 18 |
| Powered or Passive | Powered |
| Frequency Response (-3 dB)¹ | 47 Hz – 105 |
| Frequency Range (-10 dB)¹ | 40 Hz – 145 Hz |
| Max. SPL/1m (calc)² | 132 |
Specifications | |
| LF Transducer | EVS-18L 457 mm (18 in) |
| Power Rating | 1200 |

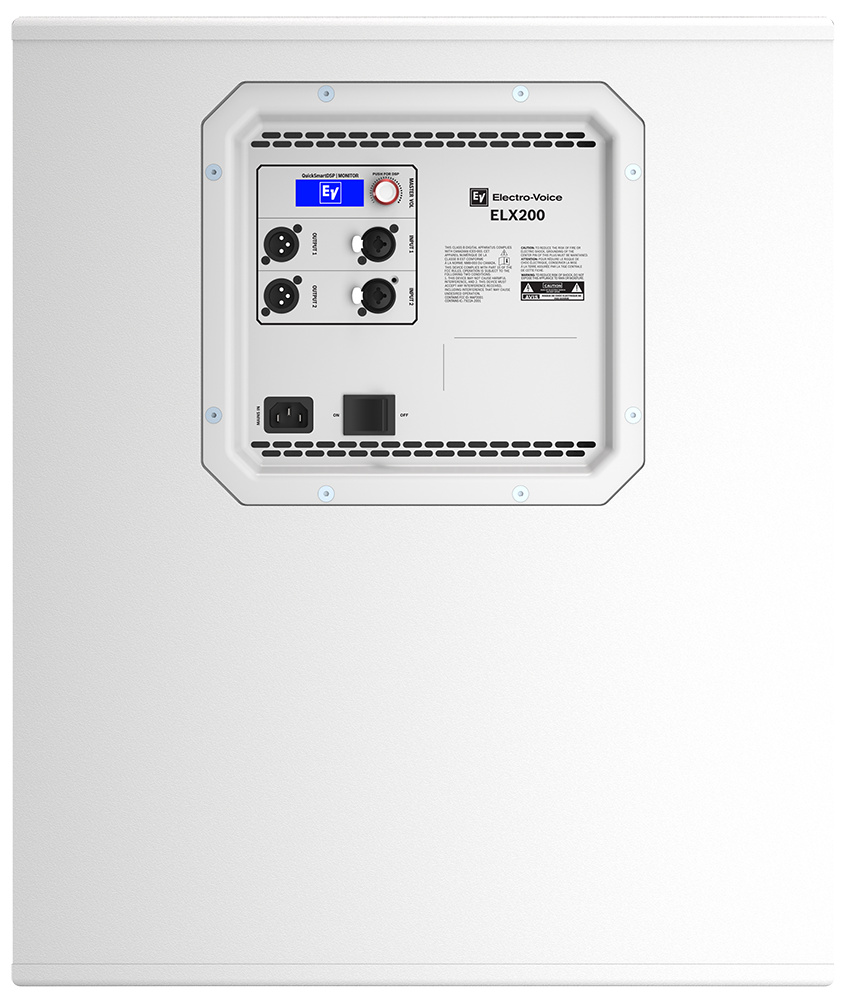

| Connector Type | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure Material | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Available Color | Black or White |
| Height | 600 |
| Width | 507 |
| Depth | 574 |
| Weight Net | 29 |
| Shipping Weight | 33.1 |
| Power Consumption³ | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A |
| Family | ELX200 |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
Videos
ELX200 Portable Loudspeakers
QuickSmart Mobile
Downloads
Technical Documentations
Certification/Regulatory
| Name | Language & Download |
|---|---|
| Els200-Powered-Sub, Er6090818 United Arab Emirates-Tra Certificate | en |
| ELX200 (Powered Subs), ICASA, South Africa, Bluetooth Certificate TA-2017-3070 | en |
| ELX200 Portable Powered EC Declaration of Conformity Ukraine | en |
| ELX200 Powered (no BT) EU Declaration of Conformity (2023-Sep) | en en |
| ELX200 Powered (with BT) EU Declaration of Conformity (2023-Sep) | en |
| ELX200 Powered (with BT) UKCA Declaration of Conformity (2023-Sep) | en |
| ELX200 Powered EU Radio Equip (RED) Simplified DoC (2023-Sep) | en |
| Elx200 Powered Sub, Emc,10858 Chile-Subtel Certificate | en |
| Elx200 Powered, Emc, 14321 Chile-Subtel Certificate | en |
| Elx200-18Sp, Philippines-Ntc Esd-1716141C Certificate | en |
| ELX200-POWERED_BLUETOOTH_N4133-17 SINGAPORE-IMDA | en |
| ELX200-POWERED_R-RMM-B6S-ELX200 SOUTH-KOREA-NRRA | en |
| ELX200-POWERED-SUB_BLUETOOTH_N4134-17 SINGAPORE-IMDA | en |
| ELX200-POWERED-SUB_R-RMM-B6S-ELX200SUB SOUTH-KOREA-NRRA | en |
| Elx200-Powered-Sub, Elx200-Powered, Mexico-Nom Anc1901A00011168 Certificate | en |
| Elx200-Powered-Sub, Emc, Cmiit Id: 2018Dj4858 Certificate China-Srrc | en |
| Elx200-Powered-Sub, Emissions, Indonesia-Mcit 56866Sdppi2018 Certificate | en |
| Elx200-Powered-Sub, India-Eta Eta-160717-Rlo(Ne).Pdf Certificate | en |
| Elx200-Powered-Sub, Letter of Exemption No. 034/Cnhq-18 Certificate Vietnam-Mic | en |
| Elx200-Powered-Sub, Malaysia-Sirim E065528 Certificate | en |
| Elx200-Powered-Sub, Mexico-Ift Ift-223-Ucs-Dg-Ause-4652-2017 Certificate | en |
| Elx200-Powered, Emc, Cmiit Id: 2018Dj4882 Certificate China-Srrc | en |
| Elx200-Powered, Emissions, Indonesia-Mcit 56017Sdppi2018 Certificate | en |
| Elx200-Powered, Er6090718 United Arab Emirates-Tra Certificate | en |
| Elx200-Powered, Eta-160617-Rlo(Ne) India-Eta Certificate | en |
| Elx200-Powered, Letter of Exemption No. 035/Cnhq-18 Certificate Vietnam-Mic | en |
| Elx200-Powered, Malaysia-Sirim E065525 Certificate | en |
| Elx200-Powered, Mexico-Ift 2018Lab-Ance05867 Certificate | en |
| Elx200-Powered, Mexico-Ift Ift-223-Ucs-Dg-Ause-4652-2017 Certificate | en |
| Elx200-Powered, Vu20180823-010951 Uruguay-Ursec Certificate | en |
| Elx200, Emissions, Letter of Exemption No. 090-Cv/St2017 Certificate Vietnam-Mic | en |
| Elx200, Peru-Mtc Emissions, 7300-2017-Mtc-29 Certificate | en |
| Etsi, Elx200-18Sp, Erm, Certificate No. 07688-Sutel-Dgc-2017 Certificate | en |
Engineering Data Sheet
Manual
Service Policies
Software, Firmware & Design Tools
Drawing
| Name | Language & Download |
|---|---|
| ELX200-18SP SIMPLIFIED CAD Drawing | Download |
