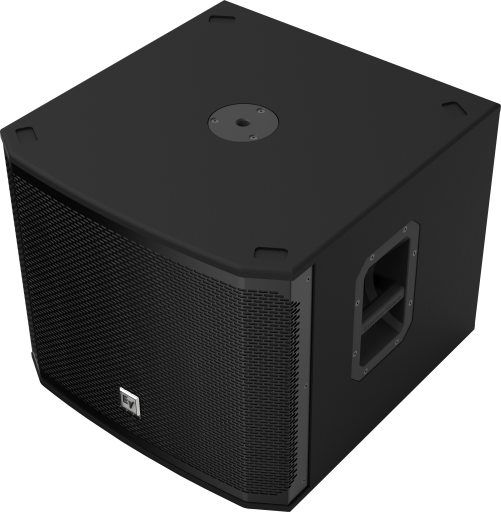

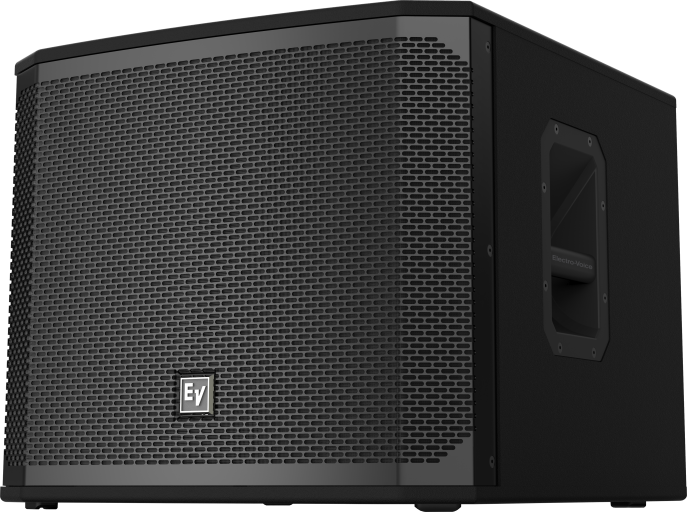

EKX-15S

15" passive subwoofer

Summary & Images Specs Downloads & Support

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.

Technische Daten

Frequency Range (-10 dB)	40 Hz - 300kHz (Half Space Measurement)
Minimum Impedance	7.5Ω
Speaker Type	Subwoofer
Technische Daten

Woofer Size	15inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	60 Hz - 100Hz (Half Space Measurement)
Max. SPL/1m (calc)²	133dB
LF Transducer	EVS-15C 381 mm (15 in)
Power Rating	1600W
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	455mm (17.91")
Recommended High-Pass Frequency	35Hz
Width	530mm (20.87")
Depth	551mm (21.69")
Weight Net	24.9kg (54.9 lbs)
Shipping Weight	31.3kg (69 lbs)
Family	EKX
Passive Power Handling	1600W peak
Nominal Impedance	8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)	95dB
Power Handling (Continuous / Peak)	400 W/1600W
Maximum SPL	133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)

Videos

EKX Loudspeaker Overview

EKX Portable Loudspeakers by Electro-Voice

EKX Portable Loudspeakers Preview

In Search of Excellent Audio & Video

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for EKX-15S.

	Dynacord C‑Series Two‑Channel Power Amplifiers for Fixed Install Erfahren Sie mehr	Dynacord L‑Series Two‑Channel Power Amplifiers for Live Sound Erfahren Sie mehr
Two-Channel	✔	✔
Multi-Channel
DSP	✔	✔
Direct Drive	✔	✔
OMNEO (Dante, OCA)
Installation	✔
Live Sound		✔
