EVF-1151S
前端负载式低音单元
- EVS15SB 15”(381 mm)低频换能器;灵敏度103 dB,最高135 dB SPL;系统额定值:持续功率400 W,峰值功率1600 W;22个M10螺纹吊装点;

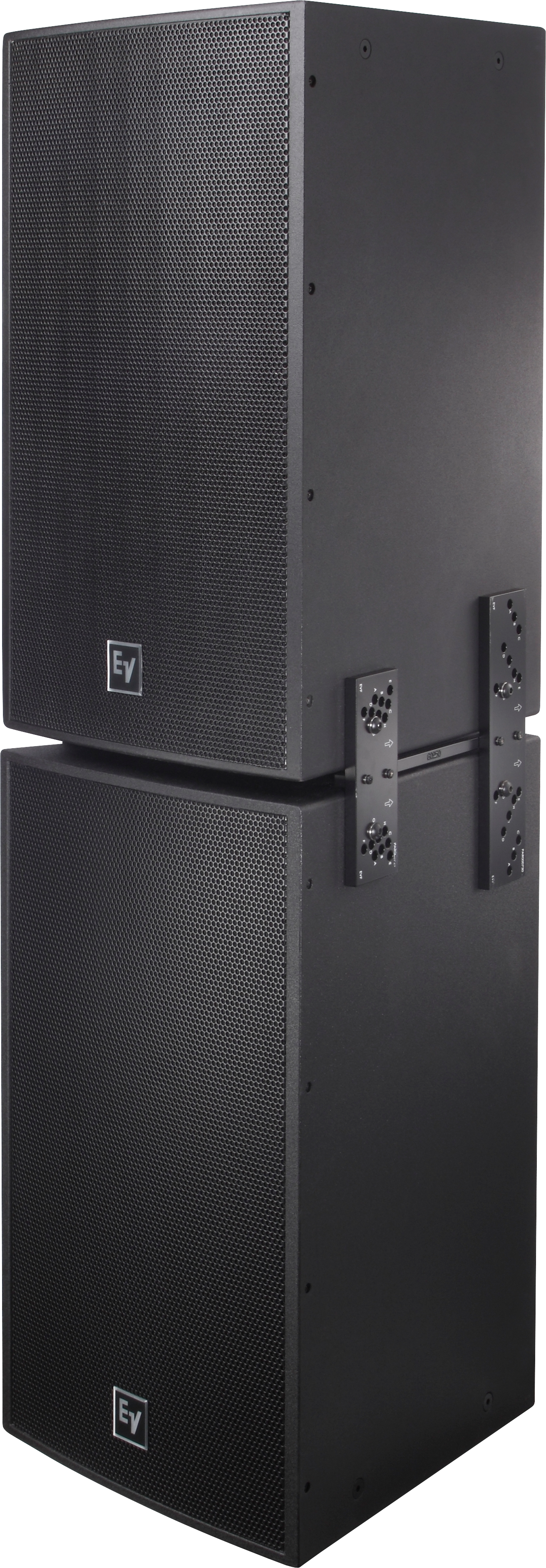

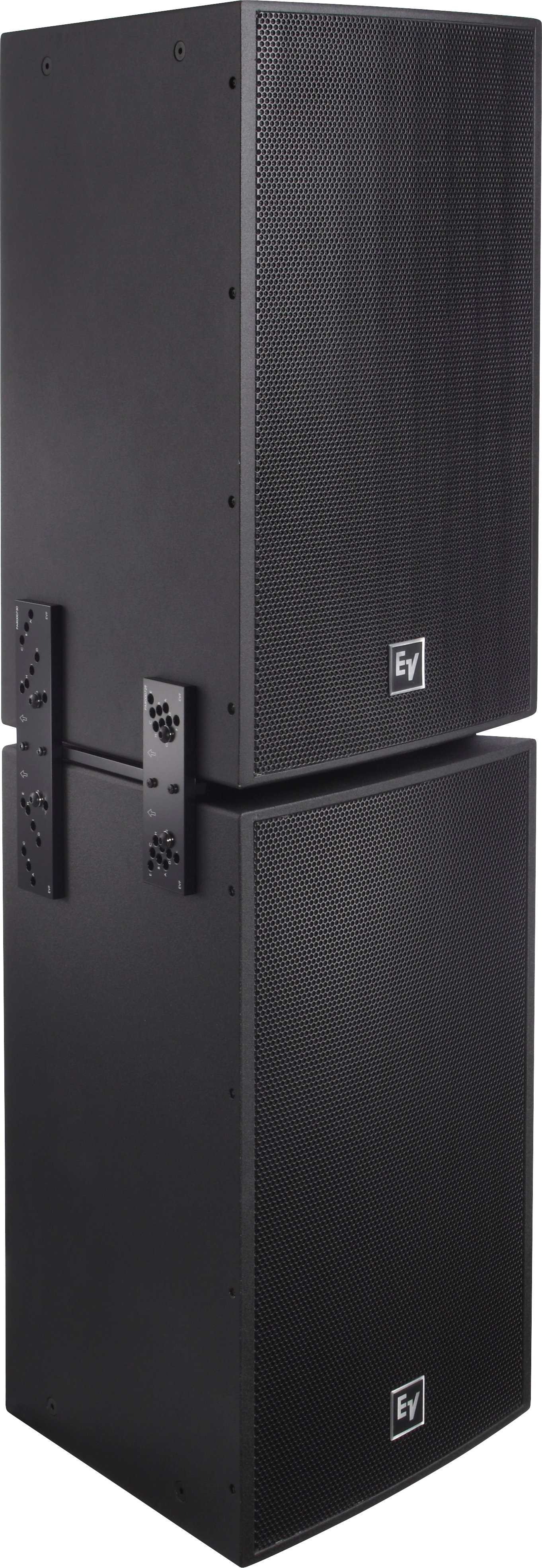

EVF-1151S 15"单低音音箱系统,低音更低,专用作EVF系列产品的低频增强单元,尺寸与全频型号完全相同,可以完美地垂直和水平堆放,成组使用。
Specifications
Frequency Range (-10 dB) | 46–124 Hz |
Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
Weatherized | No |
产品规格 |
Minimum Impedance | |
Nominal Impedance (Passive) | Passive: 4 , Biamp: 8 |
HF Transducer | |
Speaker Type | Subwoofer |
Frequency Response (-3 dB)¹ | 67–95 Hz |
Max. SPL/1m (calc)² | 131 |
Coverage (Nominal -6 dB) H | 360 |
LF Transducer | 15" EVS15SB driver |
System Power Handling (Continuous/Program/Peak) | 400 , 800 , 1600 |
Enclosure Material | 13-ply weather-resistant birch |
Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind |
Sensitivity 1 W/1 m | 99 |
Height | 768.6 |
Recommended High-Pass Frequency | 35 |
Width | 470 |
Depth | 467 |
Weight Net | 28.4 |
Available Coverage Patterns (Nominal -6 dB) HxV | Omnidirectional in normal operating range |
Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
Internal Passive Crossover Frequency | |
Internal Passive Low-Pass Filter | 100 (12 dB per octave) |
Coverage (Nominal -6 dB) | Omnidirectional in normal operating range |
Passive Power Handling | 1600 |
Net Weight | 62.6 lb (28.4 kg) |
Dimensions (H x W x D) | 30.26" x 18.5" x 18.4" (768.6 x 470 x 467 ) |
Input Connections | Euroblock; PI and FG versions include dual gland nut input panel cover |
Similar Products
Compatible Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVF-1151S.
![]() Dynacord C‑Series更多 |
![]() Dynacord IPX Series更多 |
![]() Electro-Voice CPS Series更多 |
|
---|---|---|---|
Two-Channel | ✔ | ||
Multi-Channel | ✔ | ✔ | |
DSP | ✔ | ✔ | |
Direct Drive | ✔ | ✔ | ✔ |
OMNEO (Dante, OCA) | ✔ | ||
Installation | ✔ | ✔ | |
Live Sound | ✔ |
