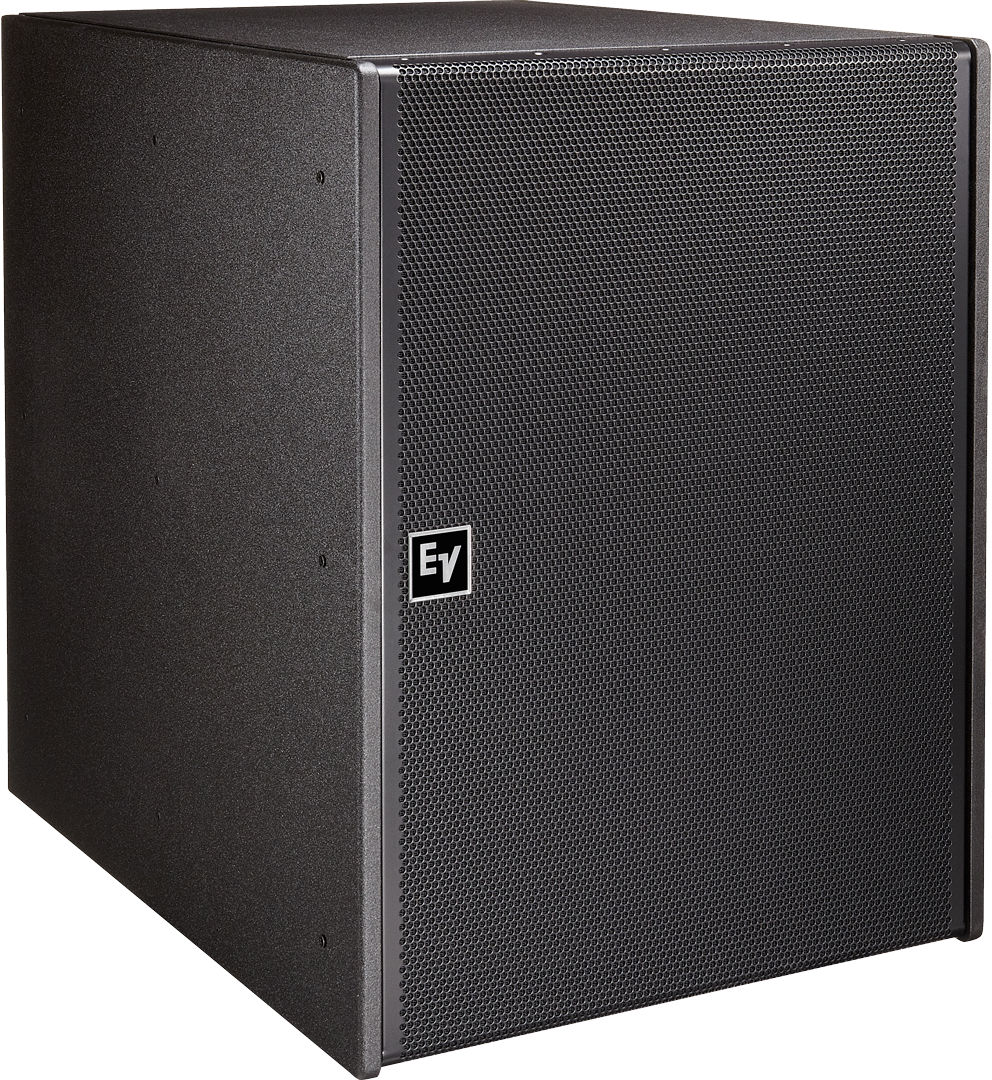

EVA-2151D
双15”，高输出低音音箱
- 两个DVX3159A低音单元，失真小，声压级高
- 灵敏度100 dB（1 W / 1 m，半场）
- 功率：1000 W（连续），4000 W（峰值）
- 最大声压级130/136dB（连续/峰值）
- 有两种饰面可选：EVCoat和PI
Specifications
| Frequency Range (-10 dB) | 28 - 200 (Half space) |
| Suspension | EVA grid (sold separately) |
| Minimum Impedance | 2.8 |
产品规格 |
|
| Nominal Impedance (Passive) | 4 |
| Speaker Type | Subwoofer, Line-array |
| Frequency Response (-3 dB)¹ | 200 (Half space) |
| Max. SPL/1m (calc)² | 136 (Half Space) |
| Coverage (Nominal -6 dB) H | 360 |
| LF Transducer | 2 x DVX3159A |
| Coverage (Nominal -6 dB) V | omnidirectional |
| System Power Handling (Continuous/Program/Peak) | 1000/2000/4000 |
| Crossover Frequency | 100 (active) |
| Enclosure Material | Birch Plywood |
| Grille | 16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth |
| Sensitivity 1 W/1 m | 100 (Arithmetic average, 55-100Hz, half space measurement. ) |
| Height | 930.4 |
| Width | 597 |
| Recommended High-Pass Frequency | 32 (24dB per Octave BW, Half Space) |
| Depth | 792.5 |
| Weight Net | 80.8 |
| Input Connections | Phoenix Euroblock |
| Passive Power Handling | 4000 |
Videos
EV Applications
EV Innovation
EV Innovation – Installed Performance Loudspeaker Portfolio Webinar
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVA-2151D.
Dynacord C‑Series更多 |
Dynacord IPX Series更多 |
Electro-Voice CPS Series更多 |
|
|---|---|---|---|
| Two-Channel | ✔ | ||
| Multi-Channel | ✔ | ✔ | |
| DSP | ✔ | ✔ | |
| Direct Drive | ✔ | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ||
| Installation | ✔ | ✔ | ✔ |
| Live Sound |
下载
Technical Documentations
A/E Specification
Certification/Regulatory
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| EVA-2151D Engineering Data Sheet | EN |
Manual
Service Policies
| Name | Language & Download |
|---|---|
| Service Policies for China | EN |
White Paper
| Name | Language & Download |
|---|---|
| Advanced Line Array Design With LAPS II | EN |
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| EASE Data Explanation | EN |
| Going Around the Corner: Setting Up Multiple Line Arrays for Wide Venues | EN |
| Introduction to Line Array Acoustics & Modeling | EN |
| Line Arrays- History & Theory | EN |
| PA Bible 02: Power Handling Capacity | EN |
| PA Bible 20: So You Want to Use a Line Array? | EN |
| Subwoofer Arrays: A Practical Guide | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
Software, Firmware & Design Tools
Drawing
| Name | Language & Download |
|---|---|
| EVA–2151D CAD | Download |
EASE/CLF
| Name | Language & Download |
|---|---|
| EV EVA V2.2 - EASE Focus Enabled | Download |
PREVIEW Loudspeaker Software
| Name | Language & Download |
|---|---|
| Electro-Voice PREVIEW MacOSX v3.1 | Download |
| Electro-Voice PREVIEW Windows v3.1 | Download |
| PREVIEW-macOS Installation Security Configuration | Download |
Marketing Materials
Flyer
| Name | Language & Download |
|---|---|
| System solutions Medium house of worship | Download |

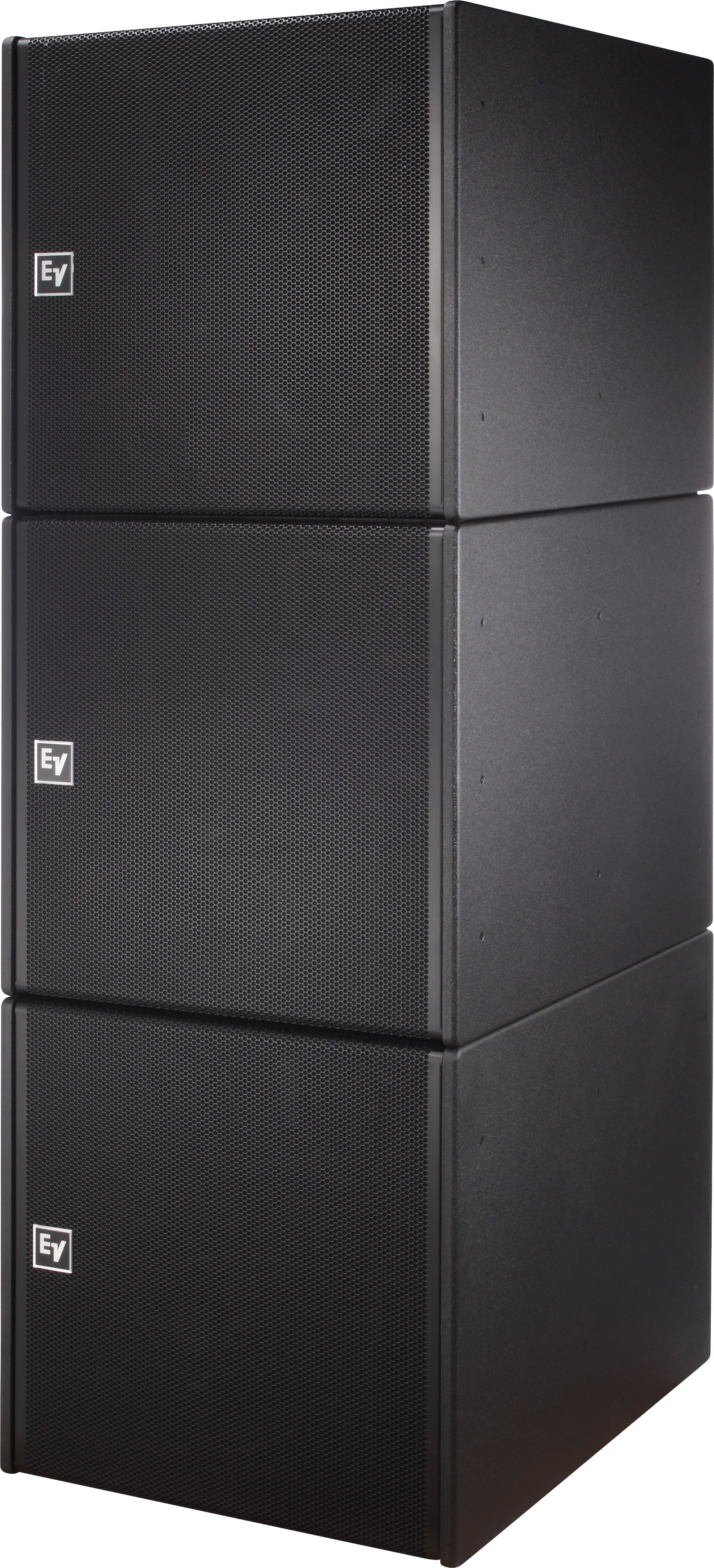

Product Image
