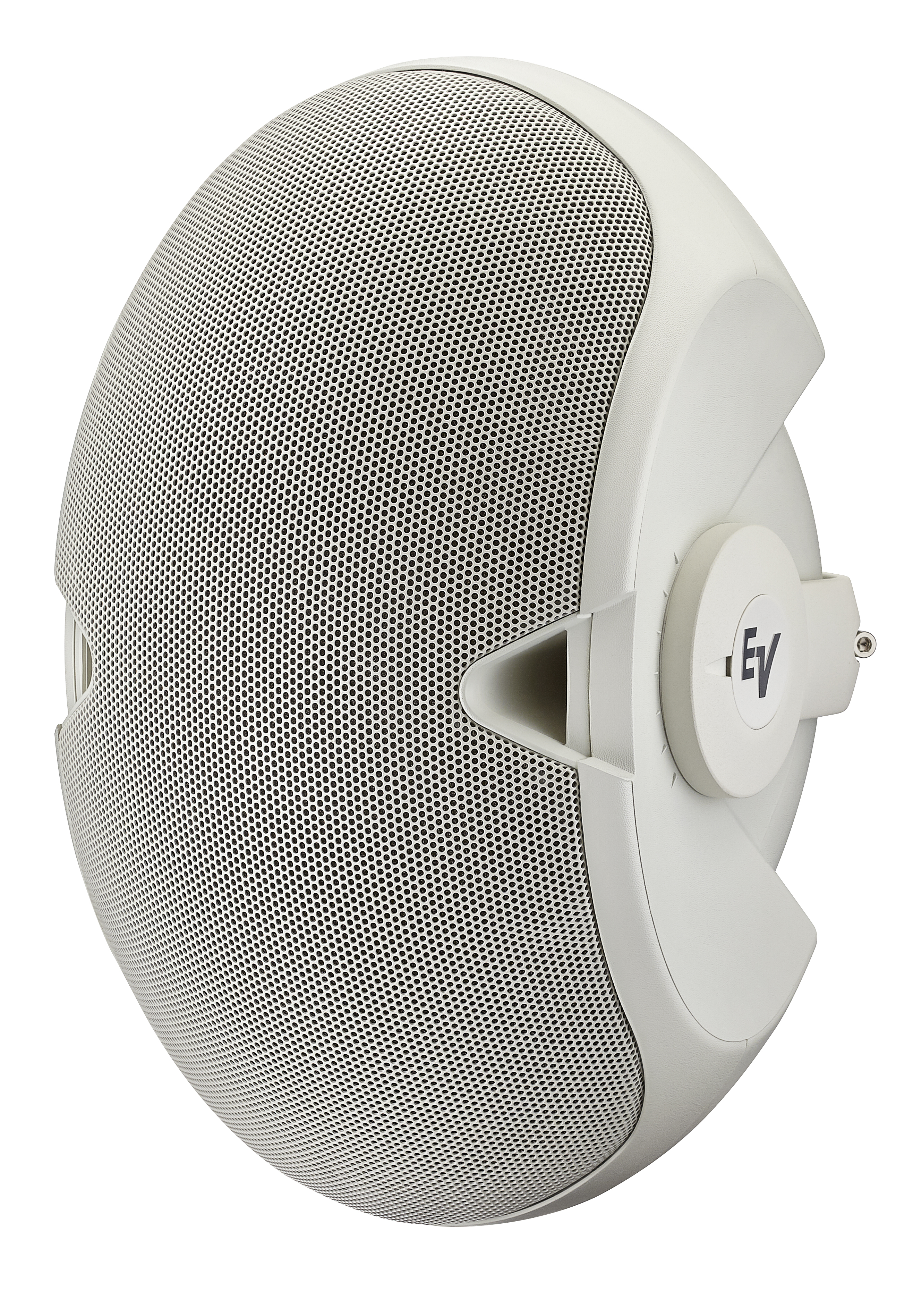

EVID 6.2
Evid 双6“表面安装扬声器系统
- 双路高输出全频扬声器；开放式低音音箱；灵敏度高；1”钕磁结构钛膜音圈；高频段采用相干覆盖波导管以最大限度降低干扰；针对高低音的全频带过载保护；立体椭圆设计，结构紧凑；防磁设计，适合与视频监控配合使用；随附强臂安装支架（SAM）和内六角扳手；用于SAM的吊装接插件；背面有安全吊装点

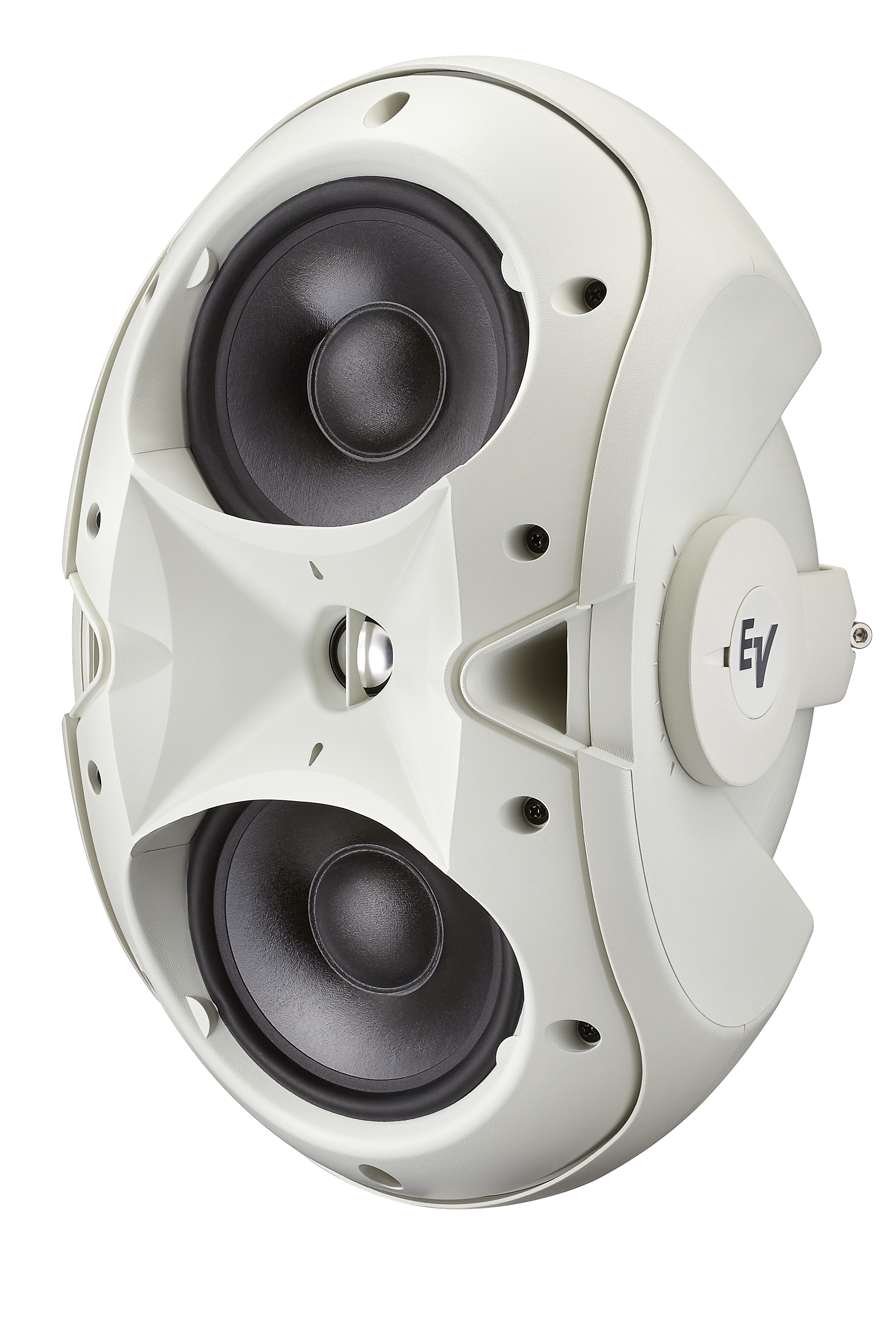

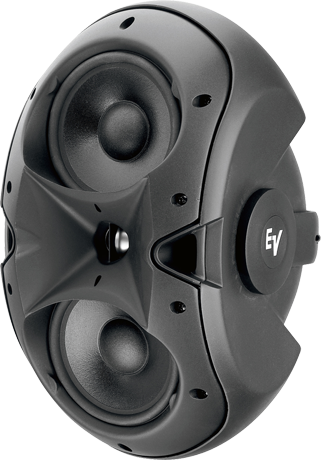

EVID 6.2由两个6“低频驱动和一个1“波导管组成。它最适用于需要在较大空间播放声音的应用场合。灵活的强臂安装支架系统，可以应对任何安装难题。
Specifications
| Frequency Range (-10 dB) | 62 - 20000 |
| Weatherized | Yes |
| Minimum Impedance | 6 |
产品规格 |
|
| Nominal Impedance (Passive) | 8 |
| HF Transducer | 1-inch |
| Speaker Type | Full-Range, Mid-High, Two-Way |
| Max. SPL/1m (calc)² | 122 |
| Coverage (Nominal -6 dB) H | 100 |
| LF Transducer | Two 6-inch |
| Coverage (Nominal -6 dB) V | 80 |
| Power Rating | 600 |
| System Power Handling (Continuous/Program/Peak) | 150//600 |
| LF Power Handling | Two 6-inch |
| HF Power Handling | 1-inch |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 94 |
| Height | 419 |
| Width | 228 |
| Internal Crossover | Yes |
| Depth | 298 |
| Weight Net | 5.3 |
| Input Connections | Spring Terminal |
| Transformer Taps (Transformer Version Only) | 70 V/100 V: 15 W, 30 W, 60 W, 8ω Bypass |
| Chassis Size | 152.4 |
Videos
EVID Overview
EVID Speaker Line & PA Series @ InfoComm 2009
In Search of Excellent Audio & Video
Recommended Amplifiers
As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.
For optimal sound system performance, Electro-Voice recommends the following amplifiers.
|
Two-channel power amplifiers for fixed install |
Multi-channel power amplifier for commercial installations |
CPS contractor precision series amplifiers |
PA series multi-channel power for fixed install applications |
|
|---|---|---|---|---|
| Two-Channel | ✓ | |||
| Multi-Channel | ✓ | ✓ | ✓ | |
| powerTANK | ✓ | |||
| DSP | ✓ | |||
| Direct Drive | ✓ | ✓ | ✓ | |
| OMNEO (Dante, OCA) | ||||
| Installation | ✓ | ✓ | ✓ | ✓ |
下载
Technical Documentations
| Name | Language & Download |
|---|---|
| EVID Surface-Mount (8 ohm) UKCA Declaration of Conformity (2023-Sep) | EN |
| EVID Surface-Mount with Transformer UKCA Declaration of Conformity (2023-Sep) | EN |
| Zx5-60Piw, Sx300Piw, Xlci127Dvx, Evid 6.2T, Evf-1122Spiw, Iec 60529 Dust & Water Intrusion Certificate No. 40471-2-4 Certificate | EN |
| Name | Language & Download |
|---|---|
| EVID 6.2 Engineering Data Sheet | EN |
| Name | Language & Download |
|---|---|
| AB-ZE Array Bracket User Instructions | EN |
| EVID Accessories | EN |
| EVID Design & Installation Reference Guide | EN |
| EVID Surface Mount Loudspeakers Installation Manual | EN |
| EVID VS Series Installation Instructions | EN |
| FMK Installation Guide | EN |
| RR, RPK Series Assembly & Installation Instructions | EN |
| Name | Language & Download |
|---|---|
| Service Policies for China | EN |
Software, Firmware & Design Tools
| Name | Language & Download |
|---|---|
| EVID-6.2.rfa | Download |
| Name | Language & Download |
|---|---|
| EVID 6.2 CAD Drawing | Download |
| Name | Language & Download |
|---|---|
| EVID GLL V1.0 | Download |
| Name | Language & Download |
|---|---|
| EVID Arrayshow | Download |
