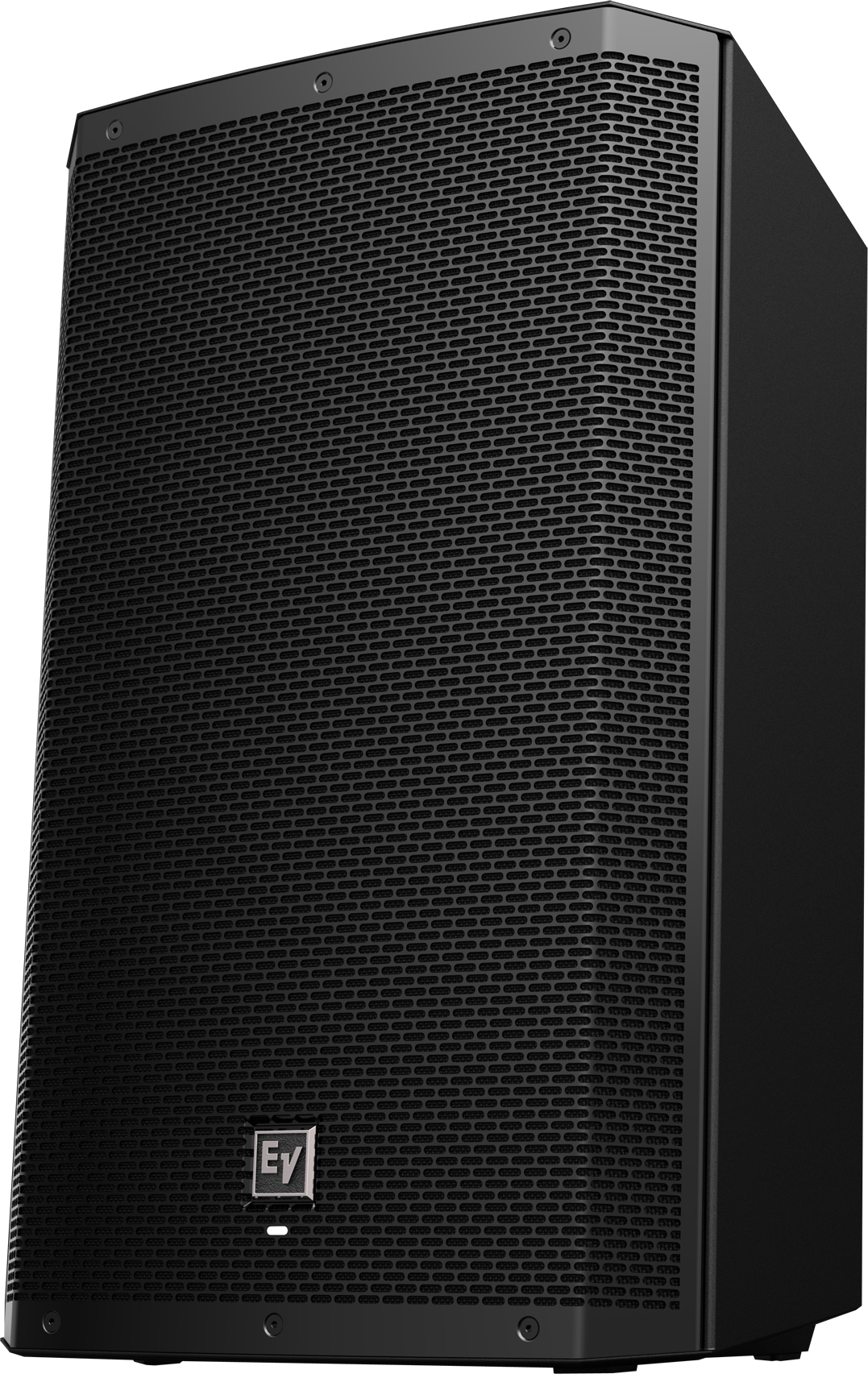

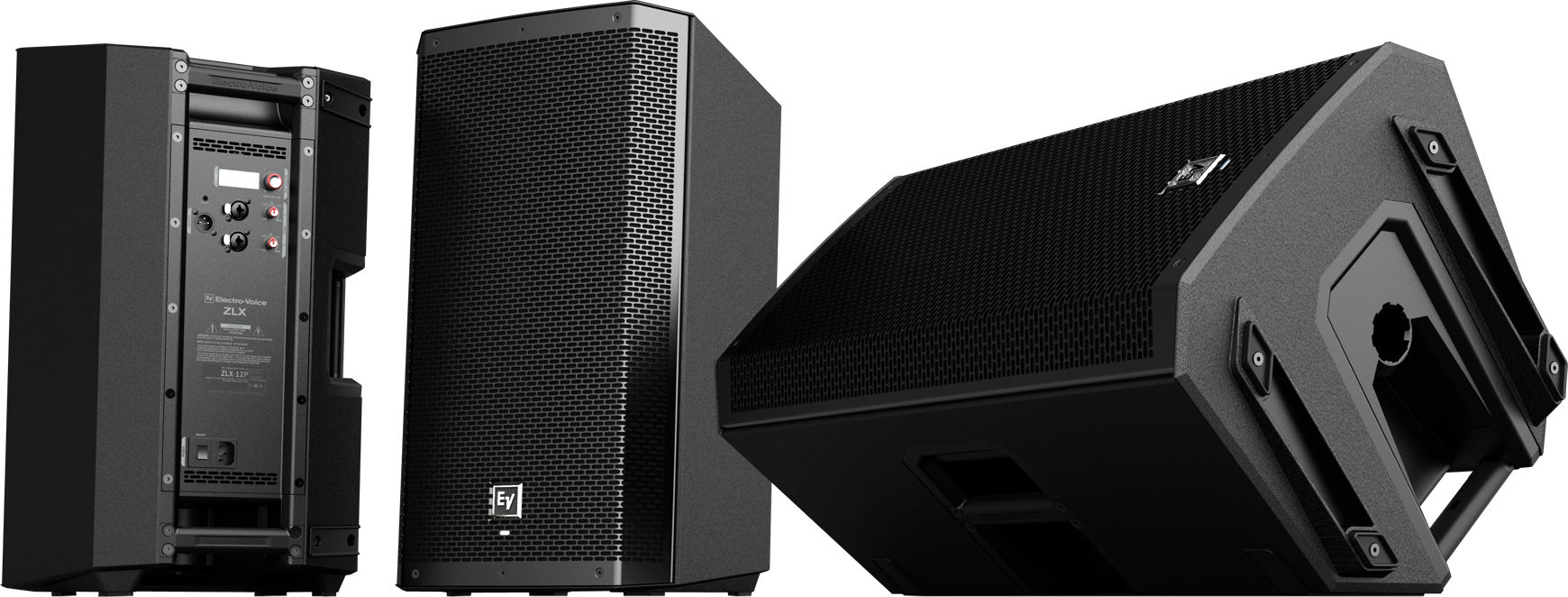

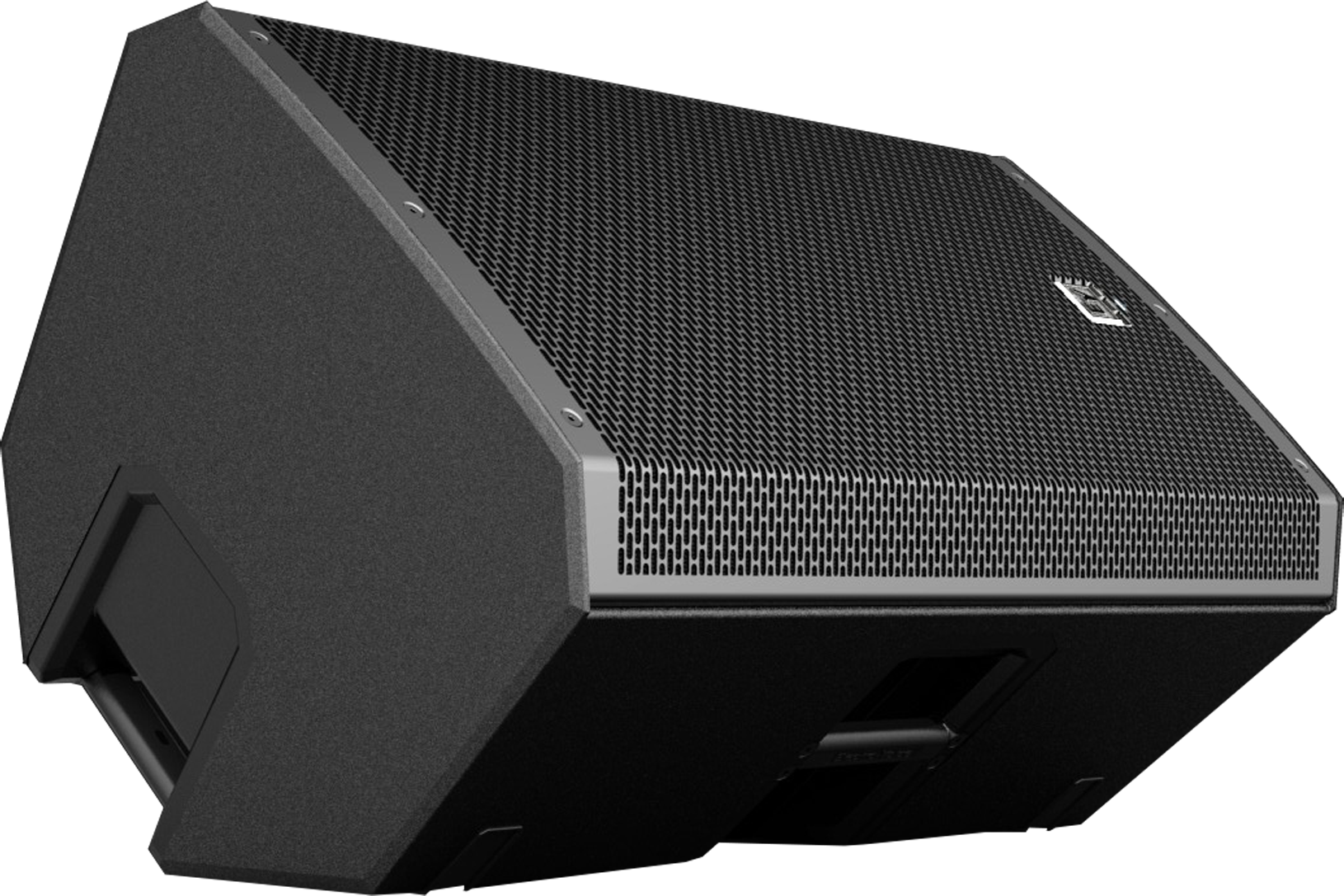

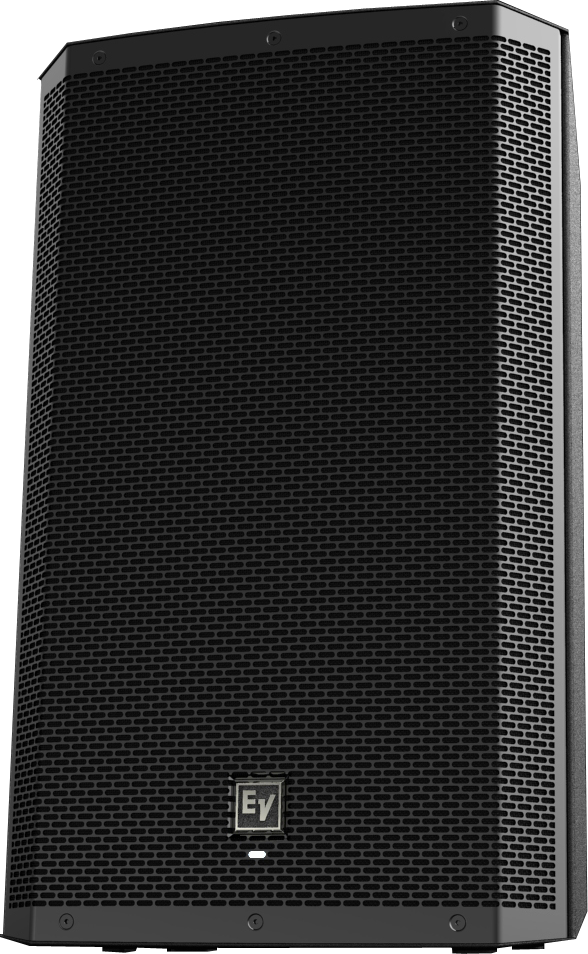

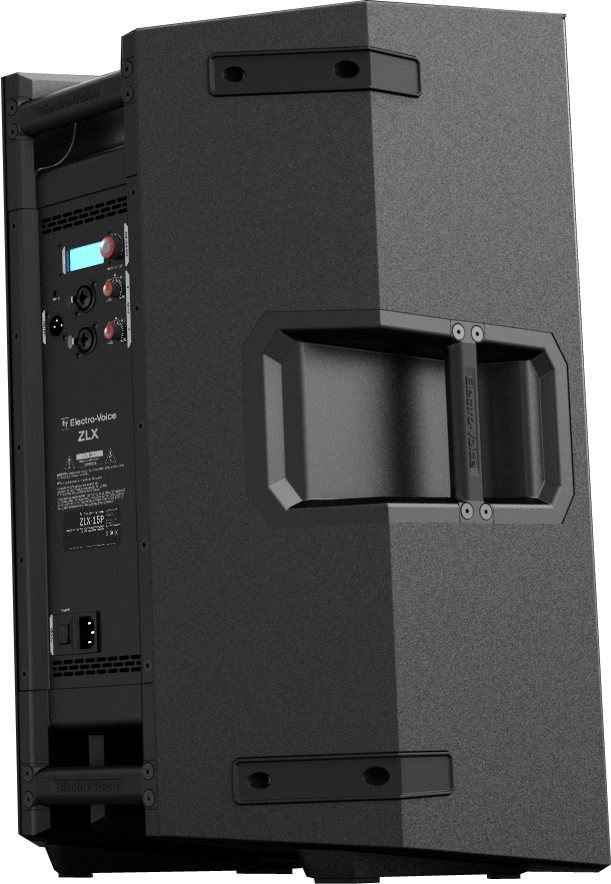

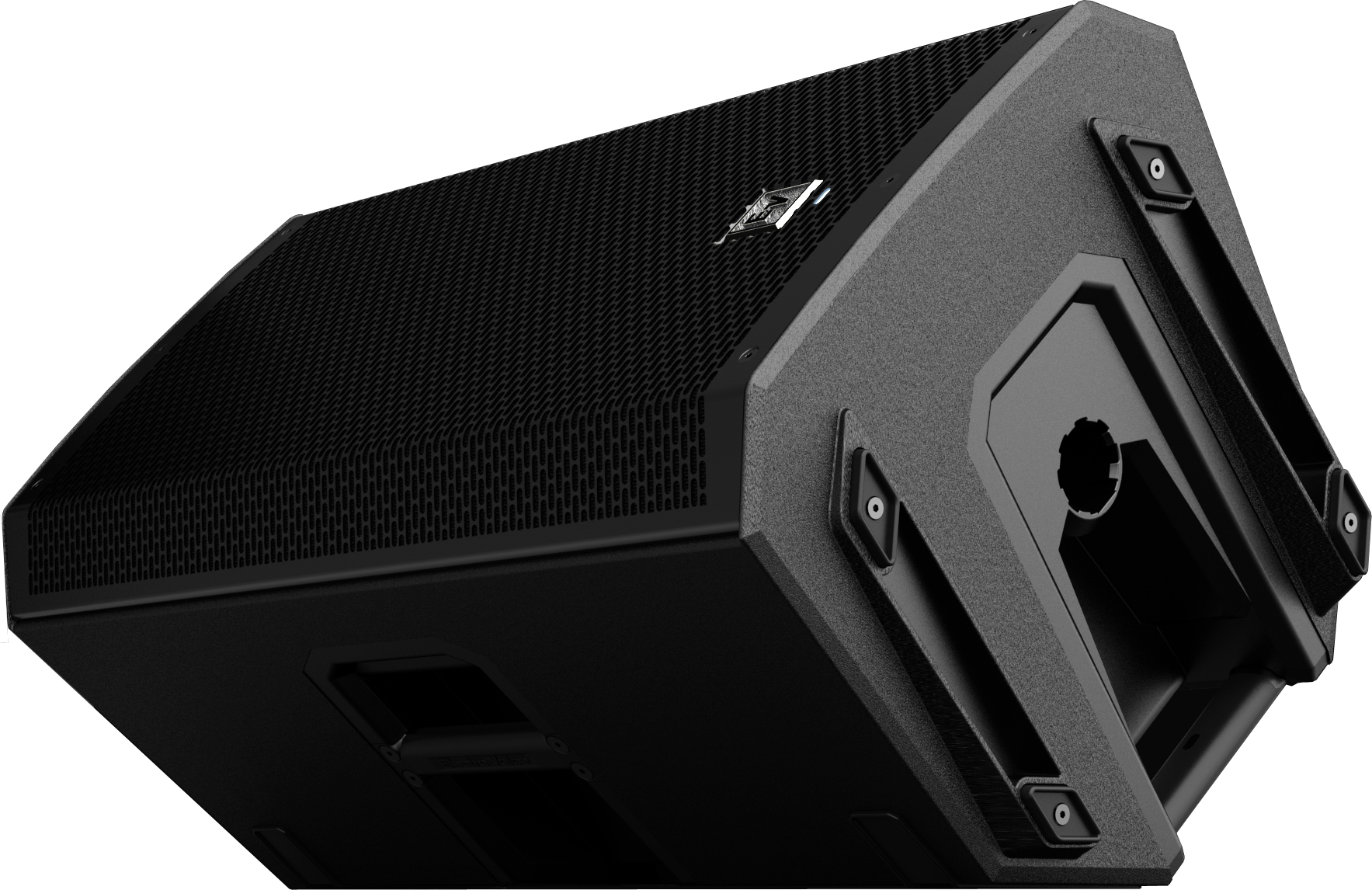

ZLX-15P

15”两分频有源音箱

Powered by Dynacord
Summary & Images Specs Downloads & Support
  • 1000W (D类);最大声压级:127 dB;42 Hz – 20 kHz
  • 15“低音单元和1.5“高频钛压缩驱动器
  • 38 磅(17.3 千克)

该便携式音箱能够扩展系统的低频下限。无论是单独使用还是同低音音箱一起使用,ZLX-15P都能为较大场合提供明亮干净的高音和结实深厚的低音,并具备足够的功率余量,确保您听到的声音既响亮又清晰。

Specifications

HF Transducer DH-1K
Speaker Type Full-Range
Woofer Size 15

Powered or Passive Powered
Frequency Range (-10 dB)¹ 42 Hz - 20 kHz
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 60
LF Transducer EVS-15L, 380 mm (15 in) Woofer
Power Rating 1000

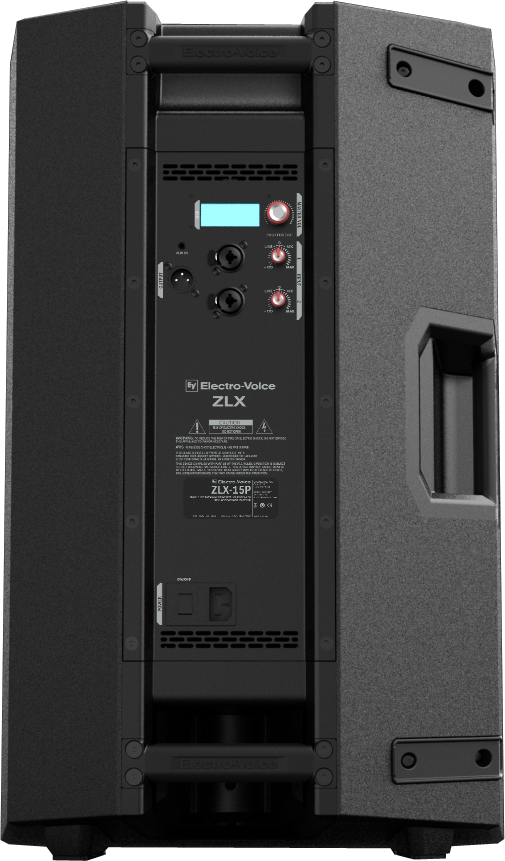

Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
Enclosure Material Polypropylene (Composite)
Grille 18 Gauge Steel with Black Powder Coat
Height 685
Width 423
Depth 383
Weight Net 17.3
Frequency Response (-3 dB) 55 Hz - 18 kHz
Shipping Weight 23
Family ZLX
Maximum SPL 127
