ETX-15P

15" powered loudspeaker

  • 15-inch LF SMX woofer
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 135 dB peak SPL

Specifications

Frequency Response (-3 dB)48 Hz – 20 kHz1
Frequency Range (-10 dB)40 Hz – 20 kHz1
Maximum SPL135 dB peak2

Coverage (H x V)90° x 60°
Power Rating2000 W
LF TransducerSMX2150 380 mm (15 in)
HF TransducerDH3-B 1.25-in titanium compression driver
Crossover Frequency1500 Hz
Connectors(2) XLR/TRS combo jack and (1) XLR link output
Enclosure18 mm, 13-ply birch plywood with EVCoat
Grille16AWG steel with powdercoat
Suspension(8) M10 suspension points
Dimensions (H x W x D)691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in)
Net Weight27.7 kg (61.1 lb)
Shipping Weight31.5 kg (69.5 lb)
Power Consumption100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3
1 Full space measurement using the music DSP preset.
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB 04.02.2019
Portable speakers catalog 2020 EMEA EN 9.22MB 01.21.2020
Portable speakers catalog 2020 NA EN 10.63MB 05.22.2020
Portable speakers catalog 2020 EMEA PL 6.77MB 05.12.2020
Portable speakers catalog 2020 EMEA FR 6.76MB 05.12.2020
Portable speakers catalog 2020 EMEA ES 6.76MB 05.12.2020
Portable speakers catalog 2020 EMEA EL 6.78MB 05.12.2020
Portable speakers catalog 2020 EMEA DE 6.76MB 05.12.2020
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
Name Size Date
ETX 15P SIMPLIFIED CAD Drawing ZIP 137KB 04.27.2018
Name Size Date
ETX ZIP 414KB 01.24.2018
Name Language Size Date
ETX15P Data Sheet EN 641KB 07.10.2014
Name Language Size Date
ETX Powered Loudspeaker Hardware Accessory Manual EN 4.76MB 09.12.2014
ETX Powered Loudspeakers User Manual EN 7.6MB 05.31.2016
Enceintes amplifiées ETX Guide FR 8.29MB 05.31.2016
ETX Powered Loudspeakers Manual ES 7.76MB 05.31.2016
ETX Powered Loudspeakers Manual PT 7.78MB 05.31.2016
ETX Powered Loudspeakers 설치 매뉴얼 KO 7.91MB 05.31.2016
ETX パワードスピーカー マニュアル JA 7.99MB 05.31.2016
ETX 说明书 ZH 8.14MB 05.27.2016
ETX-Aktivlautsprecher Benutzerhandbuch DE 7.77MB 05.31.2016
Name Size Date

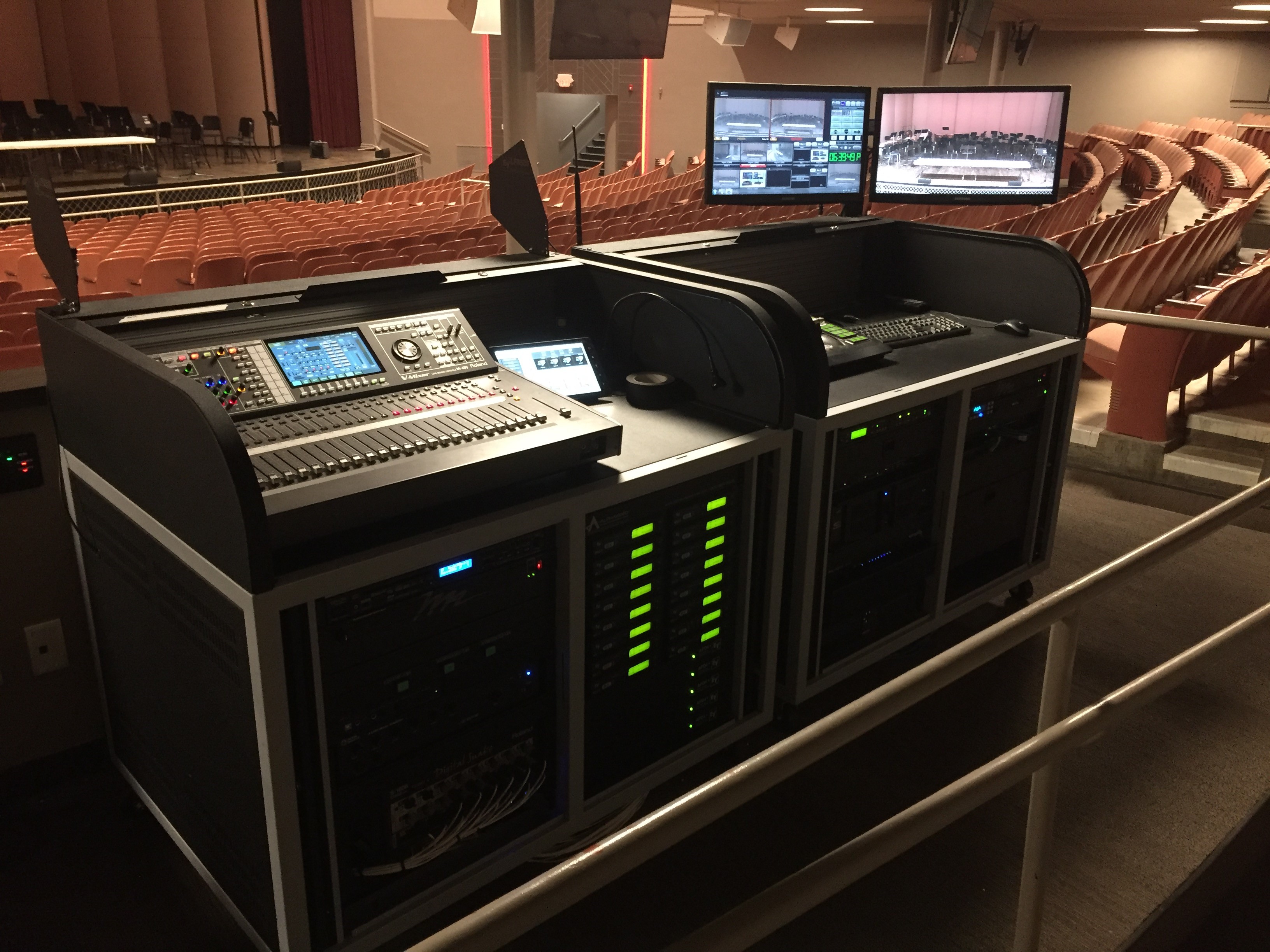

Knowlton Auditorium Austin MN 02 1.34MB 05.17.2016
