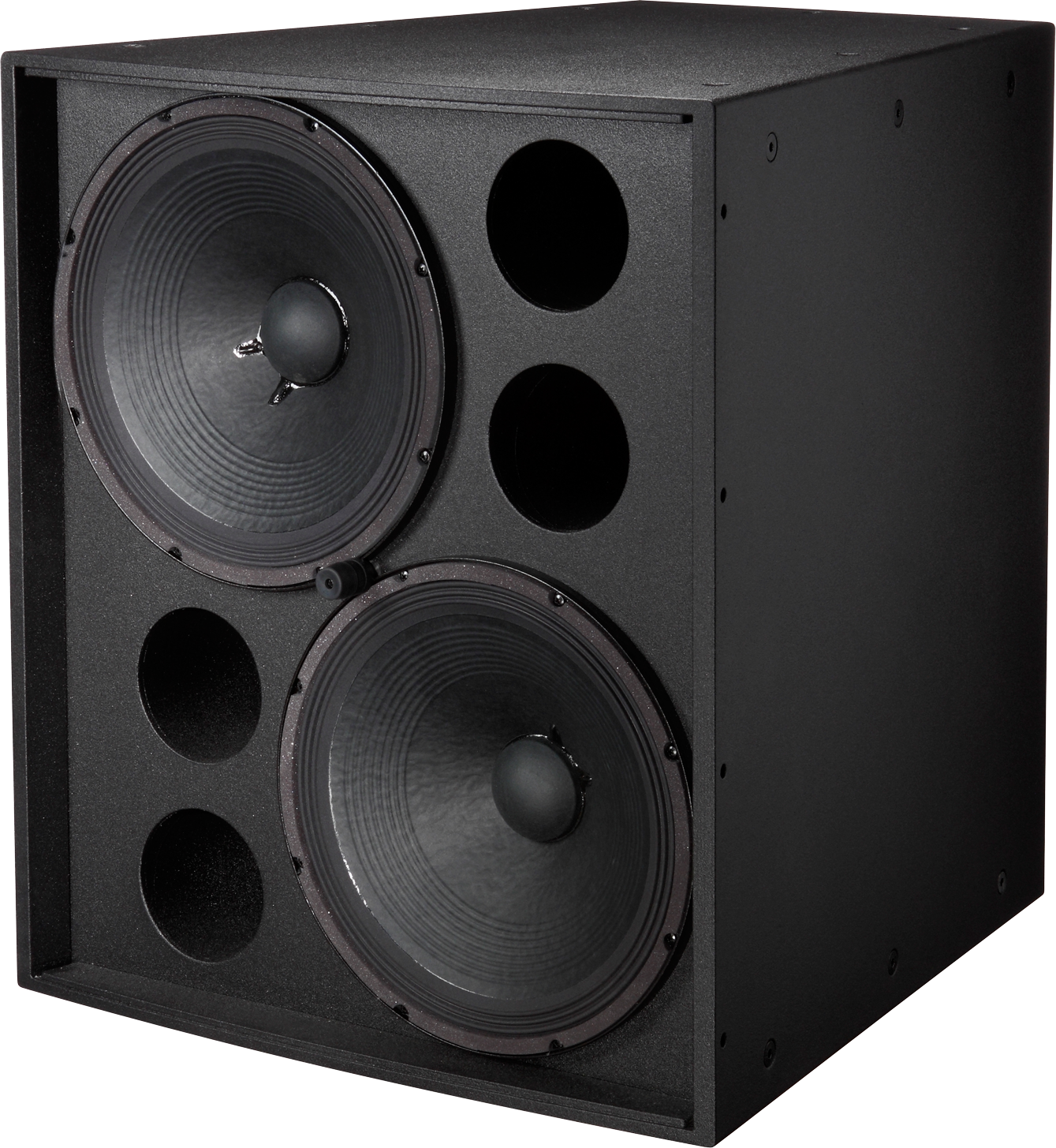

EVF-2151D
Dual 15" front‑loaded subwoofer
- High power for installations
- Two premium DVX3159A woofers
- 101 dB sensitivity, 137 dB max SPL
- Power: 1000 W cont., 4000 W peak
- Trapezoidal 13-ply plywood enclosure
- EVCoat, PI, or fiberglass (FG) finish
- M10 suspension points (28)
Specifications
| Frequency Range (-10 dB) | 30 Hz – 3.2 kHz |
| Suspension | 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | No |
Specifications |
|
| Minimum Impedance | Passive: N/A, Biamp: 2.7 Ω |
| Nominal Impedance (Passive) | Passive: N/A, Biamp: 4 Ω |
| HF Transducer | |
| Speaker Type | Subwoofer |
| Frequency Response (-3 dB)¹ | 40 Hz – 2.6 Hz |
| Max. SPL/1m (calc)² | 137dB |
| Coverage (Nominal -6 dB) H | 360° |
| Coverage (Nominal -6 dB) V | Omnidirectional° |
| LF Transducer | Two 15" DVX3159A drivers |
| System Power Handling (Continuous/Program/Peak) | 1000 , 2000 , 4000 Watts |
| Enclosure Material | 13-ply weather-resistant birch |
| Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind |
| Sensitivity 1 W/1 m | 101dB |
| Height | 768.6mm (30.26") |
| Recommended High-Pass Frequency | 35Hz |
| Width | 675.6mm (26.6") |
| Depth | 726.4mm (28.6") |
| Weight Net | 53.1kg (117.07 lbs) |
| Available Coverage Patterns (Nominal -6 dB) HxV | Omnidirectional in normal operating range° |
| Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
| Nominal Impedance | 4Ω |
| Internal Passive Crossover Frequency | Hz |
| Coverage (Nominal -6 dB) | Omnidirectional in normal operating range |
| Passive Power Handling | 4000W peak |
| Net Weight | 117 lb (53.1 kg) |
| Dimensions (H x W x D) | 30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm |
| Input Connections | Euroblock; PI and FG versions include dual gland nut input panel cover |
