EVID 4.2
Dual 4" 2‑way surface-mount loudspeaker
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
Specifications
| Frequency Response 1(-10 dB) | 65Hz - 20kH |
| Power Handling 2 | 200W Cont. Prog./400W Peak |
| Sensitivity 3 | 89 dB, 1W/1m |
Specifications | |
| Impedance | 8 ohms |
| Max SPL | 113 db |
| Horizontal Coverage 4 | 120° |
| Vertical Coverage 4 | 80° |
| Crossover Frequency | 2.2 kHz |
| LF Transducer | 2 x 4" (100 mm) |
| HF Transducer | 1" (25 mm) |
| Protection | Full System |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100° x 90° |
| Terminals | Phoenix Connector |
| Enclosure Material | ABS (paintable) |
| "t" Version Wattage Taps | 70V: 3.75 W 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass |
| Dim (H x W x D) | 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm) |
| Net Weight (each) | 8.5 lbs (3.9 kg) |
| Shipping Weight (pair) | 19 lbs (8.6 kg) |
| Included Accessories | SAM™, hex key |
2 Continuous Program Rating: 3 dB greater than continuous pink noiserating (IEC-shaped pink noise with 6dB crest factor)
3 Avg: Half Space (wall mounting)
4 When mounted with long axis in vertical plane
Similar Products
Compatible Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVID 4.2.
Dynacord C‑SeriesLearn More |
Electro-Voice CPS SeriesLearn More |
Electro-Voice PA SeriesLearn More |
|
|---|---|---|---|
| Two-Channel | ✔ | ||
| Multi-Channel | ✔ | ✔ | |
| DSP | ✔ | ||
| Direct Drive | ✔ | ✔ | |
| OMNEO (Dante, OCA) | |||
| Installation | ✔ | ✔ | ✔ |
| Live Sound |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| EVID 4.2 A&E Specification | EN | 140KB | 11.18.2020 |
| EVID 4.2T A&E Specification | EN | 140KB | 11.18.2020 |
| EVID 4.2TW A&E Specification | EN | 140KB | 11.18.2020 |
| EVID 4.2W A&E Specification | EN | 140KB | 11.18.2020 |
| Name | Size | Date |
|---|---|---|
| EVID-4.2.rfa | 1.57MB | 01.18.2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | 04.02.2019 |
| EVID Family Brochure | EN | 1.75MB | 07.06.2020 |
| Retail catalog EMEA | EN | 59.07MB | 11.10.2020 |
| Retail catalog EMEA | DE | 29.85MB | 11.10.2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | 10.03.2017 |
| EVID Declaration of Conformity | 468KB | 03.14.2018 |
| Name | Size | Date | |
|---|---|---|---|
| EVID 4.2 CAD Drawing | DWG | 104KB | 12.26.2007 |
| Name | Size | Date | |
|---|---|---|---|
| EVID GLL V1.0 | ZIP | 209KB | 06.13.2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVID 4.2 Engineering Data Sheet | EN | 182KB | 10.15.2009 |
| Name | Language | Size | Date |
|---|---|---|---|
| AB-ZE Array Bracket User Instructions | EN | 651KB | 03.22.2012 |
| EVID Accessories | EN | 279KB | 12.26.2007 |
| EVID Design & Installation Reference Guide | EN | 317KB | 12.26.2007 |
| EVID HS Series Installation Instructions | EN | 454KB | 03.22.2012 |
| EVID Owners' Manual | EN | 909KB | 12.31.2008 |
| EVID VS Series Installation Instructions | EN | 465KB | 12.26.2007 |
| RR, RPK Series Assembly & Installation Instructions | EN | 120KB | 11.30.2017 |
| Name | Size | Date | |
|---|---|---|---|
| EVID Arrayshow | EXE | 372KB | 12.26.2007 |
| Name | Size | Date |
|---|---|---|

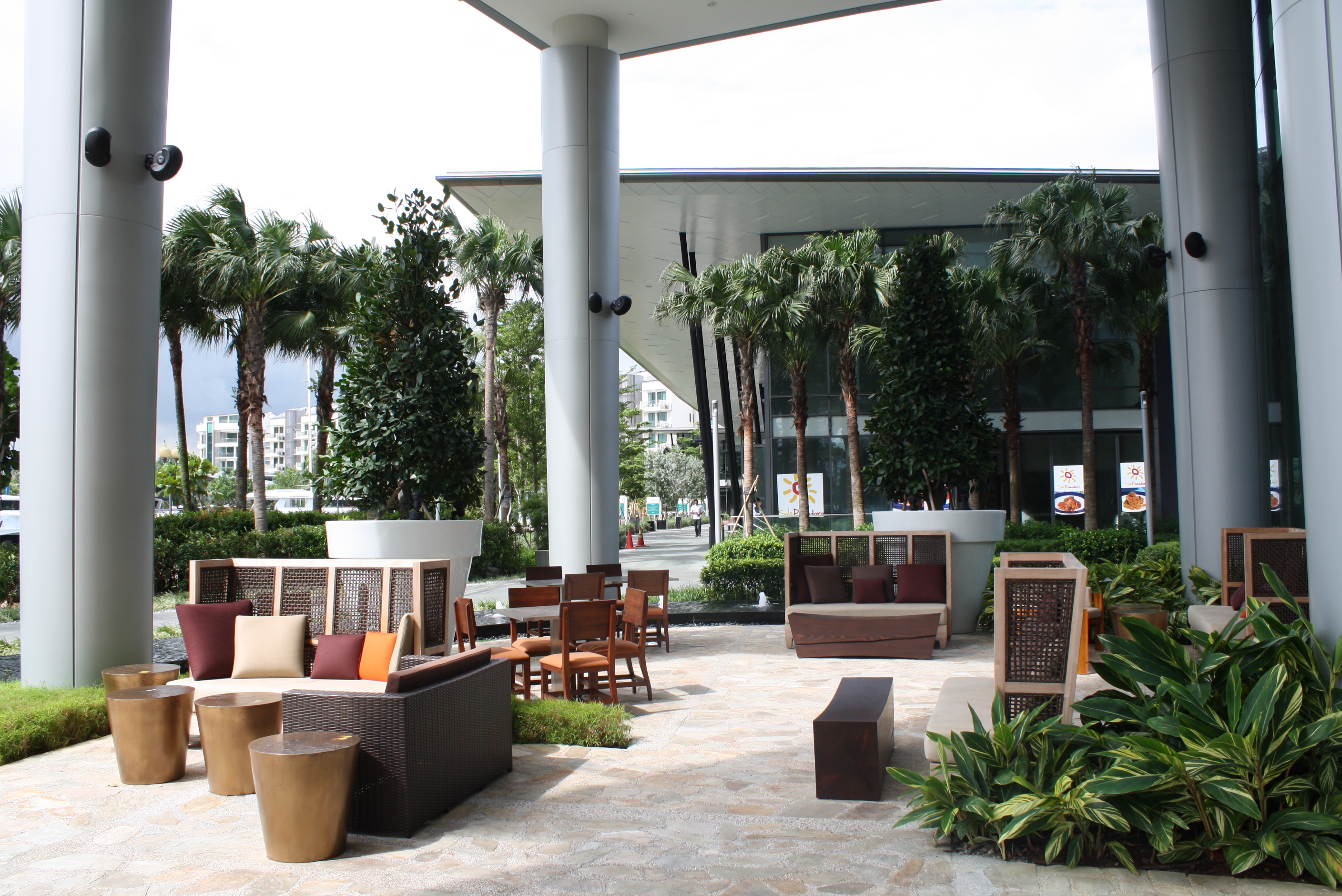

| W Hotel (7) | 2.47MB | 11.02.2015 |

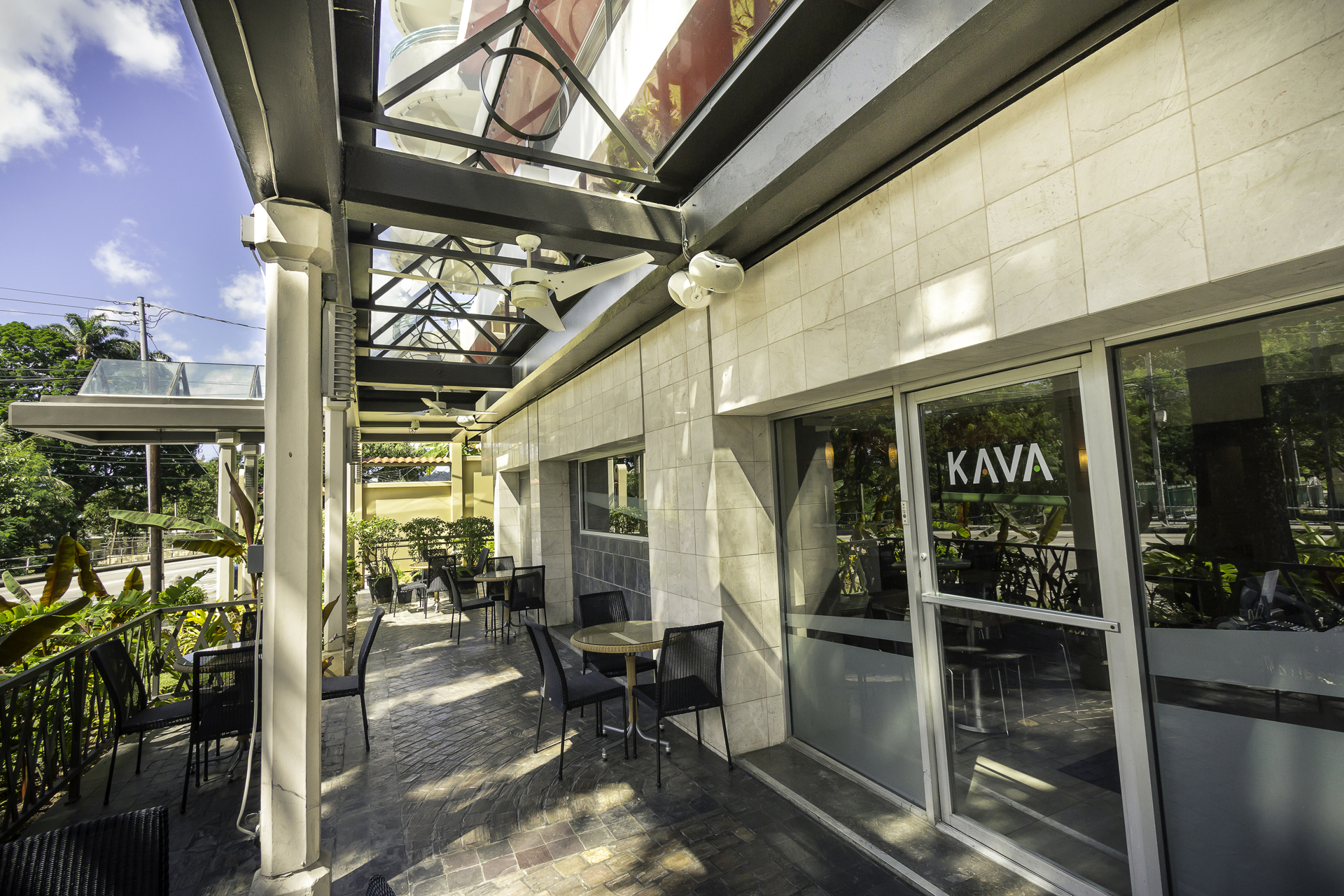

| KAVA Trinidad 2014 02 | 2.17MB | 11.02.2015 |

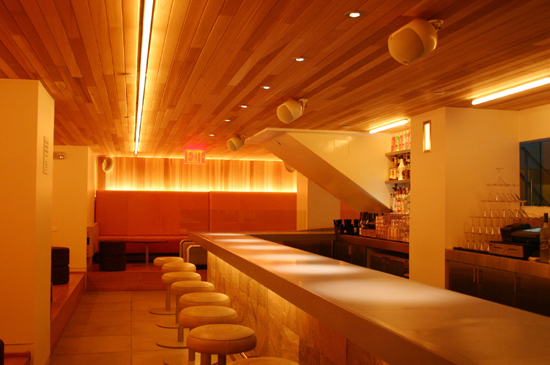

| Hotel QT EVIDs 2 550px | 187KB | 11.02.2015 |

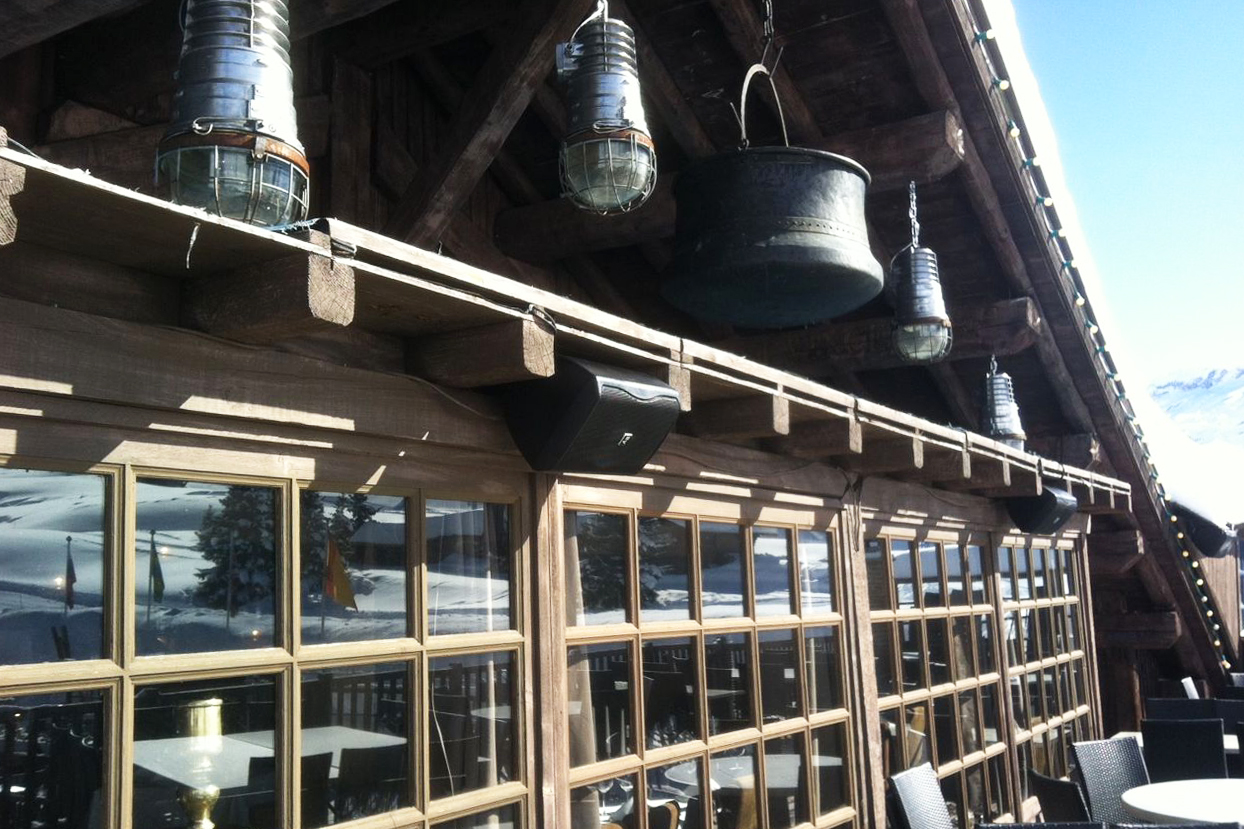

| Courchevel 4 | 728KB | 11.02.2015 |

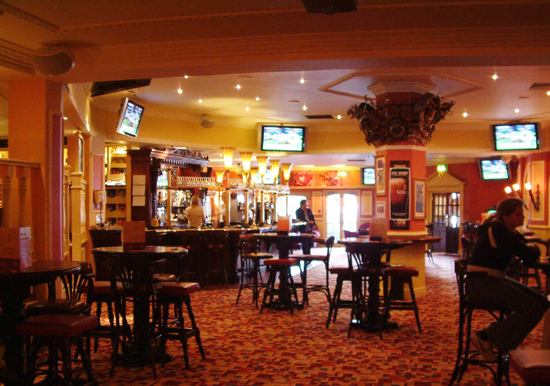

| Fabtronic EVID UK 01 550 | 251KB | 11.02.2015 |

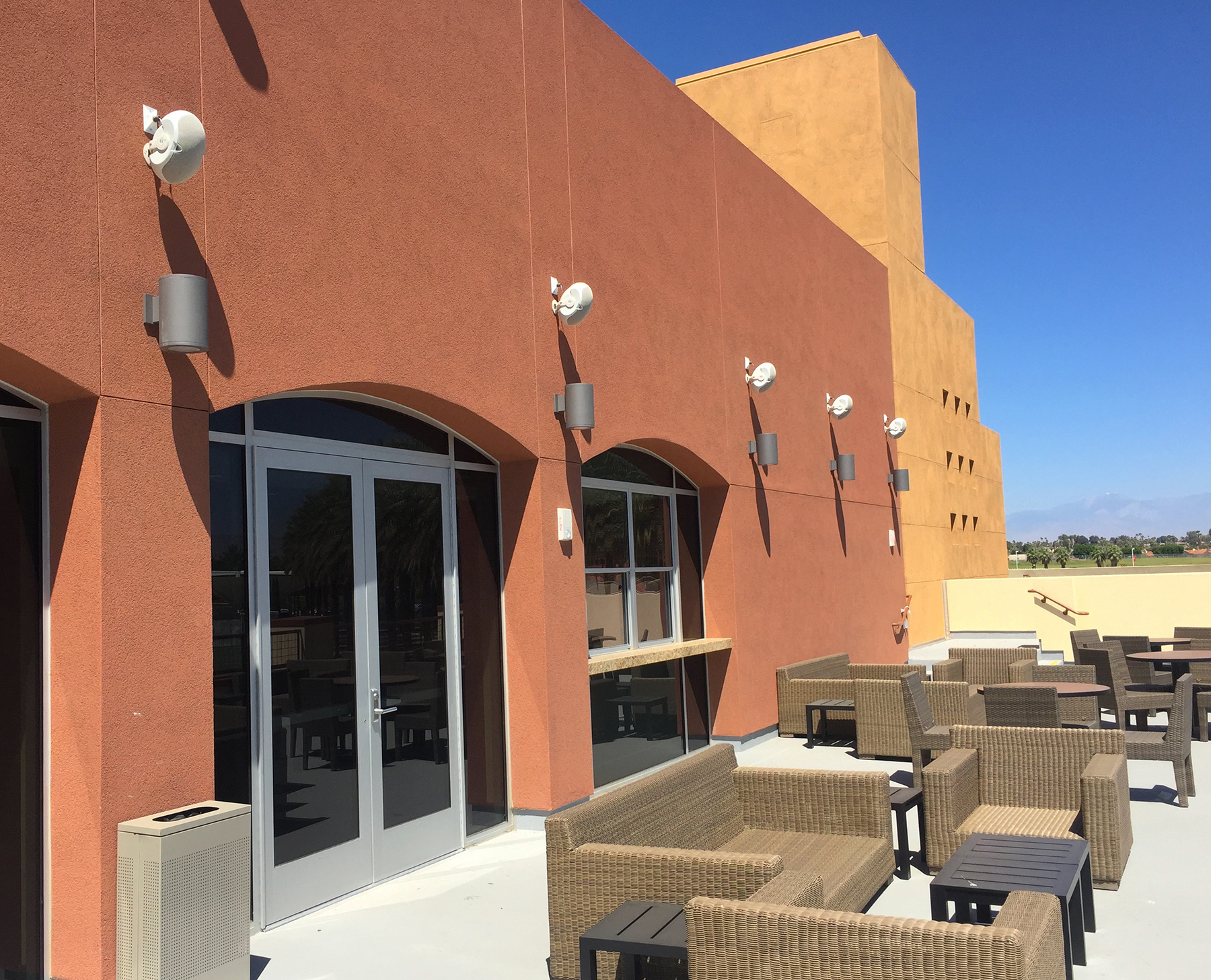

| Indian Wells Stadium 07 | 1.82MB | 06.20.2017 |
