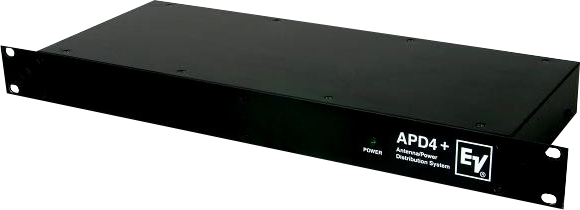

APD-4+

UHF antenna / power distribution system

Summary & Images Specs Where to buy Downloads & Support
  • Provides diversity antenna distribution to four single receivers
  • Provides power distribution for four RE-2 receivers
  • Universal power supply with IEC power cord
  • Phantom power on antenna inputs for UAA-500 amplifier
  • Can be cascaded to provide antennas for up to 16 receivers (requires 5 APD4+)

The APD4+ is a UHF antenna/power distribution system  for use with RE-2 and REV receivers, providing power and RF signals for 4 units.
