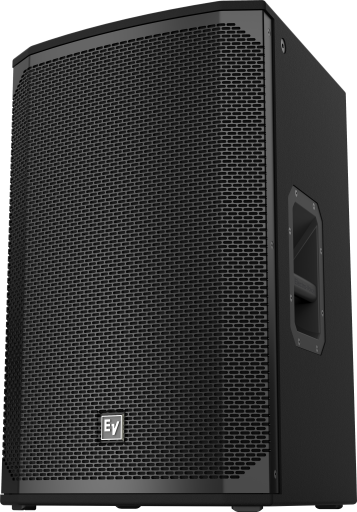

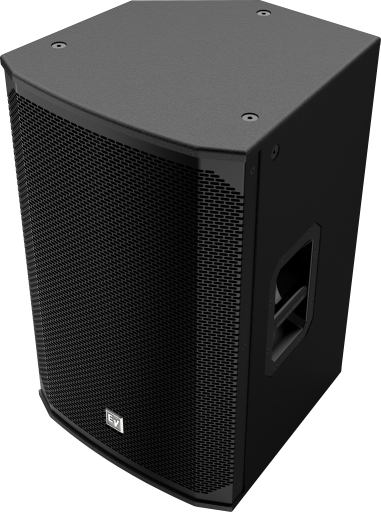

EKX-15
15" passive loudspeaker
- EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

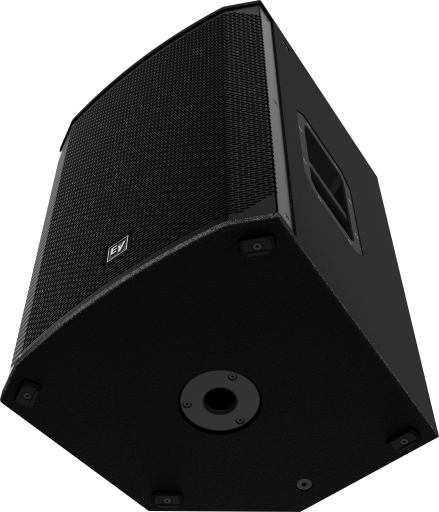

- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Technische Daten
| Frequency Range (-10 dB) | 50 Hz - 20 kkHz (Full Space Measurement) |
| Suspension | (8) M10 threaded mounting points |
| Minimum Impedance | 7.2Ω |
Technische Daten |
|
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Speaker Type | Full-Range, two way |
| Woofer Size | 15inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 75 Hz - 18 kHz (Full Space Measurement) |
| Max. SPL/1m (calc)² | 132dB |
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Coverage (Nominal -6 dB) V | 60° |
| Power Rating | 1600W |
| Crossover Frequency | 1.6 kHz |
| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 685mm (26.97") |
| Width | 432mm (17.01") |
| Recommended High-Pass Frequency | 50Hz |
| Depth | 429mm (16.89") |
| Weight Net | 23.2kg (51.15 lbs) |
| Shipping Weight | 28.2kg (62.17 lbs) |
| Family | EKX |
| Nominal Impedance | 8Ω |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96dB (Full Space Measurement) |
| Power Handling (Continuous / Peak) | 400 W/1600W |
| Maximum SPL | 132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating) |
| Passive Power Handling | 1600W peak |
Videos
EKX Loudspeaker Overview
EKX Portable Loudspeakers by Electro-Voice
EKX Portable Loudspeakers Preview
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EKX-15.
Dynacord C‑SeriesErfahren Sie mehr |
Dynacord L‑SeriesErfahren Sie mehr |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
