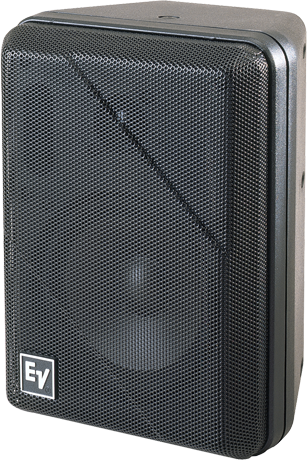

S-40

Ultracompact 5.25" 2‑way passive full‑range loudspeaker

  • Ideal for both distributed and near-field applications
  • Designed for indoor and outdoor use
  • Direct-radiating polypropylene-cone woofer
  • 1-inch ferrofluid-cooled soft-dome tweeter
  • High power-handling, ultra-linear frequency response
  • Vented trapezoidal enclosure of high-impact polystyrene
  • Passive crossover with power protection for both woofer and tweeter
  • OmniMount(R)-compatible 0.25 inch suspension points (2)

Delivering high performance in an ultra-compact package, the S series is ideal for both distributed and near-field applications requiring high-quality sound. The two-way short-throw system is housed in an optimally vented, high-impact polystyrene enclosure that is suited for installation both indoors and out. Lows are handled by a 5.25- inch direct-radiating woofer with a polypropylene cone, while the high-frequency section is a one-inch direct-radiating soft-dome tweeter that is ferrofluid cooled. Built-in automatic power limiting independently protects each driver from unsafe transients. With mounting options that are flexible enough for virtually any application, the S series is perfect for anything from background and foreground music in restaurants and clubs to near-field monitoring in control rooms and broadcast studios.

Specifications

Weatherized No
Minimum Impedance 3.7Ω
Nominal Impedance (Passive)

HF Transducer 1-inch softdome
Speaker Type Monitor
Woofer Size 5.25inch
Powered or Passive Passive
Max. SPL/1m (calc)² 113dB
Coverage (Nominal -6 dB) H 100°
Coverage (Nominal -6 dB) V 100°
LF Transducer 5.25-inch
System Power Handling (Continuous/Program/Peak) 120/480Watts (Short Term/Long Term)
Power Rating 120W
Crossover Frequency 3500Hz
Enclosure Material High Impact Polystyrene Composite
Sensitivity 1 W/1 m 85dB
Height 249mm (9.8")
Width 178mm (7.01")
Depth 150mm (5.91")
Weight Net 2.6kg (5.73 lbs)
Frequency Response (-3 dB) 85 - 20000 (±3 dB)
Passive Power Handling 30W peak
Input Connections Spring Terminal
Directivity Index 9.8dB ((+3.8/-3.6 dB), 2 – 20,000 Hz)
Chassis Size 133.35mm (5.25")
