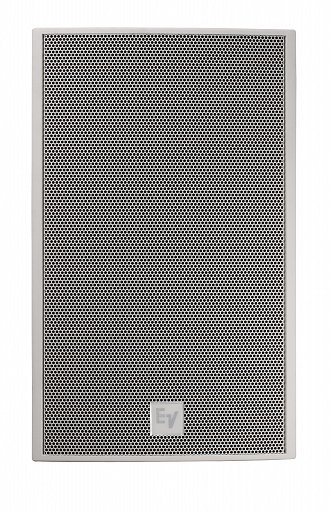

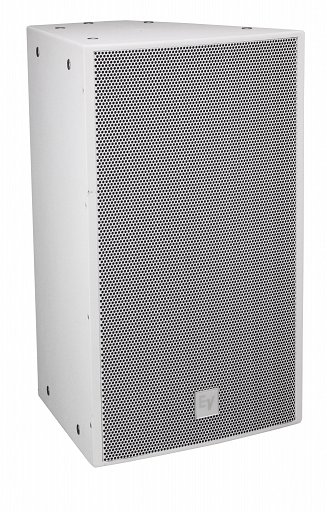

EVF-1151S
15" front‑loaded bass element
- Enhanced bass for installations
- Low-distortion EVS15SB woofer
- 99 dB sensitivity, 131 dB maximum SPL
- Power: 400 W continuous, 1600 W peak
- Trapezoidal 13-ply plywood enclosure
- EVCoat, PI, or fiberglass (FG) finish
- M10 threaded suspension points (22)

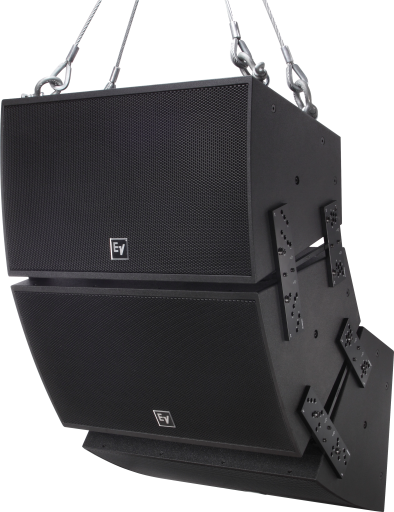

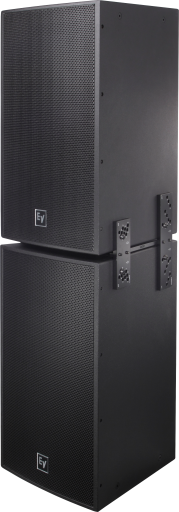

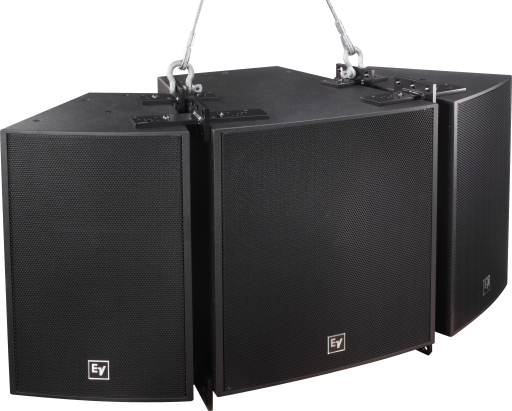

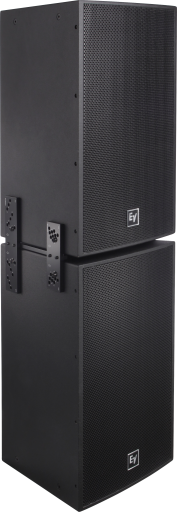

EVF-1151S single 15“ woofer more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.
Specifications
| Frequency Range (-10 dB) | 46–124 HzkHz |
| Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | No |
Specifications |
|
| Minimum Impedance | Ω |
| Nominal Impedance (Passive) | Passive: 4 , Biamp: 8 Ω |
| HF Transducer | |
| Speaker Type | Subwoofer |
| Frequency Response (-3 dB)¹ | 67–95 HzHz |
| Max. SPL/1m (calc)² | 131dB |
| Coverage (Nominal -6 dB) H | 360° |

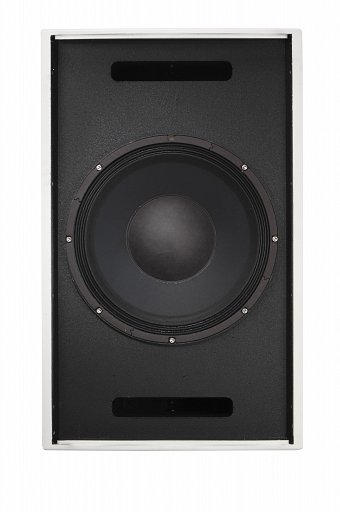

| LF Transducer | 15" EVS15SB driver |
| System Power Handling (Continuous/Program/Peak) | 400 , 800 , 1600 Watts |
| Enclosure Material | 13-ply weather-resistant birch |
| Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind |
| Sensitivity 1 W/1 m | 99dB |
| Height | 768.6mm (30.26") |
| Width | 470mm (18.5") |
| Recommended High-Pass Frequency | 35Hz |
| Depth | 467mm (18.39") |
| Weight Net | 28.4kg (62.61 lbs) |
| Net Weight | 62.6 lb (28.4 kg) |
| Dimensions (H x W x D) | 30.26" x 18.5" x 18.4" (768.6 x 470 x 467 )mm |
| Input Connections | Euroblock; PI and FG versions include dual gland nut input panel cover |
| Available Coverage Patterns (Nominal -6 dB) HxV | Omnidirectional in normal operating range° |
| Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
| Internal Passive Crossover Frequency | Hz |
| Internal Passive Low-Pass Filter | 100 (12 dB per octave) |
| Coverage (Nominal -6 dB) | Omnidirectional in normal operating range |
| Passive Power Handling | 1600W peak |
