EVID-PC6.2

6.5英寸两分频吸顶扬声器

Summary & Images Specs Where to buy Downloads & Support
  • EV研制的高性能压缩驱动器
  • 超宽的高频扩散角度给房间提供极其均匀的覆盖。
  • 长行程低音单元提供动人的低频延展。
  • 加固的钢质底盒提供坚固的箱体,大大降低声学损失
  • 四点夹紧结构和集成的安装支腿可以实现快速安装。
  • 可拆卸的带环通凤凰信号接口简化了安装接线。 抽头选择包括8Ω/ 70V / 100V。
  • 完全加固的ABS UL级障板箱体可确保长时间的使用寿命 完全符合EN 54(待定),UL 1480和2043标准。

PC6.2(6.5英寸两分频)吸顶扬声器,表现声音细节性能卓越。相较于当前的EVID吸顶扬声器,PC6.2配置一个专用的提升高频性能和覆盖控制的压缩驱动单元。简易的布线和创新的集成安装件使其更易安装于不同的天花吊顶和建筑形式。该型号除了用户所期望EVID应有的易于安装和小尺寸的优点外,还具有提升的功率驱动(100W),更高的声音输出(113dB),更宽的覆盖角度(120°),是EVID家族新的产品选择。PC6.2是零售、餐馆、剧院、体育场馆和商场等应用中高品质分布扬声器系统的理想选择。

Specifications

Frequency Range (-10 dB) 50 - 20
HF Transducer 35 mm compression driver
LF Transducer 165 mm (6.5 in)

Power Rating 200
HF Power Handling 200 W program, 100 W pink noise
Connector Type Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
Enclosure Material ABS plastic (UL94V-0) baffle, steel back can
Grille Color-matched steel grille with fabric
Sensitivity 1 W/1 m 87
Available Color 白色
Height 260
Weight Net 7
Shipping Weight 16.83
Coverage (Nominal -6 dB) 120°
Mounting Systems C ring, tile bridge
Impedance 8
Maximum SPL 107 dB avg, 113 pk
Cutout Size 248
Regulatory Approvals UL1480; UL2043
Diameter (Max) 280
Transformer Taps (Transformer Version Only) 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω

Recommended Amplifiers

As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.

For optimal sound system performance, Electro-Voice recommends the following amplifiers.

Electro-Voice Dynacord Loud&Clear

Learn more about C Series amplifiers by Dynacord
Dynacord C Series

Two-channel power amplifiers for fixed install

Learn more about V Series amplifiers by Dynacord
Dynacord V Series

Multi-channel power amplifier for commercial installations

Learn more about Electro-Voice CPS Series
Electro-Voice CPS Series

CPS contractor precision series amplifiers

Learn more about Electro-Voice PA Series
Electro-Voice PA Series

PA series multi-channel power for fixed install applications

Two-Channel
Multi-Channel
powerTANK
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation

Where to Buy

Install Sound Partners

    * Call for availability

    下载

    Technical Documentations
    Name Language & Download
    Etl, Ul 1480, Evid-Pc6.2, Evid-Pc8.2, Lc20-Pc60G6-6, Lc20-Pc60G6-8, Authorization To Mark (Atm), Report No. 101881104Crt-001 Certificate
    Etl, Ul 2043, Evid-Pc6.2, Evid-Pc8.2, Lc20-Pc60G6-6, Lc20-Pc60G6-8, Authorization To Mark (Atm), Report No. 101881104Sat-002 Certificate
    EVID-PC Ceiling Speakers EU Declaration of Conformity (2023-Sep)
    EVID-PC Ceiling Speakers UKCA Declaration of Conformity (2023-Sep)
    Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C172
    Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C172A
    Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Report No. Btl-Lvd-1-S1411C172
    Name Language & Download
    EVID-PC6.2 Engineering Data Sheet
    Name Language & Download
    EVID High Performance Ceiling Speakers Installation Note
    RR, RPK Series Assembly & Installation Instructions
    Name Language & Download
    Audio 101 - Basic Audio Terminology
    Audio 101 - Loudspeaker Basics
    EASE Data Explanation
    PA Bible 02: Power Handling Capacity
    The EV PA Bible
    The PA Bible Chapter Zero
    Software, Firmware & Design Tools
    Name Language & Download
    EVID GLL V1.0
    EVID PC GLL - Ease Address enabled
    EVID PC6.2 & PC8.2 EASE Data v1.0
    Marketing Materials
    Name Language & Download
    Audio Solution References for Sports Venues
    EVID Family Brochure
    Name Language & Download
    Indian Wells Stadium 03
    Marriott Marquis Houston 02
    Marriott Marquis Houston 06

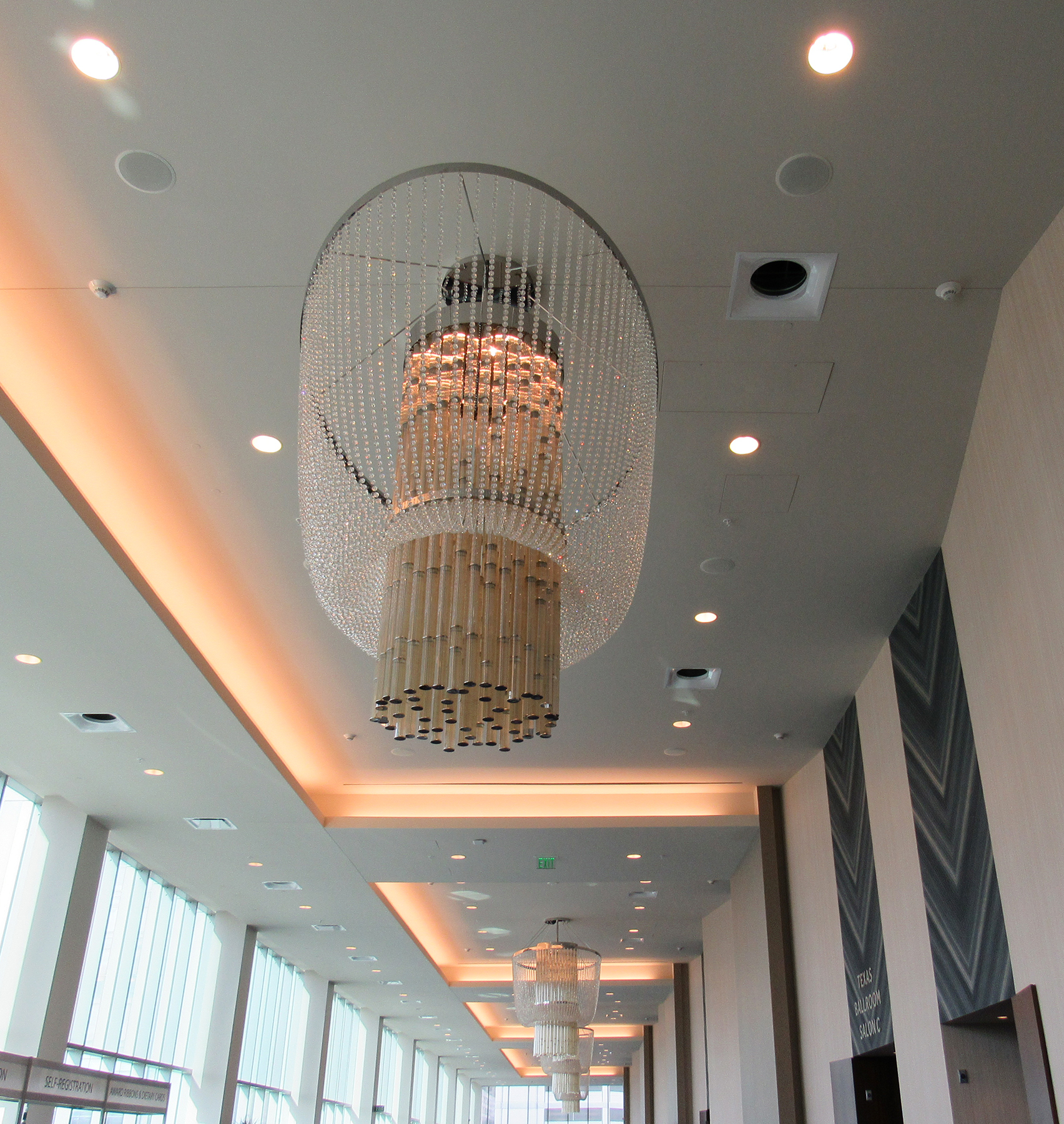

    Marriott Marquis Houston 13
