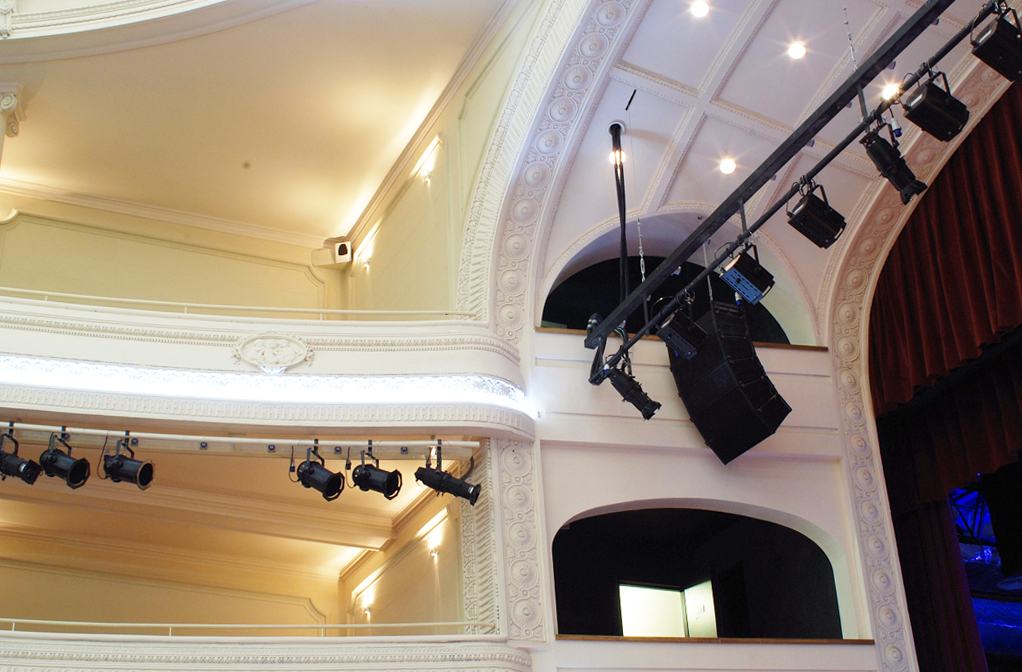

XLD line array elements
Now available in black and white.
产品
 |
 | |

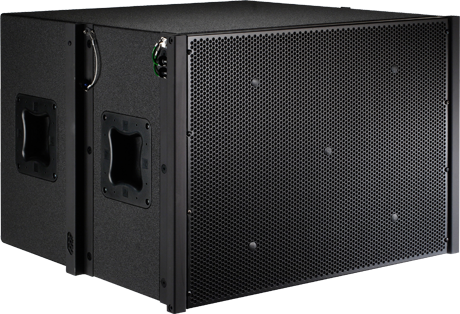

XCS312 |
XLD281 | |
| 频响范围（- 10分贝） | 40 - 100 | 56-16,500 |
| 绝缘材料 | No | |
| 悬吊安装 | Included | Yes |
| 高频标称阻抗 | 8 | 16 |
| 高频传感器 | 2 x 2-in ND2S | |
| 扬声器类型 | Line Arrays, Subs | Full-Range, Line Arrays |
| 中频标称阻抗 | 16 | |
| 中频传感器 | 1 x 8-in DVN2080 | |
| Frequency Response (-3 dB)¹ | 45 - 100 | 65-16,000 |
| 低频标称阻抗 | 4 | 16 |
| Max. SPL/1m (calc)² | 136 () | 128/137 () |
| 覆盖率（标称- 6分贝）H | 200 | 120 |
| 低频传感器 | 3 x 12-in DVX3120A | 1 x 8-in DVN2080 |
| 低频功率 | 1000 W continuous, 4000 W peak () | 200 W continuous, 800 W peak () |
| 高频功率 | 80 W continuous, 320 W peak () | |
| 分频频率 | 100 | |
| 外壳材料 | EVCoat®-coated birch plywood | EVCoat®-coated plywood |
| Grille | Powder-coated steel | Powder-coated steel |
| 灵敏度1 W/1 m | 100 () | 99/112 () |
| 可选颜色 | 黑色 | 黑色 |
| 高度 | 508 | 251 |
| 推荐高通频率 | 40 | |
| 宽度 | 726 | 726 |
| 深度 | 677 | 369 |
| 净重 | 67.13 | 21.8 |
| 底盘尺寸 | 304.8 | 203.2 |
| 输入连接 | 2 Neutrik® NL8 | 2 Neutrik® NL8 |
| 峰值声压级@ 10m | 121 () | 129 () |
| 低频2电源功率 | 500 W continuous, 2000 W peak () | 200 W continuous, 800 W peak () |
| 无源功率 | 6000 | 800 |
| 环境规格 | IEC 529 IP24, MIL STD 810 | |
| 更多 | 更多 |
Show more specs
下载
Technical Documentations
Engineering Data Sheet
Manual
| Name | Language & Download |
|---|---|
| AGCD Adaptor Grid User Instructions | EN |
| AGSE Adaptor Grid User Instructions | EN |
| X-Line Very Compact Coupler Beam Installation Instructions | EN |
| X-Line Very Compact Crossover Retrofit Installation Instructions | EN |
| X-Line Very Compact Grid Assembly & Installation Instructions | EN |
| XLVC Rigging Manual | EN |
White Paper
| Name | Language & Download |
|---|---|
| Advanced Line Array Design With LAPS II | EN |
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Cardioid Subwoofer Arrays Settings | EN |
| EASE Data Explanation | EN |
| Going Around the Corner: Setting Up Multiple Line Arrays for Wide Venues | EN |
| Groundstacking: Dealing with Floor Reflections | EN |
| Introduction to Line Array Acoustics & Modeling | EN |
| Line Arrays- History & Theory | EN |
| PA Bible 02: Power Handling Capacity | EN |
| PA Bible 09: Mixing for the Live Performance | EN |
| PA Bible 20: So You Want to Use a Line Array? | EN |
| Safely Driving Your Sound System | EN |
| TEMP Limiter Technology | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
