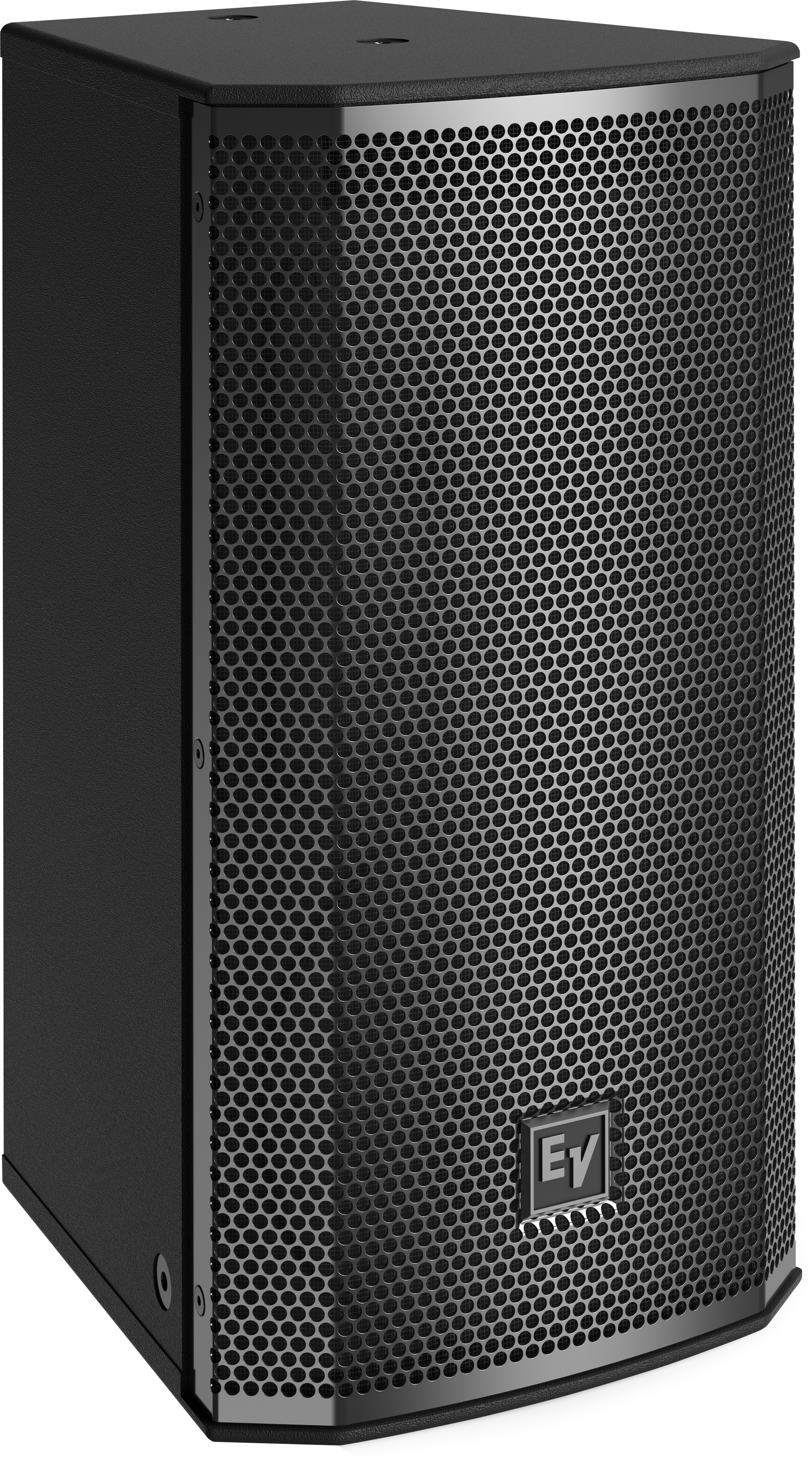

8" speaker 100x100
- 8-inch, two-way loudspeaker, with 100˚ x 100˚ constant directivity, rotatable waveguide
- Power rating: 200 W Continuous, (800 W Peak)
- Passive system: 91 dB, 120 dB maximum
- Gland nut cover and stainless steel grille on PI versions
- Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.
|Max Calculated SPL||120dB|
|Rotatable coverage||100° x 100°|
|Frequency Range (-10 dB)||55Hz-25kHz|
|Suspension||eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount|
|Frequency Response (-3 dB)¹||75Hz-20kHz|
|Grille||18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)|
|Weight Net||24.69lbs (11.2kg)|
|Shipping Weight||28lbs (12.7kg)|
|Environmental Specs||IEC 60529, IP44 (IP55 for PI versions)|
|Axial Sensitivity (SPL, 1 W @ 1 m)||91dB|
|Power Handling (Continuous / Peak)||200/400/800W|
|Connectors||Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals|
|Enclosure||15mm weather-resistant plywood with EV Coat|

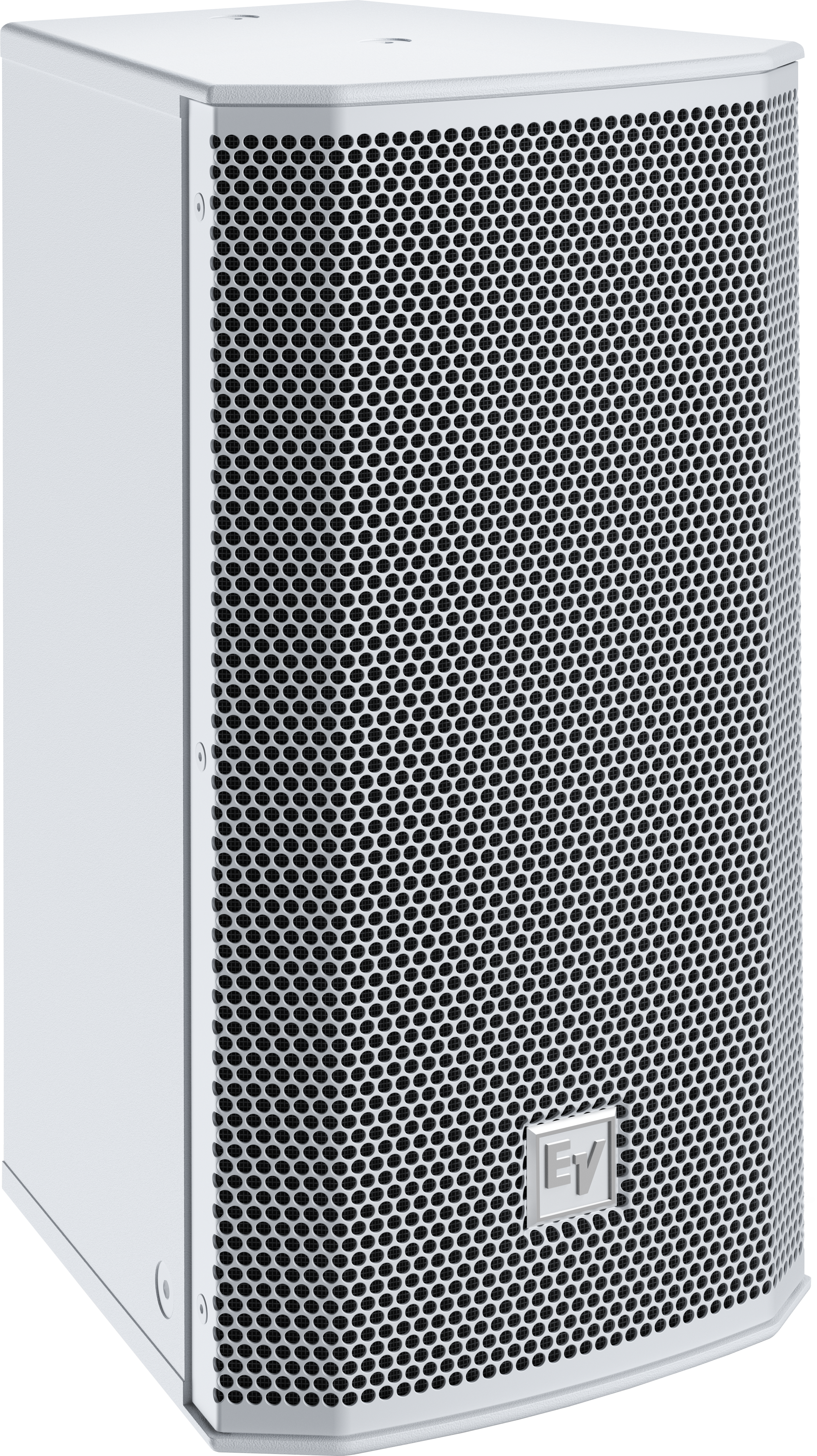

|Color||Black or White|
|Dimensions (H x W x D)||492 x 248 x 277mm|
|Passive crossover frequency||1.8kHz|
|Rec. high-pass frequency, 4th Order||50 Hz for 8Ω (50 Hz with TK-150 transformer)|
