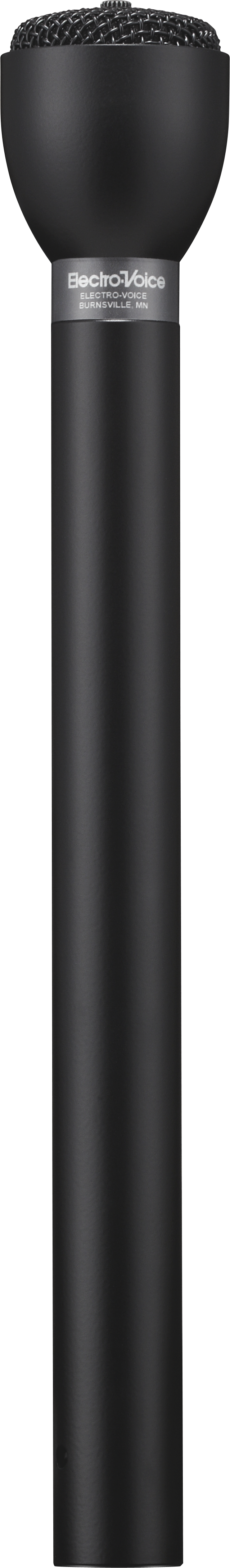

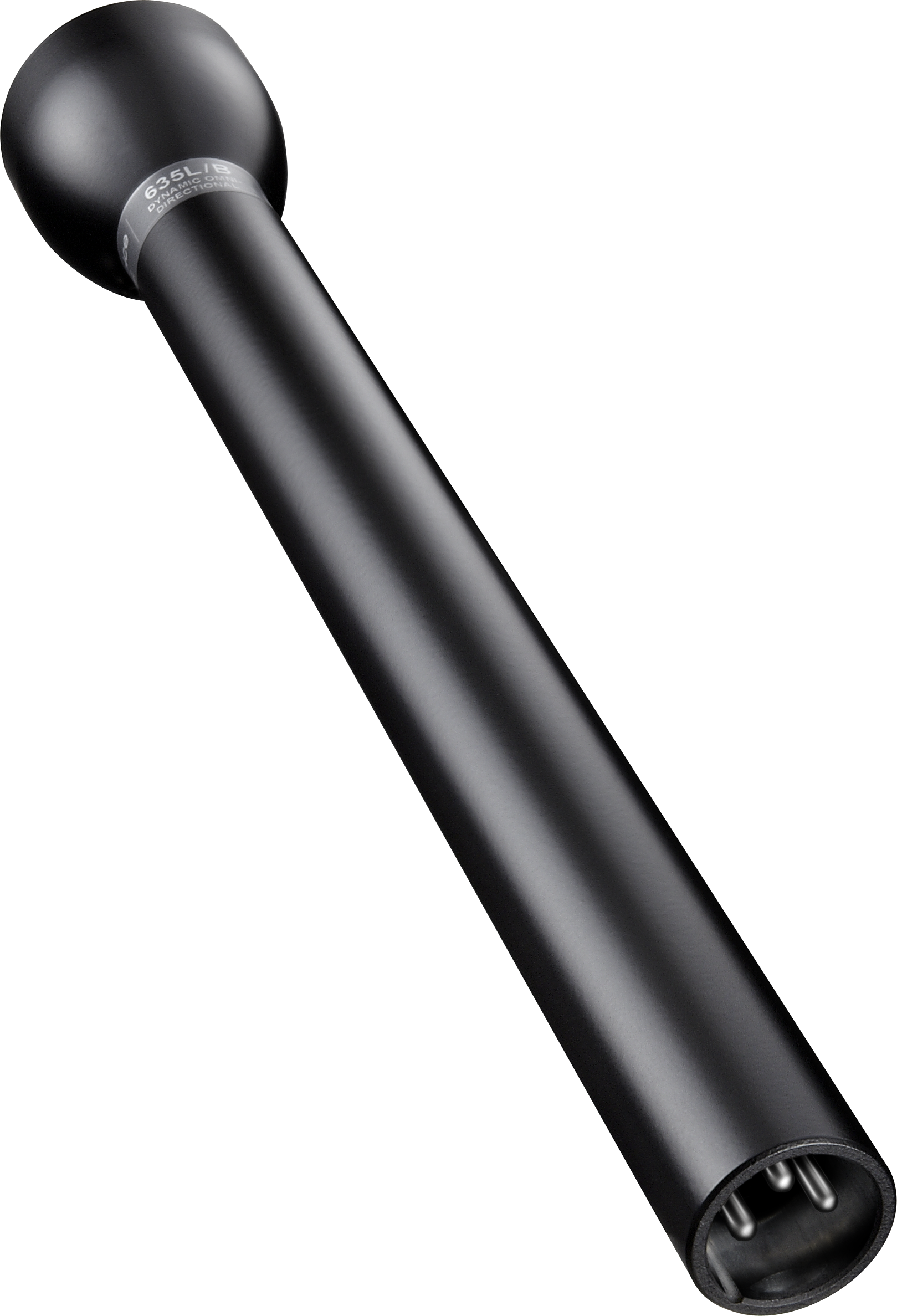

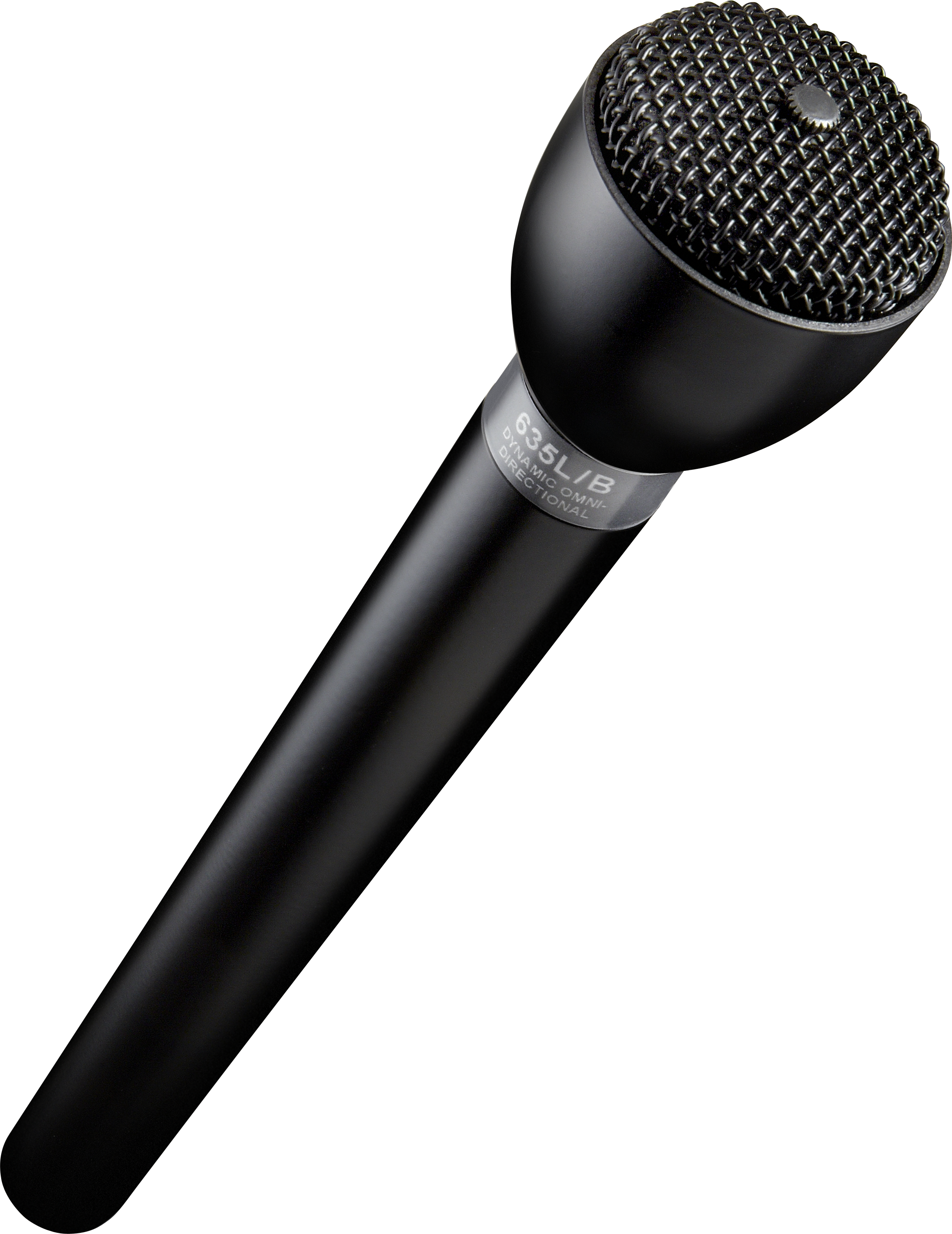

635L/B
Classic handheld interview microphone w/ long handle
- 9.5" total length
- Omnidirectional polar pattern
- Dynamic element
- Incredibly robust and durable
- Linear frequency response
- Completely pop-free
- Four-stage pop and dust filter
- Effective internal shock absorber
The world-reknown performance of legendary 635A/B is available in the long-handle 635L/B. With its black finish, and measuring 9.5", this extended handle length version delivers all of the sonic performance of the 635A/B, adding the virtues of a longer body length for ease-of-use, helping keep the reporter's hand out of the shot.
Specifications
| Weight Net | 11.43oz (324g) |
| Height | 9.57" (243mm) |
| Connector Type | 3-pin XLR |
Specifications |
|
| Frequency Response (-3 dB) | 80 - 13,000 Hz |
| Polar Pattern | Omni |
| Wired/Wireless | Wired |
| Mic Type | Handheld |
| Diameter (Max) | 1.42" (36mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150Ω |
| Open Circuit Voltage | 1.4 mV/PascalmV/Pascal |
| Case Material | Zinc |
| Finish | Semi-gloss Black |
| Power Requirement | Passive |
| Family | Field Production |
Similar
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| 635L, 635L/B, Re50L, Re50Ln/D-L, Bosch Security Systems, 07-2015 Country of Origin Certificate | 117KB | Dec 18, 2019 |
| Broadcast Mics, Studio Mics, EC Declaration of Conformity | 567KB | Dec 18, 2019 |
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| 635L & 635L/B Engineering Data Sheet | EN | 216KB | Apr 23, 2015 |
