EKX-15S
15" passive subwoofer
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).

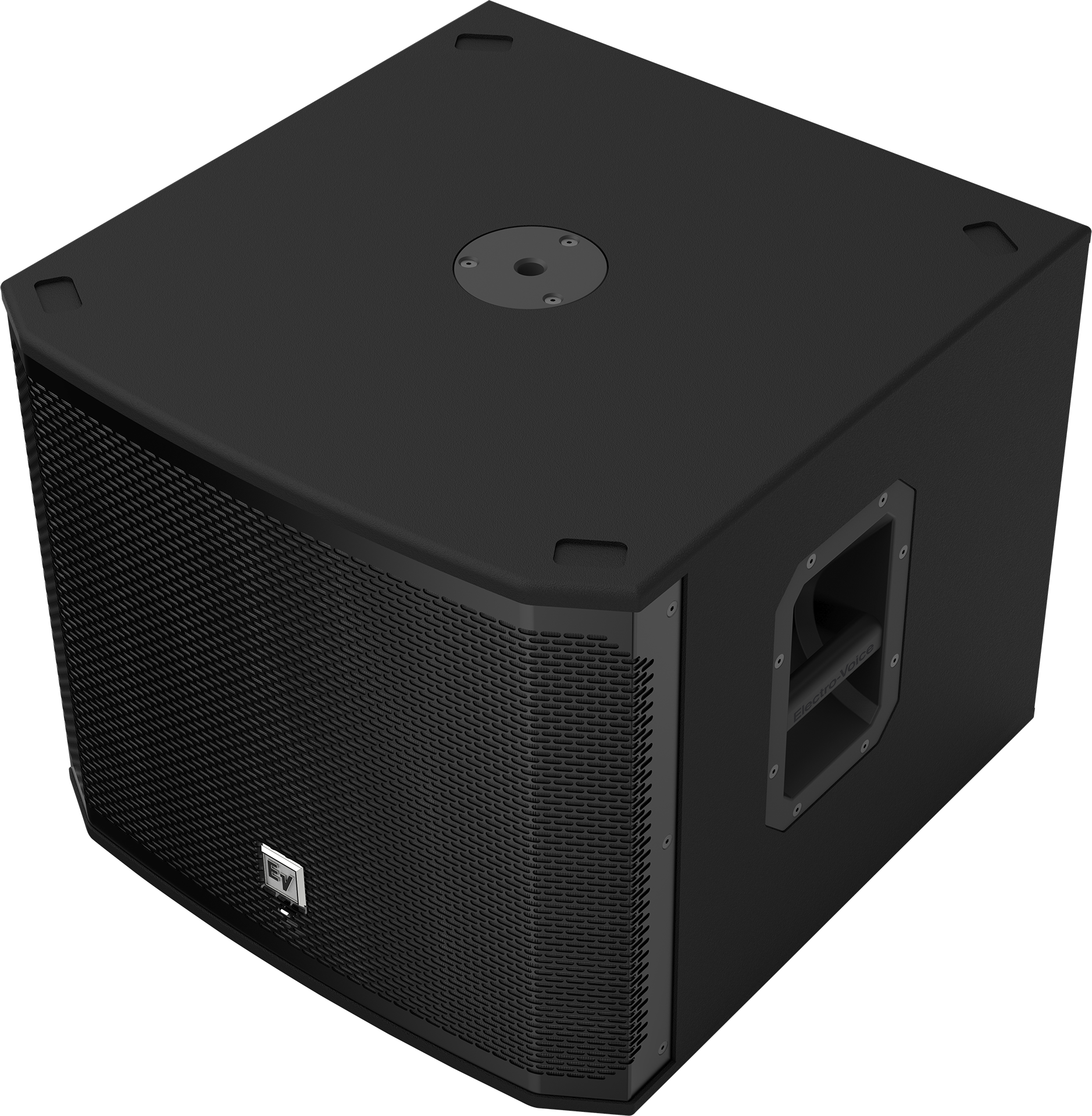

- M20 threaded pole mount plate.
Specifications
| Frequency Range (-10 dB) | 40 Hz - 300kHz (Half Space Measurement) |
| Shipping Weight | 69lbs (31.3kg) |
| Weight Net | 54.9lbs (24.9kg) |
Specifications |
|
| Depth | 21.69" (551mm) |
| Width | 20.87" (530mm) |
| Height | 17.91" (455mm) |
| Grille | 18 AWG steel with powdercoat |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Connector Type | Dual NL4 |
| Minimum Impedance | 7.5Ω |
| LF Transducer | EVS-15C 381 mm (15 in) |
| Max. SPL/1m (calc) | 133dB |
| Recommended High-Pass Frequency | 35Hz |
| Frequency Response (-3 dB) | 60 Hz - 100Hz (Half Space Measurement) |
| Speaker Type | Subwoofer |
| Nominal Impedance | 8Ω |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
| Power Rating | 1600W |
| Woofer Size | 15inch |
| Power Handling (Continuous / Peak) | 400 W/1600W |
| Maximum SPL | 133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating) |
| Powered or Passive | Passive |
| Passive Power Handling | 1600W peak |
| Family | EKX |
Complementary
Similar
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| Portable Speaker Family Brochure | EN | 3.8MB | Jun 20, 2019 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Portable Speaker Feature Overview | EN | 2.43MB | Aug 28, 2018 |
| Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
| Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
| Portable speakers catalog 2020 EMEA | PL | 6.77MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | FR | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | ES | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | EL | 6.78MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | DE | 6.76MB | May 12, 2020 |
| Name | Size | Date |
|---|---|---|
| EKX-15SP_EKX-18SP_CB-CERT_DK-43603-UL UL Certificate of Compliance | 181KB | Dec 18, 2019 |
| Ekx-15Sp, Ekx-18Sp, Emc, Certificate No. Ee18-E691-8Ed4-9B97 Certificate | 414KB | Dec 18, 2019 |
| Ekx-15Sp, Ekx-18Sp, Emc, Dongguan Emtek Certificate No. Ed150107039E | 267KB | Dec 18, 2019 |
| Ekx-15Sp, Ekx-18Sp, Low Voltage Directive (Lvd), Dongguan Emtek Certificate No. Ed150107039S | 457KB | Dec 18, 2019 |
| Ekx-15Sp, Ekx-18Sp, Verification of Conformity (Voc), Dongguan Emtek Certificate No. Ed150107038E Certificate | 268KB | Dec 18, 2019 |
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Etl, Ekx-15Sp, Ekx-18Sp, Authorization To Mark (Atm), Intertek Certificate No. 150114025Szn-001 Certificate | 116KB | Dec 18, 2019 |
| Name | Size | Date | |
|---|---|---|---|
| EKX Simplified Cabinet Drawings | ZIP | 7.42MB | Jun 9, 2015 |
| Name | Size | Date | |
|---|---|---|---|
| EKX EASE Data | ZIP | 212KB | Jan 24, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| EKX-15S Engineering Data Sheet | EN | 435KB | Mar 4, 2015 |
| Name | Language | Size | Date |
|---|---|---|---|
| EKX Passive Loudspeakers User Manual | EN | 3.37MB | May 27, 2016 |
| Altavoces EKX pasivos Manual | ES | 3.38MB | May 27, 2016 |
| Altifalantes EKX passivos Manual | PT | 3.36MB | Jan 5, 2017 |
| EKX Passive 说明书 | ZH | 3.97MB | May 27, 2016 |
| EKX パッシブスピーカー マニュアル | JA | 3.54MB | May 27, 2016 |
| EKX 패시브형 라우드 스피커 설치 매뉴얼 | KO | 3.47MB | May 27, 2016 |
| EKX-Passivlautsprecher Benutzerhandbuch | DE | 3.38MB | May 27, 2016 |
| Enceintes passives EKX Guide | FR | 3.38MB | May 27, 2016 |
FrontHero 15SP

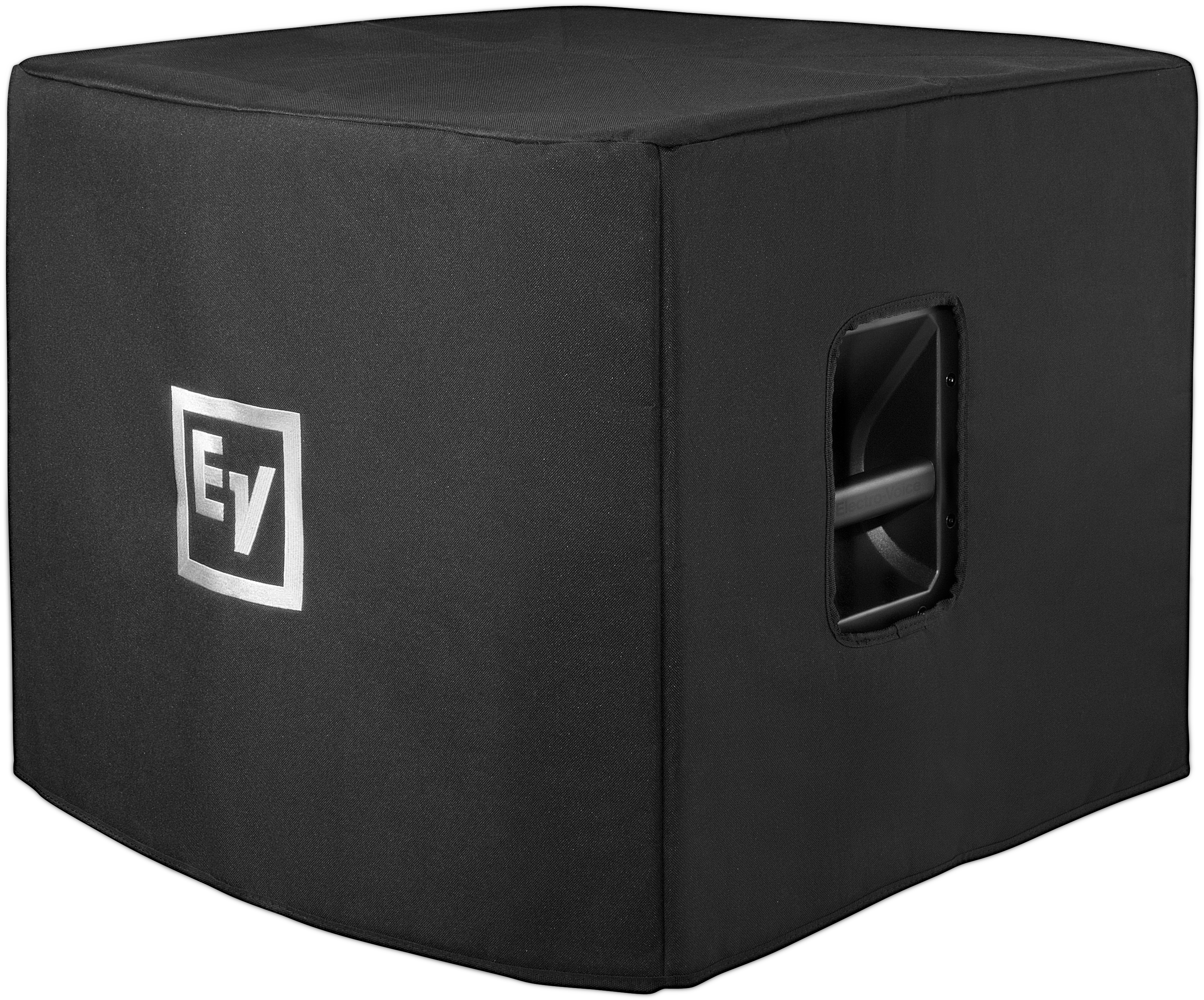

EV EKXAcc 18S CVR

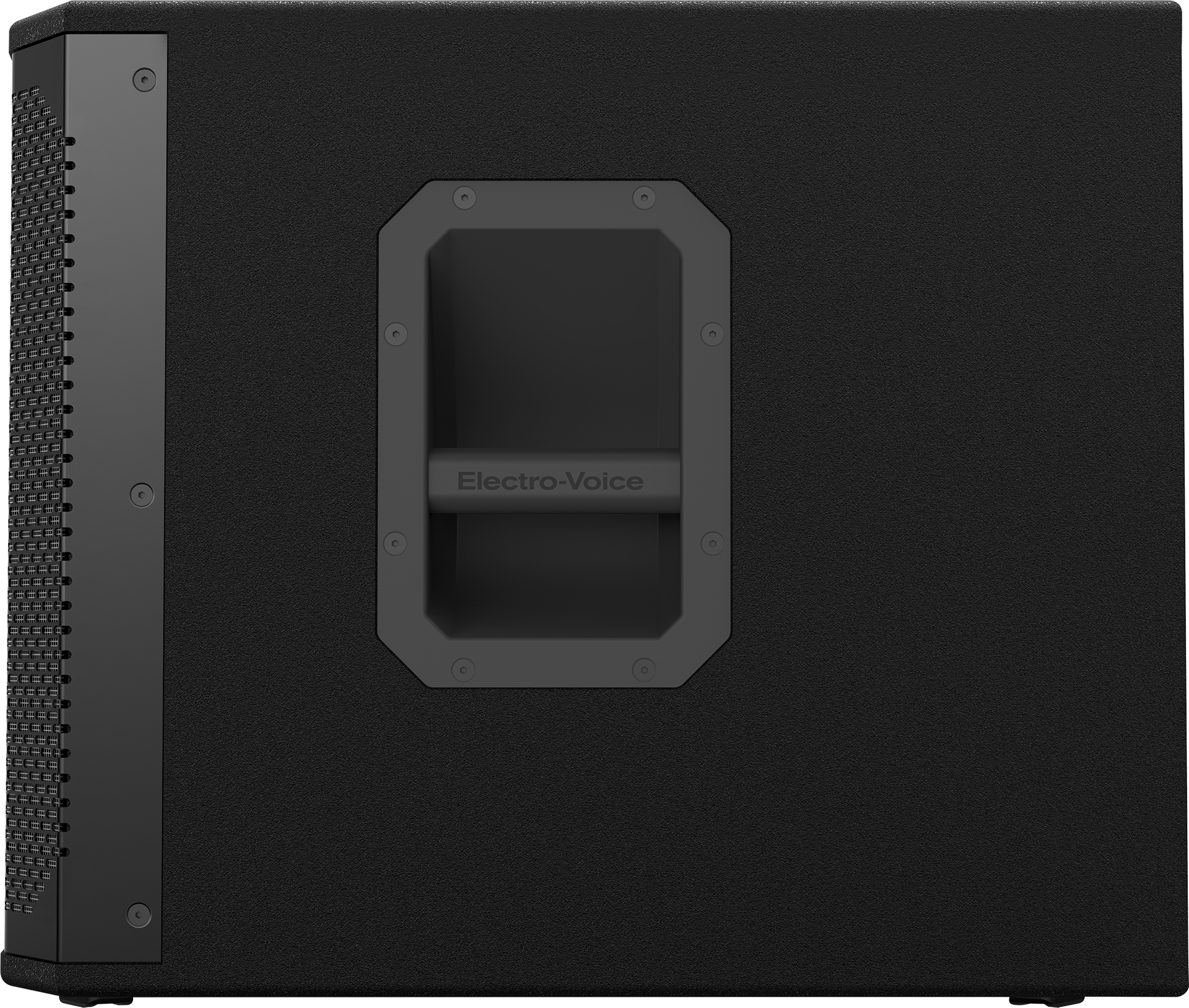

SideViewHighlightingHandles 15SP
