Specifications
| Frequency Response (-3 dB) | 48 Hz – 20 kHz1 |
| Frequency Range (-10 dB) | 40 Hz – 20 kHz1 |
| Maximum SPL | 135 dB peak2 |
Specifications | |
| Coverage (H x V) | 90° x 60° |
| Power Rating | 2000 W |
| LF Transducer | SMX2150 380 mm (15 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1500 Hz |
| Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure | 18 mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Suspension | (8) M10 suspension points |
| Dimensions (H x W x D) | 691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) |
| Net Weight | 27.7 kg (61.1 lb) |
| Shipping Weight | 31.5 kg (69.5 lb) |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3 |
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.
Similar
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| Portable Speaker Family Brochure | EN | 3.8MB | Jun 20, 2019 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Portable Speaker Feature Overview | EN | 2.43MB | Aug 28, 2018 |
| Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
| Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
| Portable speakers catalog 2020 EMEA | PL | 6.77MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | FR | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | ES | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | EL | 6.78MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | DE | 6.76MB | May 12, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| ETX 15P SIMPLIFIED | ZIP | 137KB | Apr 27, 2018 |
| Name | Size | Date | |
|---|---|---|---|
| ETX | ZIP | 414KB | Jan 24, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| ETX15P Data Sheet | EN | 641KB | Jul 10, 2014 |
| Name | Language | Size | Date |
|---|---|---|---|
| ETX Powered Loudspeaker Hardware Accessory Manual | EN | 4.76MB | Sep 12, 2014 |
| ETX Powered Loudspeakers User Manual | EN | 7.6MB | May 31, 2016 |
| Enceintes amplifiées ETX Guide | FR | 8.29MB | May 31, 2016 |
| ETX Powered Loudspeakers Manual | ES | 7.76MB | May 31, 2016 |
| ETX Powered Loudspeakers Manual | PT | 7.78MB | May 31, 2016 |
| ETX Powered Loudspeakers 설치 매뉴얼 | KO | 7.91MB | May 31, 2016 |
| ETX パワードスピーカー マニュアル | JA | 7.99MB | May 31, 2016 |
| ETX 说明书 | ZH | 8.14MB | May 27, 2016 |
| ETX-Aktivlautsprecher Benutzerhandbuch | DE | 7.77MB | May 31, 2016 |
| Name | Size | Date |
|---|---|---|
| Knowlton Auditorium Austin MN 02 | 1.34MB | May 17, 2016 |
15P-Hero-Grill
15P-From-Top-Angle-Focus-on-Handles
15P-Front-Hero
15P-Hero-No-Grill
15P-Pole-Insert-Angle-Focus

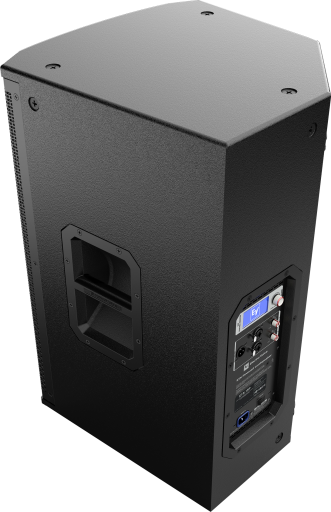

15P-Rear-Threequarter

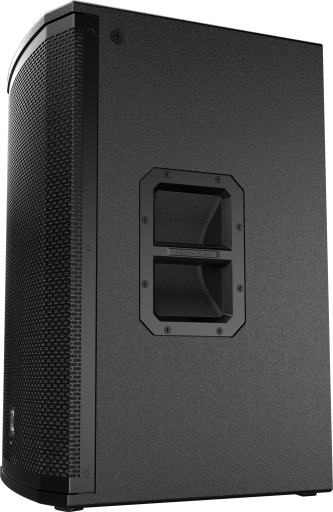

15P-Side-Handle-Threequarter-Angle

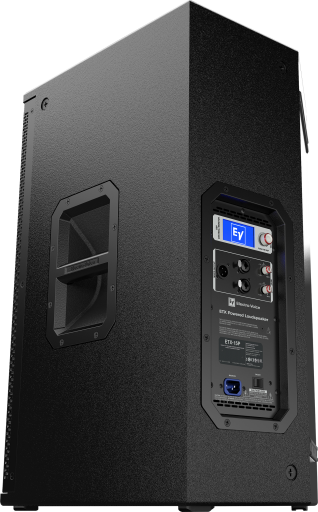

15P-Threequarter-Back-Amp-Angle
