ETX-15SP
15" powered subwoofer
- 15-inch DVX woofer for maximum punch
- 1800 W Class-D power amplifier with integrated FIR-Drive DSP
- 134 dB peak SPL
- Special DSP preset for true cardioid performance across the full operating bandwidth
- Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models
- Removable casters
Specifications
| Frequency Response (-3 dB) | 37 Hz - 150 Hz¹ |
| Frequency Range (-10 dB) | 32 Hz - 180 Hz¹ |
| Maximum SPL | 134 dB peak² |
Specifications | |
| Power Rating | 1800 W |
| LF Transducer | DVX3159A 380 mm (15 in) |
| Low Pass Frequency | Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Connectors | (2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure | 18 mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Dimensions (H x W x D) | 471 mm x 576 mm x 825 mm (19 in x 23 in x 32 in) |
| Dimensions (H x W x D) | without casters ,471 mm x 576 mm x 692 mm (19 in x 23 in x 27 in) |
| Net Weight | 41.7 kg (91.9 lb) |
| Shipping Weight | 46.8 kg (103.2 lb) |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³ |
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
Similar
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| Portable Speaker Family Brochure | EN | 3.8MB | Jun 20, 2019 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Portable Speaker Feature Overview | EN | 2.43MB | Aug 28, 2018 |
| Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
| Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
| Portable speakers catalog 2020 EMEA | PL | 6.77MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | FR | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | ES | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | EL | 6.78MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | DE | 6.76MB | May 12, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| ETX 15SP SIMPLIFIED | ZIP | 592KB | Apr 27, 2018 |
| Name | Size | Date | |
|---|---|---|---|
| ETX | ZIP | 414KB | Jan 24, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| ETX15SP Data Sheet | EN | 457KB | Mar 5, 2014 |
| Name | Language | Size | Date |
|---|---|---|---|
| ETX Powered Loudspeaker Hardware Accessory Manual | EN | 4.76MB | Sep 12, 2014 |
| ETX Powered Loudspeakers User Manual | EN | 7.6MB | May 31, 2016 |
| Enceintes amplifiées ETX Guide | FR | 8.29MB | May 31, 2016 |
| ETX Powered Loudspeakers Manual | ES | 7.76MB | May 31, 2016 |
| ETX Powered Loudspeakers Manual | PT | 7.78MB | May 31, 2016 |
| ETX Powered Loudspeakers 설치 매뉴얼 | KO | 7.91MB | May 31, 2016 |
| ETX パワードスピーカー マニュアル | JA | 7.99MB | May 31, 2016 |
| ETX 说明书 | ZH | 8.14MB | May 27, 2016 |
| ETX-Aktivlautsprecher Benutzerhandbuch | DE | 7.77MB | May 31, 2016 |
| EVID Deckeneinbau-Lautsprechersystem Benutzerhandbuch | DE | 1.42MB | May 26, 2016 |

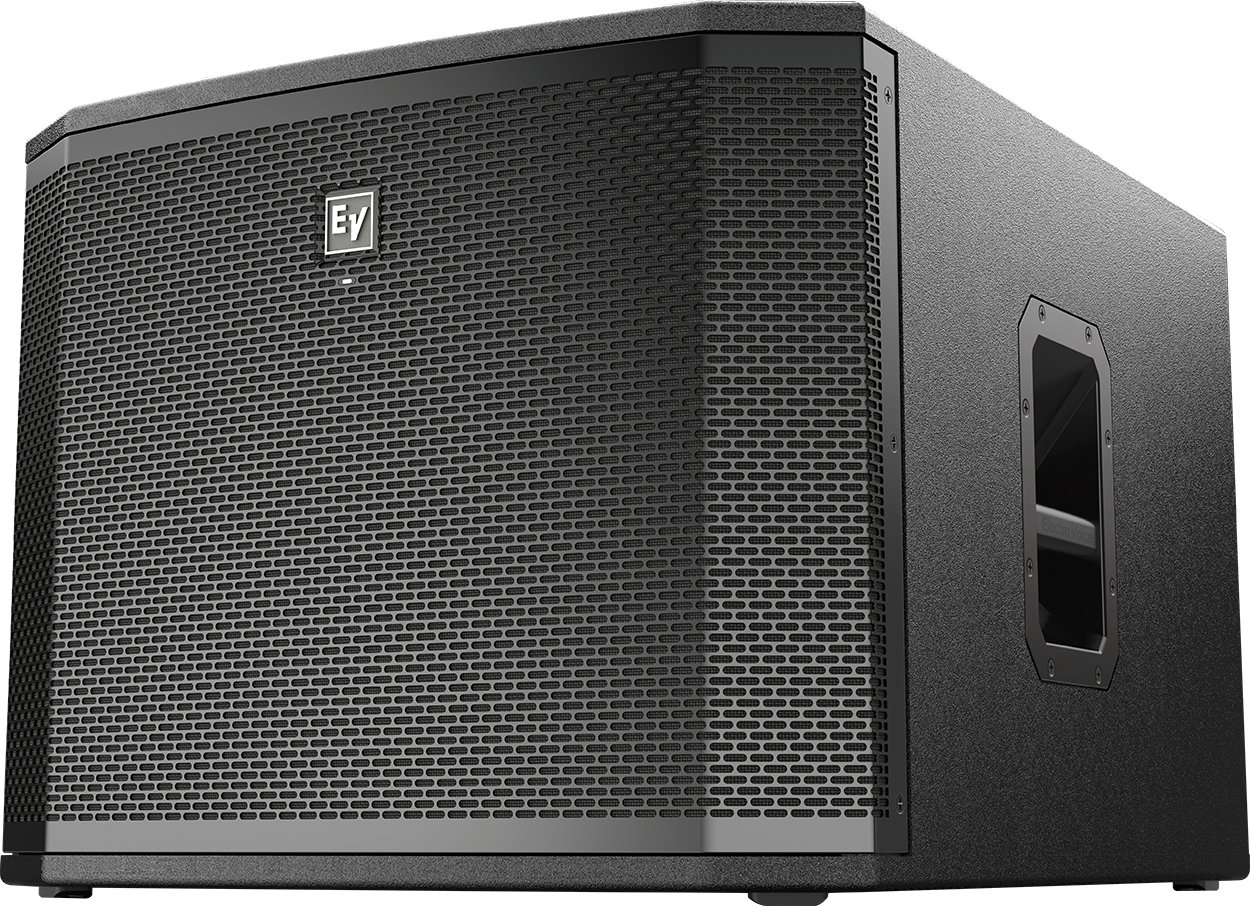

15SP-Hero-Grill
15SP-Front-Hero
15SP-Hero-No-Grill

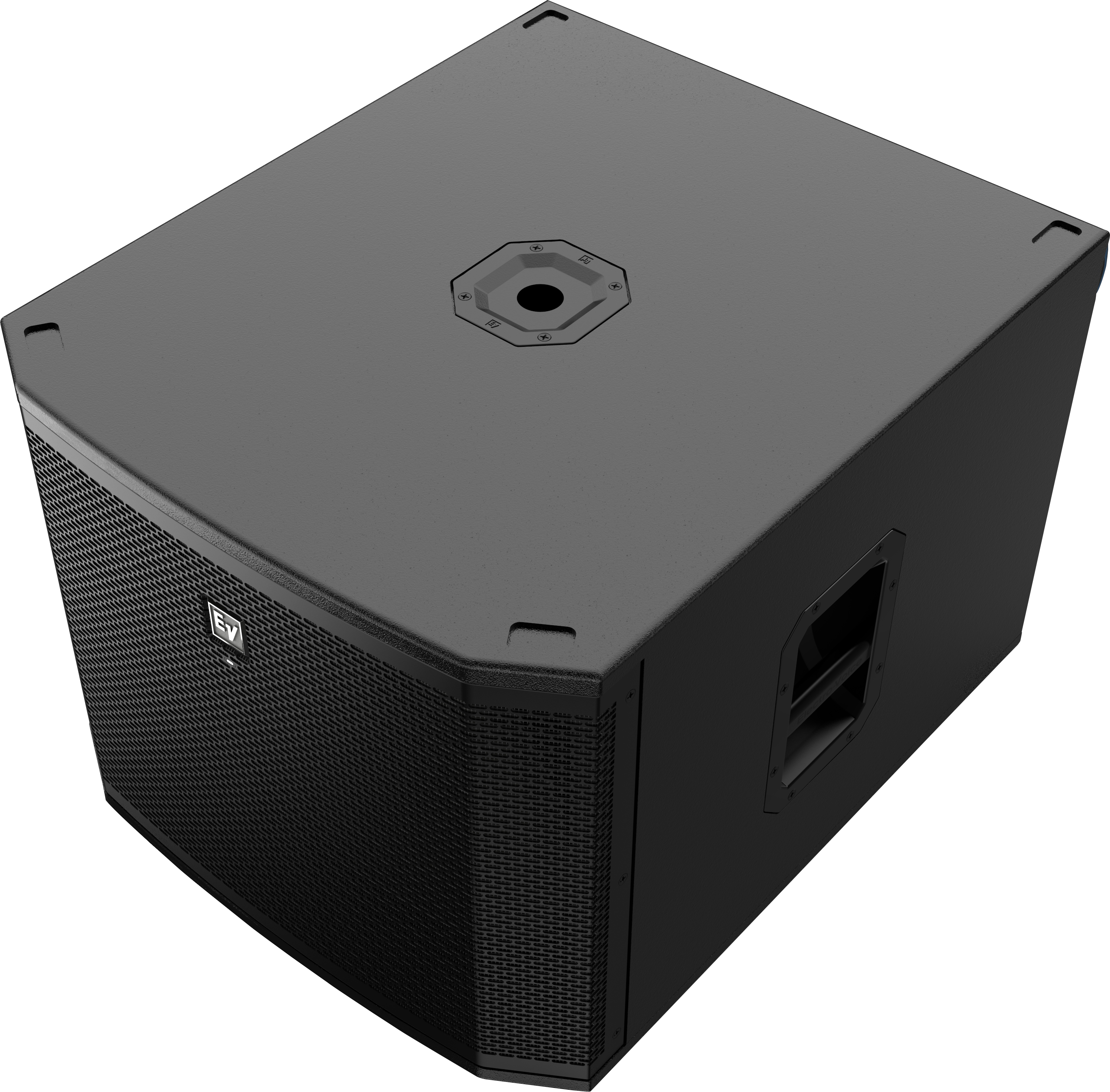

15SP-Pole-Insert-Angle-Focus

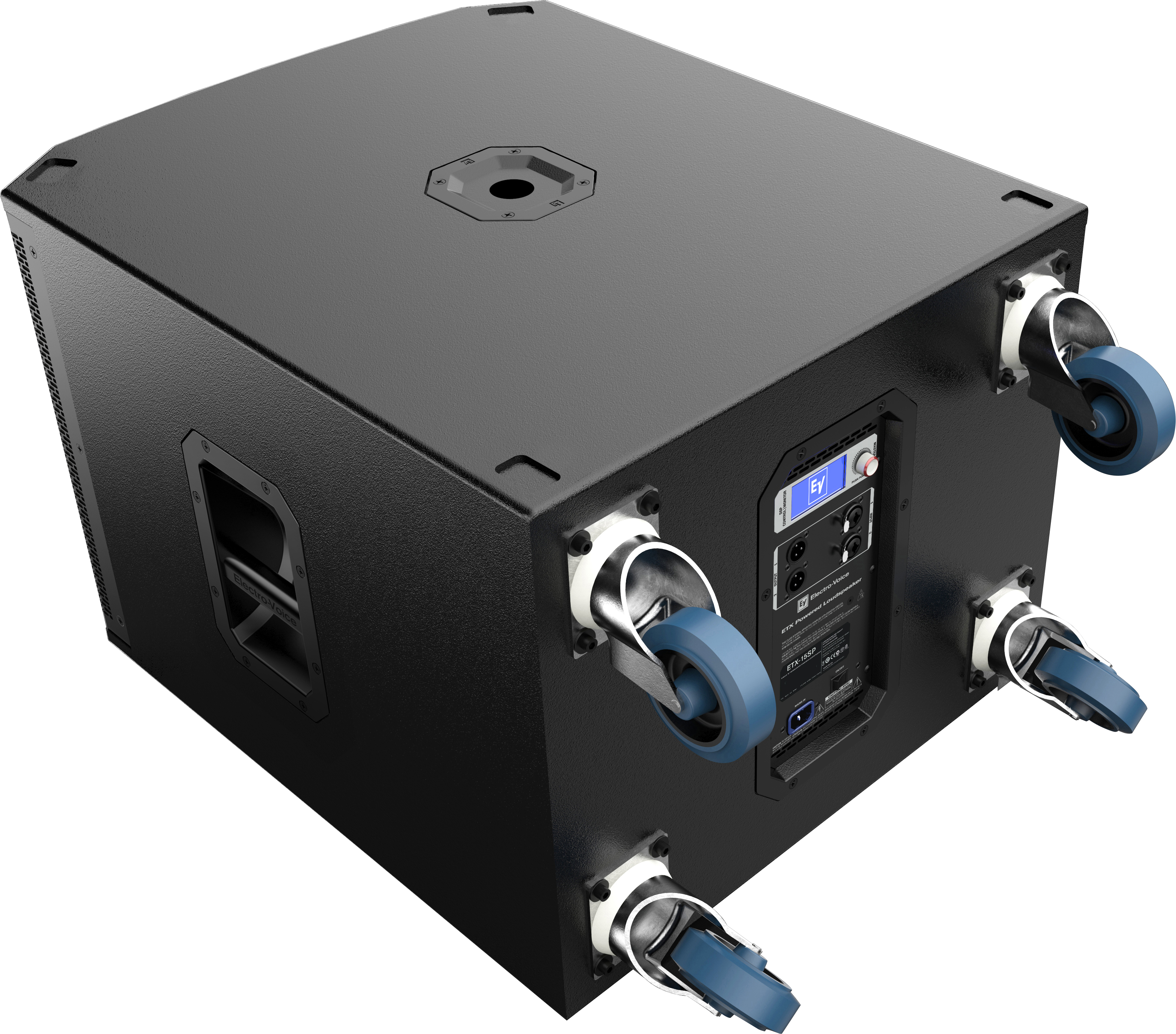

15SP-Rear-Threequarter

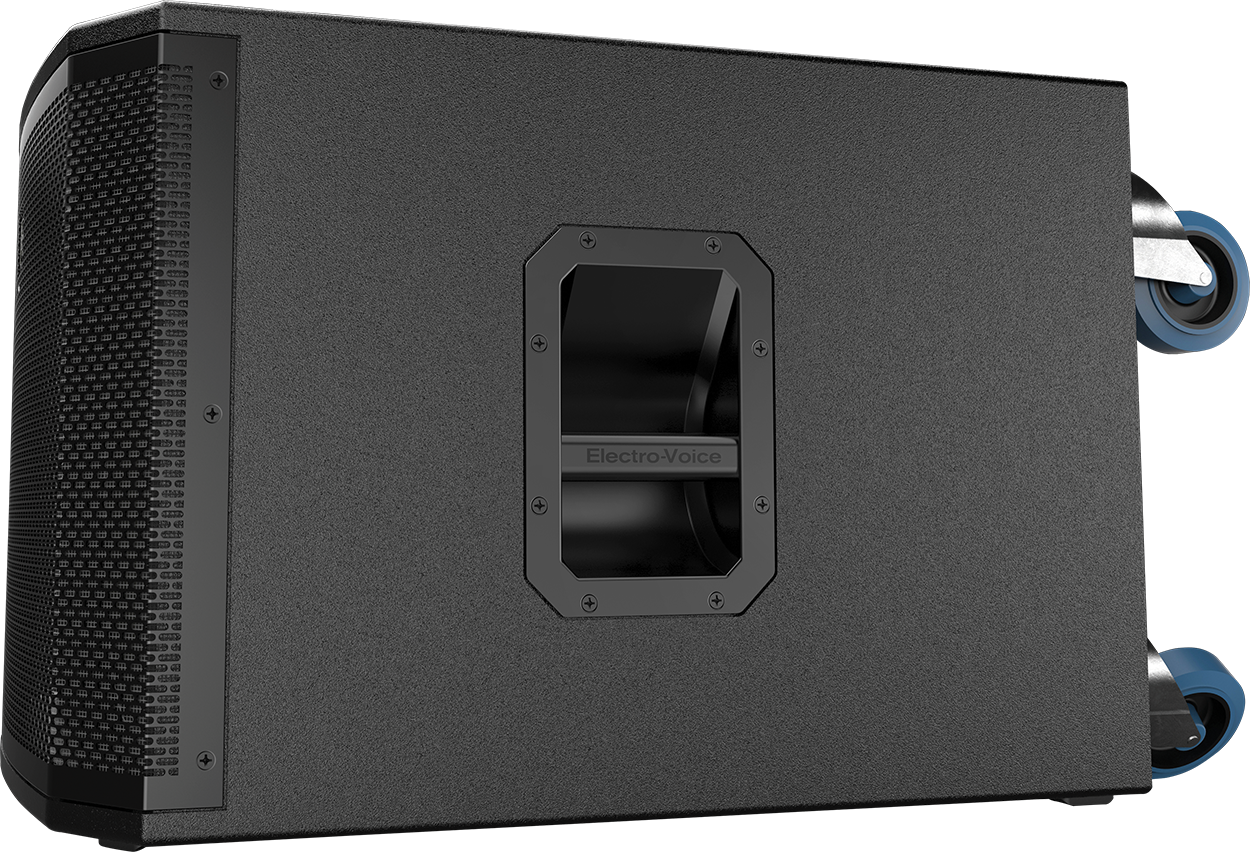

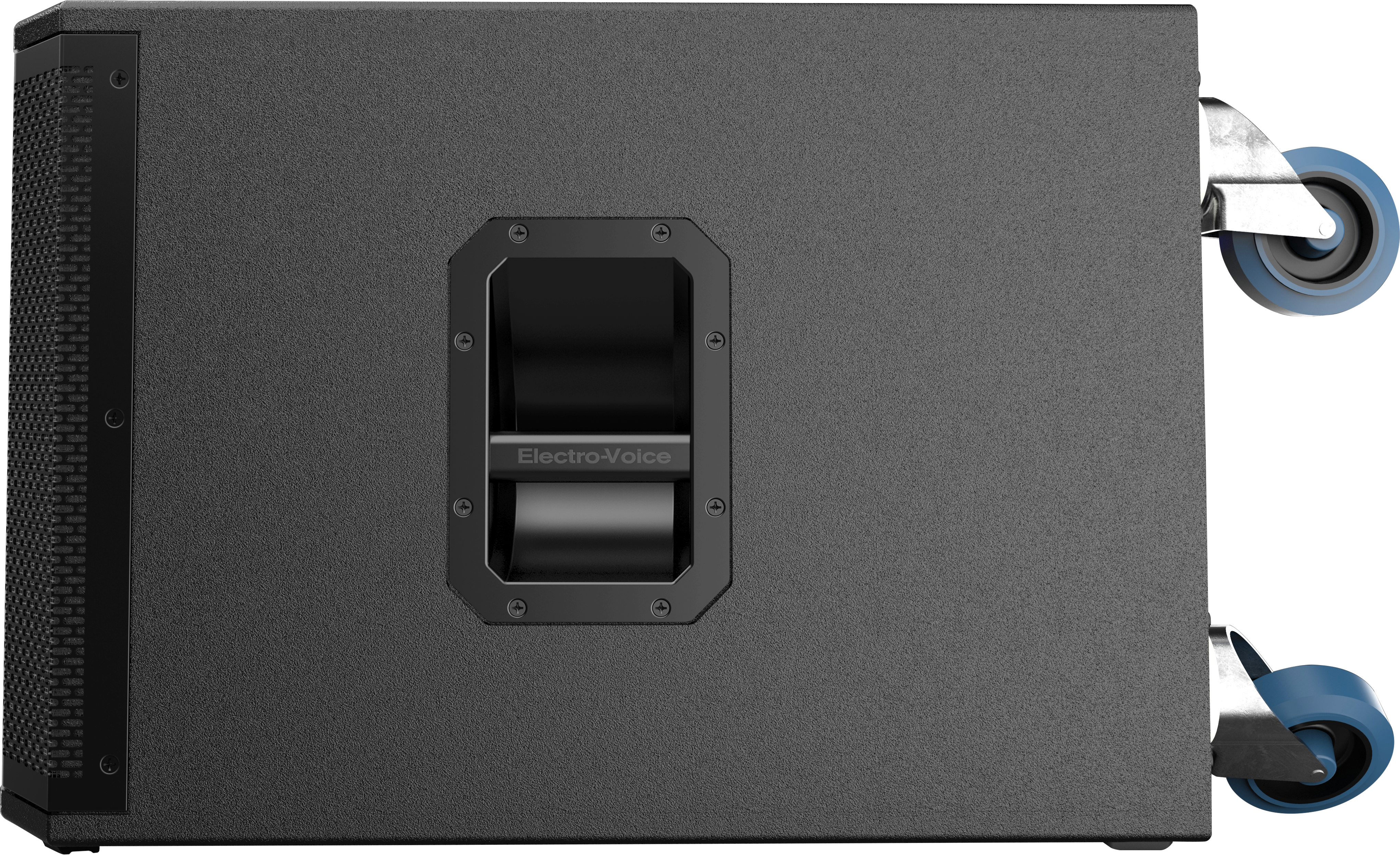

15SP-Side-Handle-Threequarter-Angle

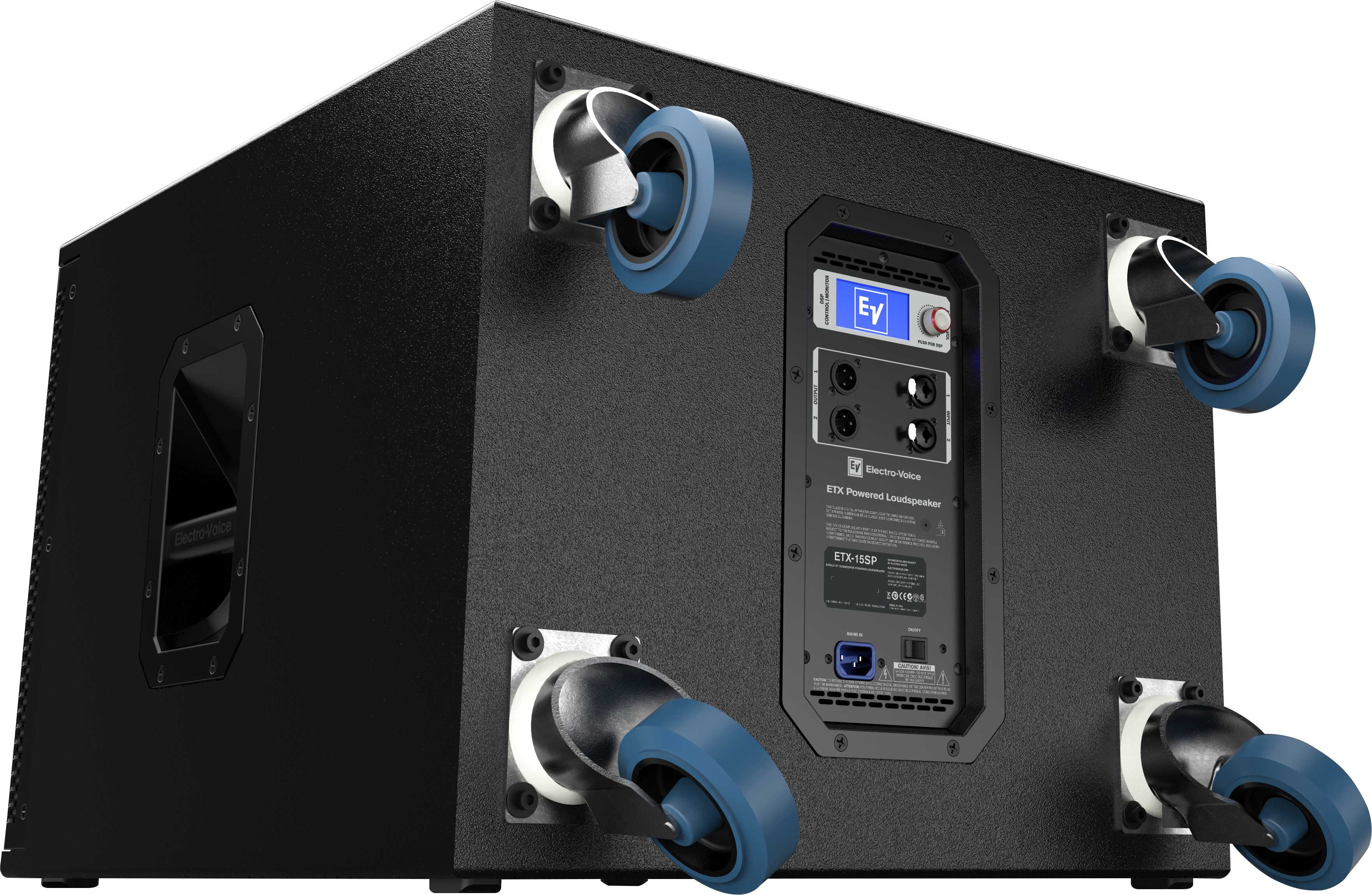

15SP-Threequarter-Back-Amp-Angle
ETX Array Bracket - acc-2-2
ETX Array Bracket -acc-2

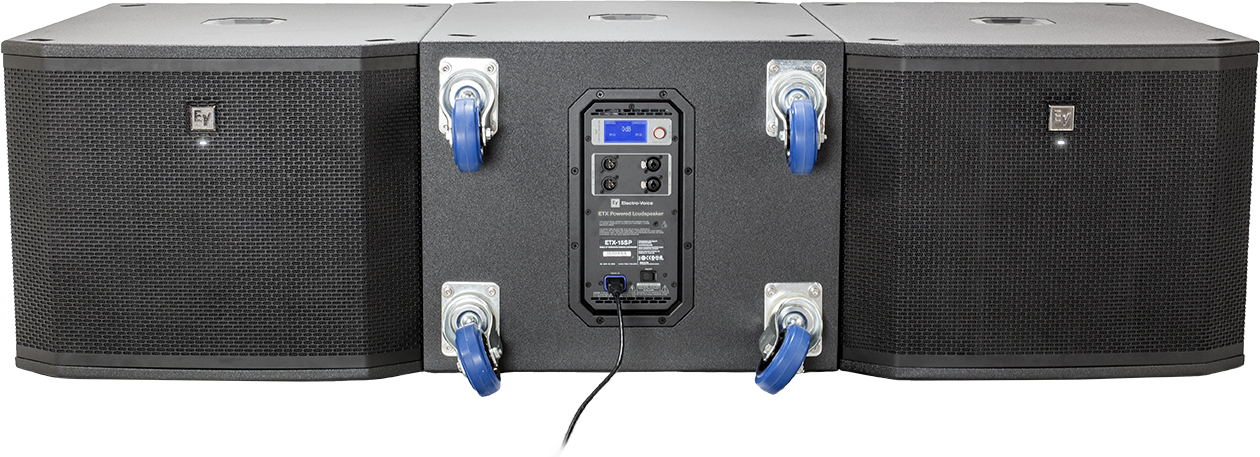

ETX Cardioid Config A-StraightOn
ETX Cardioid Config A-Threequarter

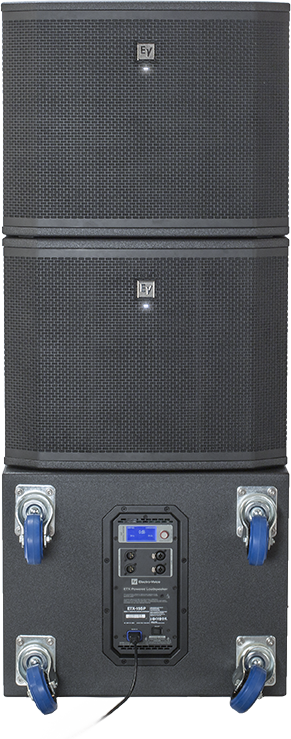

ETX Cardioid Config B-StraightOn
ETX Cardioid Config B-Threequarter

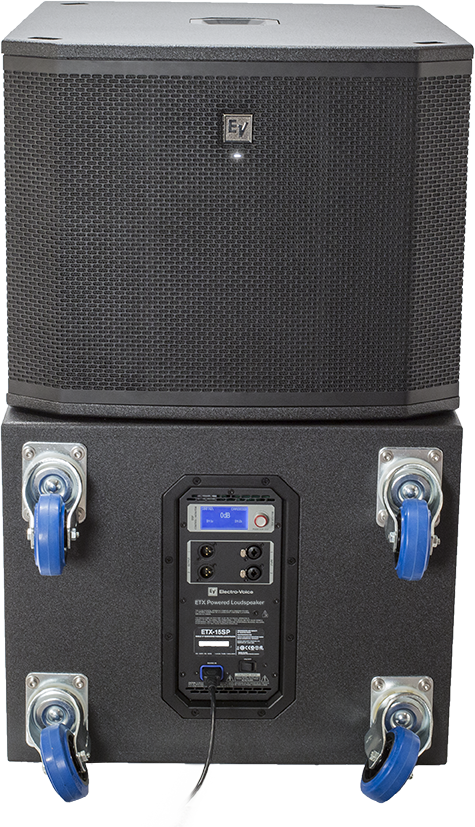

ETX Cardioid Config C-StraightOn
