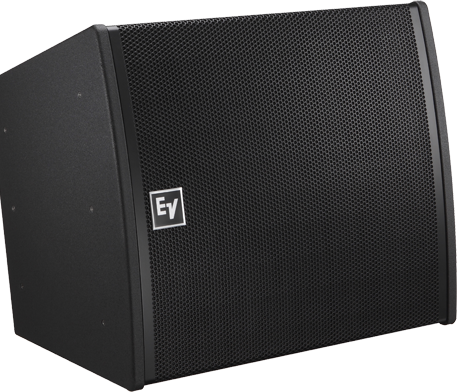

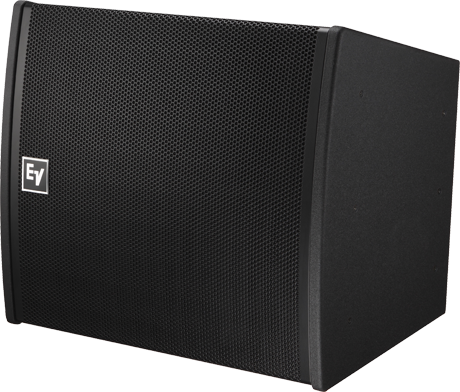

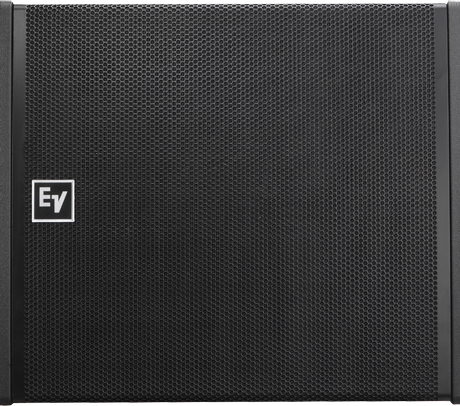

EVA-2082S 1220

Dual‑element 120°x20° full‑range line‑array module

  • High performance, cost-effective
  • Ideal for fixed-installation line arrays
  • Two array elements in each module

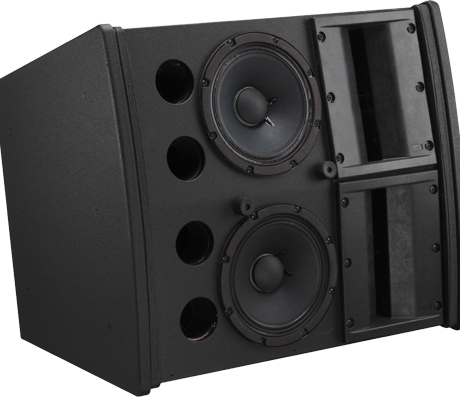

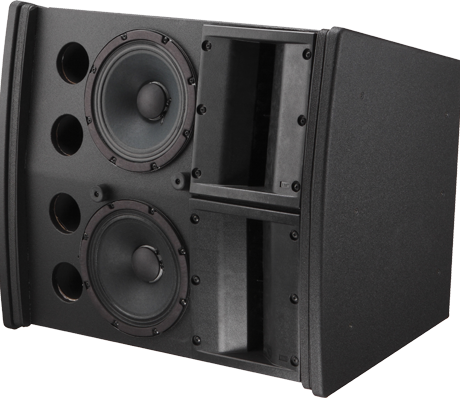

  • Two 8-inch low-distortion woofers
  • Four 1.25-inch titanium diaphragm HF drivers
  • Advanced Hydra(R) plane wave generators
  • High sensitivity (104 dB) for high output
  • Super efficient: drive up to 8 boxes from a single amp channel
  • Sixth-order passive crossover with HF protection

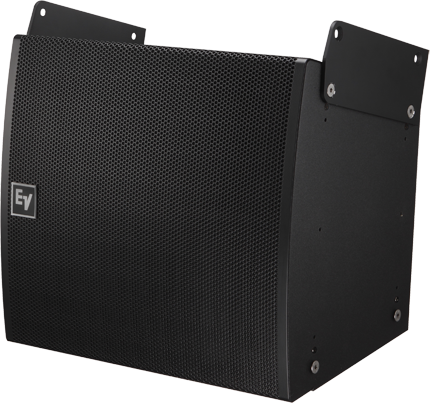

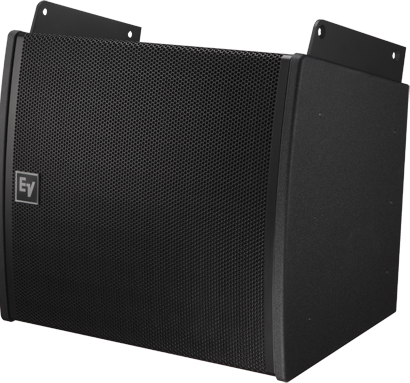

  • Integrated hidden suspension hardware

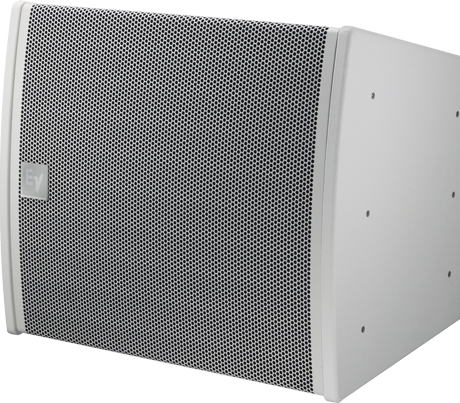

  • Choice of three finishes: indoor, PI and fiberglass
  • EVADA (EVA Design Assistant) software tool

Specifications

Frequency Range (-10 dB) 45 - 20000kHz
Weight Net 81.13lbs (36.8kg)
Depth 14.53" (369.1mm)

Width 23.5" (596.9mm)
Height 20.17" (512.2mm)
Suspension EVA Grid (Sold Separately)
Grille 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth
Enclosure Material Birch plywood
Minimum Impedance 12Ω
Nominal Impedance (Passive) 16Ω
Crossover Frequency 1740Hz
HF Transducer (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver
LF Transducer (2) EVS2008, 8 In (203mm) Driver
System Power Handling (Continuous/Program/Peak) 350, 700, 1400Watts
Coverage (Nominal -6 dB) V 20°
Coverage (Nominal -6 dB) H 120°
Max. SPL/1m (calc) 135dB
Sensitivity 1 W/1 m 104dB (3 module array)
Recommended High-Pass Frequency 50Hz
Frequency Response (-3 dB) 60 - 19000Hz
Input Connections Phoenix/Euroblock style screw terminals
Speaker Type Full-Range, Line-array
Passive Power Handling 1400W peak
