EVA

Expandable vertical array

High performance, cost‑effective
Ideal for fixed installation line arrays
Two array elements in each module
Two 8" low‑distortion woofers
Four 1.25" titanium diaphragm HF drivers
Advanced Hydra plane wave generators
Constant Directivity waveguide
High sensitivity (104 dB) for high output
Super efficient: drive up to 8 boxes from a single amp channel
Sixth-order passive crossover with HF protection
Integrated hidden suspension hardware
Choice of three finishes: indoor, PI and FG
EVADA (EVA Design Assistant) software tool

The Expandable Vertical Array (EVA) series is a vertical line array with a unique, elegant system design that provides a simple solution for installed sound applications. EVA offers true line array performance and coherent far‑field summing from the patented Hydra plane wave generator. The internal, hidden rigging not only looks great, but also makes EVA incredibly easy to install. The sophisticated internal crossover lets you power up to eight EVA full‑range modules (16 line array elements) from a single amplifier channel, eliminating the need for external crossovers or DSP. The four full‑range modules in the series are complemented by two matching subwoofers that can be flown in the array. If you think that your budget isn't big enough for a great sounding line array, EVA may be just the answer you're looking for.

Models

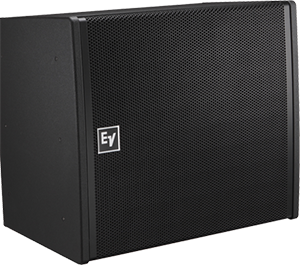

	EVA-2082S 1220 Dual‑element 120°x20° full‑range line‑array module	EVA-2082S 126 Dual‑element 120°x6° full‑range line‑array module	EVA-2082S 920 Dual‑element 90°x20° full‑range line‑array module	EVA-2082S 906 Dual‑element 90°x6° full‑range line‑array module	EVA-2151D Dual 15" subwoofer line array element	EVA-1151D 15" subwoofer line array element
Frequency Range (-10 dB)	45 - 20000kHz	45 - 20000kHz	45 - 20000kHz	45 - 20000kHz	28 - 200kHz (Half space)	35 - 250kHz (Half Space)

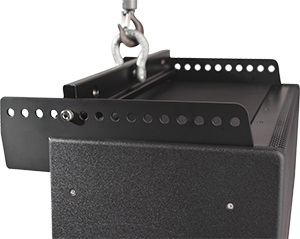

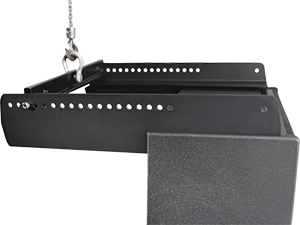

Suspension	EVA Grid (Sold Separately)	EVA Grid (Sold Separately)	EVA Grid (Sold Separately)	EVA Grid (Sold Separately)	EVA grid (sold separately)	EVA grid (Sold separately)
Minimum Impedance	12Ω	12Ω	12Ω	12Ω	2.8Ω	5.8Ω
Nominal Impedance (Passive)	16Ω	16Ω	16Ω	16Ω	4Ω	8Ω
HF Transducer	(4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver	(4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver	(4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver	(4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver
Speaker Type	Full-Range, Line-array	Full-Range, Line-array	Full-Range, Line-array	Full-Range, Line-array	Subwoofer, Line-array	Subwoofer, Line-array
Frequency Response (-3 dB)¹	60 - 19000Hz	60 - 19000Hz	60 - 19000Hz	60 - 19000Hz	200Hz ()	48 - 250Hz ()
Max. SPL/1m (calc)²	135dB	135dB	135dB	135dB	136dB ()	131dB ()
Coverage (Nominal -6 dB) H	120°	120°	90°	90°	360°	360°
LF Transducer	(2) EVS2008, 8 In (203mm) Driver	(2) EVS2008, 8 In (203mm) Driver	(2) EVS2008, 8 In (203mm) Driver	(2) EVS2008, 8 In (203mm) Driver	2 x DVX3159A	DVX3159A
Coverage (Nominal -6 dB) V	20°	6°	20°	6°	omnidirectional°	omnidirectional°
System Power Handling (Continuous/Program/Peak)	350, 700, 1400Watts	350, 700, 1400Watts	350, 700, 1400Watts	350, 700, 1400Watts	1000/2000/4000Watts	500/1000/2000Watts
Crossover Frequency	1740Hz	1740Hz	1740Hz	1740Hz	100Hz ()	100Hz ()
Enclosure Material	Birch plywood	Birch plywood	Birch plywood	Birch plywood	Birch Plywood	Birch plywood
Grille	16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth	16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth	16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth	16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth	16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth	16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth
Sensitivity 1 W/1 m	104dB ()	104dB	104dB ()	104dB	100dB ()	98dB ()
Height	20.17" (512.2mm)	20.25" (514.4mm)	20.17" (512.2mm)	20.25" (514.4mm)	36.63" (930.4mm)	23.5" (596.9mm)
Width	23.5" (596.9mm)	23.5" (596.9mm)	23.5" (596.9mm)	23.5" (596.9mm)	23.5" (597mm)	23.5" (596.9mm)
Recommended High-Pass Frequency	50Hz	50Hz	50Hz	50Hz	32Hz ()	35Hz ()
Depth	14.53" (369.1mm)	14.1" (358.2mm)	14.53" (369.1mm)	14.1" (358.2mm)	31.2" (792.5mm)	18.16" (461.3mm)
Weight Net	81.13lbs (36.8kg)	81.79lbs (37.1kg)	81.13lbs (36.8kg)	81.79lbs (37.1kg)	178.13lbs (80.8kg)	89.07lbs (40.4kg)
Passive Power Handling	1400W peak	1400W peak	1400W peak	1400W peak	4000W peak	2000W peak
Input Connections	Phoenix/Euroblock style screw terminals	Phoenix/Euroblock style screw terminals	Phoenix/Euroblock style screw terminals	Phoenix/Euroblock style screw terminals	Phoenix Euroblock	Phoenix/Euroblock style screw terminals
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More

Show more specs

Downloads

A/E Specification

Name	Language	Size	Date
EVA1151D_BLK A&E Specification	EN	52KB	Nov 18, 2020
EVA1151D_FGB A&E Specification	EN	52KB	Nov 18, 2020
EVA1151D_FGW A&E Specification	EN	52KB	Nov 18, 2020
EVA1151D_PIB A&E Specification	EN	52KB	Nov 18, 2020
EVA1151D_PIW A&E Specification	EN	52KB	Nov 18, 2020
EVA1151D_WHT A&E Specification	EN	52KB	Nov 18, 2020
EVA2082-1220_BLK A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-1220_FGB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-1220_FGW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-1220_PIB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-1220_PIW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-1220_WHT A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_BLK A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_FGB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_FGW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_PIB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_PIW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-126_WHT A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_BLK A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_FGB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_FGW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_PIB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_PIW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-906_WHT A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_BLK A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_FGB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_FGW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_PIB A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_PIW A&E Specification	EN	53KB	Nov 18, 2020
EVA2082-920_WHT A&E Specification	EN	53KB	Nov 18, 2020
EVA2151D_BLK A&E Specification	EN	52KB	Nov 18, 2020
EVA2151D_PIB A&E Specification	EN	52KB	Nov 18, 2020
EVA2151D_PIW A&E Specification	EN	52KB	Nov 18, 2020
EVA2151D_WHT A&E Specification	EN	52KB	Nov 18, 2020

BIM

Name	Size	Date
EVA-1151D.rfa	1.69MB	Jan 16, 2019
EVA-2082S.rfa	1.92MB	Jan 16, 2019
EVA-2151D.rfa	1.68MB	Jan 16, 2019

Brochures and Catalogs

Name	Language	Size	Date
ProSound Loudspeakers and Electronics Catalog	EN	15.43MB	Apr 2, 2019

Certification/Regulatory

Name	Size	Date
Environmental Compliance Document	148KB	Oct 3, 2017

Drawing

Name	Size	Date
EVA 20 Degree 2D CAD Drawing	DWG	476KB	Aug 20, 2009
EVA 20 Degree 3D CAD Drawing	DWG	292KB	May 7, 2009
EVA 6 Degree 2D CAD Drawing	DWG	447KB	Aug 20, 2009
EVA 6 Degree 3D CAD Drawing	DWG	291KB	May 7, 2009
EVA-1151D 2D CAD	DWG	193KB	Dec 2, 2013
EVA-1151D 3D CAD	DWG	200KB	Dec 2, 2013
EVA-2151D 2D CAD	DWG	231KB	Dec 2, 2013
EVA-2151D 3D CAD	DWG	210KB	Dec 2, 2013

EASE/CLF

Name	Size	Date
EV EVA V2.0 - EASE Focus Enabled	ZIP	91.56MB	Nov 25, 2020

Data Sheet

Name	Language	Size	Date
EVA-1151D Engineering Data Sheet	EN	396KB	Jun 21, 2011
EVA-2082S/1220 Engineering Data Sheet	EN	969KB	Mar 21, 2012
EVA-2082S/126 Engineering Data Sheet	EN	946KB	Mar 21, 2012
EVA-2082S/906 Engineering Data Sheet	EN	940KB	Mar 21, 2012
EVA-2082S/920 Engineering Data Sheet	EN	963KB	Mar 21, 2012
EVA-2151D Engineering Data Sheet	EN	65KB	Aug 30, 2011

EVADA EVA Design Assistance Software

Name	Size	Date
EVADA v2.4	3.84MB	Sep 16, 2011

Flyer

Name	Language	Size	Date
System solutions Medium house of worship	EN	820KB	Feb 25, 2020

Line Array Prediction Software

Name	Size	Date
LAPS 2.2A	5.21MB	Nov 3, 2015

Manual

Name	Language	Size	Date
EV-I Access Card User Instructions	EN	439KB	Mar 22, 2012
EVA Series User Manual	EN	5.29MB	Jun 16, 2011
EVA-AM Installation Instructions	EN	316KB	Mar 22, 2012

PR Image

Name	Size	Date
KingsChurch 1	980KB	Nov 2, 2015

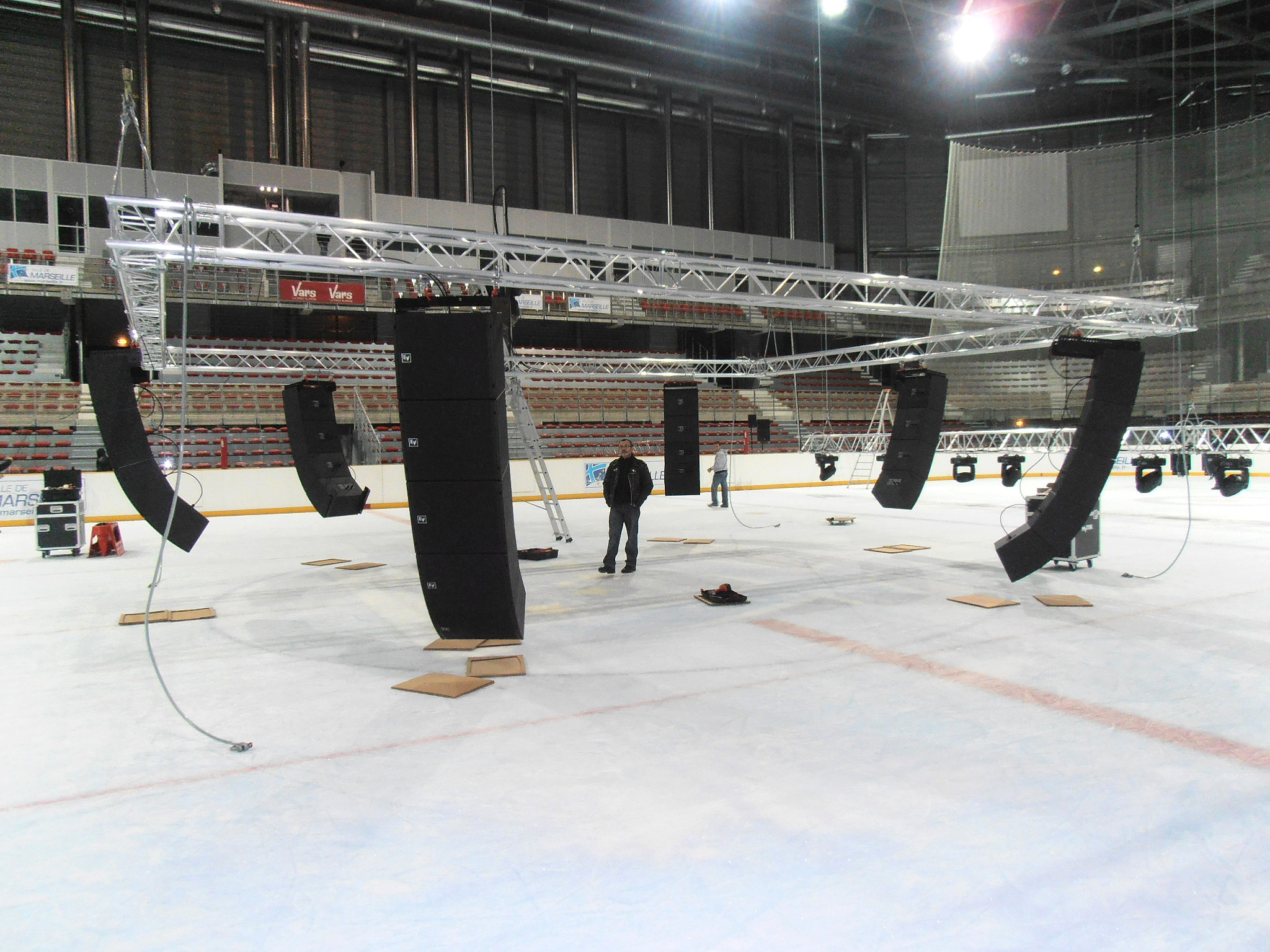

StadiumMarseille 2	841KB	Nov 2, 2015

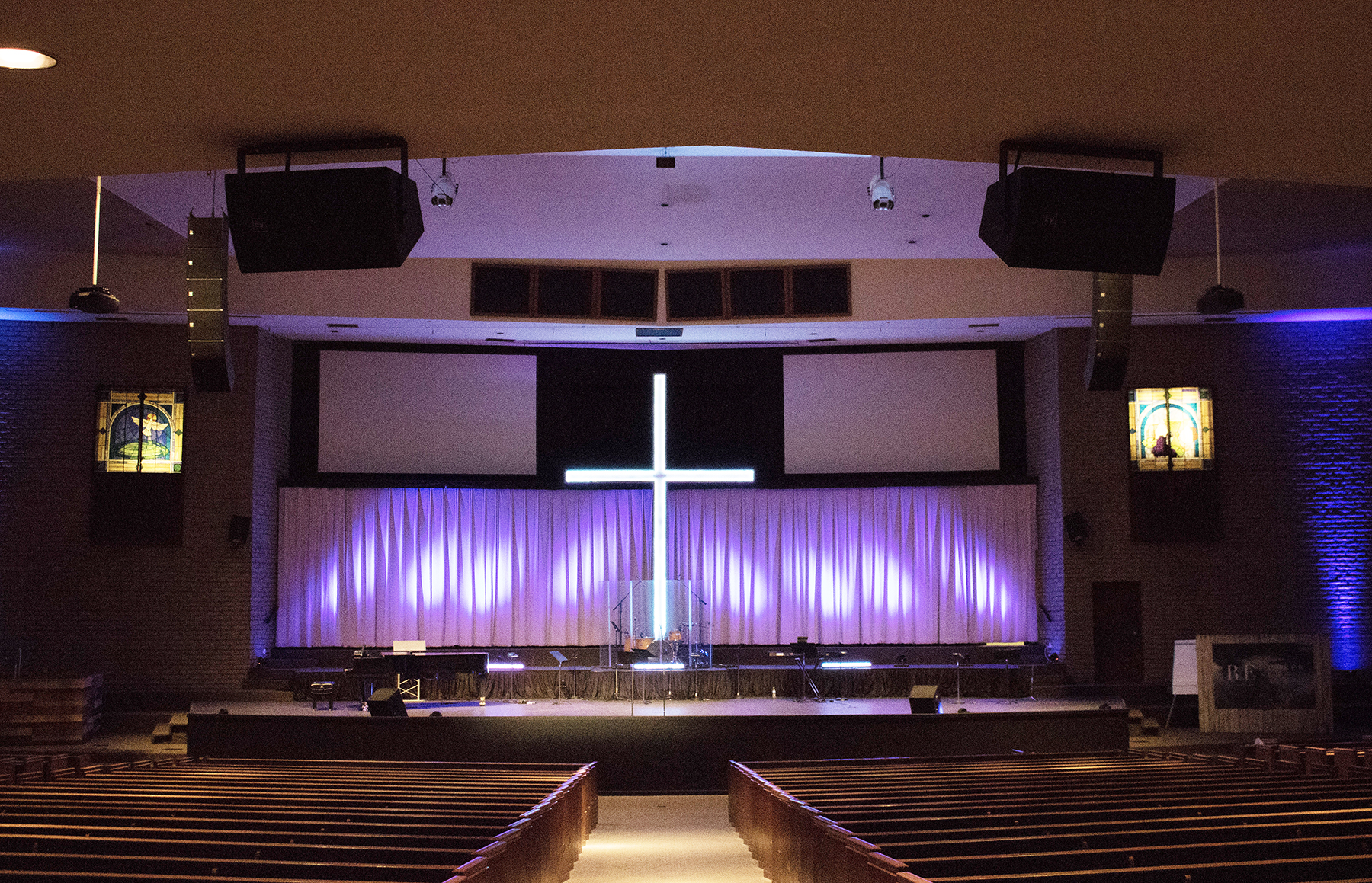

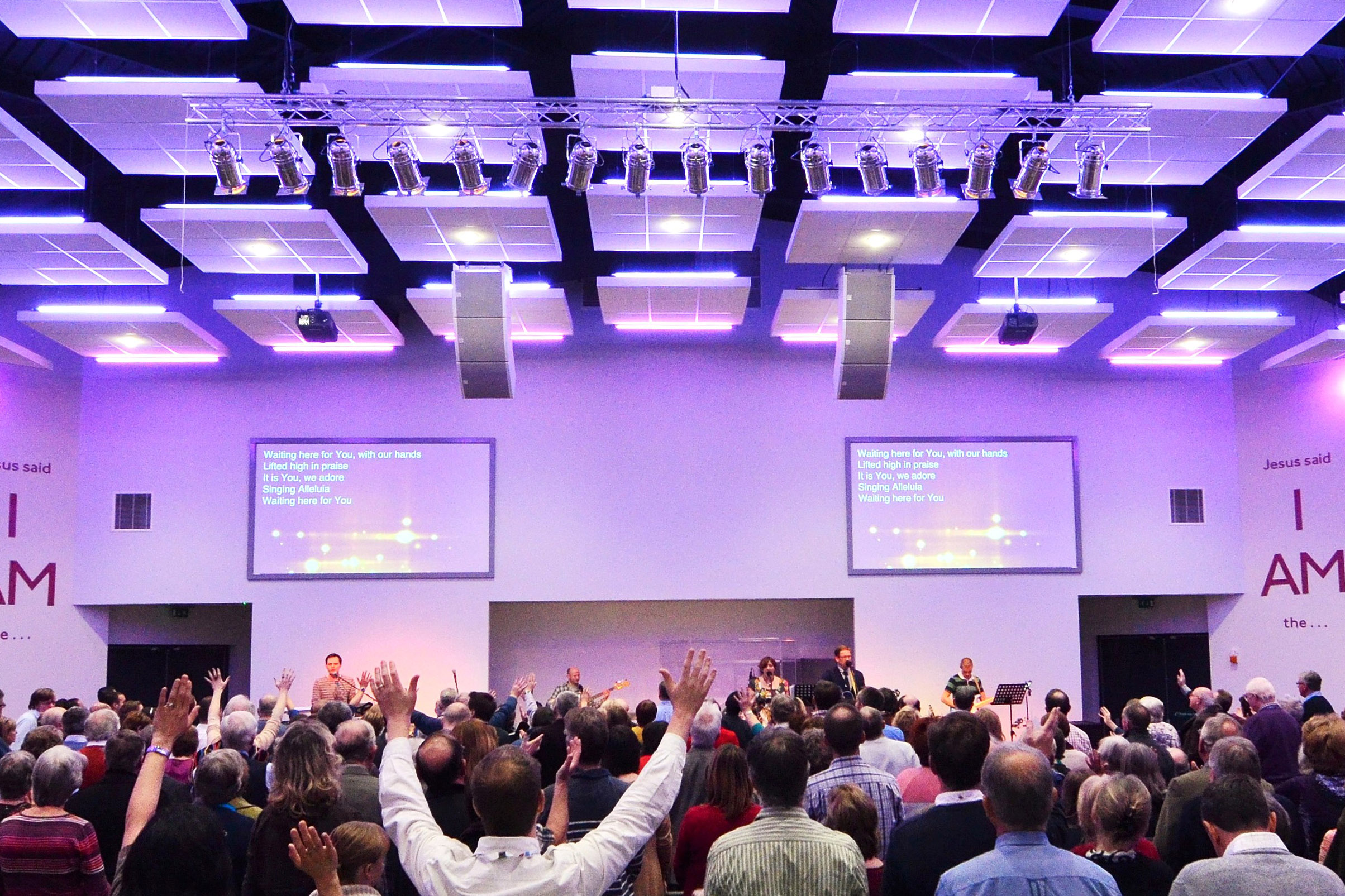

Grace Community 01	2.19MB	Jul 9, 2018

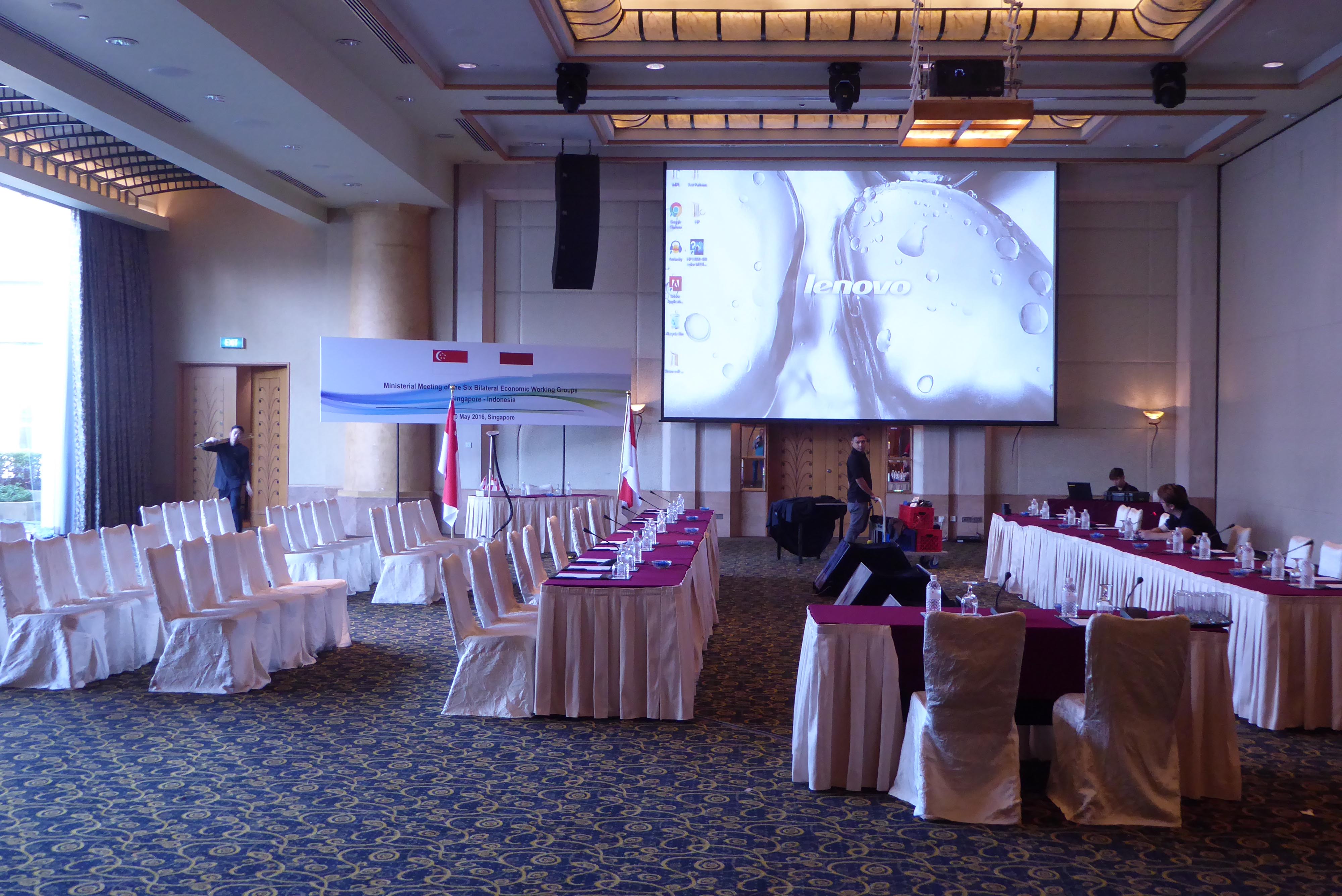

Grand Copthorne Waterfront Hotel 02	981KB	Nov 29, 2016

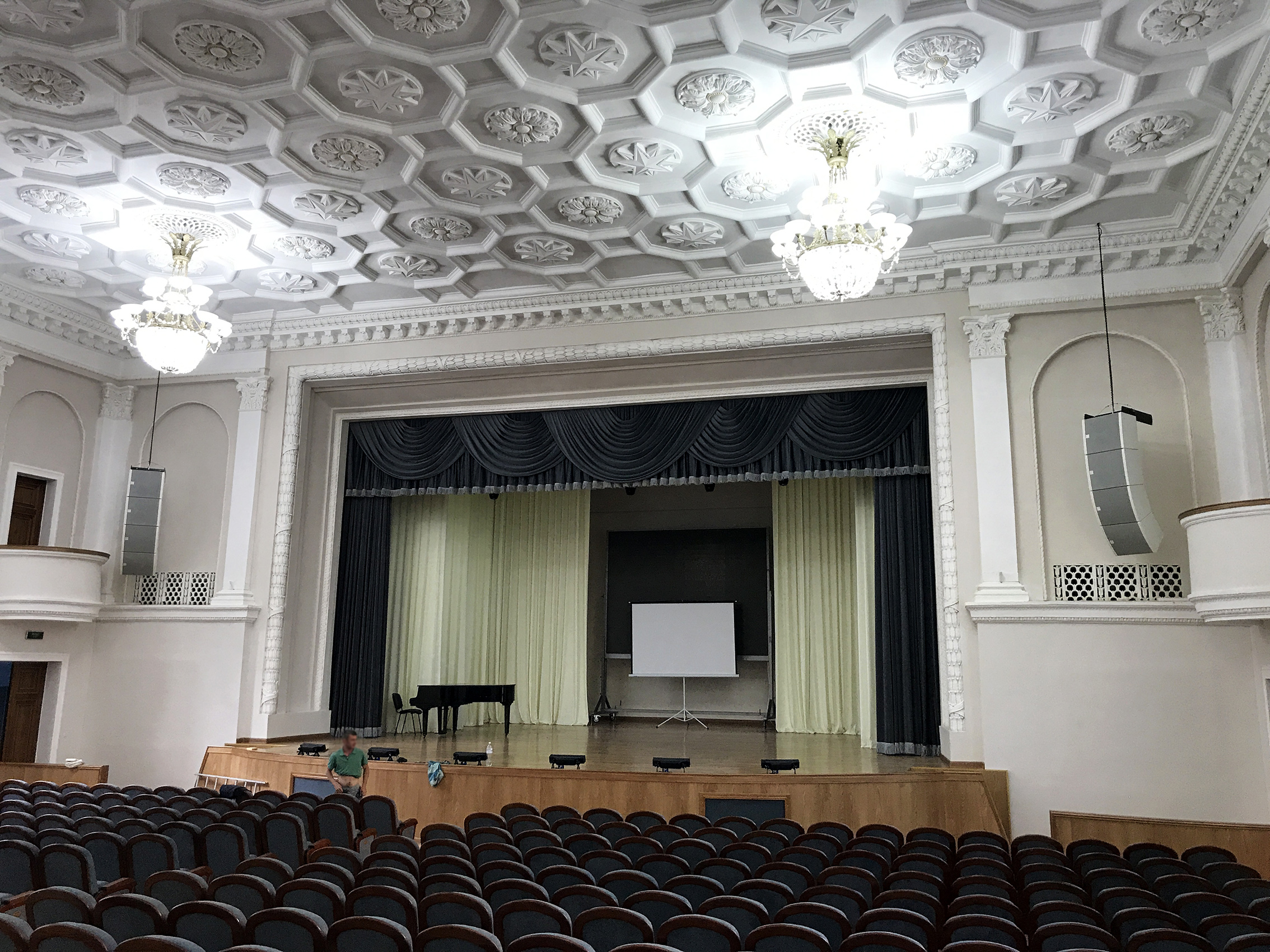

Kharkiv 01	1.67MB	Nov 30, 2018

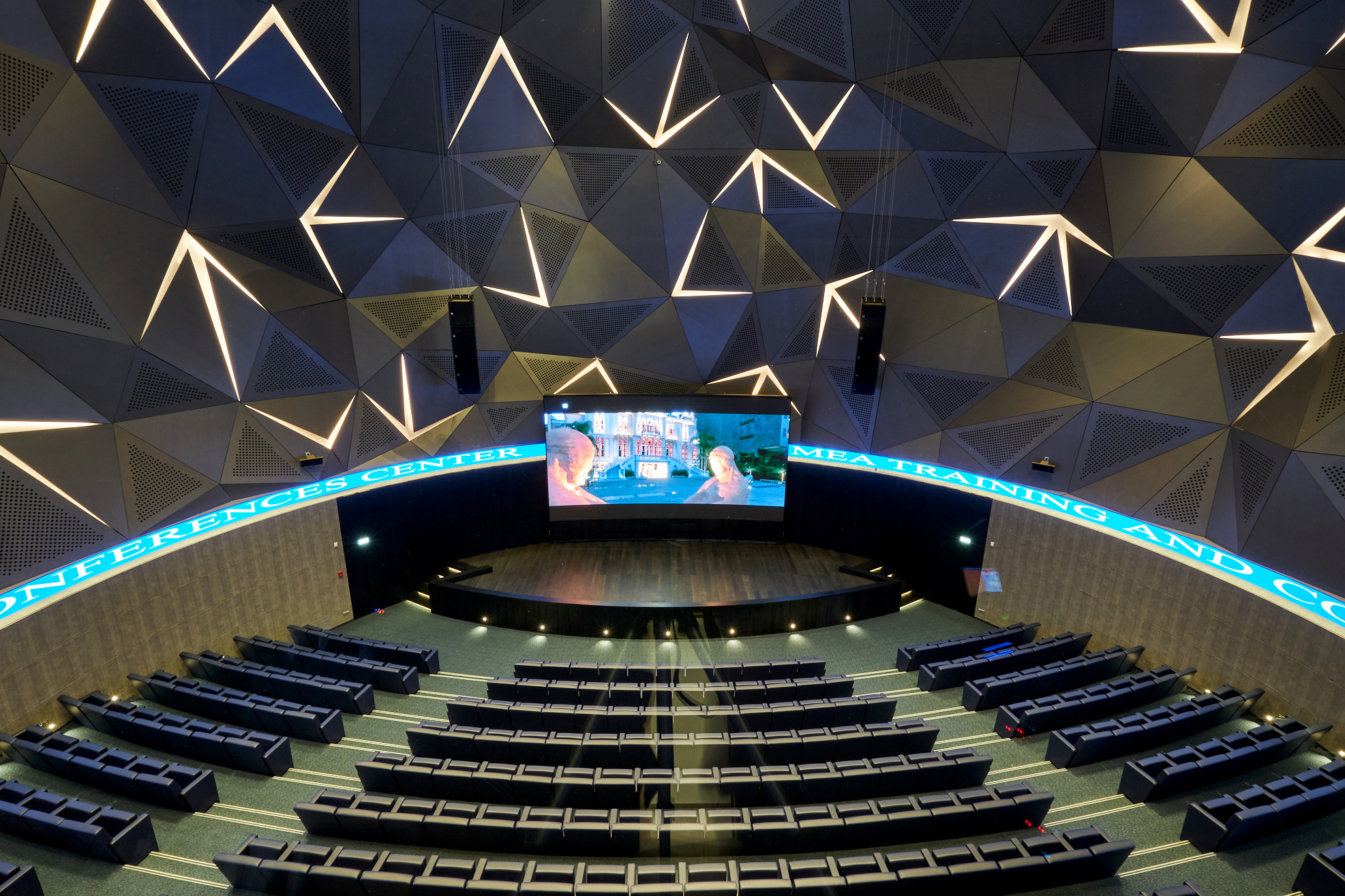

MEATrainingCentre 00	2.04MB	Jul 12, 2018

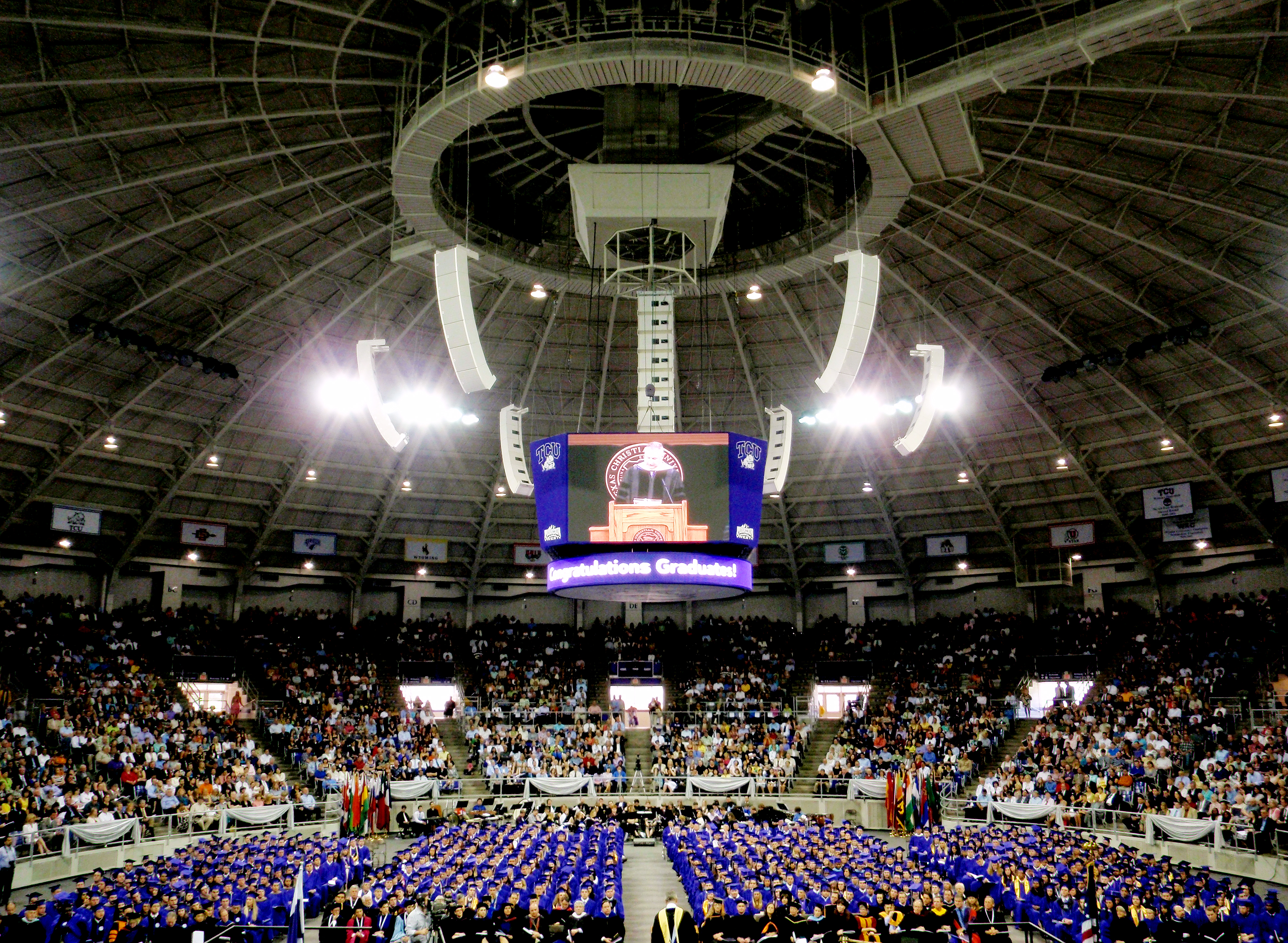

TCU - May 2010 - 01	13.24MB	Nov 2, 2015

Product Image

EVA 1151DGrle

EVA2082 1220Gr

EVA2082 126Gr

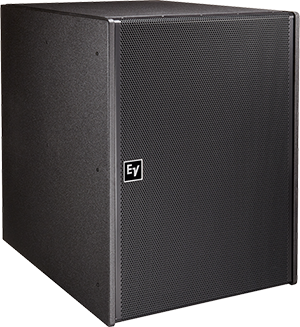

EVABlack Gran
