EVC-UB2
U-bracket 12", 15"
- Two-piece U-bracket

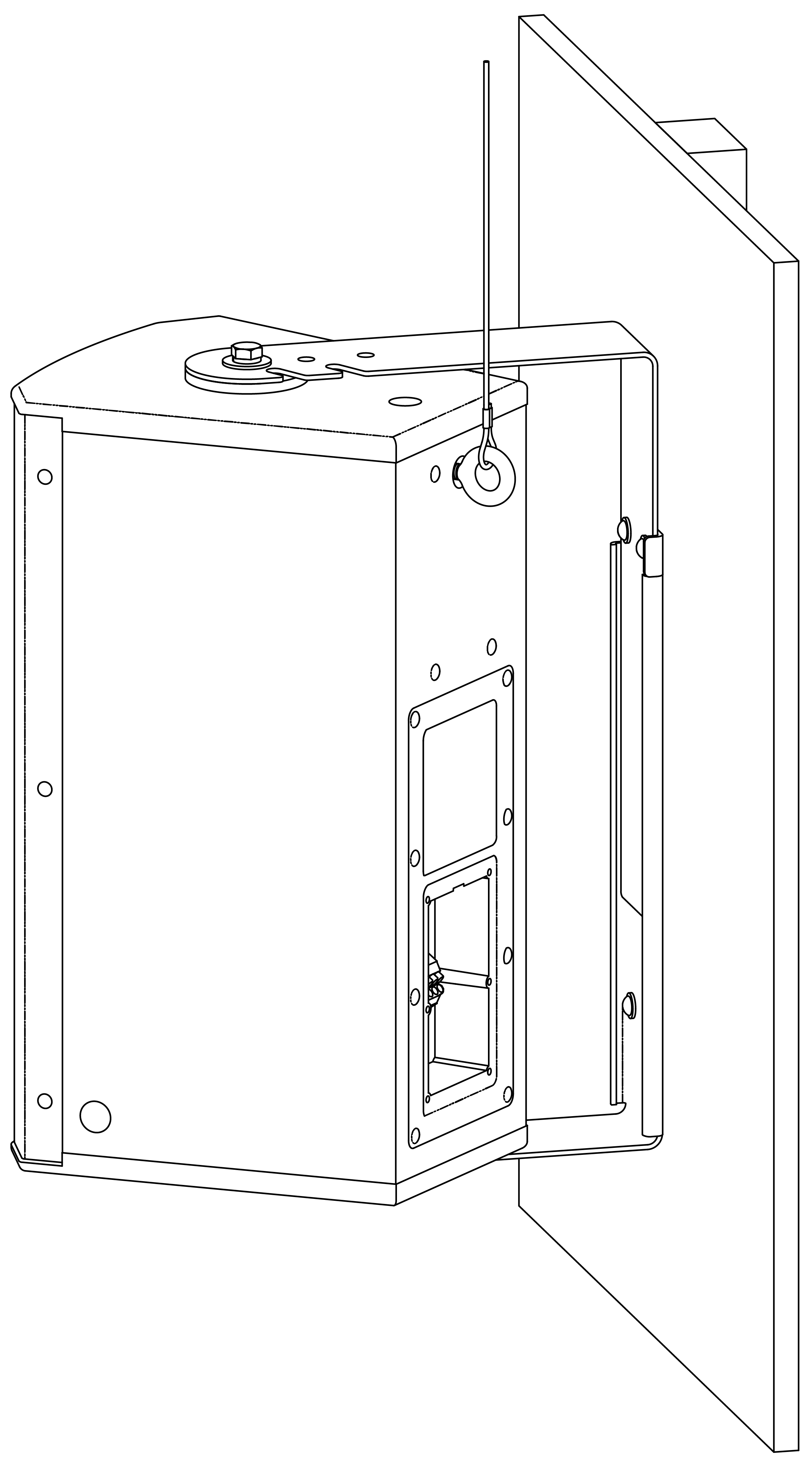

- Horizontal, vertical, or ceiling mount
- Adjustment range up to 60°
- Fits the EVC-1152 15" and EVC-1122 trapezoidal shape 12" loudspeaker models
Specifications
| Color | Black or white | |||
| Bracket width (wall attachment) | 97 mm (3.8 in) | |||
| Min length | 584 mm (23 in) | |||
Specifications |
||||
| Max length | 914 mm (36 in) |
| Arm length | 299 mm (11.8 in) |
| Net weight | 4.8 kg (10.7 lb) |
| Shipping weight | 5.5 kg (12 lb) |
| Tilt (from 0° axis) | Up to 60° |
Downloads
Technical Documentations
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| EVC-UB2 U-Bracket 12,15 in Data Sheet | EN |
Manual
| Name | Language & Download |
|---|---|
| EVC Compact Front Loaded Loudspeakers Installation Manual | EN |
Service Policies
| Name | Language & Download |
|---|---|
| Warranty conditions for Electro-Voice products in North America | EN |
Marketing Materials
Product Image
