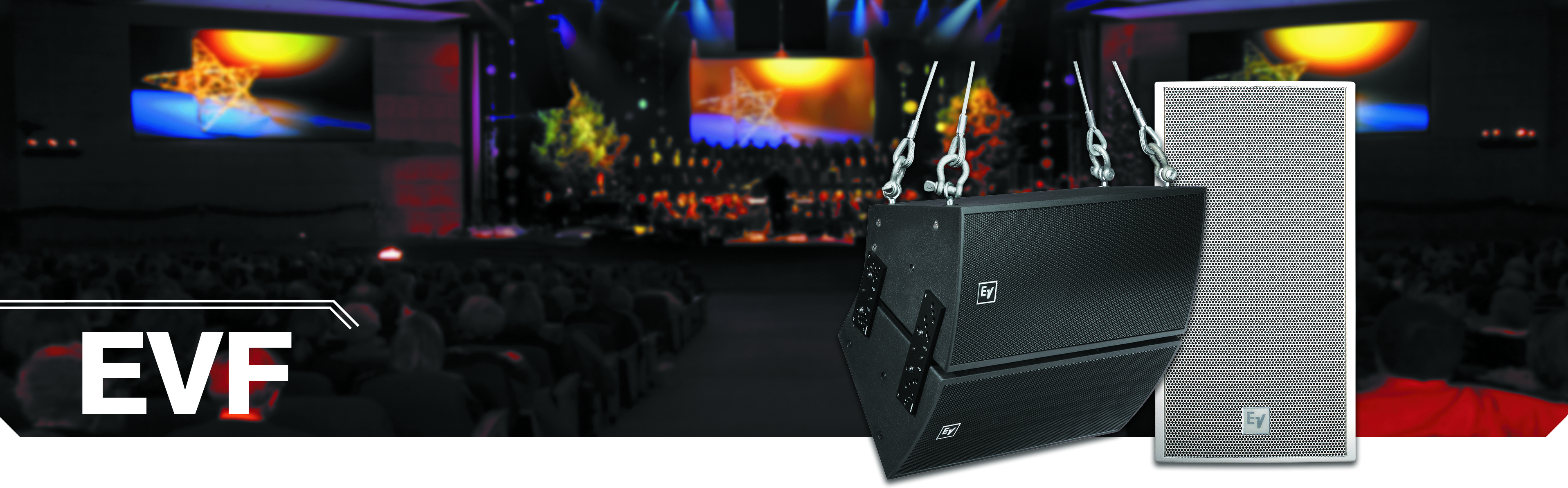

EVF
Standard & high‑definition front‑loaded install speakers
EVF is the most comprehensive standard line of front loaded loudspeaker systems ever offered for installed sound. Available in 12" or 15" two‑way configurations and enhanced with dedicated low‑frequency systems, EVF loudspeakers match exceptional audio performance, efficiency, ease‑of‑use and aesthetics with unprecedented value. EVF systems incorporate the latest Electro‑Voice components to ensure years of reliability and exceptional sound. "S" designated systems are equipped with SMX series symmetric drive woofers and ND2B 2" titanium compression drivers; upgraded "D" high definition systems are equipped with our highest performance DVX series symmetric drive woofers and the DH7N 3" pure titanium compression driver.
EVF two‑way full‑range systems are offered in seven coverage patterns that provide solutions for the widest possible range of installation challenges. The 12" Constant Directivity waveguides can be rotated to work with a vertical or horizontal orientation. Biamp operation is supported, but the sophisticated fourth‑order crossover and protection network makes cost‑saving, passive operation extremely attractive. Using optional rigging accessories, you can create attractive clusters that include EVF full‑range systems, as well as EVF subwoofers or EVH full‑range systems. Cabinets are available in three finishes: EVCoat (interior use), PI (indirect weather exposure) or FG (fiberglass—for direct weather exposure); they include twenty‑two M10 threaded suspension points.
Models
 |
 |
 |
 |
|
|
| |
EVF-1151S |
EVF-1181S |
EVF-2151D |
EVF-D 12 |
EVF-D 15 |
EVF-S 12 |
EVF-S 15 | |
| Frequency Range (-10 dB) | 46–124 HzkHz | 28–650 HzkHz | 30 Hz – 3.2 kHz | 49 - 21kHz | 40 - 21kHz | 49 - 19kHz | 41 - 18kHz (Half-space measurement in passive mode, FG (full outdoors) versions have no enclosure vents, somewhat reducing their low frequency response ) |
| Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) | 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) | 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) | (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) | (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) | (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) | (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | No | No | No | No | No | No | No |
| Minimum Impedance | Ω | Passive: N/A, Biamp: 6 Ω | Passive: N/A, Biamp: 2.7 Ω | 6Ω | 6Ω | 6Ω | 6Ω |
| Nominal Impedance (Passive) | Passive: 4 , Biamp: 8 Ω | Passive: N/A, Biamp: 8 Ω | Passive: N/A, Biamp: 4 Ω | 8Ω | 8Ω | 8Ω | 8Ω |
| HF Transducer | DH7N 3-inch (76 mm) diaphragm compression driver | DH7N 3-inch (76 mm) diaphragm compression driver | ND2B 2-inch (51 mm) diaphragm compression driver | ND2B 2-inch (51 mm) diaphragm compression driver | |||
| Speaker Type | Subwoofer | Subwoofer | Subwoofer | Full-Range, Two-Way | Full-Range, Two-Way | Full-Range, Two-Way | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 67–95 HzHz | 35–100 HzHz | 40 Hz – 2.6 Hz | 57 - 18000Hz | 70 - 18000Hz | 58 - 16000Hz | 70 - 14000Hz () |
| Max. SPL/1m (calc)² | 131dB | 131dB | 137dB | 131dB | 134dB | 131dB | 134dB |
| Coverage (Nominal -6 dB) H | 360° | 360° | 360° | 120° | 90° | 120° | 90° |
| LF Transducer | 15" EVS15SB driver | 18" EVS18SB driver | Two 15" DVX3159A drivers | DVX3121A 12-inch (305 mm) woofer | DVX3151A 15-inch (381 mm) woofer | SMX2121 12-inch (305 mm) driver | SMX2151 15-inch (381 mm) driver |
| Coverage (Nominal -6 dB) V | Omnidirectional° | ||||||
| System Power Handling (Continuous/Program/Peak) | 400 , 800 , 1600 Watts | 400 , 800 , 1600 Watts | 1000 , 2000 , 4000 Watts | 600, 1200, 2400Watts | 600, 1200, 2400Watts | 500, 1000, 2000Watts | 500, 1000, 2000Watts |
| Enclosure Material | 13-ply weather-resistant birch | 13-ply weather-resistant birch | 13-ply weather-resistant birch | 13-ply weather-resistant birch | 13-ply weather-resistant birch | 13-ply weather-resistant birch | 13-ply weather-resistant birch |
| Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind |
| Sensitivity 1 W/1 m | 99dB | 99dB | 101dB | 97dB | 100dB | 98dB | 101dB |
| Height | 30.26" (768.6mm) | 30.26" (768.6mm) | 30.26" (768.6mm) | 30.26" (768.6mm) | 30.26" (768.6mm) | 30.26" (768.6mm) | |
| Width | 18.5" (470mm) | 26.6" (675.6mm) | 26.6" (675.6mm) | 18.5" (469.8mm) | 16" (406.3mm) | 18.5" (469.8mm) | |
| Recommended High-Pass Frequency | 35Hz | 33Hz | 35Hz | 65Hz | 45Hz | 65Hz | 45Hz |
| Depth | 18.39" (467mm) | 28.6" (726.4mm) | 28.6" (726.4mm) | 18.37" (466.6mm) | 16.27" (413.3mm) | 18.37" (466.6mm) | |
| Weight Net | 62.61lbs (28.4kg) | 101.19lbs (45.9kg) | 117.07lbs (53.1kg) | 75.84lbs (34.4kg) | 63.05lbs (28.6kg) | 70.77lbs (32.1kg) | |
| Internal Passive Low-Pass Filter | 100 () | ||||||
| Coverage (Nominal -6 dB) | Omnidirectional in normal operating range | Omnidirectional in normal operating range | Omnidirectional in normal operating range | ||||
| Passive Power Handling | 1600W peak | 1600W peak | 4000W peak | 2400W peak | 2400W peak | 2000W peak | 2000W peak |
| Available Coverage Patterns (Nominal -6 dB) HxV | Omnidirectional in normal operating range° | Omnidirectional in normal operating range° | Omnidirectional in normal operating range° | 60x40, 60x60, 90x40, 90x60, 90x90, 120x60° | 40x30, 60x40, 60x60, 90x40, 90x60, 90x90° | 60x40, 60x60, 90x40, 90x60, 90x90, 120x60° | 40x30, 60x40, 60x60, 90x40, 90x60, 90x90° |
| Net Weight | 62.6 lb (28.4 kg) | 101.2 lb (45.9 kg) | 117 lb (53.1 kg) | ||||
| Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
| Input Connections | Euroblock; PI and FG versions include dual gland nut input panel cover | Euroblock; PI and FG versions include dual gland nut input panel cover | Euroblock; PI and FG versions include dual gland nut input panel cover | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
| Dimensions (H x W x D) | 30.26" x 18.5" x 18.4" (768.6 x 470 x 467 )mm | 30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm | 30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm | ||||
| Internal Passive Crossover Frequency | Hz | Hz | Hz | 1300Hz | 1300Hz | 1450Hz | 1450Hz |
| Nominal Impedance | Passive: N/A, Bi-amp: 8Ω () | 4Ω | |||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
