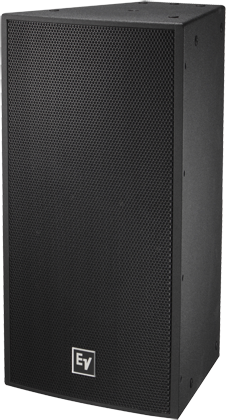

EVF-1122D/126-FG
Premium Arrayable point-source 12” 120°x60° fully-weatherized loudspeaker
- Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
- DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit pure titanium compression driver
- DVX3121A 12” (305 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern: 120° x 60° Constant Directivity 12” rotatable waveguide
- 97 dB sensitivity, 131 dB maximum SPL
- System rating: 600 W continuous, 2400 W peak
- Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
- (22) M10 threaded suspension points
EVF-1122D/126-FG features a 120° x 60° rotatable waveguide, design for near field widest throw coverage pattern with fiberglass finish for outdoors full exposure applications.
Specifications
| Frequency Range (-10 dB) | 66 Hz - 21 kHz |
| Suspension | (22) M10 threaded suspension points |
| Weatherized | Yes |
Specifications |
|
| Minimum Impedance | 6Ω |
| Nominal Impedance (Passive) | 8Ω |
| HF Transducer | DH7N, 3” (76 mm) diaphragm compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 118 Hz - 18 Hz |
| LF Nominal Impedance | 8Ω |
| Max. SPL/1m (calc)² | 131dB |
| Coverage (Nominal -6 dB) H | 120° |
| Coverage (Nominal -6 dB) V | 60° |
| LF Transducer | DVX3121A, 12” (305 mm) driver |
| System Power Handling (Continuous/Program/Peak) | 600 continuous, 2400 peakWatts |
| Crossover Frequency | 1300Hz |
| Enclosure Material | 13-ply weather-resistant birch with fiberglass finish |
| Grille | 18 GA stainless steel with hydrophobic cloth |
| Sensitivity 1 W/1 m | 97 (1 W/1 m)dB |
| Height | 30.26" (768.6mm) |
| Recommended High-Pass Frequency | 65Hz |
| Width | 16" (406.3mm) |
| Depth | 16.27" (413.3mm) |
| Weight Net | 65.48lbs (29.7kg) |
| Shipping Weight | 75.84lbs (34.4kg) |
| Available Coverage Patterns (Nominal -6 dB) HxV | 120 x 60° |
| Environmental Specs | IEC 60529 IP55 |
| Internal Passive Crossover Frequency | 1300 HzHz |
| Passive Power Handling | 2400W peak |
| Net Weight | 65.5 lb (29.7 kg) |
| Dimensions (H x W x D) | 30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm |
| Input Connections | Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing |
