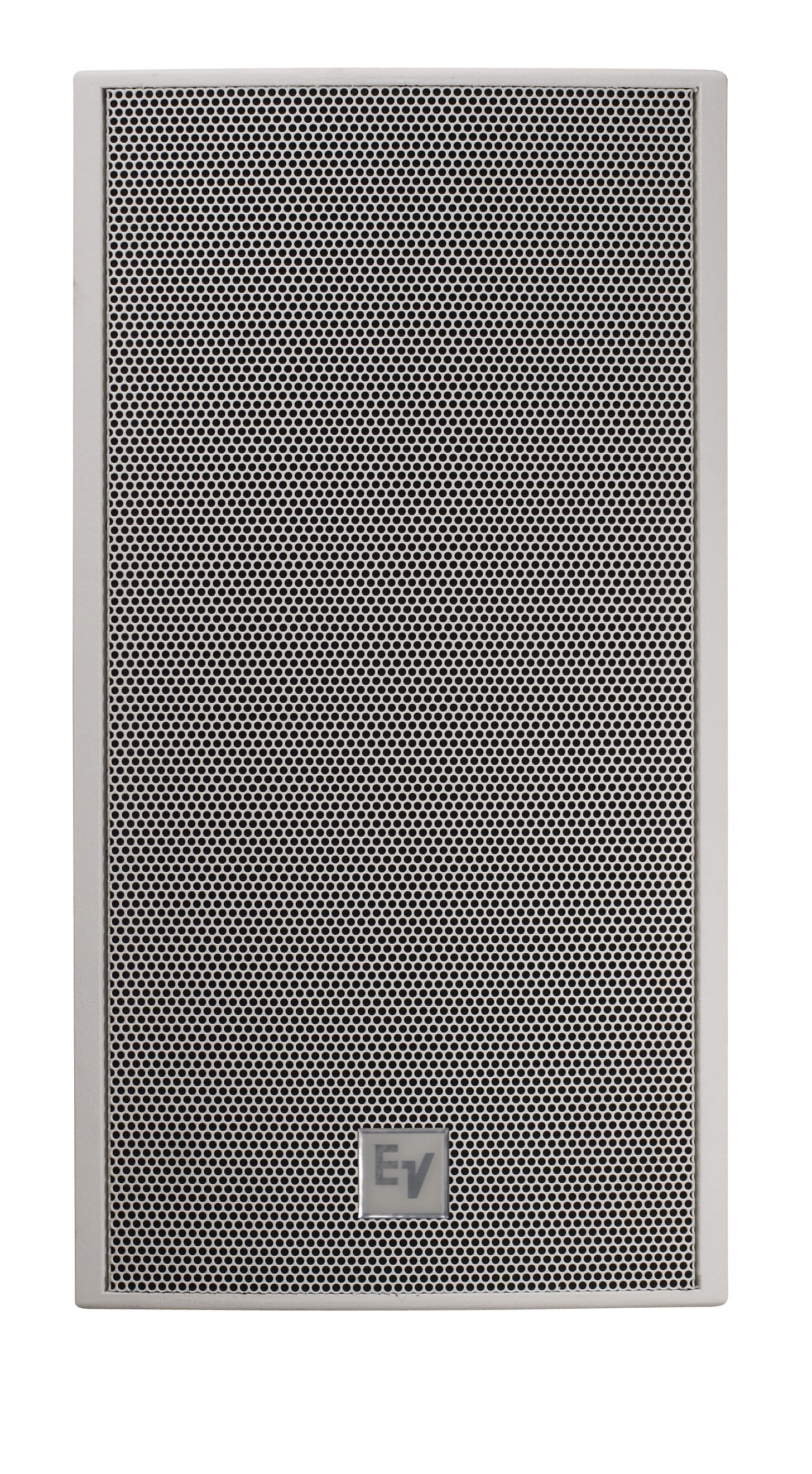

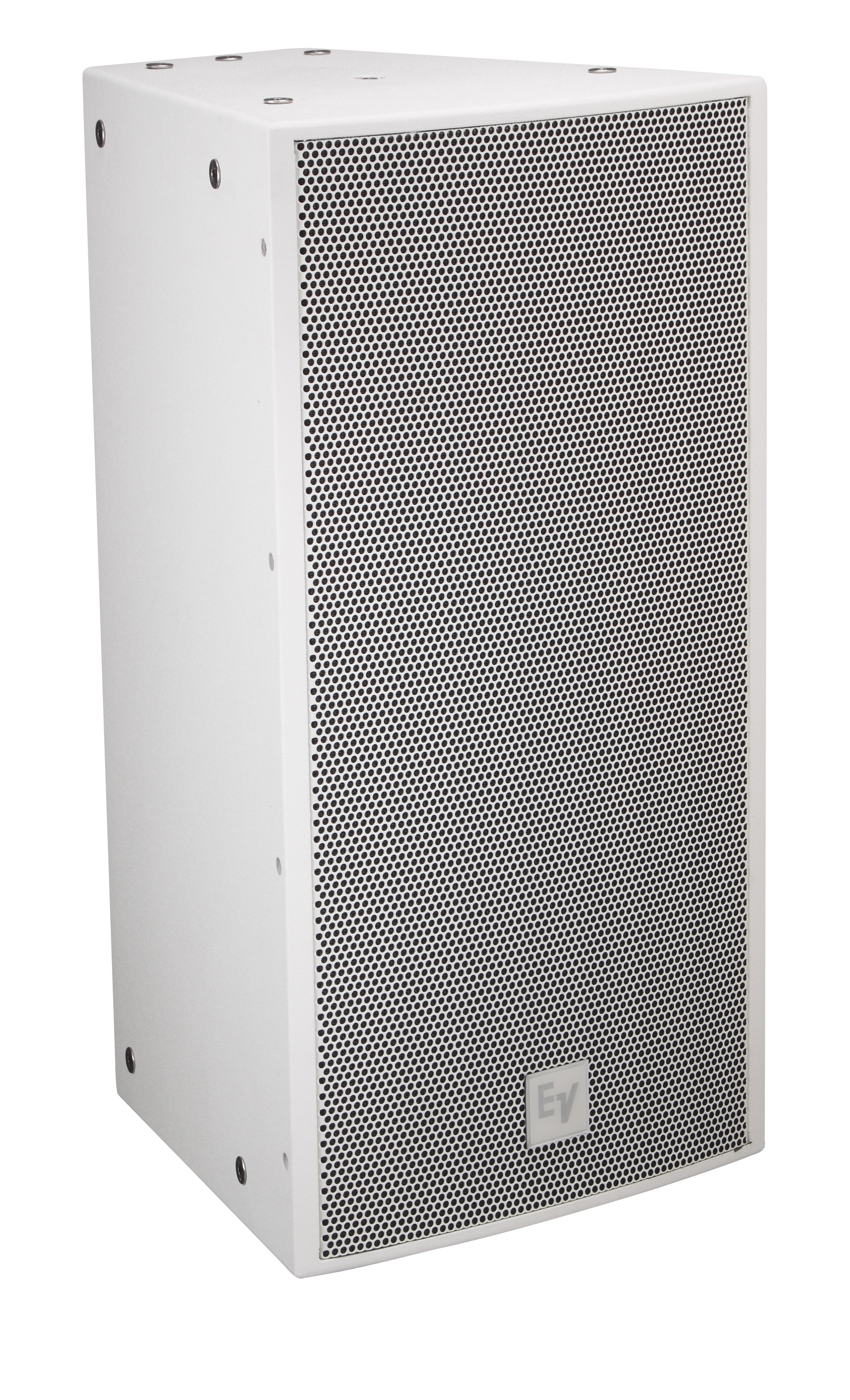

EVF-1122S 64

2‑way full‑range loudspeaker system

  • Coverage Patterns: 60x40, 60x60, 90x40, 90x60, 90x90, 120x60 Constant Directivity 12-inch Rotatable Waveguide
  • Passive Sytem: 98 dB Sensitivity, 131 dB Maximun SPL
  • System Rating: 500W Continues, (2000 W Peak)
  • PI and FG Versions are Standard with Gland Nut and Stainless Steel Grille
  • EN54-24 type B certification 1438/CPR/0283 (Only available in select regions)

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.


Frequency Range (-10 dB) 49 - 19kHz
Weight Net 63.05lbs (28.6kg)
Depth 16.27" (413.3mm)

Width 16" (406.3mm)
Height 30.26" (768.6mm)
Suspension (22) M10 Threaded Points
Grille Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
Weatherized No
Enclosure Material 13 Ply Weather Resistant Birch
Minimum Impedance
Nominal Impedance (Passive)
Crossover Frequency 1450Hz

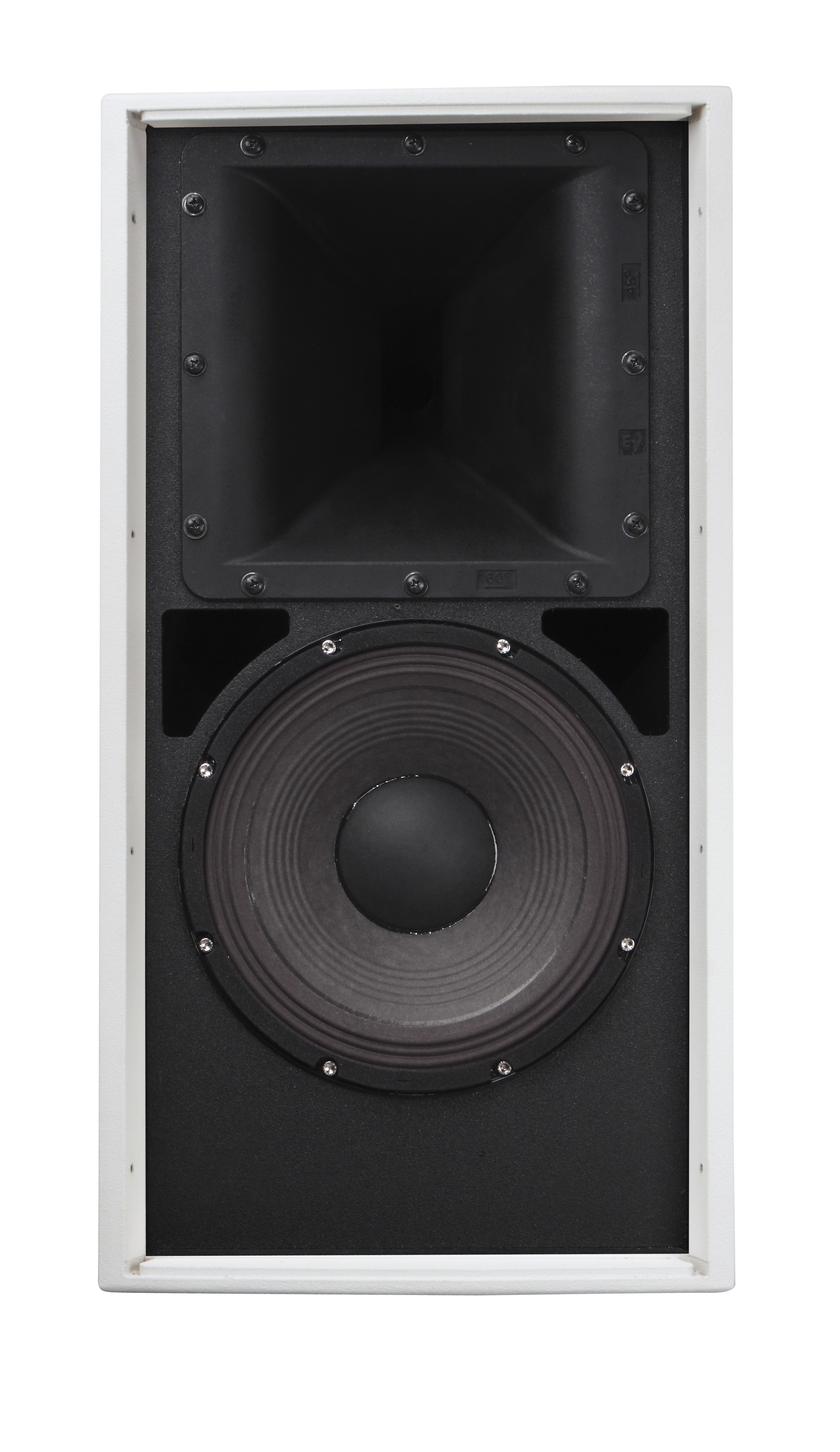

HF Transducer ND2B, 2 in (51 mm) Diaphragm Compression Driver
LF Transducer SMX2121, 12 in (305mm) Driver
System Power Handling (Continuous/Program/Peak) 500/1000/2000Watts
Coverage (Nominal -6 dB) V 40°
Coverage (Nominal -6 dB) H 60°
Max. SPL/1m (calc) 131dB
Sensitivity 1 W/1 m 98dB
Recommended High-Pass Frequency 65Hz
Frequency Response (-3 dB) 58 - 16000Hz
Speaker Type Full-Range, Two-Way
Environmental Specs Standard versions: IEC 60529 IP44
Passive Power Handling 2000W peak
Input Connections Phoenix/Euroblock style screw terminals

Recommended Amplifiers

For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVF-1122S 64.

Related Products Learn More Related Products Learn More Related Products Learn More
Direct Drive
OMNEO (Dante, OCA)
Live Sound


Name Language Size Date
EVF 1122S-64_BLK A&E Specification EN 89KB Nov 18, 2020
EVF 1122S-64_FGB A&E Specification EN 90KB Nov 18, 2020
EVF 1122S-64_FGW A&E Specification EN 90KB Nov 18, 2020
EVF 1122S-64_PIB A&E Specification EN 90KB Nov 18, 2020
EVF 1122S-64_PIW A&E Specification EN 90KB Nov 18, 2020
EVF 1122S-64_WHT A&E Specification EN 89KB Nov 18, 2020
Name Size Date
EVF-1122S.rfa 1.39MB Jan 16, 2019
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Size Date
EVF 1122 2D CAD Drawing DWG 184KB Aug 21, 2009
EVF 12 3D CAD Drawing DWG 171KB Aug 21, 2009
Name Size Date
EVF Series EASE Data ZIP 9.42MB May 28, 2018
Name Language Size Date
EVF-1122S/64 Engineering Data Sheet EN 1.29MB Feb 11, 2015
EVF-1122S/64-FG Engineering Data Sheet EN 909KB Mar 21, 2012
Name Language Size Date
EV-I Access Card User Instructions EN 439KB Mar 22, 2012
EVF & EVH User Manual EN 6.29MB Sep 3, 2018
EVF-UB Installation Instructions EN 448KB Mar 22, 2012
Rigging Kits for EVF & EVH EN 384KB Jul 24, 2015
Name Size Date
EVF Presets for DX38 ZIP 237KB Sep 28, 2009
EVF Presets for IRIS-Net ZIP 31KB Sep 28, 2009

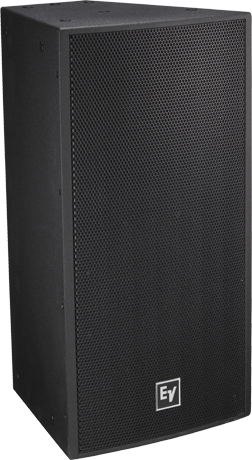

EVF 1122SGran-trans
