EVU-1082/95

Ultracompact 2‑way w/single 8" woofer

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • Optional Neutrik Speakon(R) connector panel
  • One 1.3-inch (33 mm) diaphragm I compression driver
  • U-bracket included
  • Optional 70 V and 100 V operation
  • OmniMount(R)-compatible rear mounting points
  • Available in black or white (interior use)
  • Ultracompact 10 x 16 inch enclosure
  • 90º x 50º rotatable waveguide
  • Ultra-high power handling for size: 175 W continuous
  • 123 dB Max SPL
  • Asymmetrical trapezoidal enclosure design
  • Compatible with OmniMount™

Specifications

Frequency Range (-10 dB) 65 - 20000kHz (Half Space)
Shipping Weight 22.71lbs (10.3kg)
Weight Net 16.31lbs (7.4kg)

Depth 9.33" (237mm)
Width 16.1" (409mm)
Height 9.72" (247mm)
Suspension (6) M8 threaded points
Grille 18-gauge steel with cloth behind
Weatherized No
Enclosure Material 9-ply hardwood plywood
Connector Type 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Minimum Impedance
HF Transducer One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
LF Transducer One 8-inch (203 mm) ICT-8-8 woofer
System Power Handling (Continuous/Program/Peak) 175//700Watts (EIA RS-426A (eight hours))
Coverage (Nominal -6 dB) V 50°
Coverage (Nominal -6 dB) H 90°
Max. SPL/1m (calc) 123dB
Recommended High-Pass Frequency 90Hz
Frequency Response (-3 dB) 110 - 16000Hz (Half Space)
Nominal Impedance
Finish Textured paint
Waveguide 6 in. x 6 in., rotatable
Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
Power Rating 700W
Passive Power Handling 700W peak
Speaker Type Full-Range, Two-Way
Available Color Black or white

Downloads

Name Size Date
EVU-2062.rfa 1.74MB Jan 16, 2019
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
EVU Series EC Declaration of Conformity 595KB Jul 4, 2019
DECLARAÇÃO UE DE CONFORMIDADE REG000450000 595KB Jul 4, 2019
DECLARACIÓN UE DE CONFORMIDAD REG000450000 595KB Jul 4, 2019
DECLARAȚIA UE DE CONFORMITATE REG000450000 595KB Jul 4, 2019
DÉCLARATION UE DE CONFORMITÉ REG000450000 595KB Jul 4, 2019
DEKLARACJA ZGODNOŚCI UE REG000450000 595KB Jul 4, 2019
DICHIARAZIONE DI CONFORMITÀ UE REG000450000 595KB Jul 4, 2019
DIKJARAZZJONI TA’ KONFORMITÀ TAL-UE REG000450000 595KB Jul 4, 2019
ELi VASTAVUSDEKLARATSIOON REG000450000 595KB Jul 4, 2019
ES ATBILSTĪBAS DEKLARĀCIJA REG000450000 595KB Jul 4, 2019
ES ATITIKTIES DEKLARACIJA REG000450000 595KB Jul 4, 2019
EU IZJAVA O SUKLADNOSTI REG000450000 595KB Jul 4, 2019
EU PROHLÁŠENÍ O SHODĚ REG000450000 595KB Jul 4, 2019
EÚ VYHLÁSENIE O ZHODE REG000450000 595KB Jul 4, 2019
EU-CONFORMITEITSVERKLARING REG000450000 595KB Jul 4, 2019
EU-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE REG000450000 595KB Jul 4, 2019
EU-KONFORMITÄTSERKLÄRUNG REG000450000 595KB Jul 4, 2019
EU-OVERENSSTEMMELSESERKLÆRING REG000450000 595KB Jul 4, 2019
EU-VAATIMUSTENMUKAISUUSVAKUUTUS REG000450000 595KB Jul 4, 2019
EU–MEGFELELŐSÉGI NYILATKOZAT REG000450000 595KB Jul 4, 2019
IZJAVA EU O SKLADNOSTI REG000450000 595KB Jul 4, 2019
ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ΕΕ REG000450000 595KB Jul 4, 2019
ЕС ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ REG000450000 595KB Jul 4, 2019
Name Size Date
EVU Universal Bracket DWG 267KB Mar 16, 2012
EVU-1082 2D CAD DWG 171KB Oct 21, 2011
EVU-1082 3D CAD DWG 171KB Oct 21, 2011
Name Size Date
EVU_EASE files ZIP 452KB Jan 24, 2018
Name Language Size Date
EVU-1082/95 Engineering Data Sheet EN 865KB Jun 21, 2011
Name Language Size Date
System solutions Multi-purpose auditorium EN 925KB Feb 25, 2020
System solutions Small house of worship EN 708KB Feb 25, 2020
EVU Folleto Español ES 1.65MB Sep 27, 2012
EVU Hoja Técnica Español ES 467KB Sep 27, 2012
Name Language Size Date
EVU Series User Manual EN 456KB Sep 8, 2015
EVU-TK60 Installation Instructions EN 30KB Mar 22, 2012
Name Size Date
AOTHWG Houston 29 1.65MB Apr 12, 2017
Grace Community 01 2.19MB Jul 9, 2018

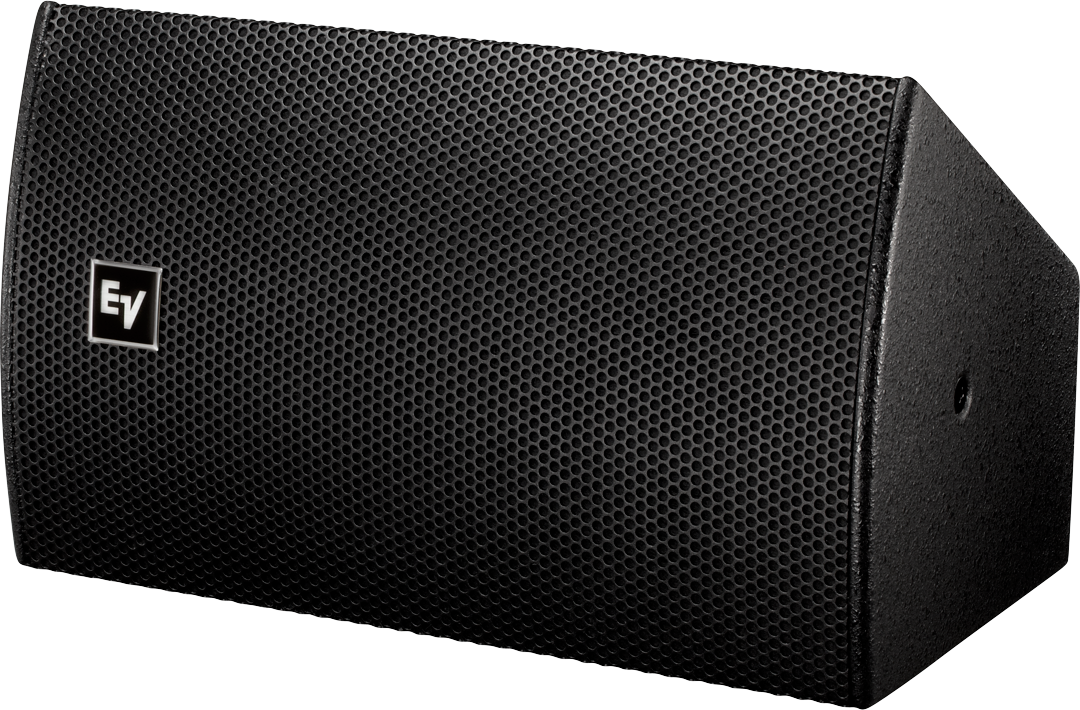

EVU 1082BGrle

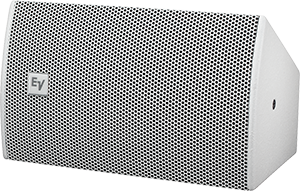

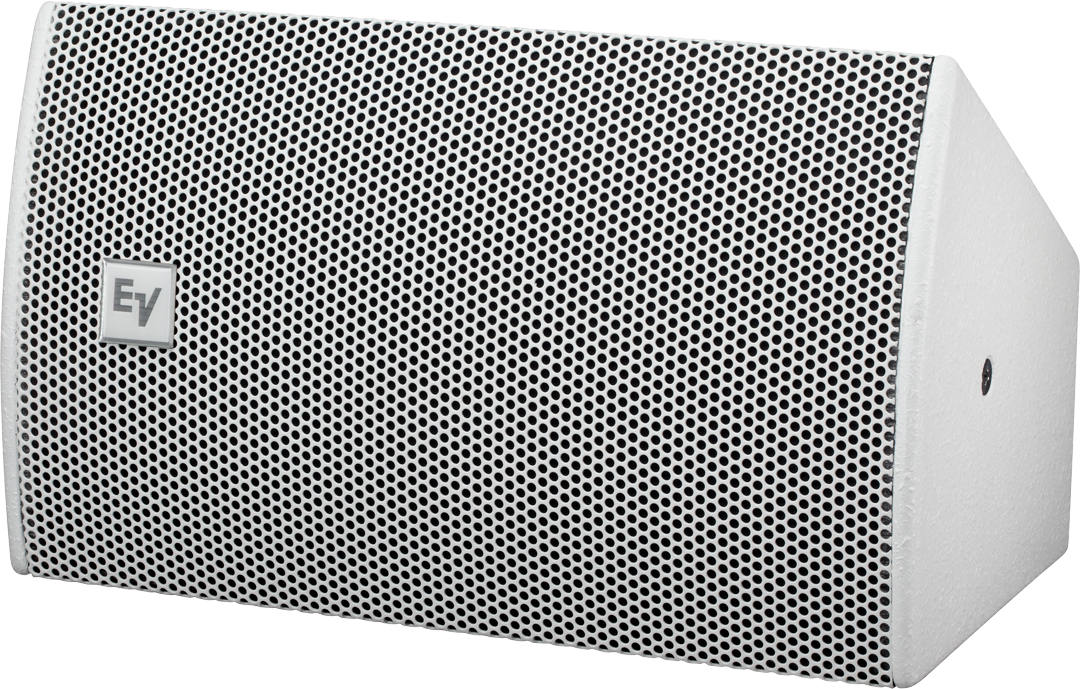

EVU 1082WGrle
