EVU ultra-compact 2-way speaker systems
Electro-Voice developed the first “constant directivity” waveguides in the 1970s, which, unlike conventional devices of the day, maintained their rated coverage angles over a wide frequency range. EV constant directivity meant that anyone seated in the waveguide’s pattern received the same frequency balance as anyone else, a great boon in providing truly uniform coverage and sound quality across a venue.
Today’s EVU waveguide incorporates the design refinements of over 30 years’ development. Its square mouth makes the EVU 90° x 50° coverage pattern rotatable, so enclosure orientation is independent of the desired horizontal coverage pattern. The six-inch overall mouth size is a good physical and directivity match to the EVU’s 6.5- and 8-inch woofers.
All four EVU systems employ an ICT-1-8 small-format high-frequency compression driver with a 1.3-inch titanium diaphragm, mounted on a six-inch-square, 90° x 50° rotatable waveguide. The systems are shipped to provide a 90° horizontal coverage angle when the long enclosure axis is horizontal.
Models
 |
 |
 |
 | |
EVU-1062/95 |
EVU-1082/95 |
EVU-2062/95 |
EVU-2082/95 | |
| Frequency Range (-10 dB) | 65 - 20000kHz (Half space) | 65 - 20000kHz (Half Space) | 70 - 20000kHz (Half Space) | 60 - 20000kHz (Half-space) |
| Shipping Weight | 20.11lbs (9.12kg) | 22.71lbs (10.3kg) | 31.31lbs (14.2kg) | 35.27lbs (16kg) |
| Weight Net | 14.4lbs (6.53kg) | 16.31lbs (7.4kg) | 24.91lbs (11.3kg) | 28.22lbs (12.8kg) |
| Depth | 8.15" (207mm) | 9.33" (237mm) | 8.15" (207mm) | 9.33" (237mm) |
| Width | 14.57" (370mm) | 16.1" (409mm) | 20.98" (533mm) | 24.21" (615mm) |
| Height | 8.23" (209mm) | 9.72" (247mm) | 8.23" (209mm) | 9.72" (247mm) |
| Suspension | (6) M8 threaded points | (6) M8 threaded points | Six M8 threaded points | Six M8 threaded points |
| Grille | 18-gauge steel with cloth behind | 18-gauge steel with cloth behind | 18-gauge steel with cloth behind | 18-gauge steel with cloth behind |
| Weatherized | No | No | No | No |
| Enclosure Material | 9-ply hardwood plywood | 9-ply hardwood plywood | 9-ply hardwood plywood | 9-ply hardwood plywood |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Minimum Impedance | 6Ω | 6Ω | 6Ω | 6Ω |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| LF Transducer | One 6.5-inch (165 mm) ICT-6.5-8 woofer | One 8-inch (203 mm) ICT-8-8 woofer | Two 6.5-inch (165 mm) ICT-6.5-8 woofers | Two 8-inch (203 mm) ICT-8-8 woofers |
| System Power Handling (Continuous/Program/Peak) | 160//640Watts () | 175//700Watts () | 300//1200Watts () | 350//1400Watts () |
| Coverage (Nominal -6 dB) V | 50° | 50° | 50° | 50° |
| Coverage (Nominal -6 dB) H | 90° | 90° | 90° | 90° |
| Max. SPL/1m (calc) | 120dB | 123dB | 125dB | 126dB |
| Sensitivity 1 W/1 m | 95dB | |||
| Recommended High-Pass Frequency | 90Hz | 90Hz | 90Hz | 90Hz |
| Frequency Response (-3 dB) | 110 - 16000Hz () | 110 - 16000Hz () | 100 - 16000Hz () | 100 - 16000Hz () |
| Available Color | Black or white | Black or white | Black or white | Black or white |
| Speaker Type | Full-Range, Two-Way | Full-Range, Two-Way | Full-Range, Two-Way | Full-Range, Two-Way |
| Nominal Impedance | 8Ω | 8Ω | 8Ω | 8Ω |
| Waveguide | 6 in. x 6 in., rotatable | 6 in. x 6 in., rotatable | 6 in. x 6 in., rotatable | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 92dB | 95dB | 94dB () | 95dB |
| Power Rating | 640W | 700W | 1200W | 1400W |
| Passive Power Handling | 640W peak | 700W peak | 1400W peak | 1400W peak |
| Finish | Textured paint | Textured paint | Textured paint | Textured paint |
| Learn More | Learn More | Learn More | Learn More |
Show more specs
Downloads
| Name | Size | Date |
|---|---|---|
| EVU-1062.rfa | 1.74MB | Jan 16, 2019 |
| EVU-1082.rfa | 1.73MB | Jan 16, 2019 |
| EVU-2062.rfa | 1.74MB | Jan 16, 2019 |
| EVU-2082.rfa | 1.74MB | Jan 16, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| EVU Series EC Declaration of Conformity | 595KB | Jul 4, 2019 |
| ЕС ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ REG000450000 | 595KB | Jul 4, 2019 |
| EU PROHLÁŠENÍ O SHODĚ REG000450000 | 595KB | Jul 4, 2019 |
| EU-OVERENSSTEMMELSESERKLÆRING REG000450000 | 595KB | Jul 4, 2019 |
| EU-KONFORMITÄTSERKLÄRUNG REG000450000 | 595KB | Jul 4, 2019 |
| ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ΕΕ REG000450000 | 595KB | Jul 4, 2019 |
| DECLARACIÓN UE DE CONFORMIDAD REG000450000 | 595KB | Jul 4, 2019 |
| ELi VASTAVUSDEKLARATSIOON REG000450000 | 595KB | Jul 4, 2019 |
| EU-VAATIMUSTENMUKAISUUSVAKUUTUS REG000450000 | 595KB | Jul 4, 2019 |
| DÉCLARATION UE DE CONFORMITÉ REG000450000 | 595KB | Jul 4, 2019 |
| EU IZJAVA O SUKLADNOSTI REG000450000 | 595KB | Jul 4, 2019 |
| EU–MEGFELELŐSÉGI NYILATKOZAT REG000450000 | 595KB | Jul 4, 2019 |
| DICHIARAZIONE DI CONFORMITÀ UE REG000450000 | 595KB | Jul 4, 2019 |
| ES ATITIKTIES DEKLARACIJA REG000450000 | 595KB | Jul 4, 2019 |
| ES ATBILSTĪBAS DEKLARĀCIJA REG000450000 | 595KB | Jul 4, 2019 |
| DIKJARAZZJONI TA’ KONFORMITÀ TAL-UE REG000450000 | 595KB | Jul 4, 2019 |
| EU-CONFORMITEITSVERKLARING REG000450000 | 595KB | Jul 4, 2019 |
| DEKLARACJA ZGODNOŚCI UE REG000450000 | 595KB | Jul 4, 2019 |
| DECLARAÇÃO UE DE CONFORMIDADE REG000450000 | 595KB | Jul 4, 2019 |
| DECLARAȚIA UE DE CONFORMITATE REG000450000 | 595KB | Jul 4, 2019 |
| EÚ VYHLÁSENIE O ZHODE REG000450000 | 595KB | Jul 4, 2019 |
| IZJAVA EU O SKLADNOSTI REG000450000 | 595KB | Jul 4, 2019 |
| EU-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE REG000450000 | 595KB | Jul 4, 2019 |
| Name | Size | Date | |
|---|---|---|---|
| EVU Universal Bracket | DWG | 267KB | Mar 16, 2012 |
| EVU-1062 2D CAD | DWG | 198KB | Oct 21, 2011 |
| EVU-1062 3D CAD | DWG | 196KB | Oct 21, 2011 |
| EVU-1082 2D CAD | DWG | 171KB | Oct 21, 2011 |
| EVU-1082 3D CAD | DWG | 171KB | Oct 21, 2011 |
| EVU-2062 2D CAD | DWG | 185KB | Oct 21, 2011 |
| EVU-2062 3D CAD | DWG | 187KB | Oct 21, 2011 |
| EVU-2082 2D CAD | DWG | 201KB | Oct 21, 2011 |
| EVU-2082 3D CAD | DWG | 193KB | Oct 21, 2011 |
| Name | Size | Date | |
|---|---|---|---|
| EVU_EASE files | ZIP | 452KB | Jan 24, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVU-1062/95 Engineering Data Sheet | EN | 864KB | Jun 21, 2011 |
| EVU-1082/95 Engineering Data Sheet | EN | 865KB | Jun 21, 2011 |
| EVU-2062-95 Engineering Data Sheet | EN | 878KB | Mar 21, 2012 |
| EVU-2082/95 Engineering Data Sheet | EN | 877KB | Jun 21, 2011 |
| Name | Language | Size | Date |
|---|---|---|---|
| System solutions Multi-purpose auditorium | EN | 925KB | Feb 25, 2020 |
| System solutions Small house of worship | EN | 708KB | Feb 25, 2020 |
| EVU Folleto Español | ES | 1.65MB | Sep 27, 2012 |
| EVU Hoja Técnica Español | ES | 467KB | Sep 27, 2012 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVU Series User Manual | EN | 456KB | Sep 8, 2015 |
| EVU-TK60 Installation Instructions | EN | 30KB | Mar 22, 2012 |
| Name | Size | Date |
|---|---|---|

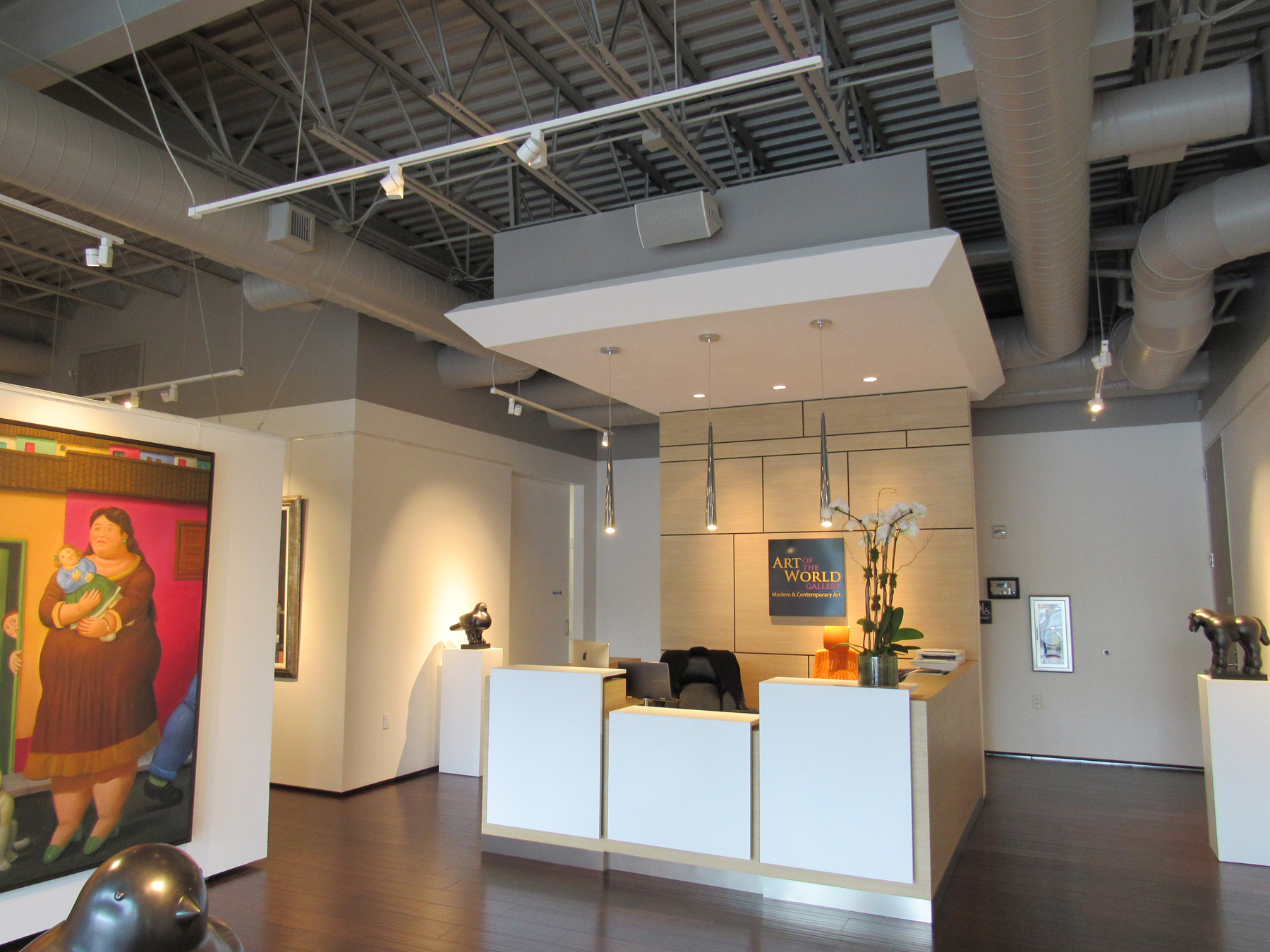

| AOTHWG Houston 29 | 1.65MB | Apr 12, 2017 |
| Grace Community 01 | 2.19MB | Jul 9, 2018 |

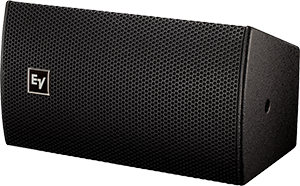

EVU 1062BGrle

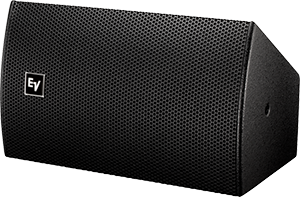

EVU 1082BGrle

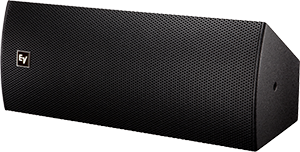

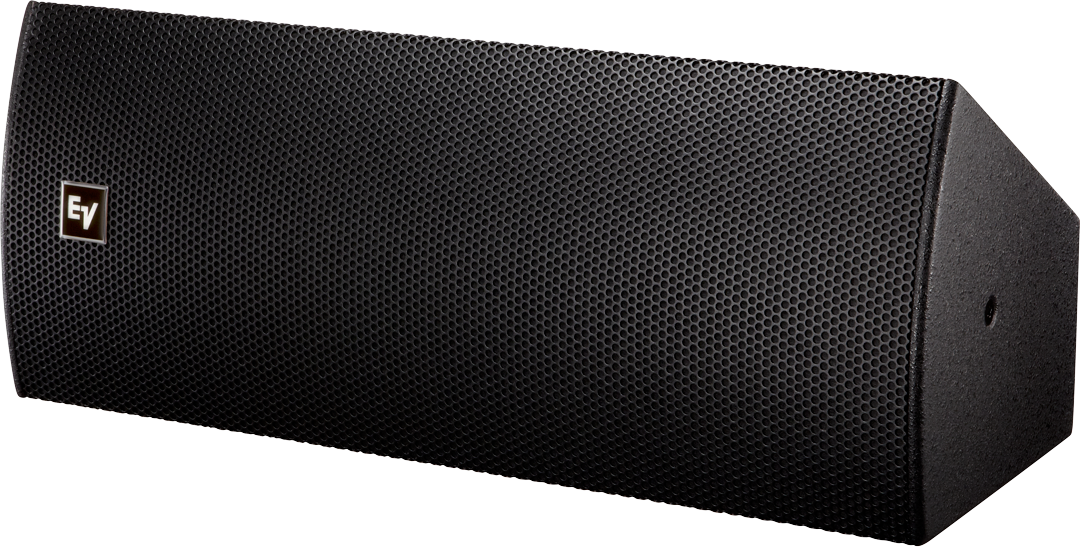

EVU 2082BGrle
EVU 1062BACcv1
EVU 1062WACcv1
EVU 1062WGrle
EVU 1082WGrle
EVU 2082BACcv2

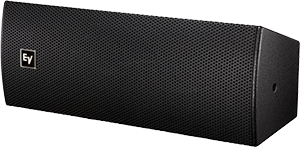

id-1124 product-EVU 2062BGrle
