ND46
Dynamic supercardioid instrument microphone
- Excellent isolation
With lively and balanced sound - Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response - Easy mic placement with locking pivoting head
Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock - Shock-mounted capsule minimizes handling noise
Low frequency bumps and thumps won’t get into the PA - Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks - Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment
The ND46 is a robust, high-performance, large-diaphragm dynamic supercardioid instrument microphone. Designed for capturing a wide of variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments, and its unique locking pivoting head makes mic placement easy and precise.
Specifications
| Connector Type | 3-pin XLR |
| Height | 5.67" (144.1mm) |
| Weight Net | 10.9oz (309g) |
Specifications |
|
| Shipping Weight | 20.6oz (584g) |
| Family | ND Series |
| Maximum SPL | > 140dB |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 2.2" (56mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 350Ω |
| Open Circuit Voltage | 2.4mV/Pascal |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | Passive |
| Audio Frequency Response | 70 – 18,000 |
Compatible Products
Similar Products
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ND Series Microphones Brochure | EN | 10.21MB | Jul 7, 2020 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Microphone Catalog 2020 | EN | 10.97MB | Jul 3, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| ND46 Engineering Data Sheet | EN | 525KB | Mar 17, 2016 |
| Name | Size | Date |
|---|---|---|

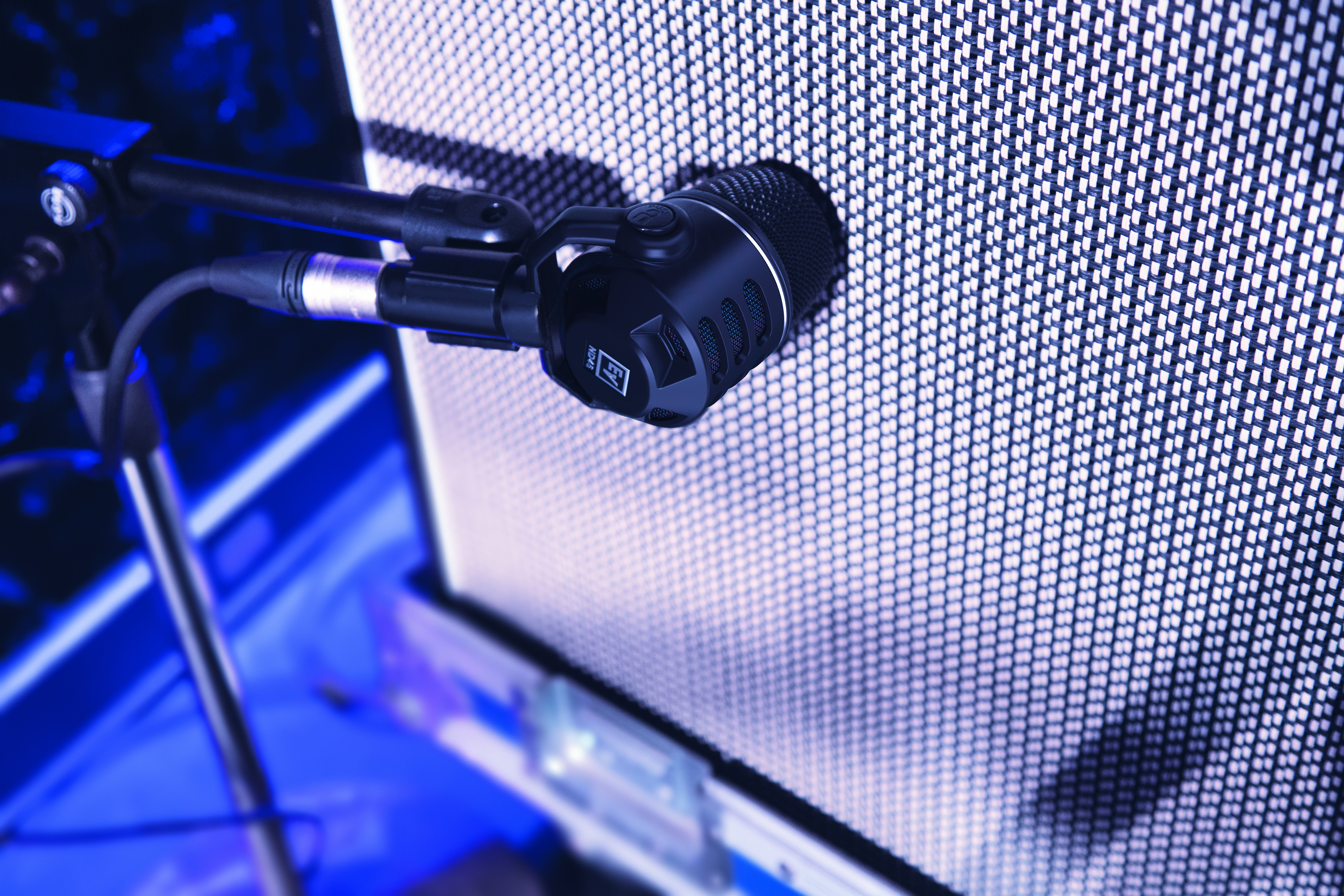

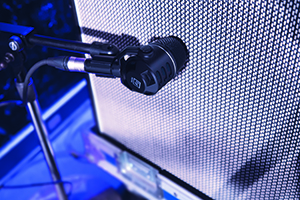

| ND46 App-02 Original 25737 | 22.93MB | Jul 1, 2016 |
