XLD281

120° horizontal, 3‑way compact line array element

  • Full-bandwidth, three-way element (60 Hz - 20 kHz)
  • CCT (Coverage Control Technology)
  • Versatile subwoofer integration
  • Bi-amp or tri-amp Operation
  • Neodymium transducers
  • Simple, quick, integrated rigging
  • Supported by LAPS II aiming and flying software

Specifications

Frequency Response (-3 dB) 75 Hz-18 kHz¹
Frequency Range (-10 db) 60 Hz-20 kHz¹
Max Calculated SPL 137 dB Cont., 143 dB Peak²

Horizontal Coverage 120°
Vertical Coverage Array Dependant, Software Definable
Rigging Fully Captive Aluminum, 1° increments, 16 elements with 8 to 1 Safety Factor
LF1 Power Handling 200W Cont., 800W Peak
LF2 Power Handling 200W Cont., 800W Peak
HF Power Handling 80W Cont., 320W Peak
Biamp LF1/HF Power Handling 200W Cont., 800W Peak LF2 - 200W Cont., 800W Peak
Bandpass Frequency 50 - 250 Hz³
LF1 to HF Crossover Frequency 1760 Hz³
LF 1 Passband 1 x 8 inch DVN2080, 16 ohms
LF2 Passband 1 x 8 inch DVN2080, 16 ohms
HF Passband 2 x ND2S-8, 16 ohms
Biamp LF1/HF Passband 16 ohms
Connectors 2 x NL8
Enclosure 13-ply birch plywood with EVCoat
Grille Galvannealed steel with powder coat paint
Environmental Specifications IEC 529 IP24, MIL 810
Dimensions (H x W x D) 9.9 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm)
Net Weight 48 lb (21.8 kg)
Shipping Weight 51 lb (23.1 kg)
¹ Full Space Measurement of four (4) elements.
² Full Space Measurement of HF section of four (4) elements, SPL adjusted for 1 m distance.
³ Use EV signal processing or download presets from Electro-Voice website.

Similar Products

Xlci127DVX
120º horizontal, 3‑way compact line array element

Xlc127DVX
120º horizontal, 3‑way compact line array element

XLE181
120° horizontal, 2‑way compact line array element

Compatible Products

CBEAM
Coupler beam for connecting xld/xle grids, black

DOLLY

AGSE Adapter Grid
Adapter Grid

SP8.4
Side panel kit for xld/xs dolly. 8 xld or 4 xs

XLD GRID
Grid for up to 16 xld cabinets or 8 xs212 cabinets, aluminum, black

XLD GRID CCA
Xld grid clear coat anodized, for up to 16 xld cabinets, clear coated for use with white cabinets

XLD-DOLLY
Xld‑dolly for 2 stacks of xld281 or xs212

Downloads

Name Language Size Date
XLD281 A&E Specification EN 46KB Nov 24, 2020
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Size Date
XLD281 2D CAD Drawing DWG 241KB Dec 26, 2007
XLD281 3D CAD Drawing DWG 363KB Dec 26, 2007
Name Size Date
EV XLD V1.1 - EASE Focus enabled ZIP 58.59MB Mar 1, 2021
Name Language Size Date
XLD281 Engineering Data Sheet EN 522KB Oct 7, 2016
XLD281-FG FIberglass Engineering Data Sheet EN 488KB Oct 7, 2016
Name Size Date
LAPS 2.2A 5.21MB Nov 3, 2015
Name Language Size Date
AGCD Adaptor Grid User Instructions EN 459KB Dec 26, 2007
X-Line Very Compact Coupler Beam Installation Instructions EN 285KB Mar 22, 2012
X-Line Very Compact Crossover Retrofit Installation Instructions EN 81KB Mar 22, 2012
X-Line Very Compact Grid Assembly & Installation Instructions EN 292KB Mar 22, 2012
XLVC Rigging Manual EN 5.4MB Dec 26, 2007
Name Size Date
Preset - DN9848 ZIP 186KB Dec 26, 2007
Preset - IRIS ZIP 7KB Dec 26, 2007
Preset - RACE/DX38 ZIP 60KB Dec 26, 2007
XLD DX38 Presets ZIP 2.49MB Oct 2, 2008
Xld FIR_Drive Presets v2.1 ZIP 1.07MB Apr 26, 2011
XLD IRIS Presets ZIP 180KB Jan 13, 2009
XLD KT DN9848 Presets ZIP 230KB Oct 1, 2008
Name Size Date

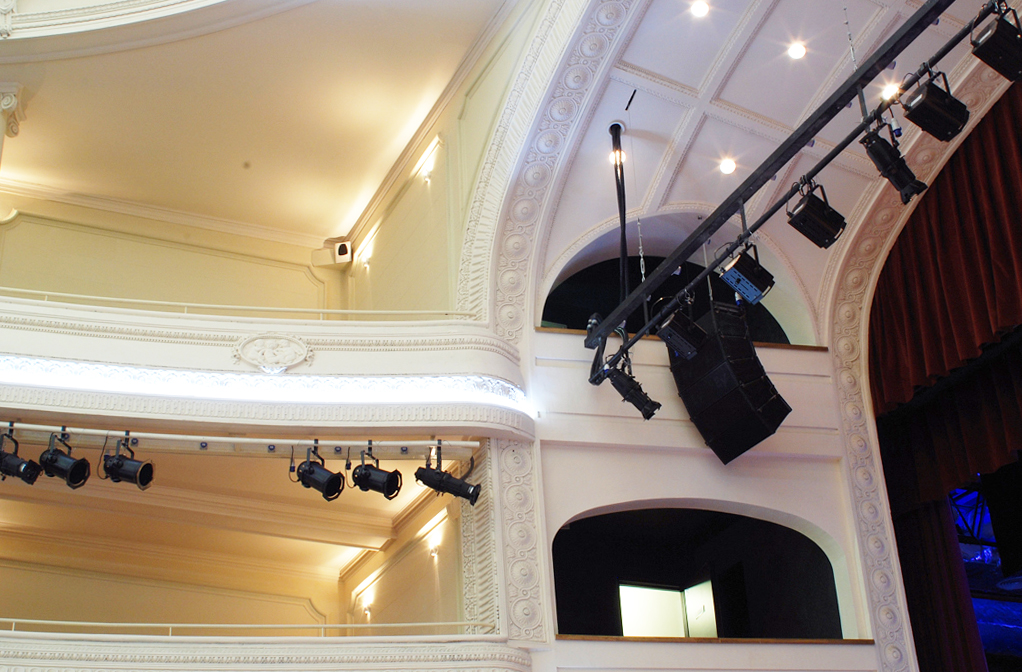

Teatro 25 Mayo Argentina 04 565KB Nov 2, 2015

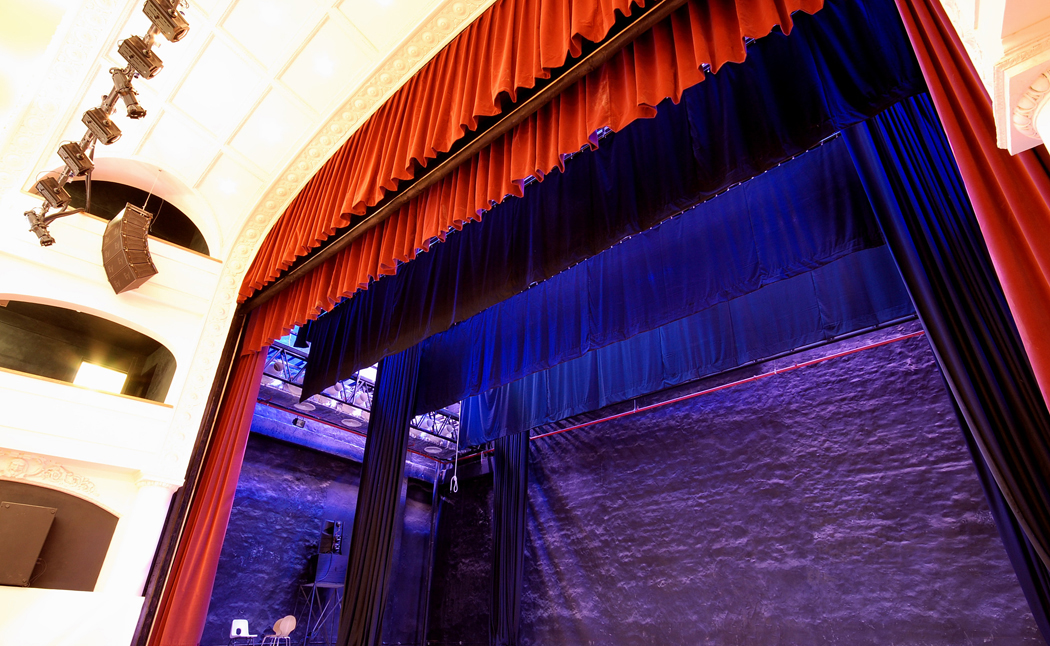

Teatro 25 Mayo Argentina 03 674KB Nov 2, 2015
