ZX1

8" 2‑way passive full‑range composite loudspeaker

  • Smooth, wide frequency response
  • Ideal for mains, fills, or monitors
  • Velocity-compensated port for exceptional LF
  • Long-excursion weather-treated EV8L woofer
  • 1.25-inch DH2005 titanium HF compression driver
  • Rotatable 90º x 50º horn for flexible coverage
  • Passive crossover with full-band overload protection
  • High sensitivity, 123 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Integrated pole mount adapter and pocket handle
  • Metric mounting inserts (4)
  • Available in black or white

Specifications

Freq. Response¹ (-3 dB) 60 Hz - 20 kHz
Freq. Range¹ (-10 dB) 48 Hz - 20 kHz
Rec. Hipass Frequency 40 Hz

Axial Sensitivity¹ 92 dB (1W/1m)
Max Calculated SPL 121 dB
Horizontal Coverage 100°
Vertical Coverage 100°
Rated System Power 200W Cont. 2, 400W Prog., 800W Peak
LF Transducer EV8L, 8 in (203mm) Driver
HF Transducer DH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ohms
Minimum Impedance 6 Ohms
Connectors Neutrik Speakon NL4
Enclosure Material High Impact Polymer
Grille Polyester Powder Coated, 18GA Galvanized Steel
Dim (H x W x D) 457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
Net Weight 8.4 kg (18.5 lbs)
Shipping Weight 10.2 kg (22.5 lbs)
¹ Half Space Measurement.
² IEC Noise, 6 dB Crest Factor.

Recommended Amplifiers

For optimal sound system performance, Electro-Voice recommends the following amplifiers for ZX1.

Related Products Learn More Related Products Learn More
Two-Channel
Multi-Channel
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation
Live Sound

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Portable speakers catalog 2020 EMEA EN 9.22MB Jan 21, 2020
Portable speakers catalog 2020 NA EN 10.63MB May 22, 2020
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Zx1 Loudspeaker Family, EC Declaration of Conformity 612KB Dec 18, 2019
Zx1 Series, Ec Certificate of Conformity, En54-24, Cert No. 1438/Cpd/0323 494KB Dec 18, 2019
Zx1, EC Declaration of Conformity 3.55MB Nov 13, 2019
Zx1I-90T, Zx1I-100T, En 54-24:2008 Declaration of Performance (DoP) 598KB Dec 18, 2019
Zx1I, 2-Way Loudspeaker Family, With Transformer, EC Declaration of Conformity 580KB Dec 18, 2019
Name Size Date
Zx Series EASE Data ZIP 753KB Jun 13, 2018
Name Language Size Date
ZX1-100 Engineering Data Sheet EN 169KB Mar 21, 2012
ZX1-90 Engineering Data Sheet EN 190KB Mar 21, 2012

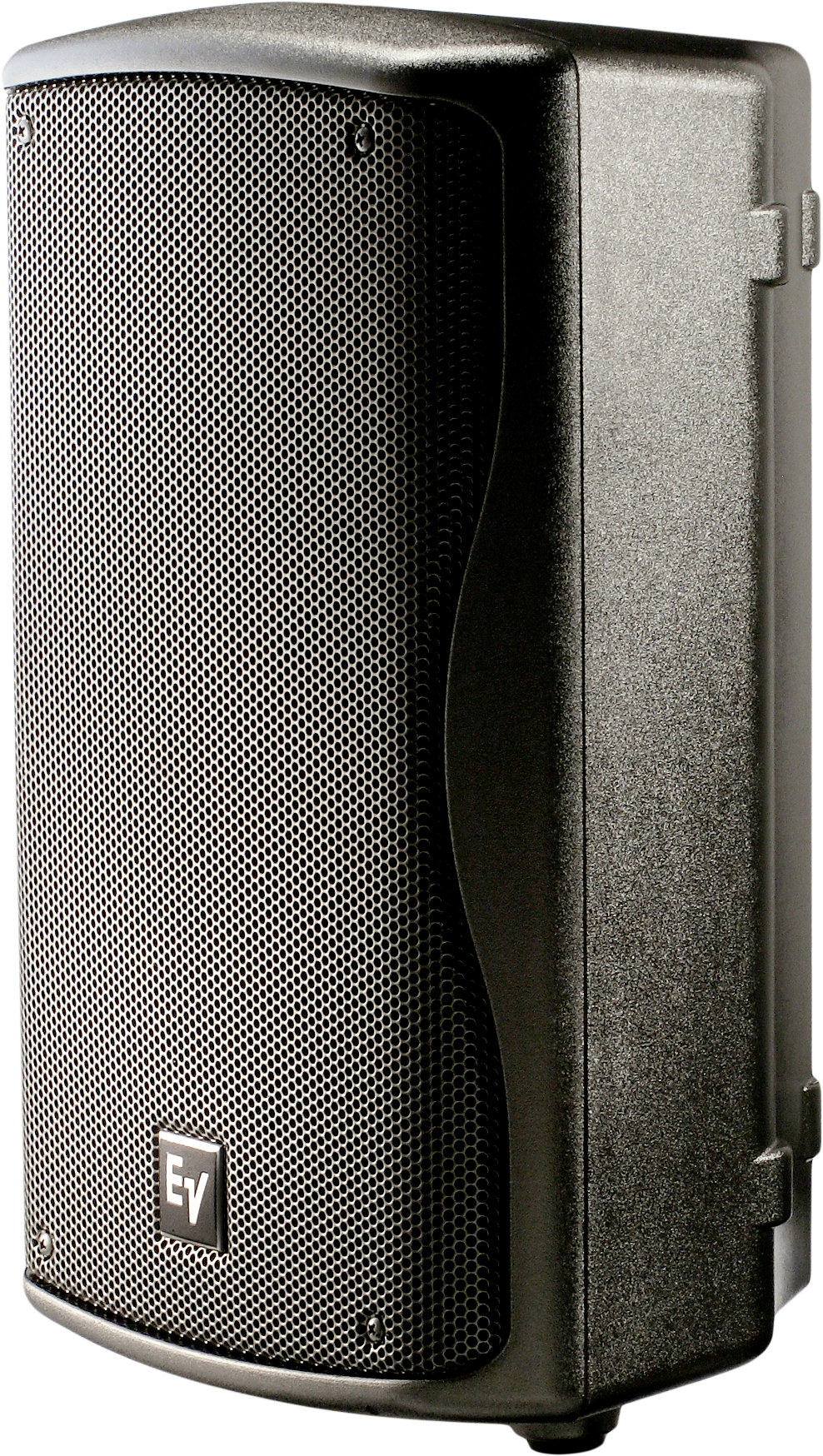

ZX1 80thAnn

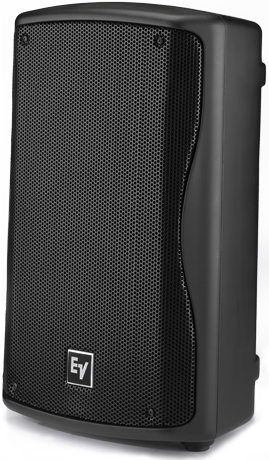

ZX1 Monitor-trans

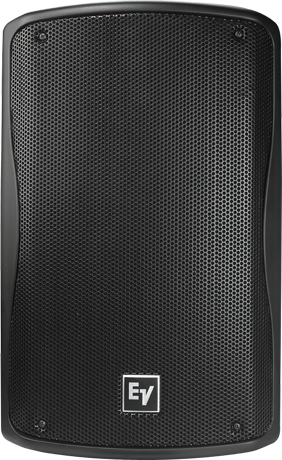

ZX1 front-trans
