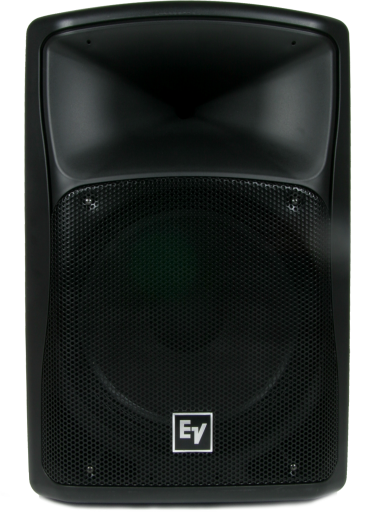

ZX4
15" passive loudspeaker
- Perfect for portable mains and monitors
- EVS15-SF woofer
- 1.25-inch DH3/2010A titanium HF driver
- Passive crossover
- 90º x 50º coverage horn
- High sensitivity, 132 dB maximum SPL
- Power handling: 400 W continuous, 1600 W peak
- Lightweight high-impact polypropylene enclosure
- Wedge shape for monitors at 45º or 55º

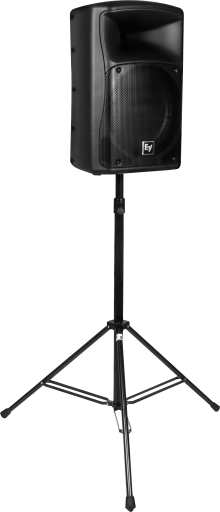

- Integrated pole mount adapter and pocket handle
- Mounting via attachment plates or eyebolts
- Black finish
Specifications
| Frequency Range (-10 dB) | 42 - 20000kHz |
| Weatherized | No |
| Flying | Yes |
Specifications |
|
| Minimum Impedance | 6.5Ω |
| Nominal Impedance (Passive) | 8Ω |
| HF Transducer | 1.25-inch DH3/2010A |
| Speaker Type | Full-Range, Mid-High, Two-Way, Wedges |
| Woofer Size | 15inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 60 - 20000Hz |
| Max. SPL/1m (calc)² | 132dB |
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | 15-inch EVS15-SF |
| Coverage (Nominal -6 dB) V | 50° |
| Power Rating | 1600W |
| System Power Handling (Continuous/Program/Peak) | 400//1600Watts |
| Crossover Frequency | 1500Hz |
| Enclosure Material | High Impact Polystyrene Composite |
| Grille | Polyester Powder Coated, 18GA Galvanized Steel |
| Available Color | Black |
| Sensitivity 1 W/1 m | 100dB |
| Height | 27.01" (686mm) |
| Width | 17.52" (445mm) |
| Recommended High-Pass Frequency | 42Hz |
| Depth | 15.98" (406mm) |
| Internal Crossover | Yes |
| Weight Net | 44.53lbs (20.2kg) |
| Family | ZxZxA |
| Input Connections | Parallel Neutrik® NL4 |
| Chassis Size | 381 mm |
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ZX4.
Dynacord C‑SeriesLearn More |
Dynacord L‑SeriesLearn More |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
