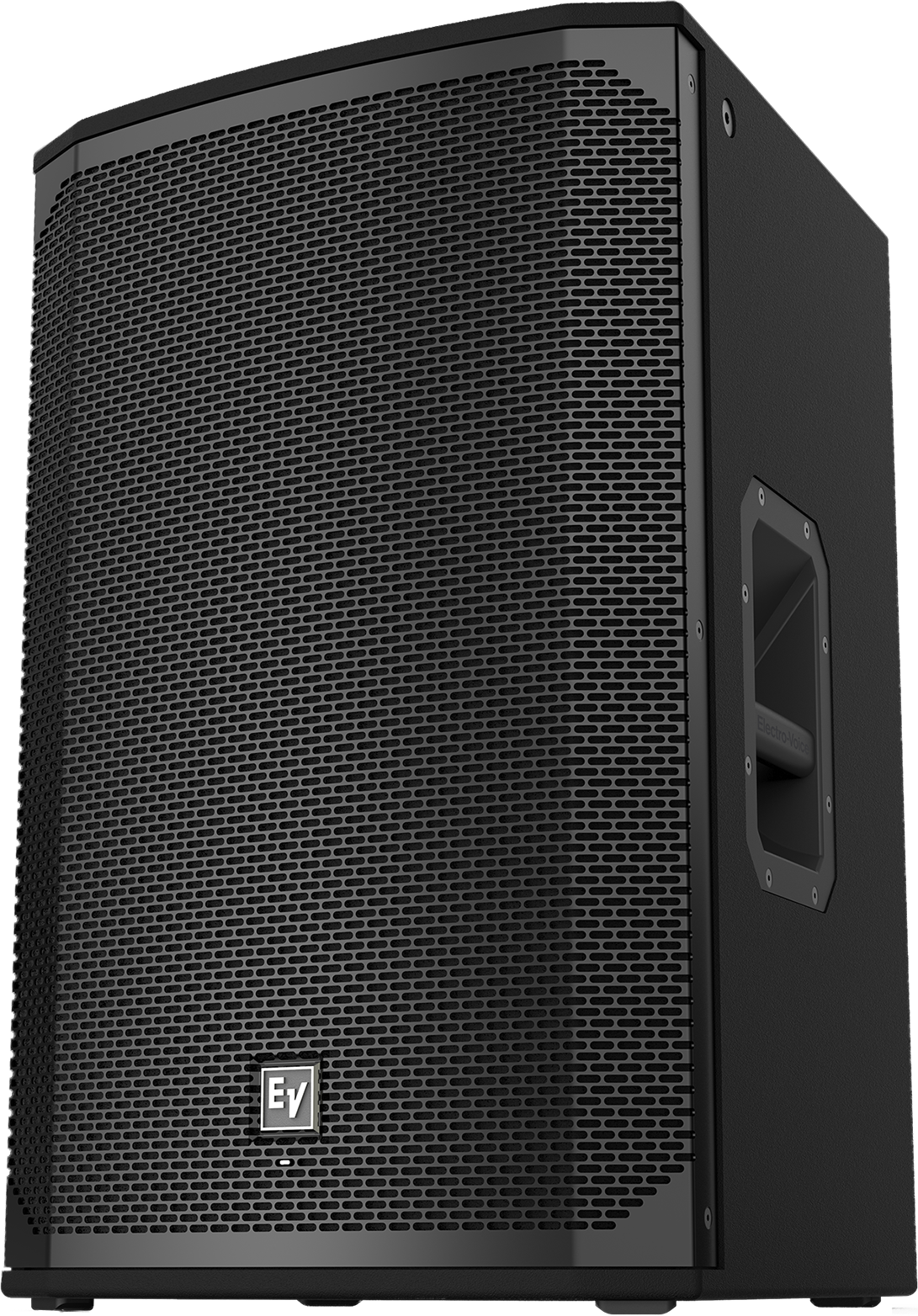

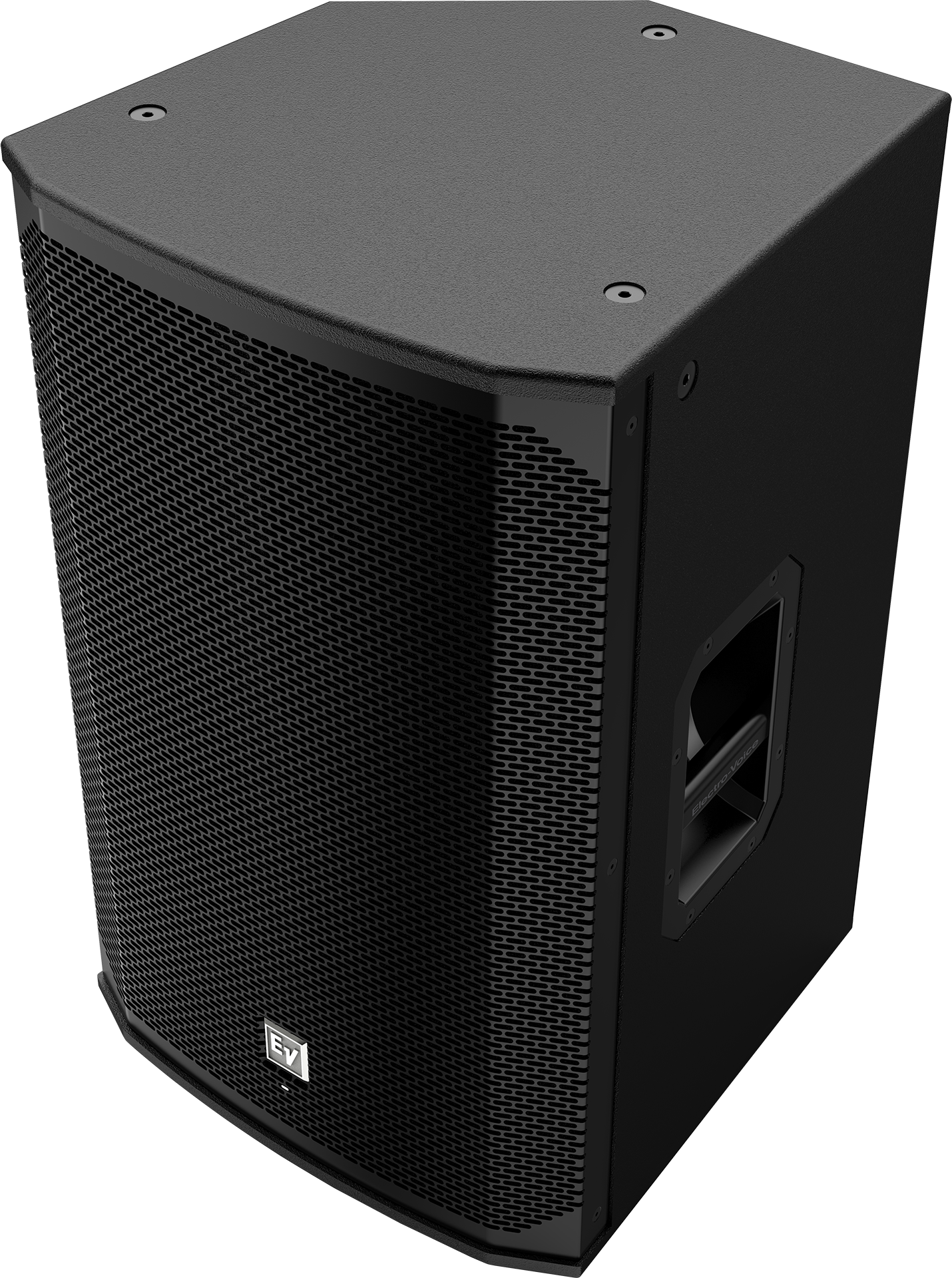

EKX-15P
15英寸两分频有源扬声器
- QuickSmart智能DSP技术提供同级别优质的信号处理，EV标志性的一键式旋钮用户控制，LCD显示屏提供直观的导航菜单
- EKX-15P通过EV设计的高灵敏度换能器，高效1500 W D类功率放大器，提供高达134 dB的最高声压级。
- 通过多个传感器控制的智能热耗管理系统，确保了在苛刻环境中提供卓越的性能和可靠性
- EV SST信号同步换能器波导设计，提供精确和连续的覆盖。

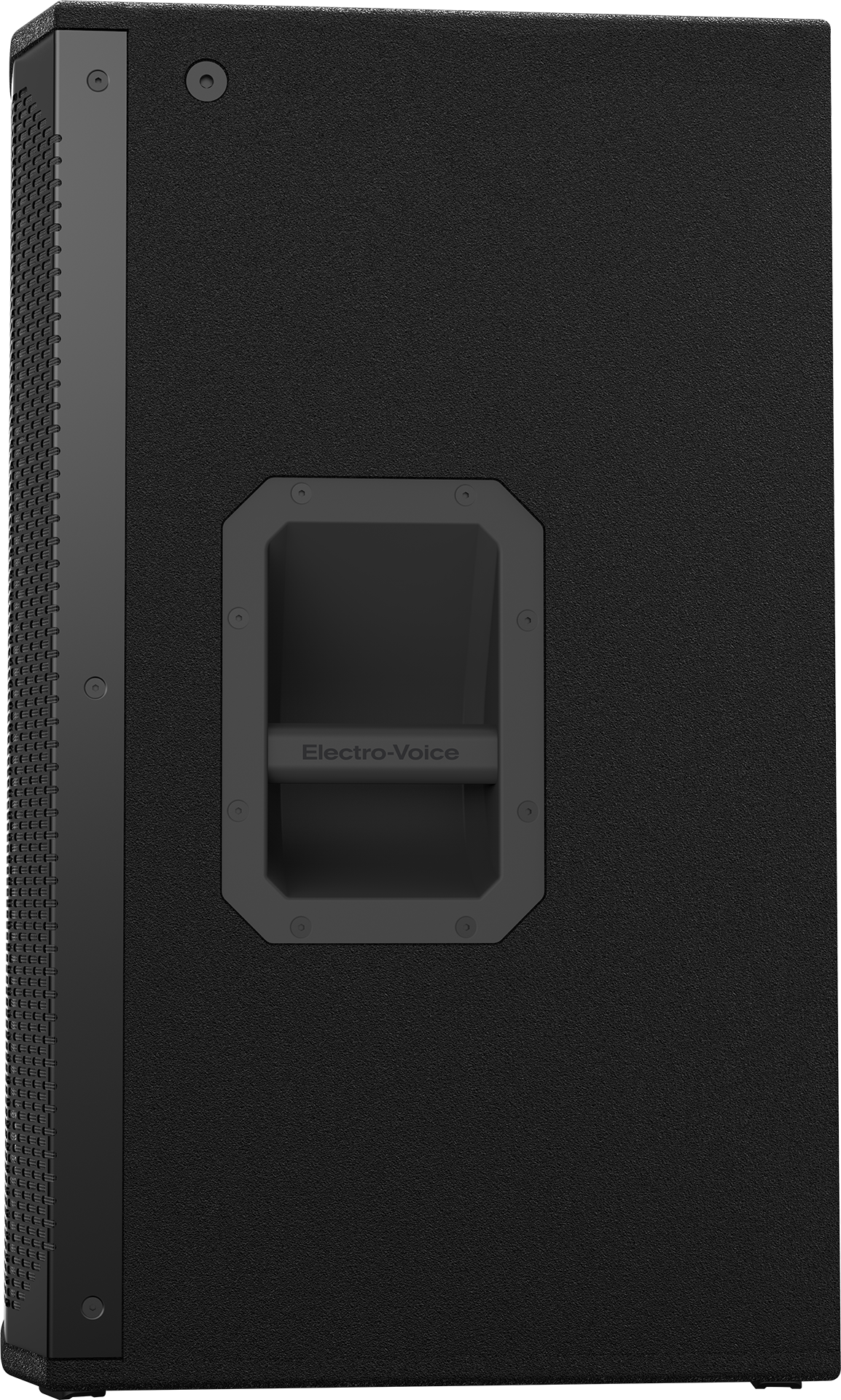

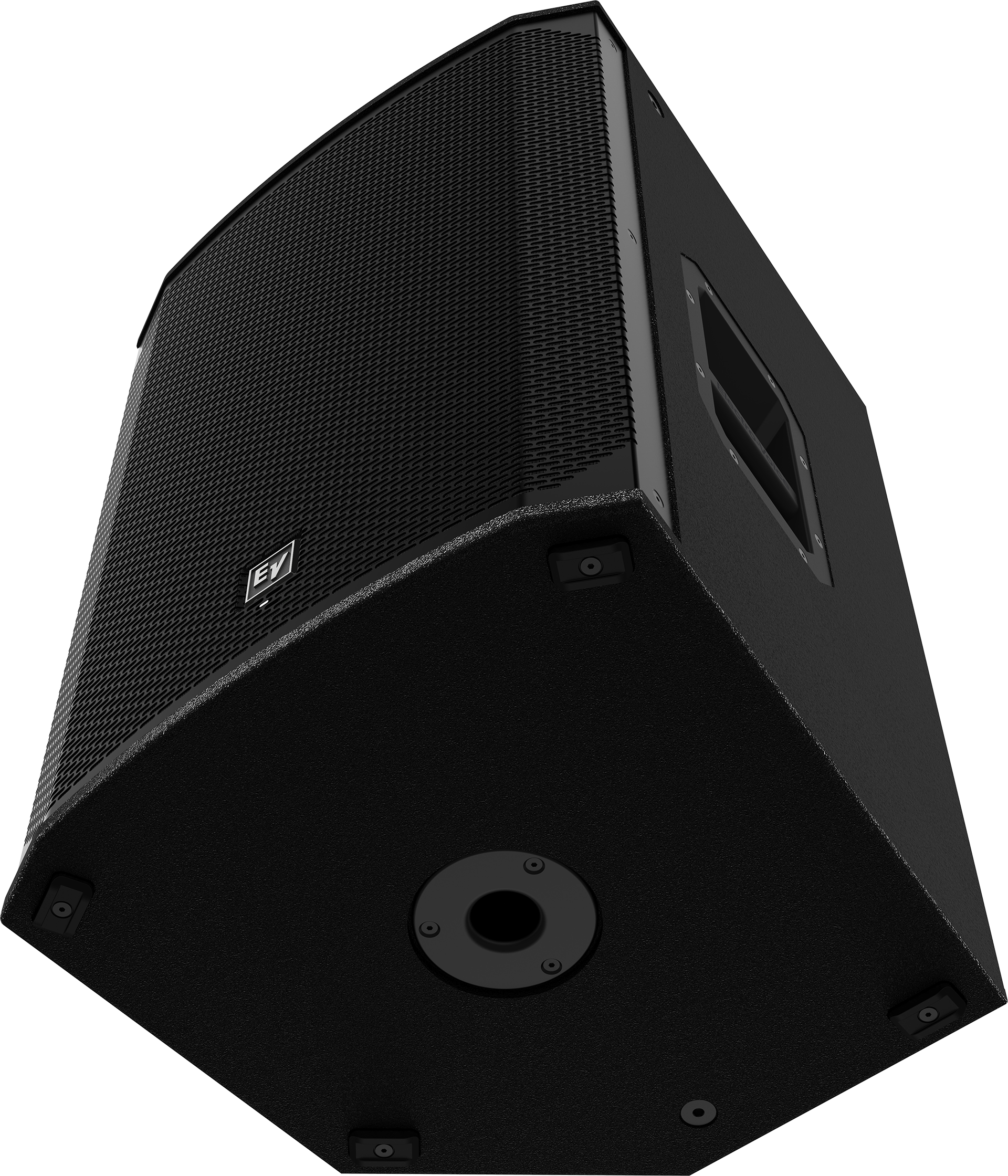

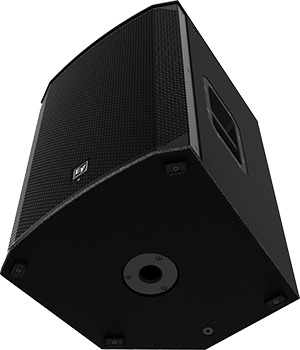

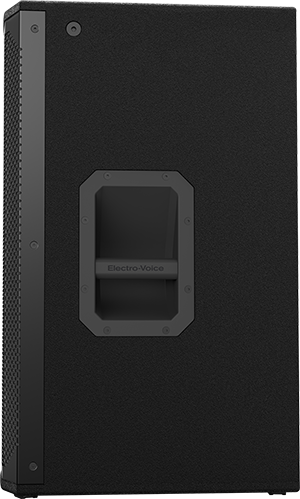

- 重量轻，小巧的15mm木制箱体，以及持久耐用的EVCoat表面涂层处理工艺，8个M10螺旋安装点，铝杆支架，金属手柄。
Specifications
| Frequency Range (-10 dB) | 48 Hz - 20 kHz (Full space measurement using the music DSP preset) |

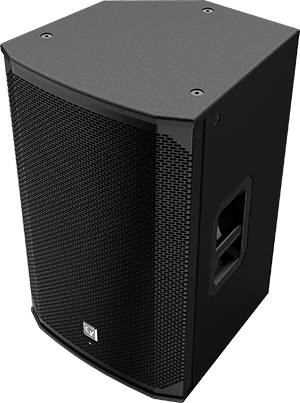

| Suspension | (8) M10 threaded mounting points |
| HF Transducer | DH-1M 1-inch titanium compression driver |
产品规格 |
|
| Speaker Type | Full-Range, two-way |
| Woofer Size | 15 |
| Powered or Passive | Powered |
| Frequency Response (-3 dB)¹ | 55 Hz - 18 kHz (Full space measurement using the music DSP preset) |
| Max. SPL/1m (calc)² | 134 |
| Coverage (Nominal -6 dB) H | 90 |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Coverage (Nominal -6 dB) V | 60 |
| Power Rating | 1500 |
| Crossover Frequency | 1.7 k |

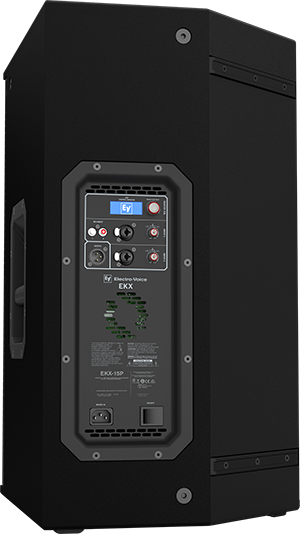

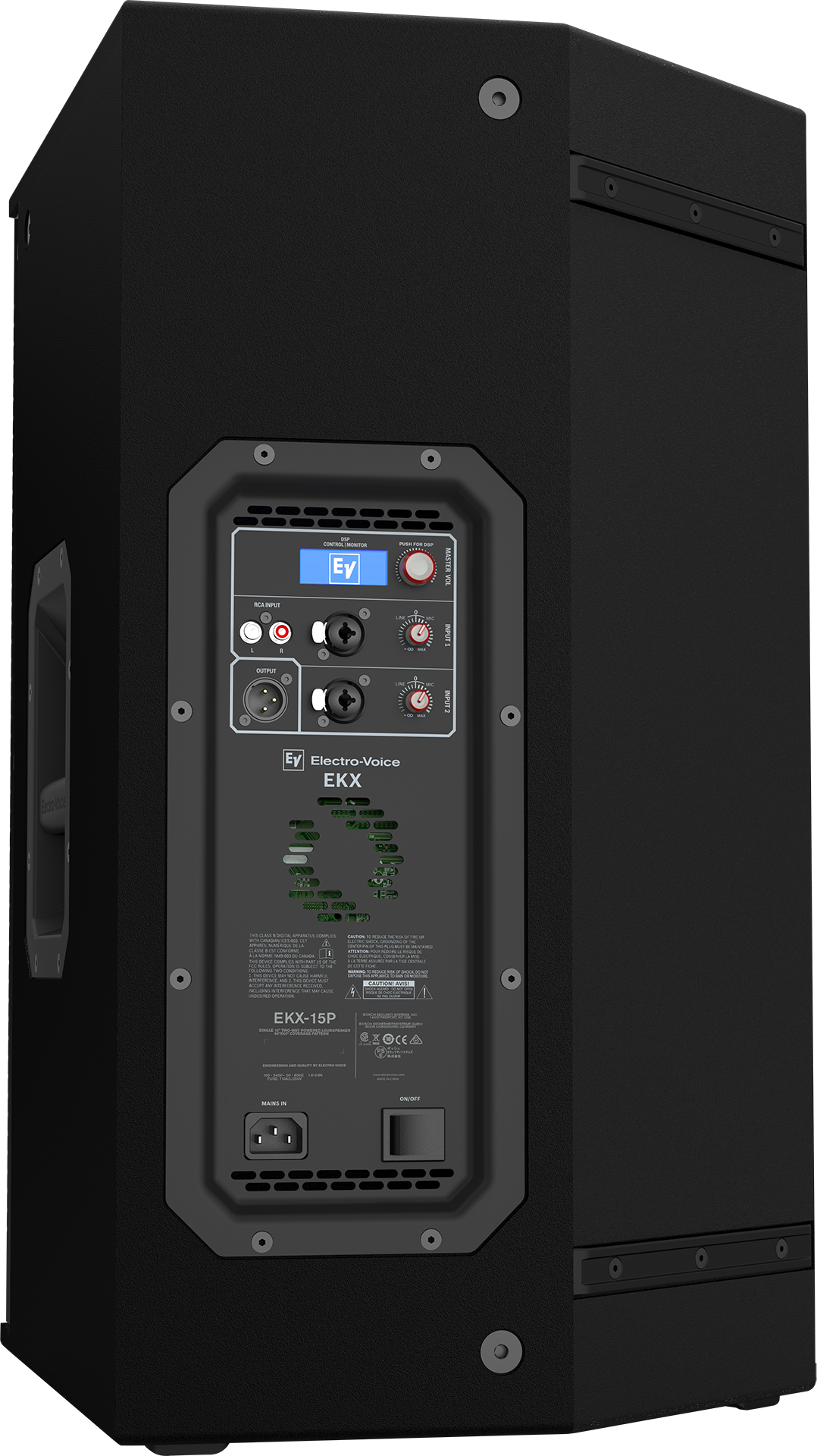

| Connector Type | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 685 |
| Width | 432 |
| Depth | 429 |
| Weight Net | 24.4 |
| Shipping Weight | 29.5 |
| Power Consumption³ | 1.8 A (Current rating is 1/8 power) |
| Family | EKX |
| Maximum SPL | 134 (Maximum SPL is measured at 1 m using broadband pink noise at maximum output) |
