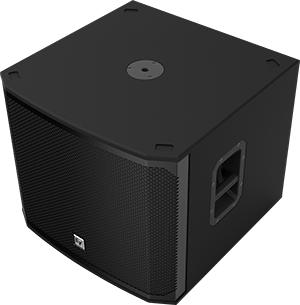

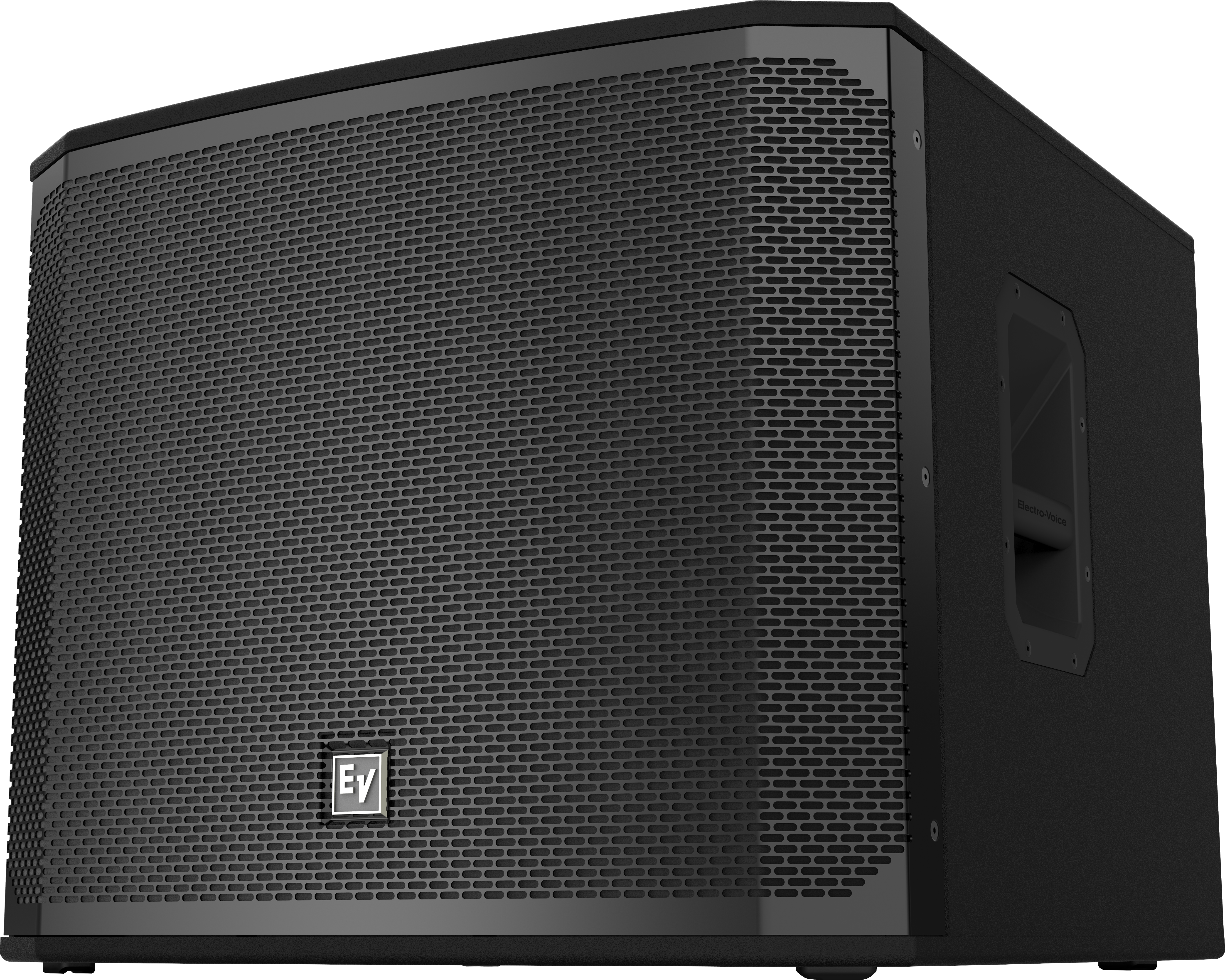

EKX-18S
18英寸无源低音扬声器
- EKX-18S利用EV设计的高灵敏度换能器，实现1600 W峰值功率和134 dB最高声压级。
- 重量轻，小巧的15mm木制箱体，以及持久耐用的EVCoat表面涂层处理工艺
- 大导音出口实现低失真和出色的低音扩展
- 金属网罩增强杆（EKX-18S上有两个）

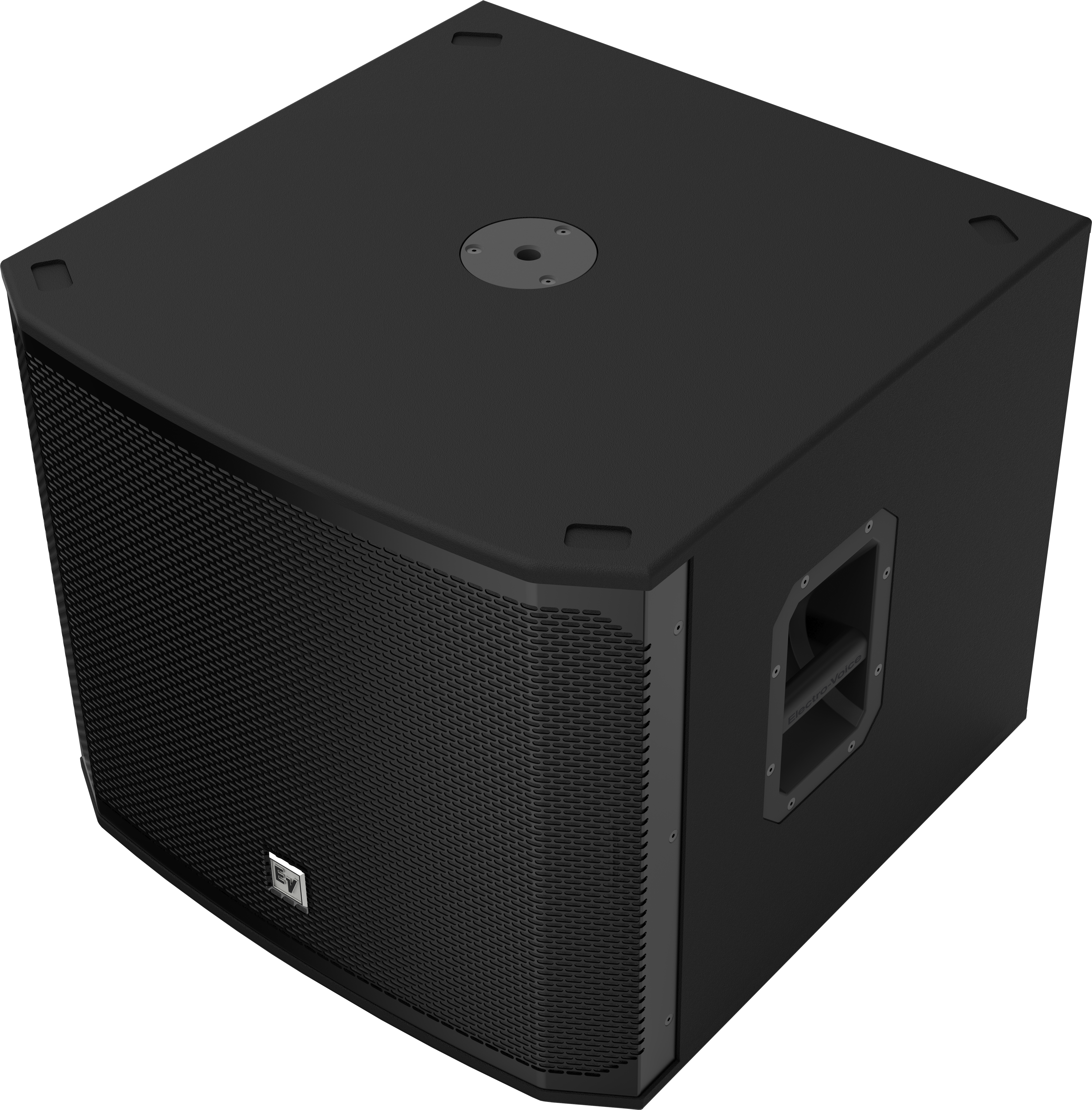

- M20螺纹杆安装板。
Specifications
| Frequency Range (-10 dB) | 35 Hz - 300 (Half Space Measurement) |
| Minimum Impedance | 7.0 |
| Speaker Type | Subwoofer |
产品规格 |
|
| Woofer Size | 18 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 50 Hz - 100 (Half Space Measurement) |
| Max. SPL/1m (calc)² | 134 |
| LF Transducer | EVS-18C 457 mm (18 in) |
| Power Rating | 1600 |

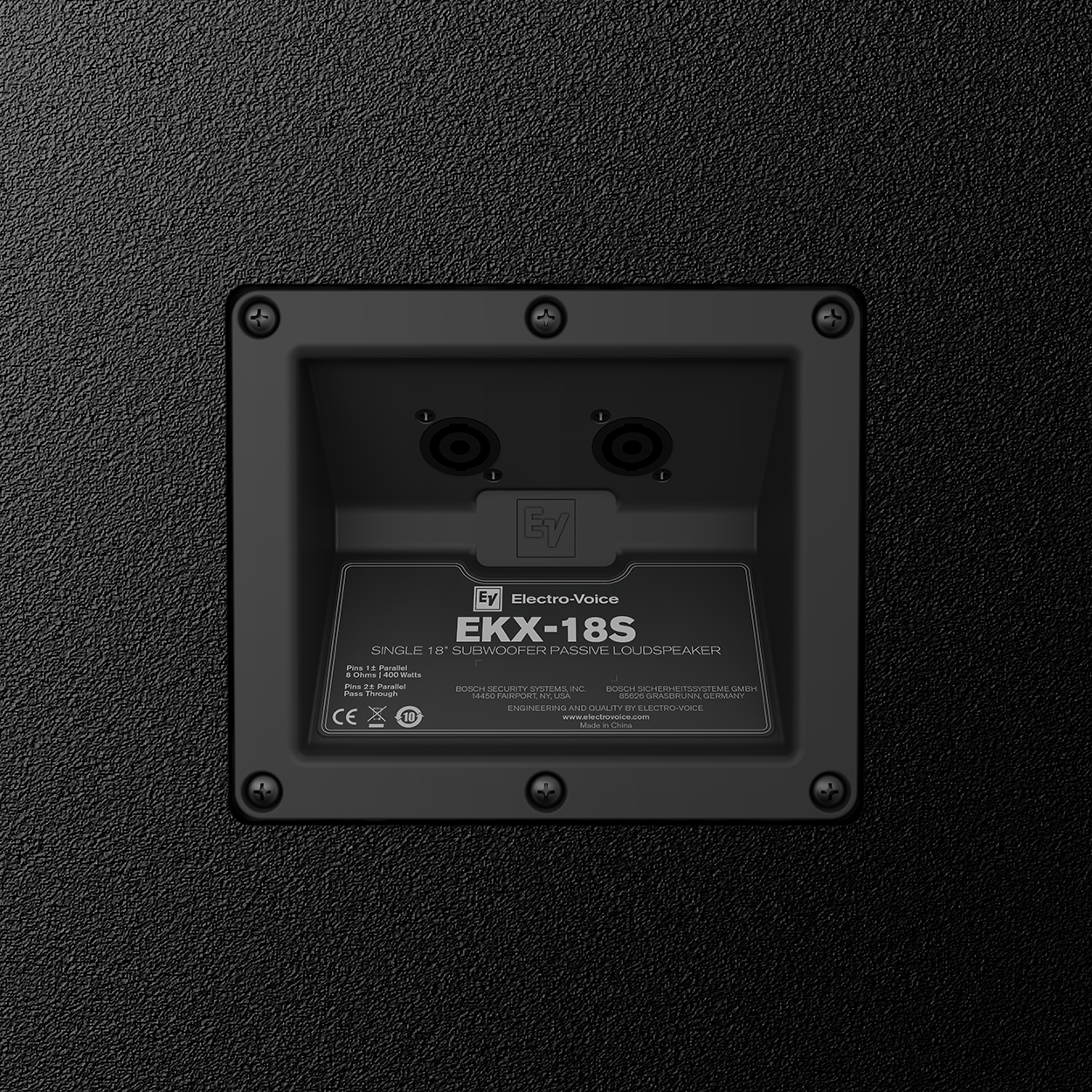

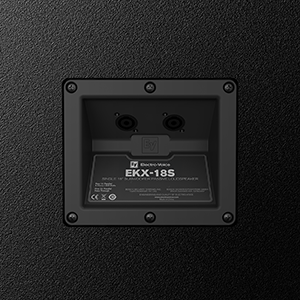

| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 520 |
| Recommended High-Pass Frequency | 30 |
| Width | 606 |
| Depth | 612 |
| Weight Net | 31.8 |
| Shipping Weight | 40.1 |
| Family | EKX |
| Passive Power Handling | 1600 |
| Nominal Impedance | 8 |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 |
| Power Handling (Continuous / Peak) | 400 W/1600 |
| Maximum SPL | 134 |
Videos
EKX Loudspeaker Overview
EKX Portable Loudspeakers by Electro-Voice
EKX Portable Loudspeakers Preview
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EKX-18S.
Dynacord C‑Series更多 |
Dynacord L‑Series更多 |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
