EKX-18SP

18英寸有源低音扬声器

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 直观的一键式界面完成DSP控制,液晶屏的应用为系统的设置带来便利
  • 心形指向性控制确保在使用多个低音时,向观众的输出高达35dB
  • EKX-18SP通过EV设计的高灵敏度传感器,高效1300 W D类功率放大器,提供高达134dB的最高声压级。
  • 通过多个传感器控制的智能热耗管理系统,确保了在苛刻环境中提供卓越的性能和可靠性

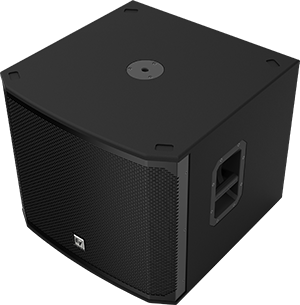

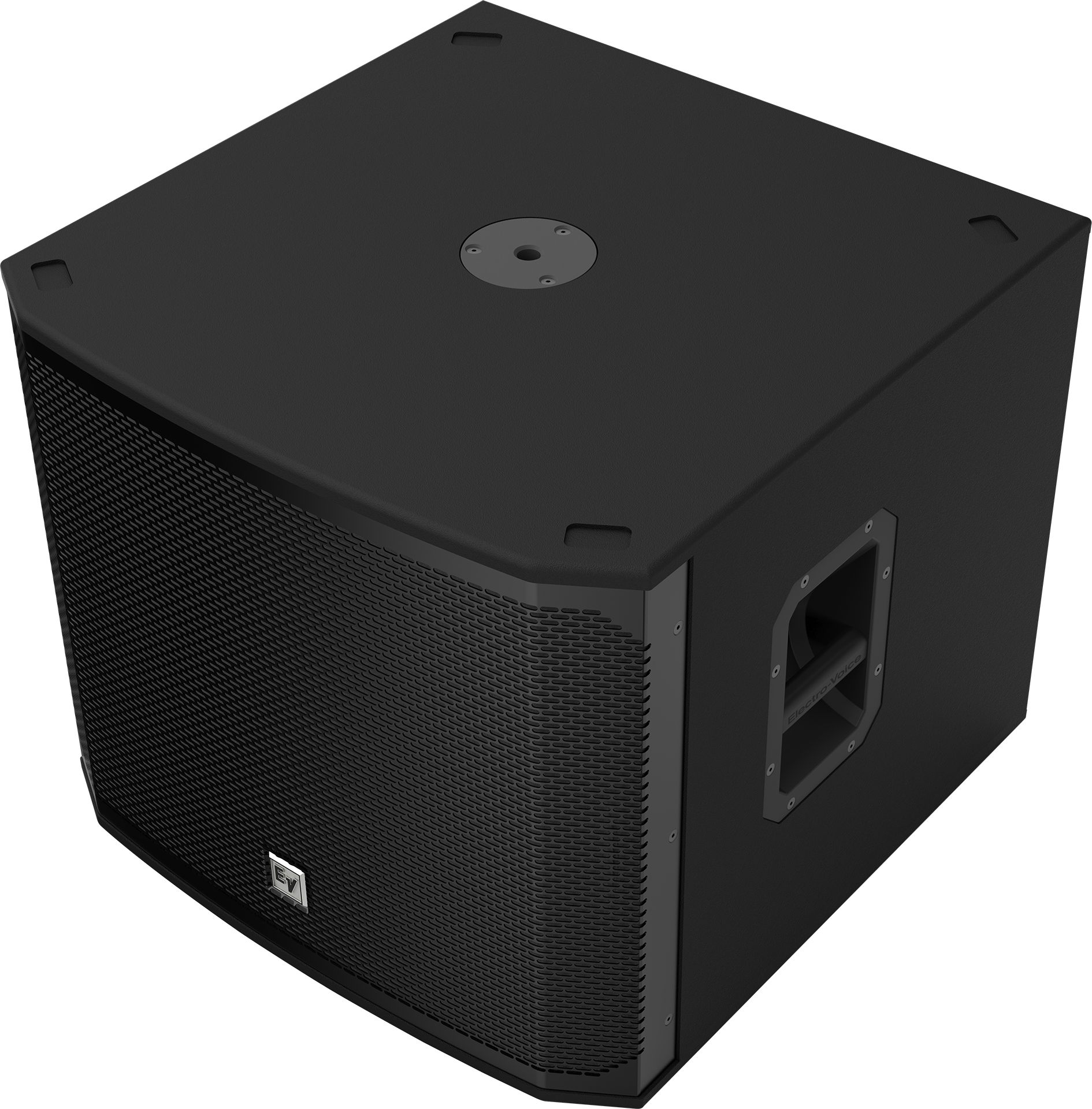

  • 两个XLR输出便于系统扩展到额外的扬声器或低音扬声器。大插槽导音口实现低失真和出色的低音扩展。金属网罩增强杆(EKX-18SP上有两个),M20螺纹杆安装板。

Specifications

Frequency Range (-10 dB) 35 Hz - 180 (Half Space Measurement)
Speaker Type Subwoofer
Woofer Size 18

Powered or Passive Powered
Frequency Response (-3 dB)¹ 40 Hz - 150 (Half Space Measurement)
Max. SPL/1m (calc)² 134
LF Transducer EVS-18C 457 mm (18 in)
Power Rating 1300

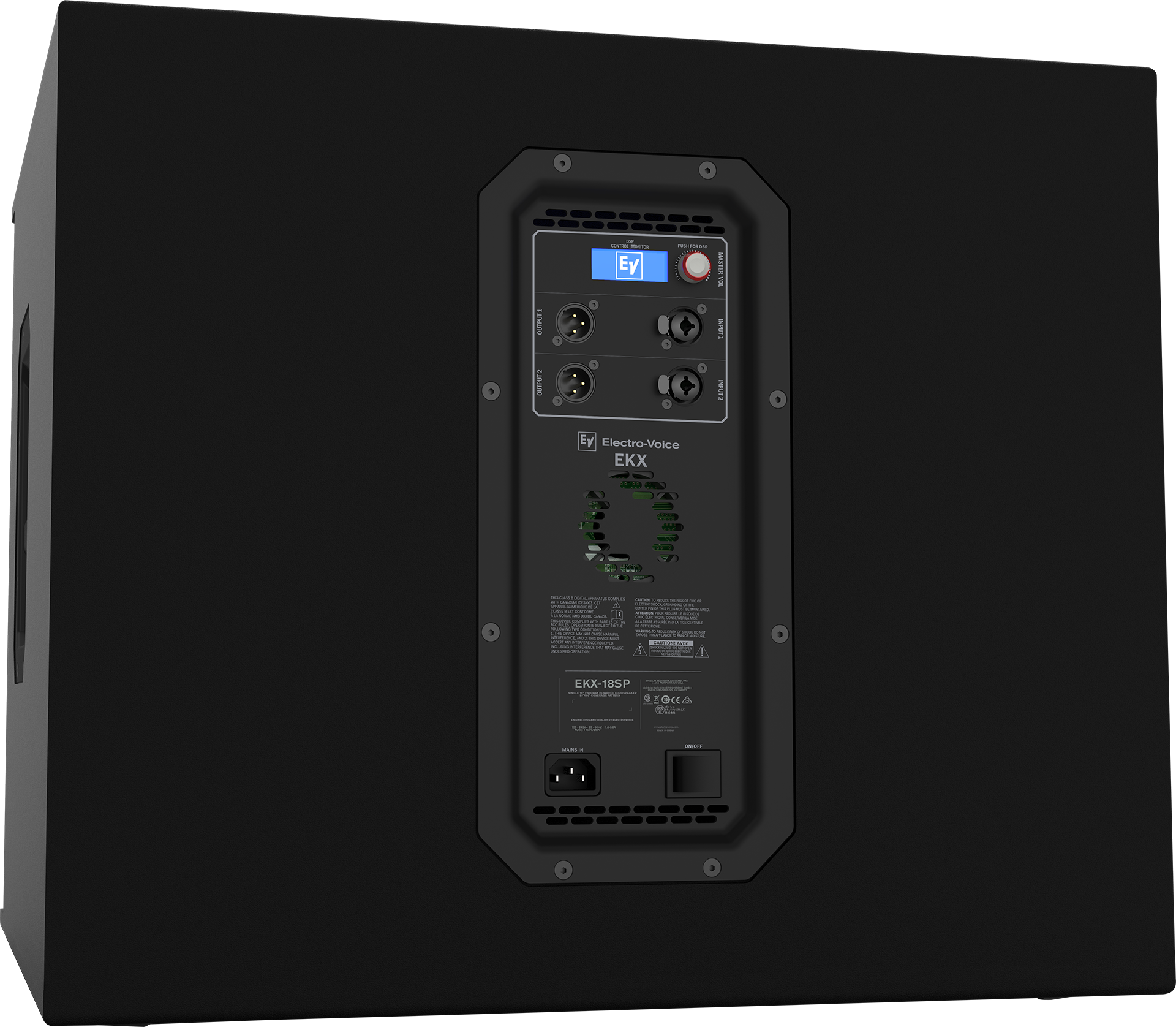

Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material 15 mm, plywood with EVCoat
Grille 18 AWG steel with powdercoat
Height 520
Width 606
Depth 612
Weight Net 32.8
Shipping Weight 41.2
Power Consumption³ 1.8 A (Current rating is 1/8 power)
Family EKX
Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL 134 dB peak (Maximum SPL is measured at 1 m using broadband pink noise at maximum output.)
