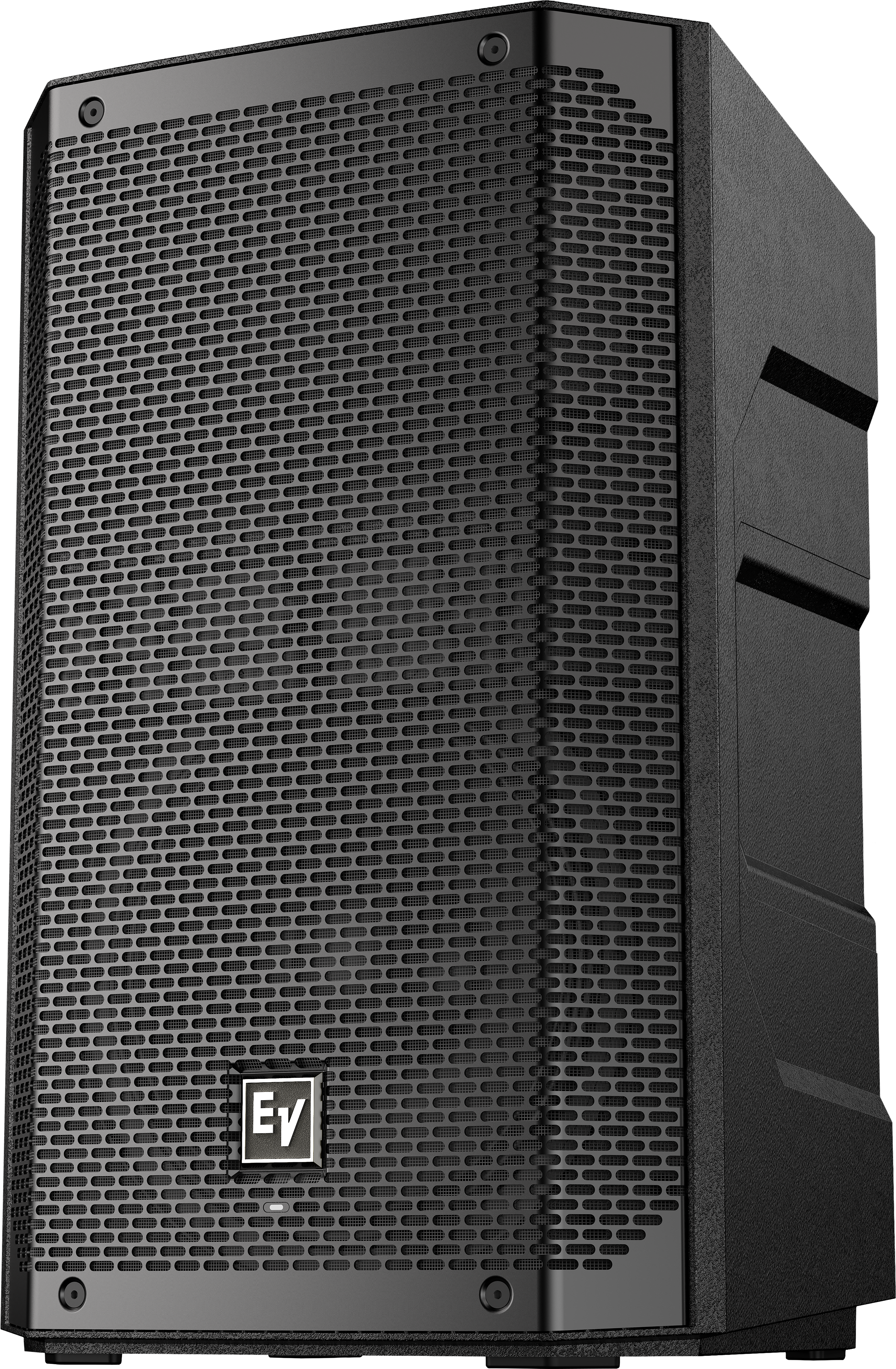

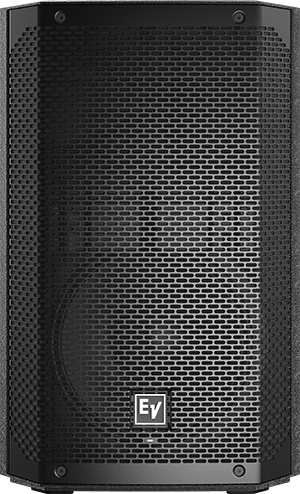

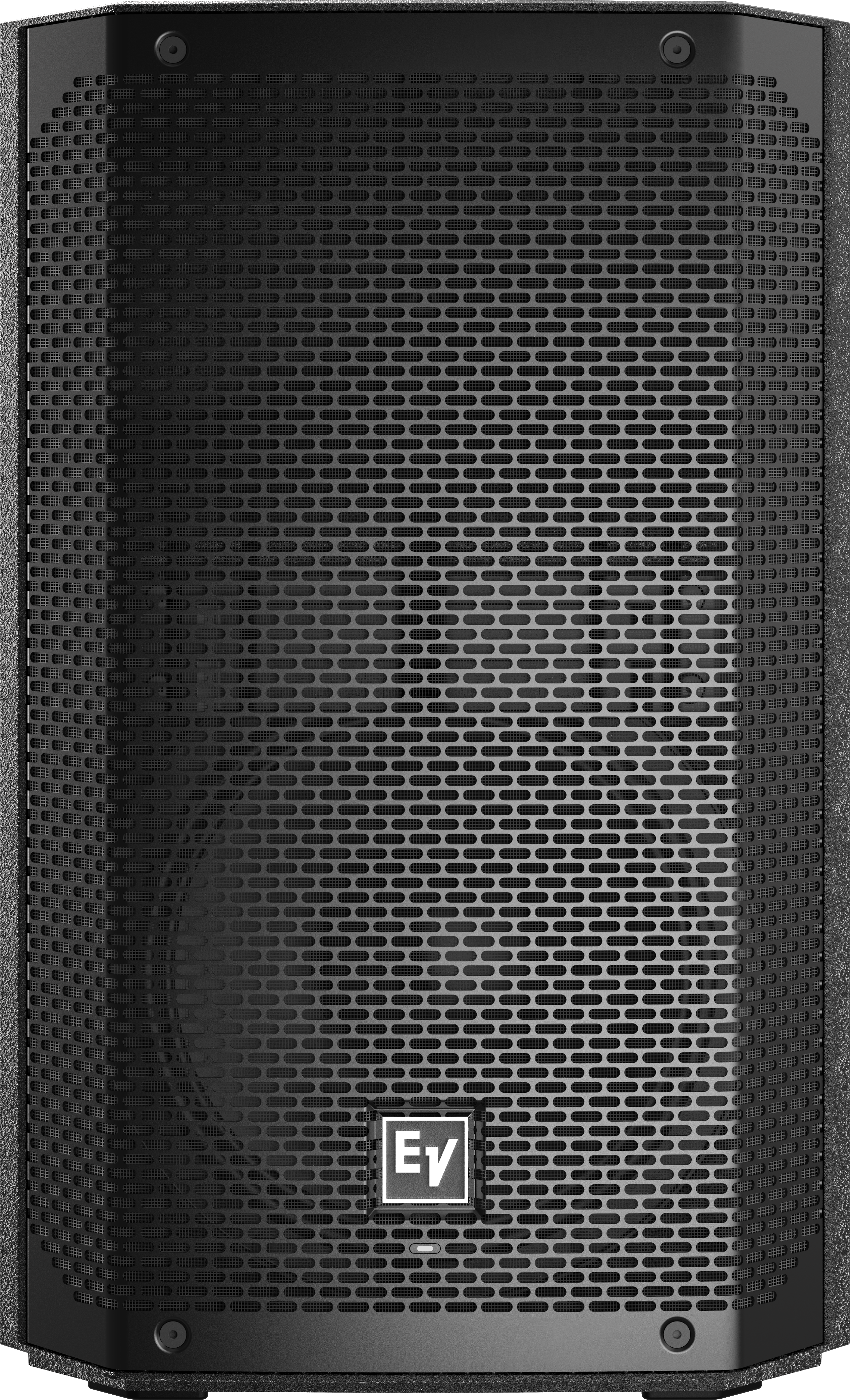

ELX200-10P

10英寸两分频有源扬声器

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support

Specifications

Suspension (3) M10 suspension points
HF Transducer DH-1L 1-inch titanium compression driver
Speaker Type Full-Range

Woofer Size 10
Powered or Passive Powered
Frequency Response (-3 dB)¹ 59 Hz -18 k
Frequency Range (-10 dB)¹ 53 Hz - 20 kHz
Max. SPL/1m (calc)² 130
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 60
LF Transducer EVS-10M 254 mm (10 in)
Power Rating 1200
Crossover Frequency 1800

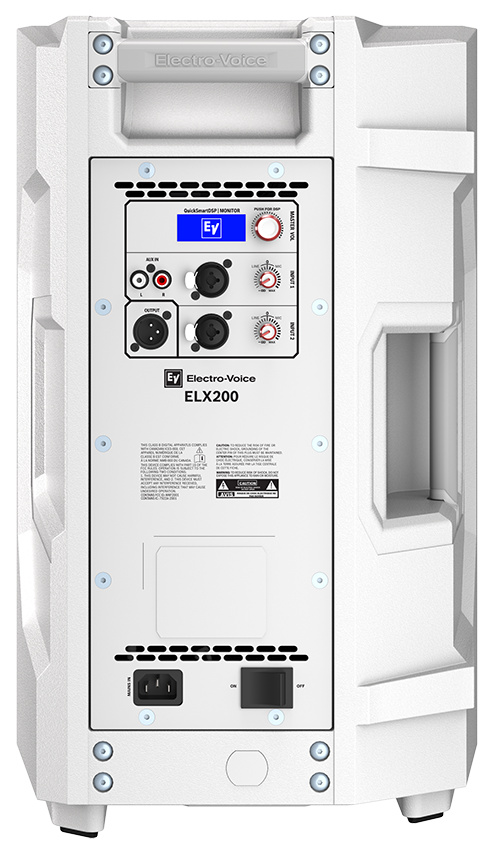

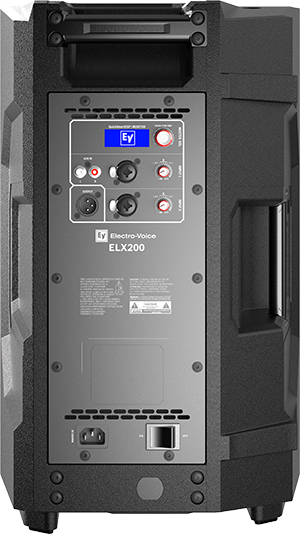

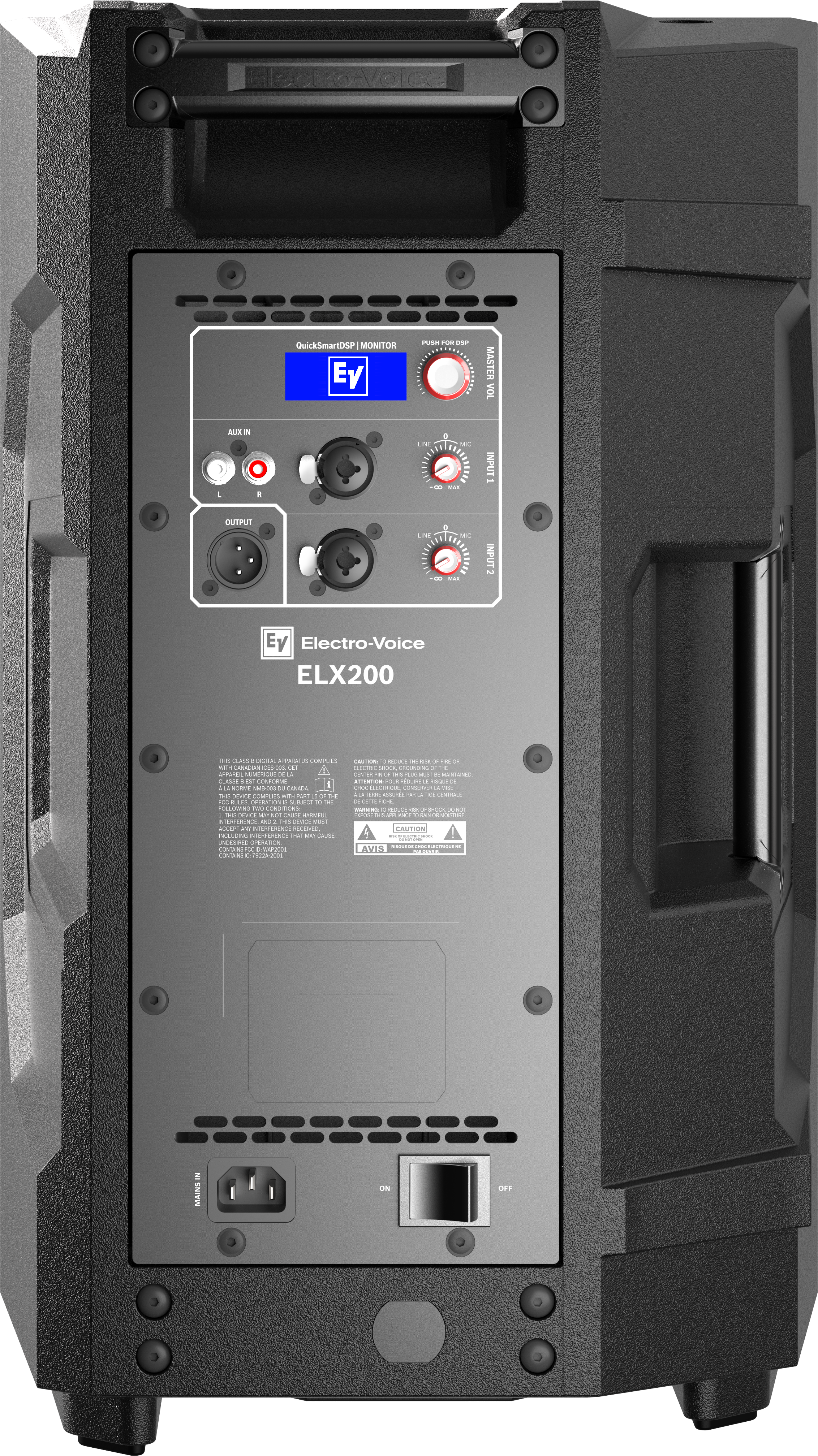

Connector Type (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Material Polypropylene Composite
Grille 18 AWG steel with powdercoat

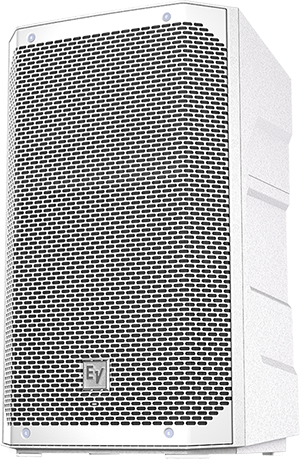

Available Color 黑色白色
Height 531
Width 330
Depth 319
Weight Net 13.5
Shipping Weight 15.6
Power Consumption³ 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A
Family ELX200
