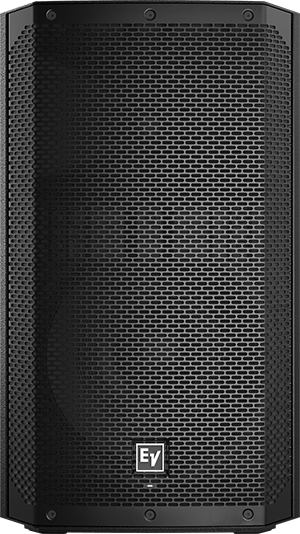

ELX200-12P
12英寸两分频有源扬声器
Specifications
| Suspension | (3) M10 suspension points |
| HF Transducer | DH-1L 1-inch titanium compression driver |
| Speaker Type | Full-Range |
产品规格 |
|
| Woofer Size | 12 |
| Powered or Passive | Powered |
| Frequency Response (-3 dB)¹ | 57 Hz – 16 k |
| Frequency Range (-10 dB)¹ | 51 Hz – 20 kHz |
| Max. SPL/1m (calc)² | 130 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 60 |
| LF Transducer | EVS-12M 300 mm (12 in) |
| Power Rating | 1200 |
| Crossover Frequency | 1700 |

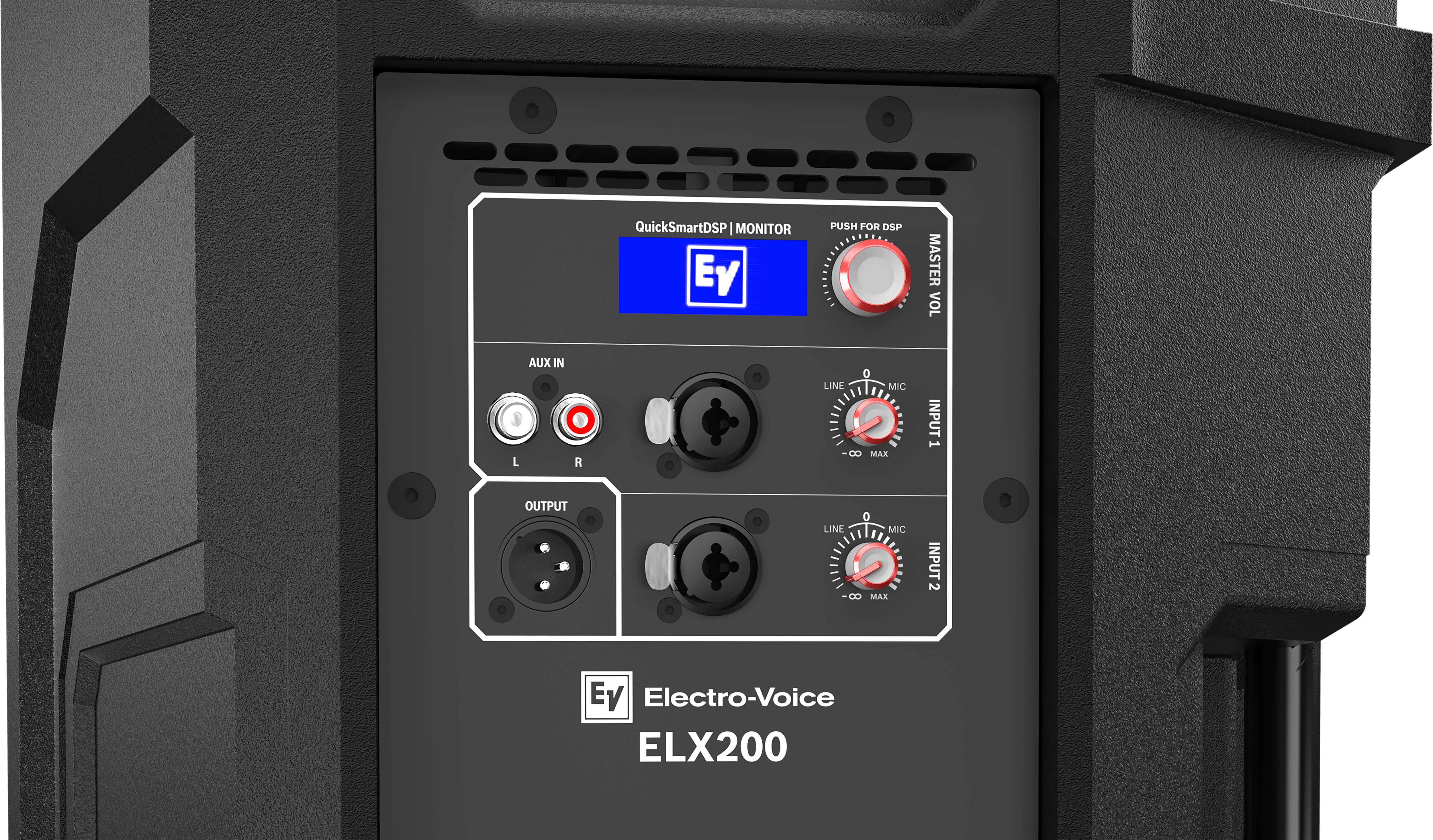

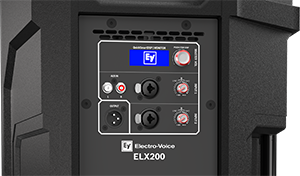

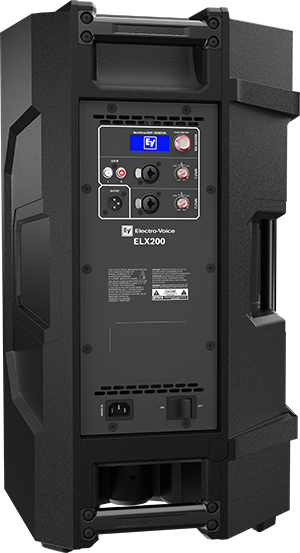

| Connector Type | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Enclosure Material | Polypropylene Composite |
| Grille | 18 AWG steel with powdercoat |

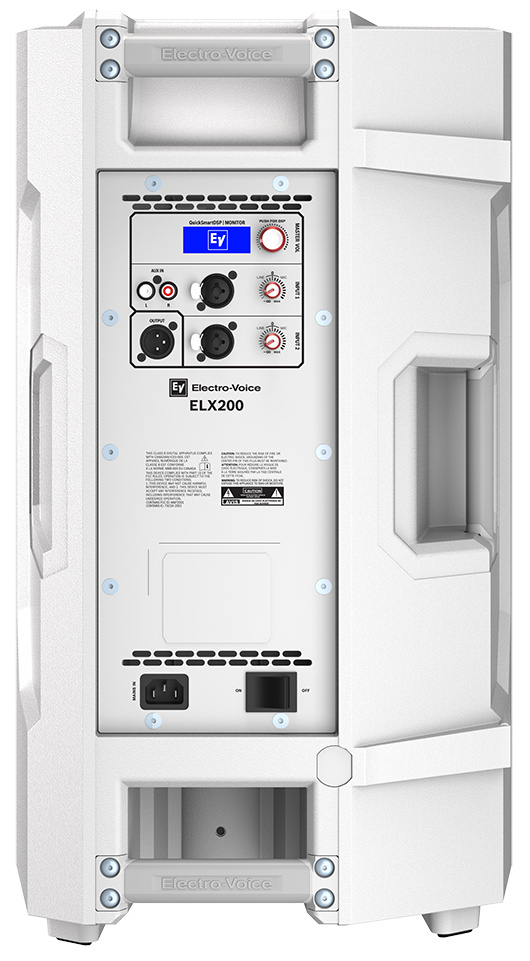

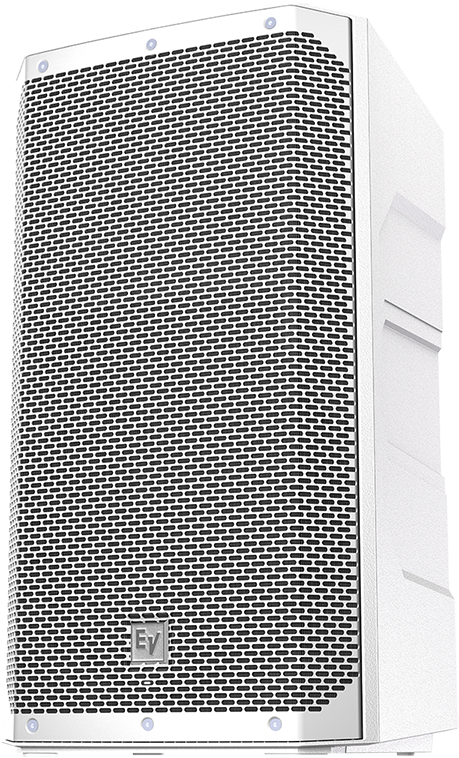

| Available Color | 黑色白色 |
| Height | 629 |
| Width | 363 |
| Depth | 344 |
| Weight Net | 15.6 |
| Shipping Weight | 17.7 |
| Power Consumption³ | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A |
| Family | ELX200 |
