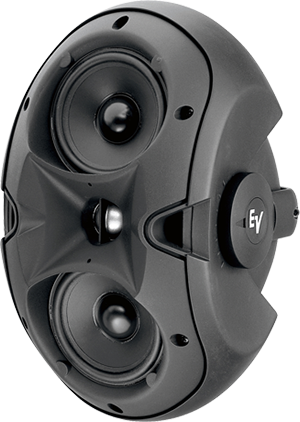

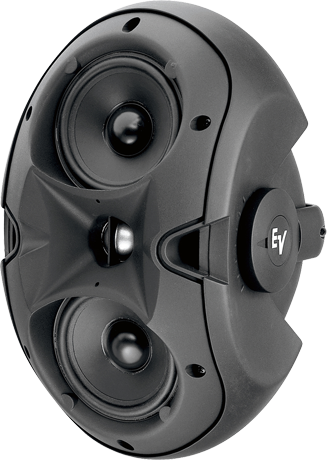

EVID 4.2
Evid系列高级表面安装扬声器系统
- 双路全频扬声器；开放式低音音箱；1”钕磁结构钛膜音圈；高频段采用相干覆盖波导管以最大限度降低干扰；针对高低音的全频带过载保护；立体椭圆设计，结构紧凑；防磁设计，适合与视频监控配合使用；随附强臂安装支架（SAM）和内六角扳手；用于SAM的吊装接插件；背面有安全吊装点
对于需在要有限空间获得全频音效的以下各种环境，EVID 4.2是最完美的选择：餐厅、酒吧、小酒店、商场和户外场所。4.2的低音频响与尺寸更大的扬声器不相上下，借助两个4“低音音箱，4.2的表现令人惊艳。
Specifications
| Frequency Range (-10 dB) | 65 - 20000 |
| Weatherized | Yes |
| Minimum Impedance | 6 |
产品规格 |
|
| Nominal Impedance (Passive) | 8 |
| HF Transducer | 1-inch |
| Speaker Type | Full-Range, Mid-High, Two-Way |
| Max. SPL/1m (calc)² | 115 |
| Coverage (Nominal -6 dB) H | 120 |
| Coverage (Nominal -6 dB) V | 80 |
| LF Transducer | Two 4-inch |
| Power Rating | 400 |
| System Power Handling (Continuous/Program/Peak) | 100//400 |
| LF Power Handling | Two 4-inch |
| HF Power Handling | 1-inch |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 89 |
| Height | 309.89 |
| Width | 175.26 |
| Internal Crossover | Yes |
| Depth | 215.9 |
| Weight Net | 3.9 |
| Input Connections | Spring Terminal |
| Transformer Taps (Transformer Version Only) | 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8ω Bypass |
| Chassis Size | 101.6 |
