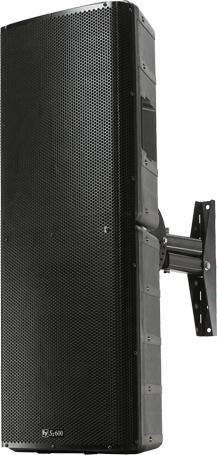

Sx600

高输出双12“两分频系统

Summary & Images Specs Where to buy Downloads & Support
  • 双单元垂直线性排列;高输出户外使用;灵敏度高(105 dB/1W/1m);清晰度高;两个12"低频驱动器;DH2T高频驱动单元,Varipath 65°x 65°号筒;全天候型箱体;SuperSAM吊件,60° x 180°可调;通过SJO电缆与压螺母盖板实现防水连接;内置600W变压器(SX600PIX)

Sx600是高输出户内/外用扬声器系统,具有双单元垂直线性排列,声音清晰明亮。Sx600输出功率600W(峰值功率2400W),可以垂直吊装。

Specifications

Frequency Range (-10 dB) 70 - 16000
Weatherized Yes
Flying Yes

Minimum Impedance 3.5
Nominal Impedance (Passive) 4
HF Transducer 2-inch DH2T
Speaker Type Full-Range, Two-Way
MF Transducer ND12A
Woofer Size 12
Max. SPL/1m (calc)² 139
Coverage (Nominal -6 dB) H 65
LF Transducer One 12-inch DL12BFH (LF), one 12-inch ND12 (MB)
Coverage (Nominal -6 dB) V 65
Power Rating 2400
System Power Handling (Continuous/Program/Peak) 600//2400 (Const.-dir. horn)
Crossover Frequency 1800
Enclosure Material High Density Polymer (Composite)
Available Color 黑色
Sensitivity 1 W/1 m 105
Height 1163
Width 429
Recommended High-Pass Frequency 90 @Q=1.6
Depth 312
Internal Crossover Yes
Weight Net 36.3
Family Sx
Input Connections SJO cable/gland nut
Directivity Index 11.3
Chassis Size 304.8
Axial Sensitivity (SPL, 1 W @ 1 m) 105
Passive Power Handling 2400

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for Sx600.
