ZX4

15"两分频组合系统

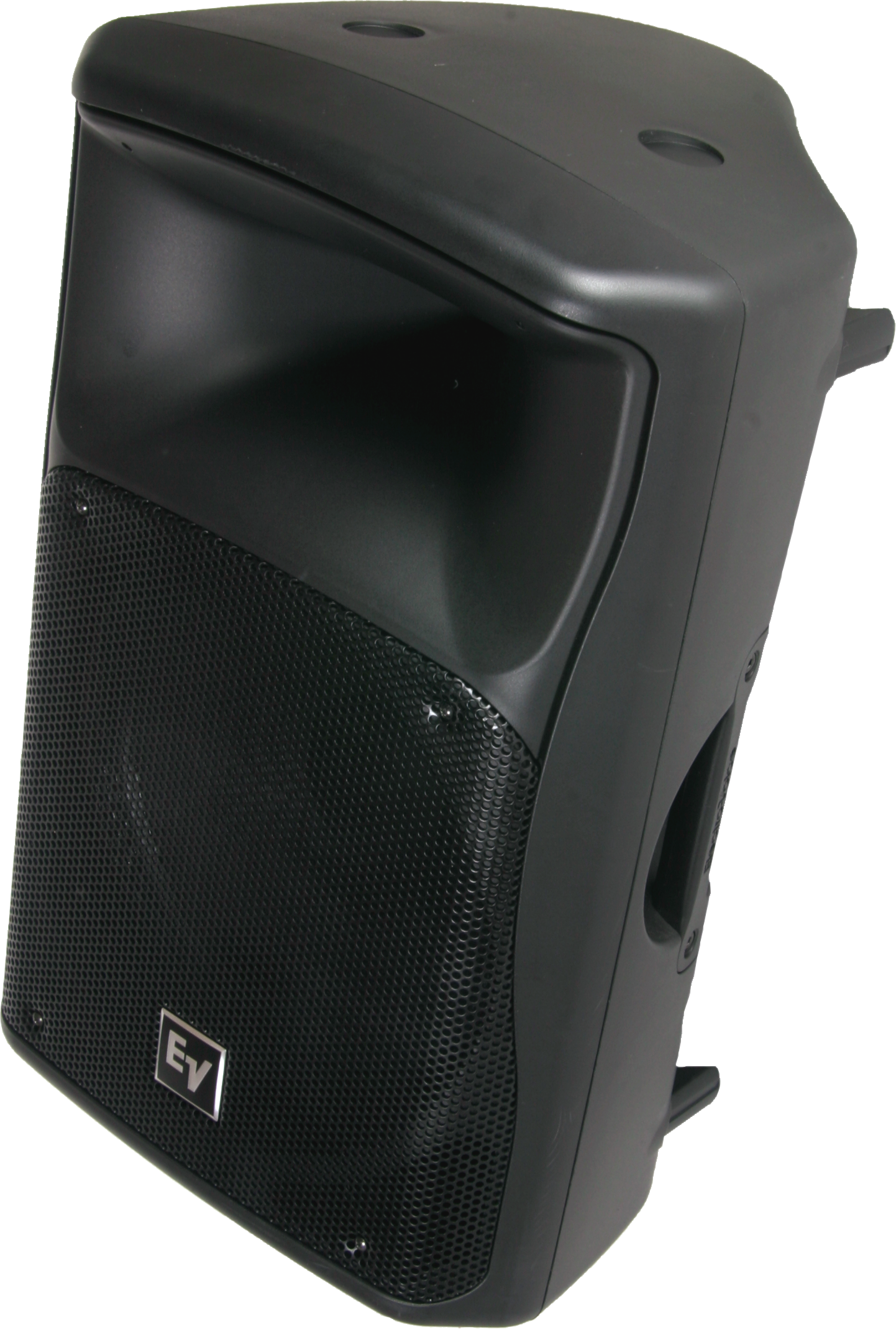

  • 15"两分频系统,EVS15SF低频驱动单元;DH3 1.25”纯钛振膜高频驱动器;持续功率400W,峰值功率1600瓦;灵敏度高(100dB);监听角度45°和55°可调;大型90° x 50°EV号筒

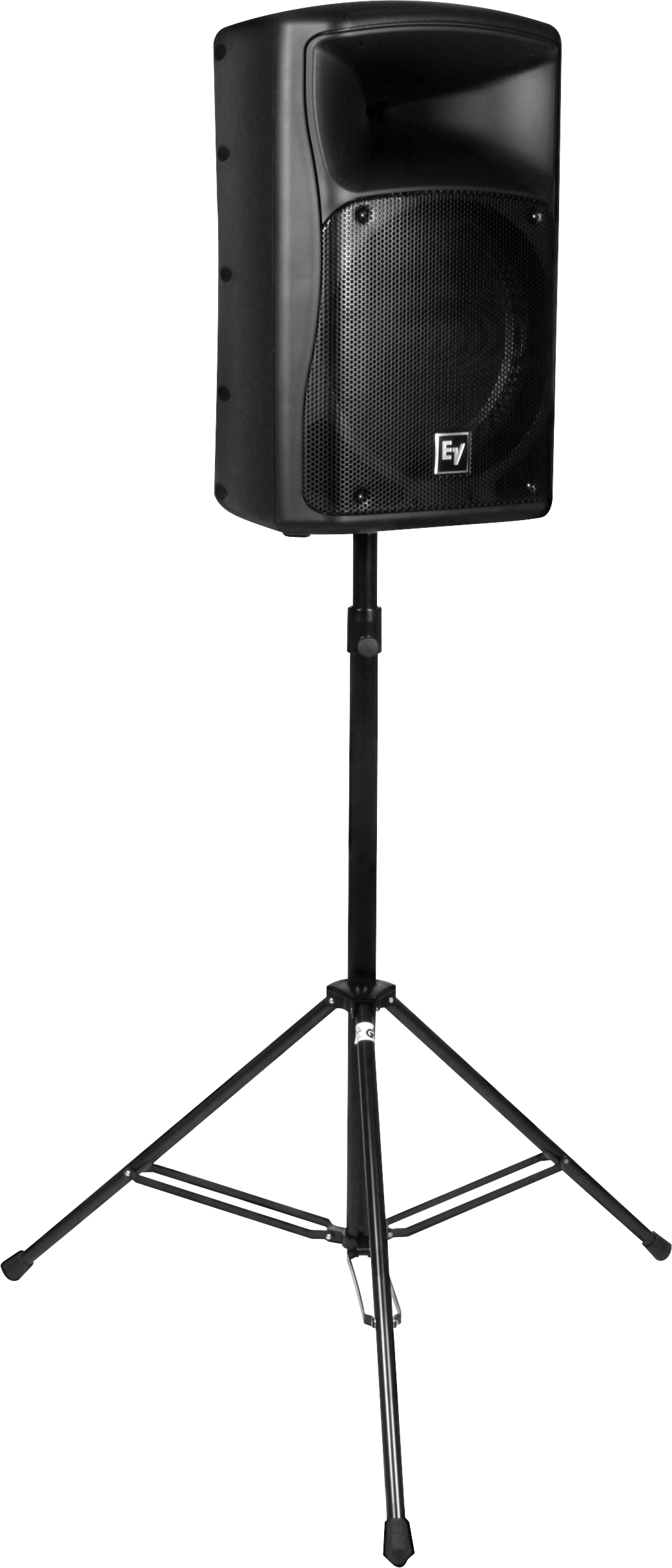

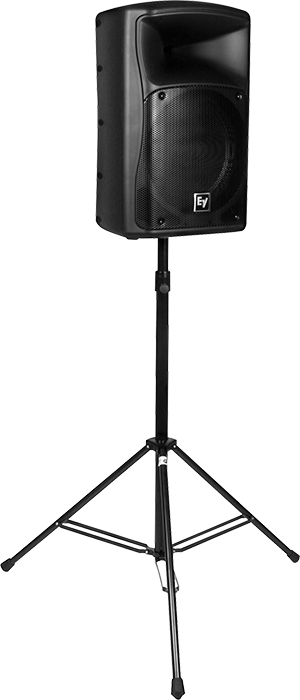

Zx4主要设计用于便携应用,例如艺术表演、音乐重放和小型乐队等。通过内置扬声器支架撑孔,Zx4可随时用于任何场合。

Specifications

Frequency Range (-10 dB)42 - 20000
WeatherizedNo
FlyingYes
Minimum Impedance6.5
Nominal Impedance (Passive)8
HF Transducer1.25-inch DH3/2010A

Speaker TypeFull-Range, Mid-High, Two-Way, Wedges
Woofer Size15
Powered or PassivePassive
Frequency Response (-3 dB)¹60 - 20000
Max. SPL/1m (calc)²132
Coverage (Nominal -6 dB) H90
Coverage (Nominal -6 dB) V50
LF Transducer15-inch EVS15-SF
System Power Handling (Continuous/Program/Peak)400//1600
Power Rating1600
Crossover Frequency1500
Enclosure MaterialHigh Impact Polystyrene Composite
GrillePolyester Powder Coated, 18GA Galvanized Steel
Sensitivity 1 W/1 m100
Available ColorBlack
Height686
Recommended High-Pass Frequency42
Width445
Depth406
Internal CrossoverYes
Weight Net20.2
FamilyZxZxA
Input ConnectionsParallel Neutrik® NL4
Chassis Size381
