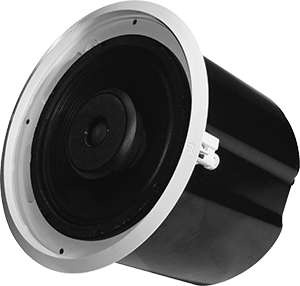

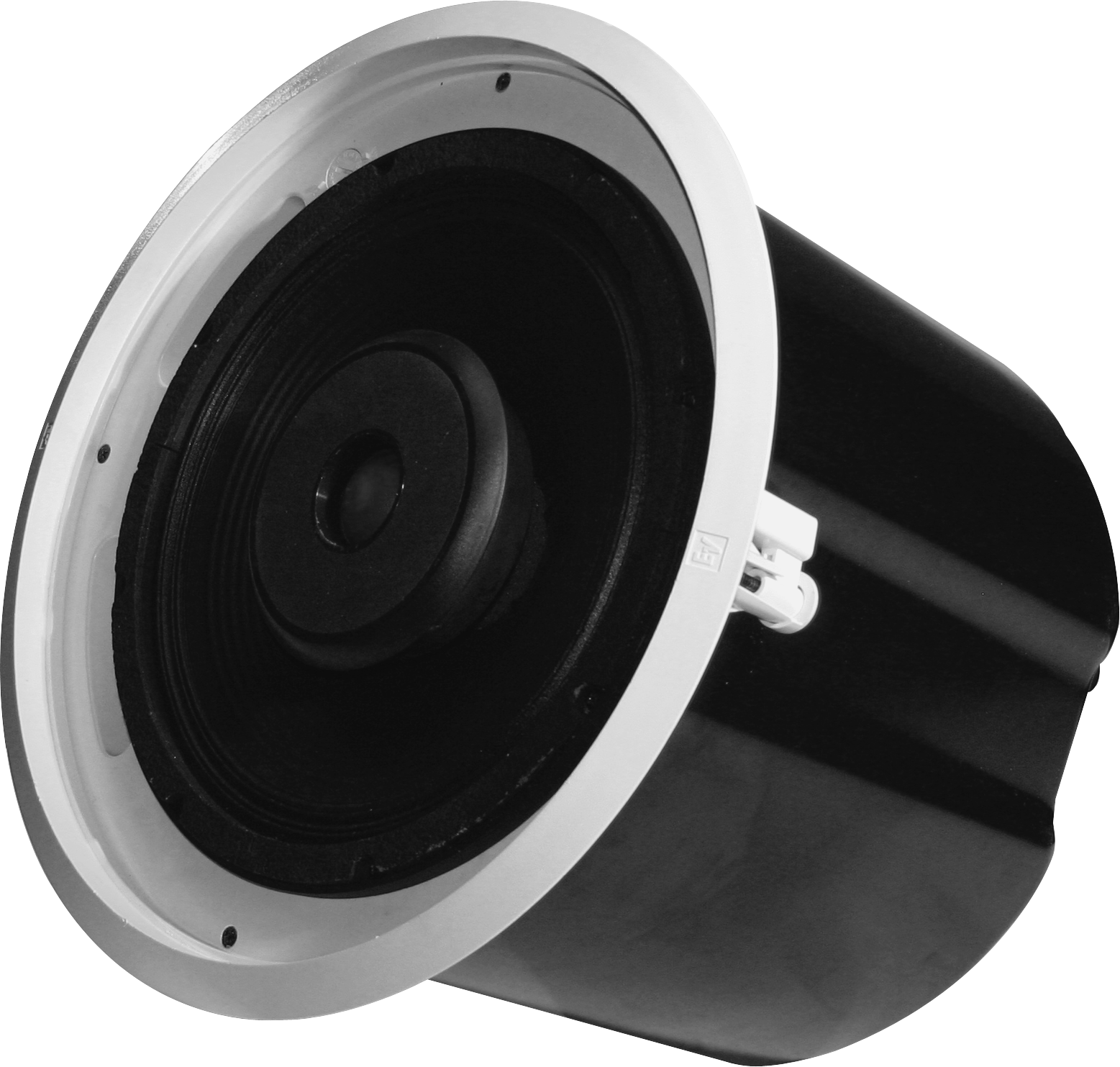

EVID C12.2

12" 2‑way coaxial ceiling loudspeaker

Summary & Images Specs Where to buy Downloads & Support
  • Full-range power for high ceilings, large spaces
  • High sensitivity, high power-handling
  • Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • White semi-gloss perforated grille
  • Heavy-gauge steel enclosure in black
  • 3/8-inch threaded-rod mount points for open ceilings
  • Safe, easy installation with included tile bridge and mounting ring
  • Complete package, requires no additional accessories

Specifications

HF Transducer 1-inch (25 mm) (coax)
Speaker Type Ported cabinet, internally damped two-way (passive crossover included)
Frequency Response (-3 dB)¹ 65 - 20,000Hz

Max. SPL/1m (calc)² 126dB (Half Space)
LF Transducer 12-inch EVID 920-8B (coax)
Power Rating 64W
System Power Handling (Continuous/Program/Peak) 100Watts
Crossover Frequency 2000Hz
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Grille Powder-coated steel
Available Color White (paintable surface) (Paintable Surface)
Sensitivity 1 W/1 m 100dB
Height 333mm (13.11")
Weight Net 12.3kg (27.12 lbs)
Input Formats 8ω / 70V / 100V
Coverage (Nominal -6 dB) 90 (average)
Mounting Systems Integrated 3-point toggle anchors
Diameter (Max) 414mm (16.3")
Transformer Taps (Transformer Version Only) 4 (70 V only), 8, 16, 32, 64 W ASC protected

Videos

Recommended Amplifiers

As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.

For optimal sound system performance, Electro-Voice recommends the following amplifiers.

Electro-Voice Dynacord Loud&Clear

Learn more about C Series amplifiers by Dynacord
Dynacord C Series

Two-channel power amplifiers for fixed install

Learn more about V Series amplifiers by Dynacord
Dynacord V Series

Multi-channel power amplifier for commercial installations

Learn more about Electro-Voice CPS Series
Electro-Voice CPS Series

CPS contractor precision series amplifiers

Learn more about Electro-Voice PA Series
Electro-Voice PA Series

PA series multi-channel power for fixed install applications

Two-Channel
Multi-Channel
powerTANK
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation

Where to Buy

Install Sound Partners

    * Call for availability

    Downloads

    Technical Documentations
    Name Language & Download
    EVID C12.2 A&E Specification
    Name Language & Download
    EVID Ceiling Speaker Systems Application Guide
    Name Language & Download
    EVID-C & -FM EU Declaration of Conformity (2024-Mar)
    EVID-C & -FM UKCA Declaration of Conformity (2024-Mar)
    Name Language & Download
    EVID C12.2 Ceiling Engineering Data Sheet
    Name Language & Download
    EVID Accessories
    EVID C12.2 User Manual
    EVID Design & Installation Reference Guide
    EVID RR/RPK Assembly & Installation Instructions
    RR, RPK Series Assembly & Installation Instructions
    Name Language & Download
    Service Policies for Asia/Pacific Rim
    Name Language & Download
    Audio 101 - Basic Audio Terminology
    Audio 101 - Loudspeaker Basics
    EASE Data Explanation
    PA Bible 02: Power Handling Capacity
    The EV PA Bible
    The PA Bible Chapter Zero
    Software, Firmware & Design Tools
    Name Language & Download
    Ceiling Speaker Layout Calculator
    Name Language & Download
    EVID Ceiling Speakers CAD Drawings
    Name Language & Download
    EVID GLL V1.0
    Name Language & Download
    EVID Arrayshow
    Marketing Materials
    Name Language & Download
    Audio Solution References for Sports Venues
    EVID Ceiling Speaker Brochure
    EVID Family Brochure
    Name Language & Download

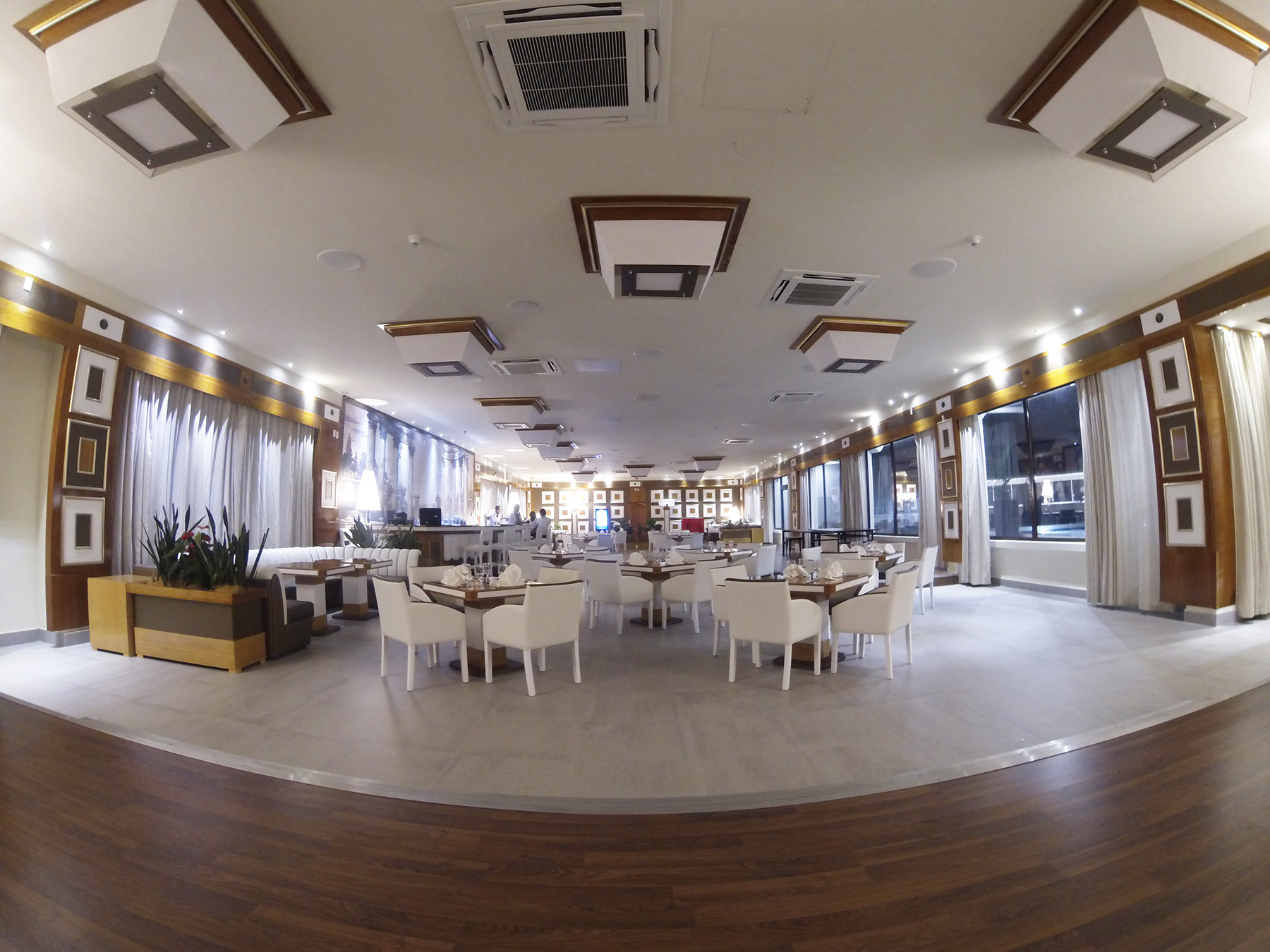

    Ramada Paramaribo Princess Hotel 05
