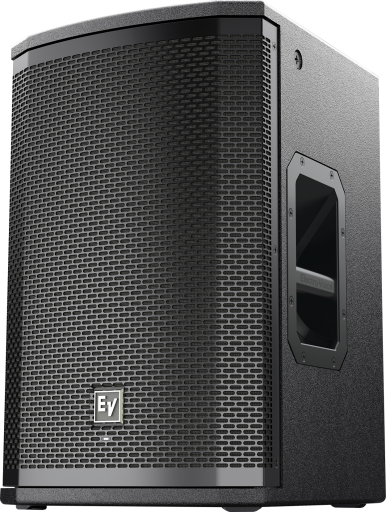

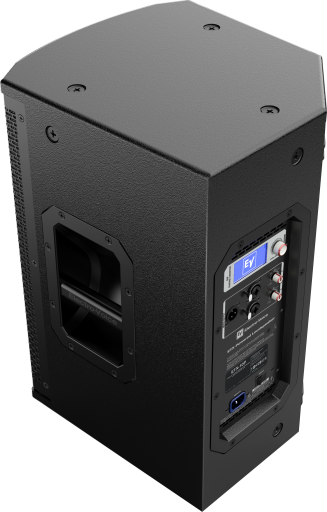

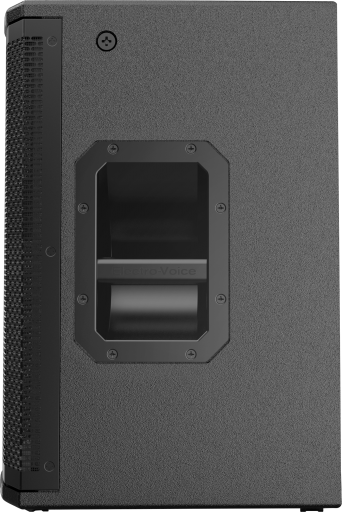

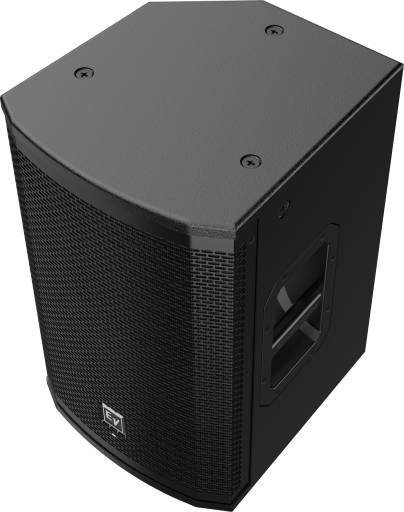

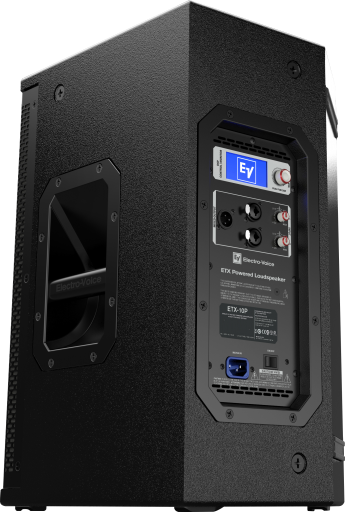

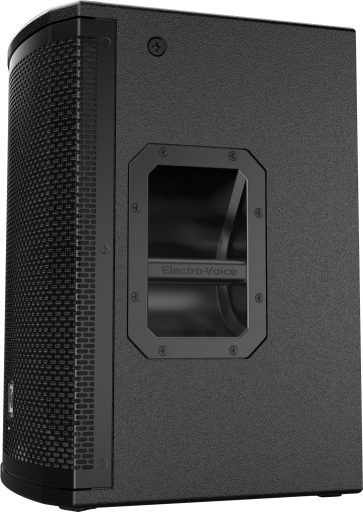

ETX-10P
10"" 2ウェイ・パワード・ラウドスピーカー
- 10インチLF SMXウーファー
- 1.25インチHFチタン製コンプレッションドライバー
- 統合型FIR-Drive DSPを組み合わせた2,000 WクラスDパワーアンプ
- ピークSPL 134 dB
Specifications

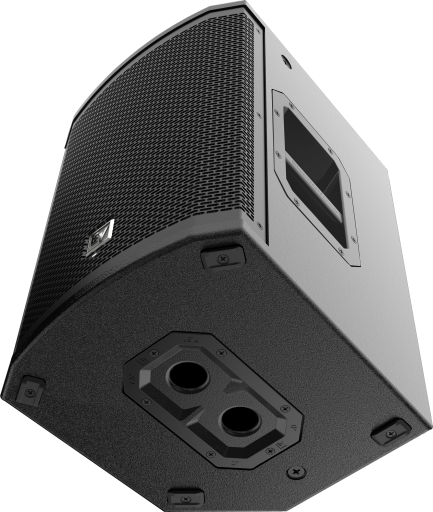

| Suspension | (8) M10 suspension points |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Speaker Type | Full-Range, two-way |
Specifications |
|
| Woofer Size | 10inch |
| Powered or Passive | Powered |
| Frequency Range (-10 dB)¹ | 65 Hz – 20 kHz (Full space measurement using the music DSP preset and 150 Hz low pass.) |
| Max. SPL/1m (calc)² | 134dB |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 60° |
| LF Transducer | SMX2100 254 mm (10 in) |
| Power Rating | 2000W |
| Crossover Frequency | 1700Hz |
| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 526mm (20.71") |
| Width | 330mm (12.99") |
| Depth | 365mm (14.37") |
| Weight Net | 20.3kg (44.75 lbs) |
| Frequency Response (-3 dB) | 85 Hz – 20 kHz (Full space measurement using the music DSP preset and 150 Hz low pass.) |
| Shipping Weight | 22.9kg (50.49 lbs) |
| Power Consumption³ | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A (Current rating is 1/8 power.) |
| Family | ETX |
| Maximum SPL | 134 peakdB (Maximum SPL is measured at 1 m using broadband pink noise at maximum output.) |
