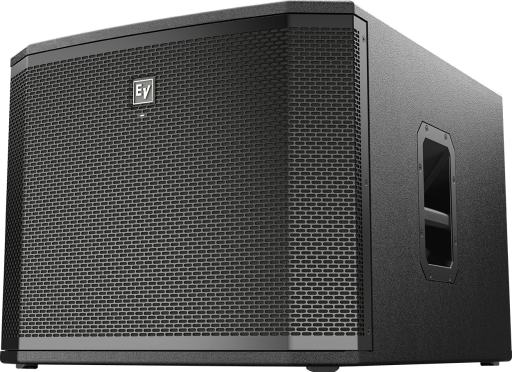

ETX-15SP
15""パワード・サブウーファー
- 15インチDVXウーファーによって、最もパンチの効いたサウンドを実現
- 統合型FIR-Drive DSPを組み合わせた1,800 WクラスDパワーアンプ
- ピークSPL 134 dB
- 特別なDSPプリセットによって、全動作帯域にわたり真のカーディオイド・パフォーマンスを実現

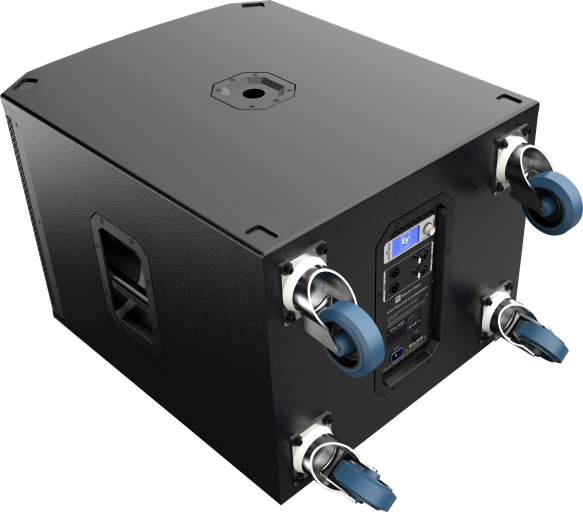

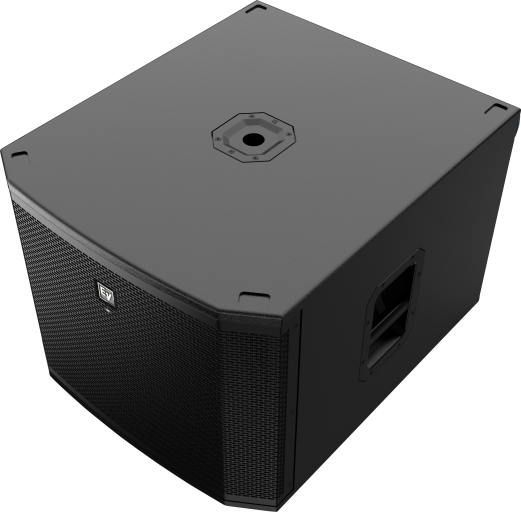

- コンボ・ポールカップ (インサートとネジ山付き) は、ETXパワード・ラウドスピーカー・フルレンジ・モデルと組み合わせて使用可能

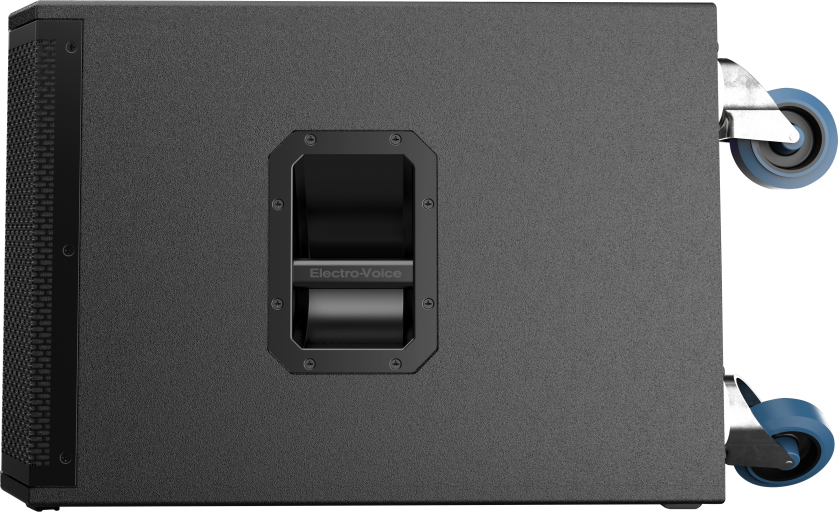

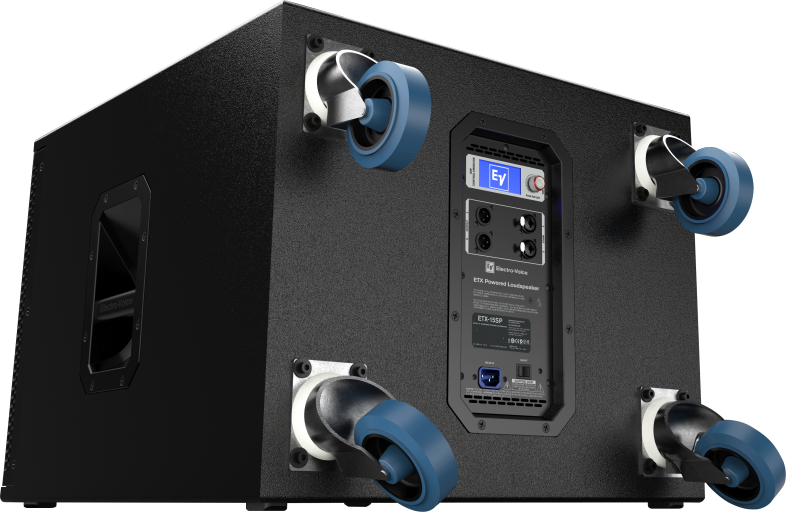

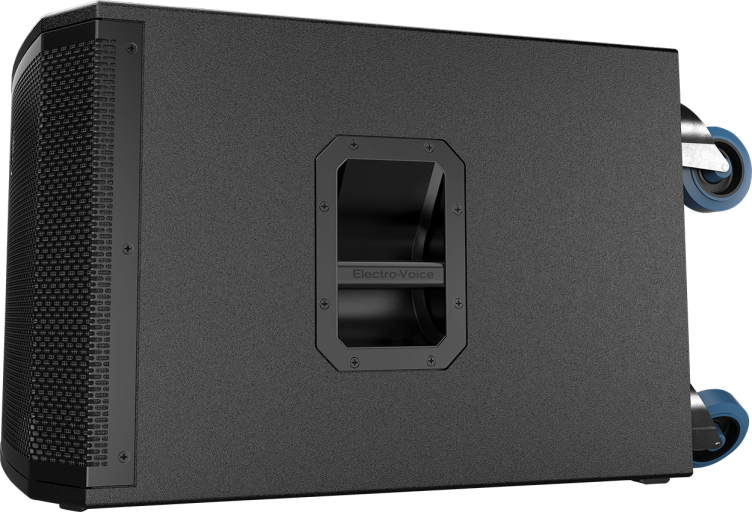

- 取替え可能なキャスター
Specifications
| Speaker Type | Subwoofer |
| Woofer Size | 15inch |
| Powered or Passive | Powered |
Specifications |
|
| Frequency Range (-10 dB)¹ | 32 Hz – 180 Hz |
| LF Transducer | DVX3159A 380 mm (15 in) |
| Power Rating | 1800W |
| Connector Type | (2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 471mm (18.54") |
| Width | 576mm (22.68") |
| Depth | 825mm (32.48") |
| Weight Net | 41.7kg (91.93 lbs) |
| Frequency Response (-3 dB) | 37 Hz – 150 Hz |
| Shipping Weight | 46.8kg (103.18 lbs) |
| Family | ETX |
| Maximum SPL | 134 dB peakdB |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
