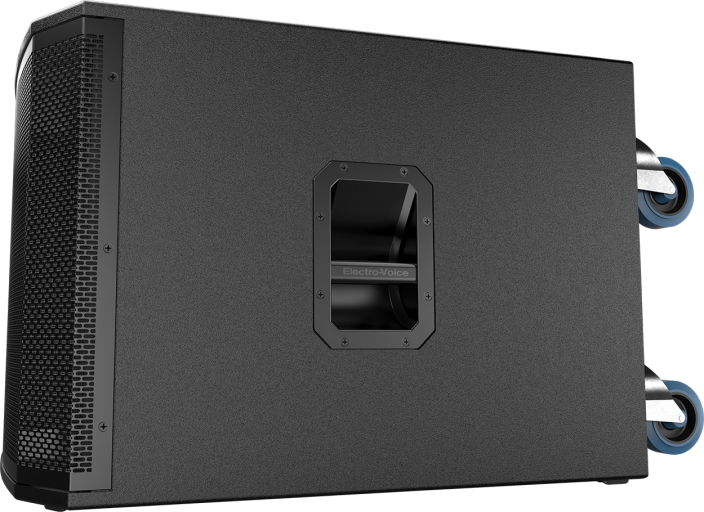

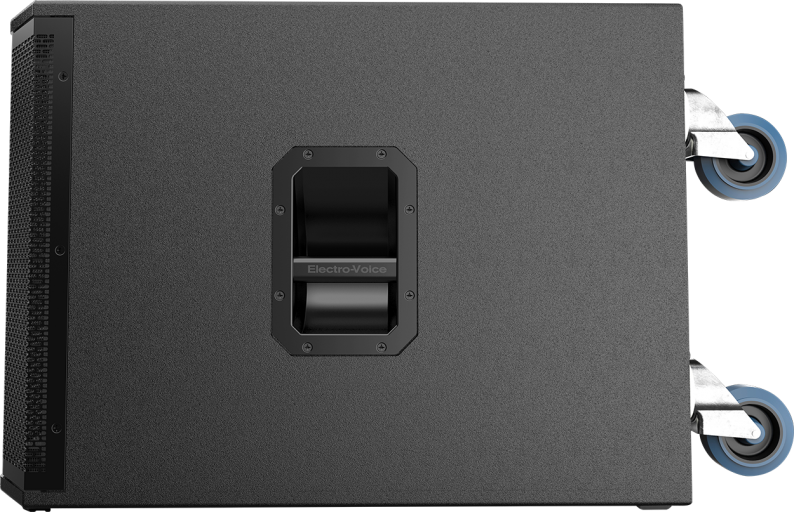

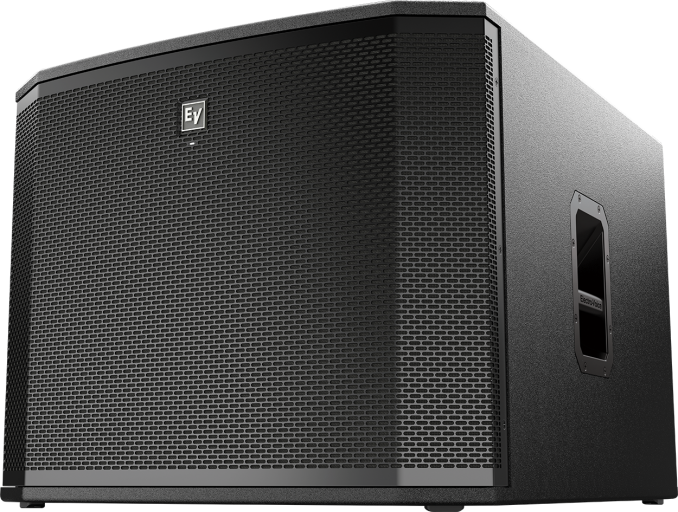

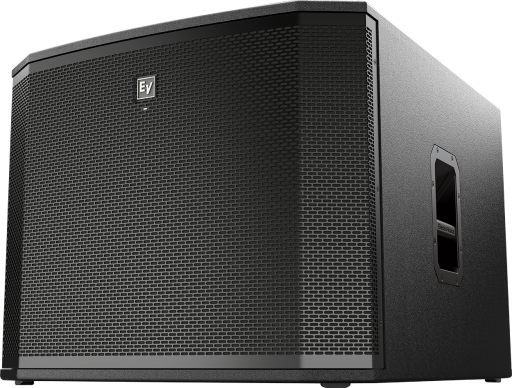

ETX-18SP
18""パワード・サブウーファー
- 18インチDVXウーファーによって、低音域応答特性を拡張
- 統合型FIR-Drive DSPを組み合わせた1,800 WクラスDパワーアンプ
- ピークSPL 135 dB

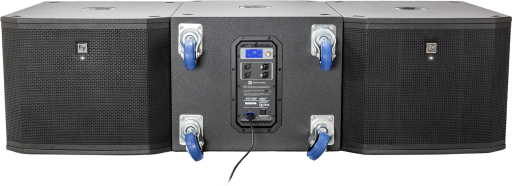

- 特別なDSPプリセットによって、全動作帯域にわたり真のカーディオイド・パフォーマンスを実現

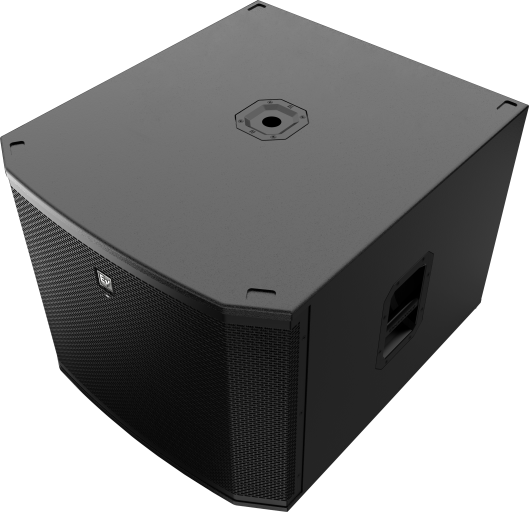

- コンボ・ポールカップ (インサートとネジ山付き) は、ETXパワード・ラウドスピーカー・フルレンジ・モデルと組み合わせて使用可能

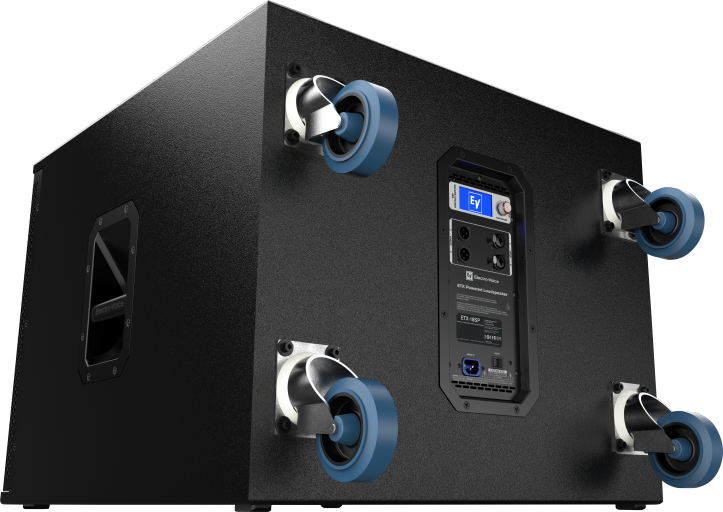

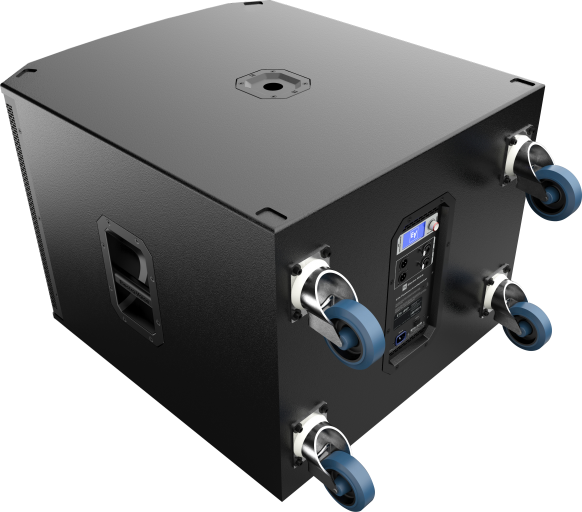

- 取替え可能なキャスター
Specifications
| Speaker Type | Subwoofer |
| Woofer Size | 18inch |
| Powered or Passive | Powered |
Specifications |
|
| Frequency Range (-10 dB)¹ | 28 Hz – 180 Hz |
| Max. SPL/1m (calc)² | 135dB |
| LF Transducer | DVX3180A 457 mm (18 in) |
| Power Rating | 1800W |
| Connector Type | (2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure Material | 18mm Plywood with EVCoat |
| Height | 550mm (21.65") |
| Width | 675mm (26.57") |
| Depth | 910mm (35.83") |
| Weight Net | 51.8kg (114.2 lbs) |
| Frequency Response (-3 dB) | 33 Hz – 150 Hz |
| Shipping Weight | 58.9kg (129.85 lbs) |
| Power Consumption³ | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Family | ETX |
| Maximum SPL | 135 dB peakdB |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
ビデオ
ETX Loudspeaker Overview
ETX Powered Loudspeaker - Subwoofer Cardioid Setup - Tutorial
ETX Powered Loudspeakers Overview
In Search of Excellent Audio & Video
Where to Buy
Retail Partners
Portable Speakers & Microphones
* Call for availability
ダウンロード
Technical Documentations
Certification/Regulatory
| Name | Language & Download |
|---|---|
| Etx Series Loudspeakers, EC Declaration of Conformity | EN |
| Etx Series, Cb: 162507-70003440, Certificate No. Ca16314Csa Certificate | EN |
| Etx Series, Iec Cb: S37063-00-00Tj, Certificate No. De4-0859 Certificate | EN |
| Etx-Series, Cb: 162507-70003440(70153321), Certificate No. Ca20478Csa Certificate | EN |
| Etx-Series, Safety, Certificate No. 162507-70003439 Certificate | EN |
| Etx-Series, Safety, Certificate No. 162507-70003440 Certificate | EN |
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| ETX18SP Data Sheet | EN |
Manual
Service Policies
| Name | Language & Download |
|---|---|
| Service Policies for Asia/Pacific Rim | EN |
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Cardioid Subwoofer Arrays Settings | EN |
| EASE Data Explanation | EN |
| FIR Drive Technology | EN |
| PA Bible 11: Portable Sound Systems for the Small Club | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
| Thermal Energy Management & Protection Limiter Technology | EN |
