Sx portable passive loudspeakers
- Lightweight durable composite enclosures
- Sonically superior bi-amplified integrated amplifiers
- Mic and line inputs
- 1.75“ DH3 compression drivers
- DL woofers
- Numerous accessories for mounting and suspending
- Available covers

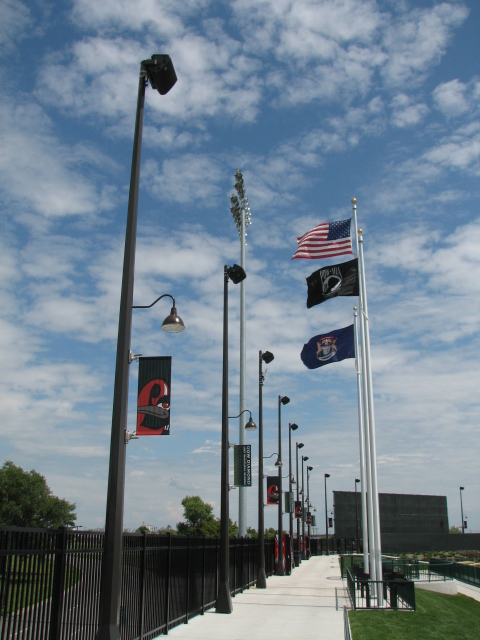

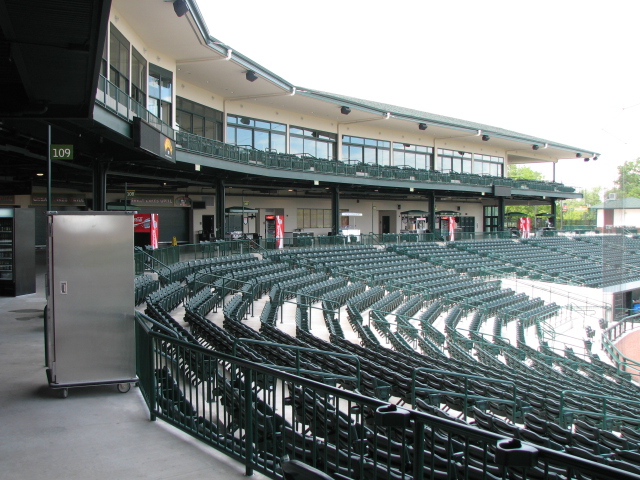

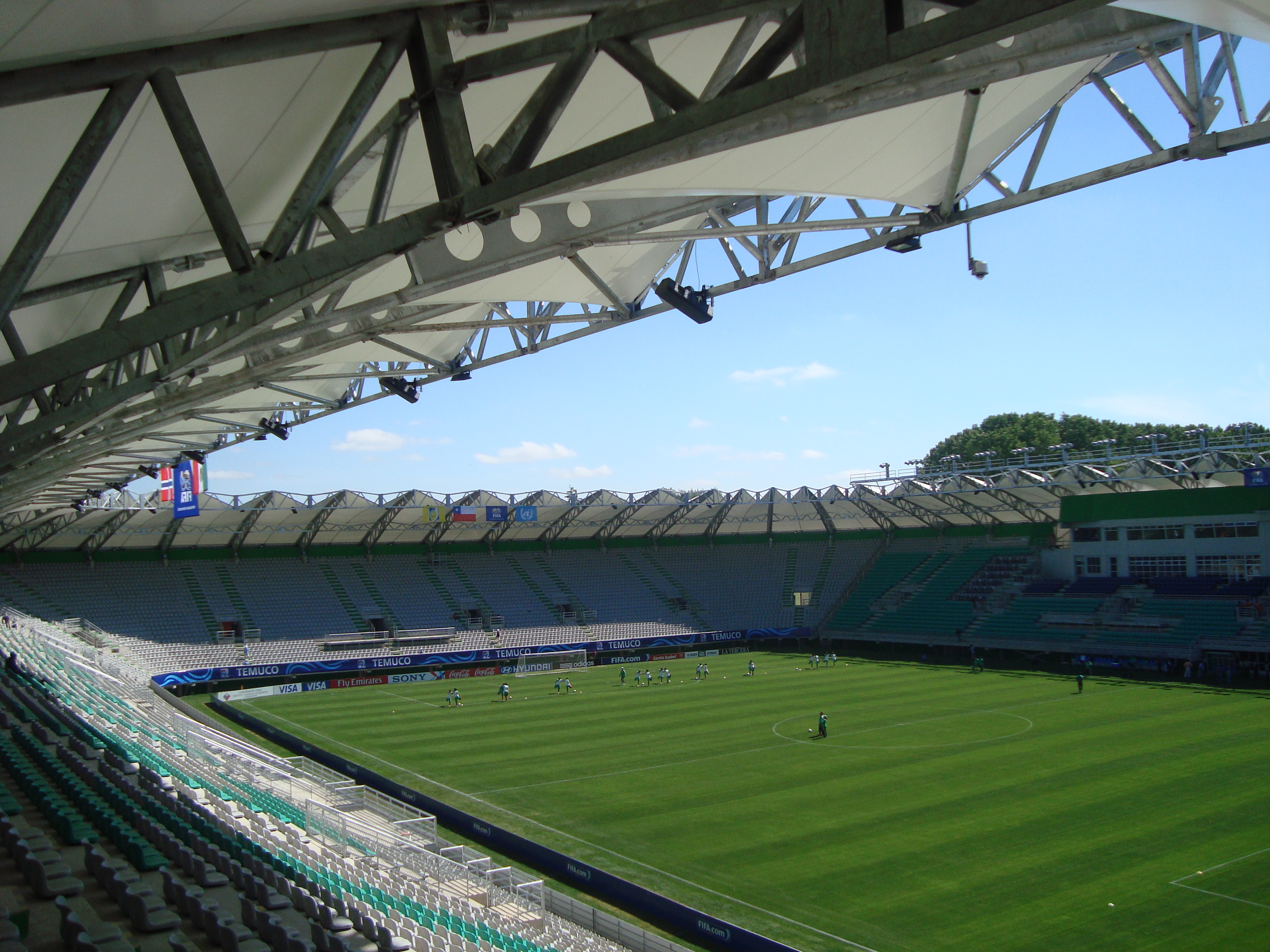

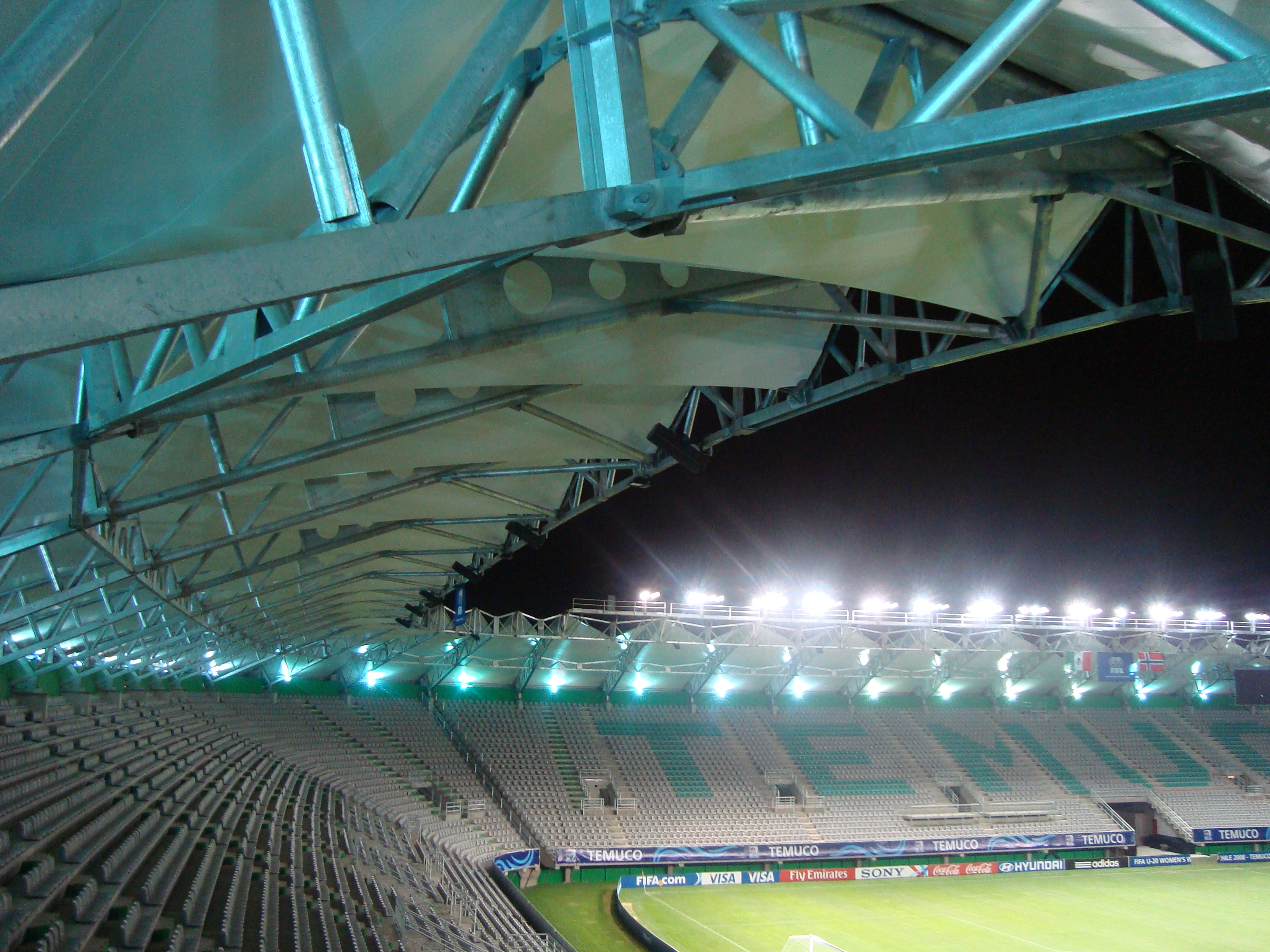

The SX series includes some of the most popular loudspeaker designs in history. SX loudspeakers offer the tour-proven performance and reliability for which EV is known. A versatile range of speaker configurations and lightweight enclosures covers applications in commercial sound , pro music, club sound, and performance and sports venues. In live performance, the SX line can handle tasks such as front-of-house, side fills, delay lines, or stage monitors. For installed sound, easy mounting and multiple weather-ready versions provide flexible system configuration for both indoor and outdoor venues. With high power-handling, great coverage, and smooth, consistent frequency response, cost-effective SX loudspeakers are the hard-working, easy-setup solution to your installation and portable system needs.
Now available in black and white.
Models
 |
 |
 |
 |
 |
 | |
Sx300PI |
Sx300PIX |
Sx100+ |
Sx300E |
Sb122 |
Sx600 | |
| Frequency Range (-10 dB) | 50 - 20000kHz | 50 - 20000kHz | 60 - 25000kHz | 50 - 20000kHz | 70 - 16000kHz | |
| Weatherized | Yes | Yes | No | No | Yes | |
| Flying | Yes | Yes | Yes | Yes | Yes | |
| Minimum Impedance | 5Ω | 5Ω | 5.6Ω | 5Ω | 3.5Ω | |
| Nominal Impedance (Passive) | 8Ω | 8Ω | 8Ω | 8Ω | 4Ω | |
| HF Transducer | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 2-inch DH2T | |
| Speaker Type | Full-Range, Two-Way | Full-Range, Mid-High, Two-Way | Full-Range, Mid-High, Two-Way | Full-Range, Mid-High, Two-Way | Subwoofer | Full-Range, Two-Way |
| Woofer Size | 12inch | 12inch | 12inch | 12inch | 12inch | 12inch |
| MF Transducer | ND12A | |||||
| Powered or Passive | Passive | Passive | Passive | Passive | ||
| Frequency Range (-10 dB)¹ | 43Hz - 200Hz | |||||
| Max. SPL/1m (calc)² | 131/123dB () | 131/123dB () | 127dB | 131/123dB () | 139dB | |
| Coverage (Nominal -6 dB) H | 65° () | 65° () | 65° () | 65° () | 65° | |
| Coverage (Nominal -6 dB) V | 65° () | 65° () | 65° () | 65° () | 65° | |
| LF Transducer | 12-inch DL12BFH | 12-inch DL12BFH | 12-inch | 12-inch DL12BFH | EVS12SB, 12 in (305mm) | One 12-inch DL12BFH (LF), one 12-inch ND12 (MB) |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts | 300//1200Watts () | 200//800Watts () | 300/1200Watts () | 600//2400Watts () | |
| Power Rating | 300W | 300W | 800W | 2400W | ||
| Crossover Frequency | 1500Hz | 1500Hz | 1500Hz | 1500Hz | 80Hz - 160Hz | 1800Hz |
| Connector Type | (2) Neutrik Speakon NL4 | |||||
| Enclosure Material | Polypropylene Composite | Polypropylene Composite | Copolymer Composite | Copolymer Composite | Composite | High Density Polymer (Composite) |
| Sensitivity 1 W/1 m | 99dB | 99dB | 98dB | 99dB | 99dB | 105dB |
| Available Color | Black or white | Black or white | Black or white | Black or white | Black | |
| Height | 586mm (23.07") | 586mm (23.07") | 586mm (23.07") | 586mm (23.07") | 586mm (23.07") | 1163mm (45.79") |
| Width | 429mm (16.89") | 429mm (16.89") | 429mm (16.89") | 429mm (16.89") | 429mm (16.89") | 429mm (16.89") |
| Recommended High-Pass Frequency | 40Hz | 90 @Q=1.6Hz | ||||
| Depth | 312mm (12.28") | 312mm (12.28") | 312mm (12.28") | 312mm (12.28") | 312mm (12.28") | 312mm (12.28") |
| Internal Crossover | Yes | Yes | Yes | Yes | Yes | |
| Weight Net | 17.7kg (39.02 lbs) | 17.7kg (39.02 lbs) | 14.5kg (31.97 lbs) | 17.7kg (39.02 lbs) | 15kg (33.07 lbs) | 36.3kg (80.03 lbs) |
| Frequency Response (-3 dB) | 52Hz - 145Hz | |||||
| Shipping Weight | 16.5kg (36.38 lbs) | |||||
| Family | Sx | Sx | Sx | Sx | Sx | |
| Chassis Size | 304.8mm (12") | 304.8mm (12") | 304.8 mm | 304.8 mm | 304.8 mm | |
| Passive Power Handling | 2400W peak | |||||
| Input Connections | 2 four-pin Speakon | 2 four-pin Speakon | Parallel Neutrik® NL4 | 2 four-pin Speakon | SJO cable/gland nut | |
| Directivity Index | 11.1dB () | 11.1dB () | 11.1dB () | 11.1dB () | 11.3dB | |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 99dB | 99dB | 98dB | 99dB | 105dB | |
| Transformer | Yes | |||||
| Impedance | 8Ω | |||||
| Power Handling (Continuous / Peak) | 400/1600W | |||||
| Maximum SPL | 131dB | |||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
