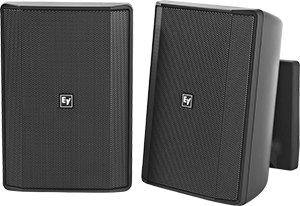

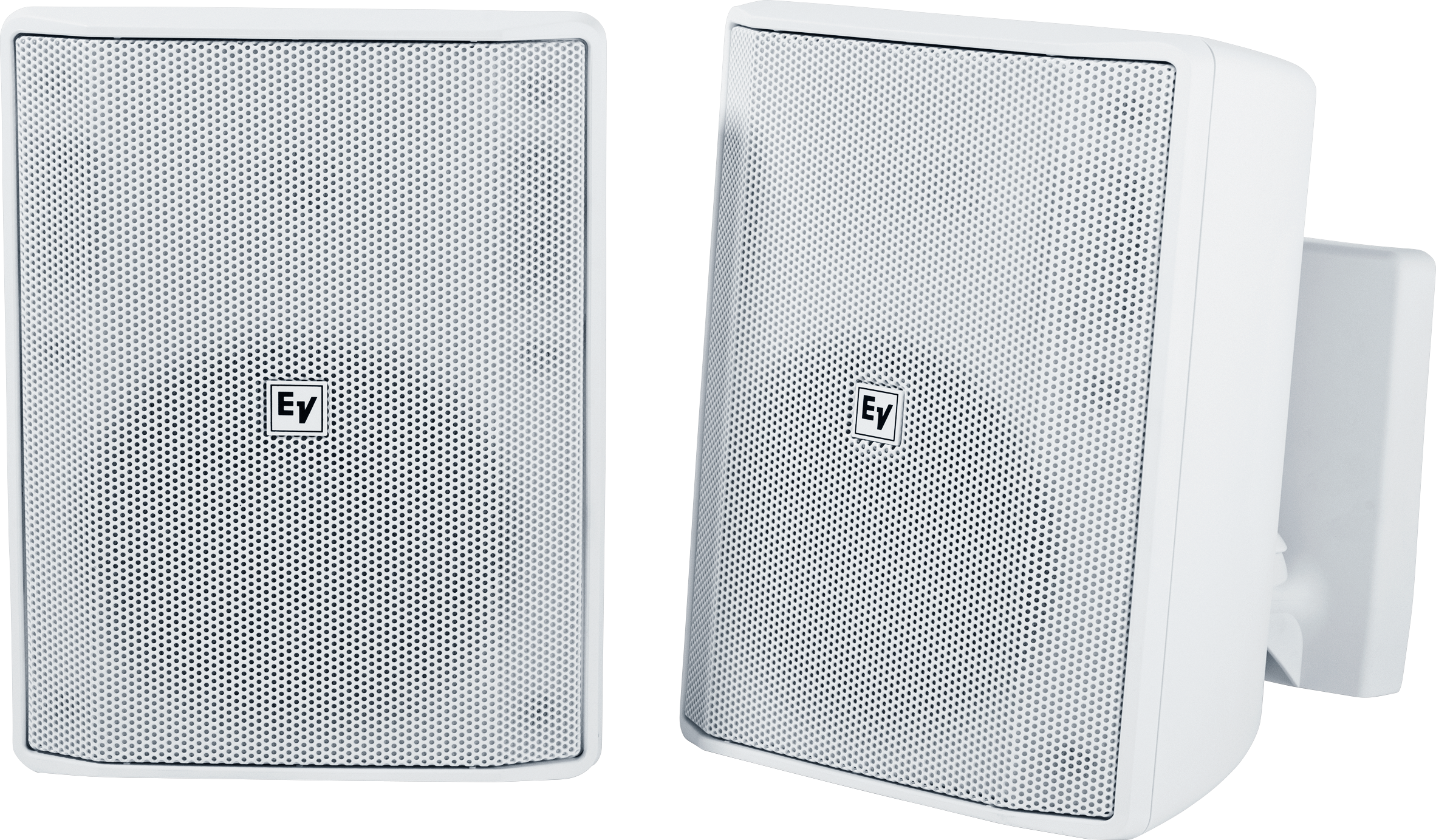

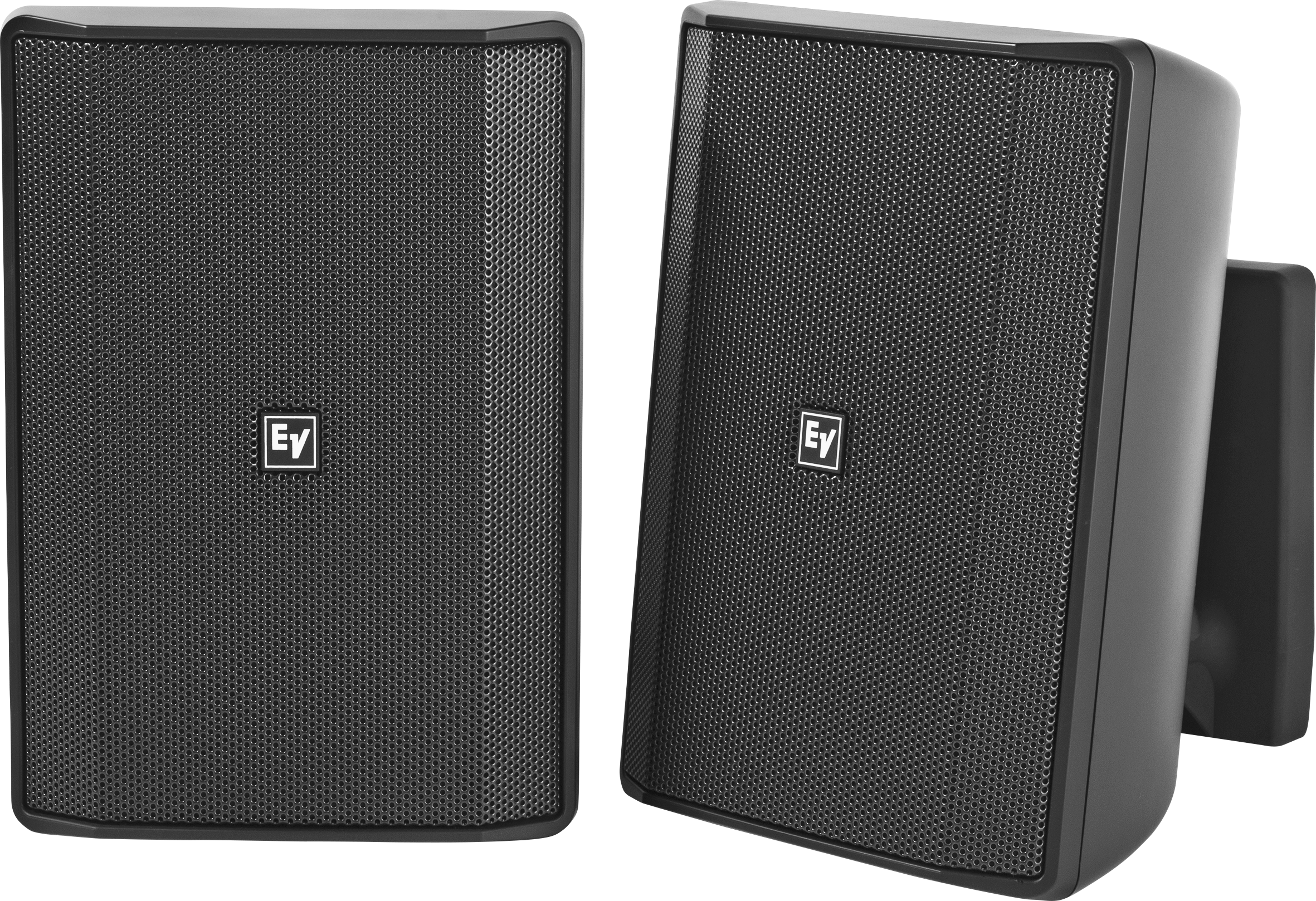

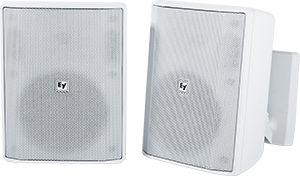

EVID-S5.2T

5” 面装定压扬声器(对)

Summary & Images Specs Where to buy Downloads & Support
  • 内含创新的安装系统,安装快速简单且可靠;
  • 精心设计,可用于室外环境(IP54),同时不影响性能;
  • 远投5.25" (133 毫米)的低音扬声器内置于防火级ABS塑料箱体中,将低频性能拓展至60Hz;
  • 75W的功率处理可提供109dB的最大SPL(峰值115dB)

Electro-Voice的EVID-S5.2T是一款高性能的两分频5.25" (133 mm) 全频墙面安装扬声器,具有宽阔且一致的覆盖,性能出色。专为背景/前景音乐、传呼及扩声应用设计,是餐馆、酒吧、露台、零售环境、健身俱乐部、酒店、主题公园、休闲场地等室内外场所的理想之选。EVID-S5.2T安装极为简便,防风雨性强,外观时尚精致,安装选项也很灵活,是各种表面安装应用的完美解决方案。内含Electro-Voice独创的安装系统,使得每次安装都快速简单,且十分可靠。该安装系统可水平旋转90度,垂直旋转45度,可以轻松地安装在墙壁和天花板上。安装系统已预先组装好,可直接使用,简化工作流程。EVID-S5.2T使用30W变压器,可选功率3.7W(限70V线路)、7.5W、15W或30W(70V或100V线路)或低阻抗线路的8Ω旁路。可通过扬声器背面输入面板上的便捷开关选择线路。EVID-S5.2T经过精心设计,在不损耗其室内应用性能的同时,也可抵御室外的极恶劣气候。该全频扬声器的防风雨等级通过IP54认证,此外其箱体和面网也具有出色的抗日晒、盐分、水分性能。所有的EVID-S型号均可选黑色或白色,且可以轻松上漆以匹配装潢颜色。另外还有变压器版本,可适用于恒定电压系统。EVID系列墙面安装扬声器种类多样,可作为一个完整的系统在多种不同的墙面安装结构中运作,同时也可与EVID系列的其他天花板和墙面嵌装扬声器组合使用。

Specifications

Frequency Range (-10 dB) 60 Hz – 20 k
Weatherized Yes
Minimum Impedance 6

HF Transducer 0.75 inch (20 mm)
Frequency Response (-3 dB)¹ 85 Hz – 20
Max. SPL/1m (calc)² 109
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 90
LF Transducer 5.25 inch (133 mm)
Connector Type Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Available Color 黑色白色
Sensitivity 1 W/1 m 90
Height 255
Recommended High-Pass Frequency 60
Width 180
Depth 151
Weight Net 3.2
Shipping Weight 7.9
Nominal Impedance 8
Transformer 70V/100V (30W)
Environmental Specs IP54 (per IEC-60529)
