ETX-12P

12" powered loudspeaker

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 12-inch LF SMX woofer
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 135 dB peak SPL

Specifications

Frequency Response (-3 dB) 55 Hz - 20 kHz¹
Frequency Range (-10 dB) 43 Hz - 20 kHz¹
Maximum SPL 135 dB peak²

Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2120 300 mm (12 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1600 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18mm Plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
Net Weight 23.6 kg (52.0 lb)
Shipping Weight 26.8 kg (59.1 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.

Videos

Where to Buy

Retail Partners

Portable Speakers & Microphones

    * Call for availability

    Downloads

    Technical Documentations
    Name Language & Download
    Etx Series Loudspeakers, EC Declaration of Conformity
    Etx Series, Cb: 162507-70003440, Certificate No. Ca16314Csa Certificate
    Etx Series, Iec Cb: S37063-00-00Tj, Certificate No. De4-0859 Certificate
    Etx-Series, Cb: 162507-70003440(70153321), Certificate No. Ca20478Csa Certificate
    Etx-Series, Safety, Certificate No. 162507-70003439 Certificate
    Etx-Series, Safety, Certificate No. 162507-70003440 Certificate
    Name Language & Download
    ETX12P Data Sheet
    Name Language & Download
    ETX Powered Loudspeaker Hardware Accessory Manual
    ETX Powered Loudspeakers User Manual
    Name Language & Download
    Warranty conditions for Electro-Voice products in Europe, the Middle East, & Africa
    Name Language & Download
    Audio 101 - Basic Audio Terminology
    Audio 101 - Loudspeaker Basics
    Cardioid Subwoofer Arrays Settings
    EASE Data Explanation
    FIR Drive Technology
    PA Bible 11: Portable Sound Systems for the Small Club
    The EV PA Bible
    The PA Bible Chapter Zero
    Thermal Energy Management & Protection Limiter Technology
    Software, Firmware & Design Tools
    Name Language & Download
    ETX 12P SIMPLIFIED CAD Drawing
    ETX-12P CAD Drawing
    Name Language & Download
    ETX
    Marketing Materials
    Name Language & Download
    Portable speakers catalog 2024 GLOBAL
    Retail catalog EMEA
    Name Language & Download

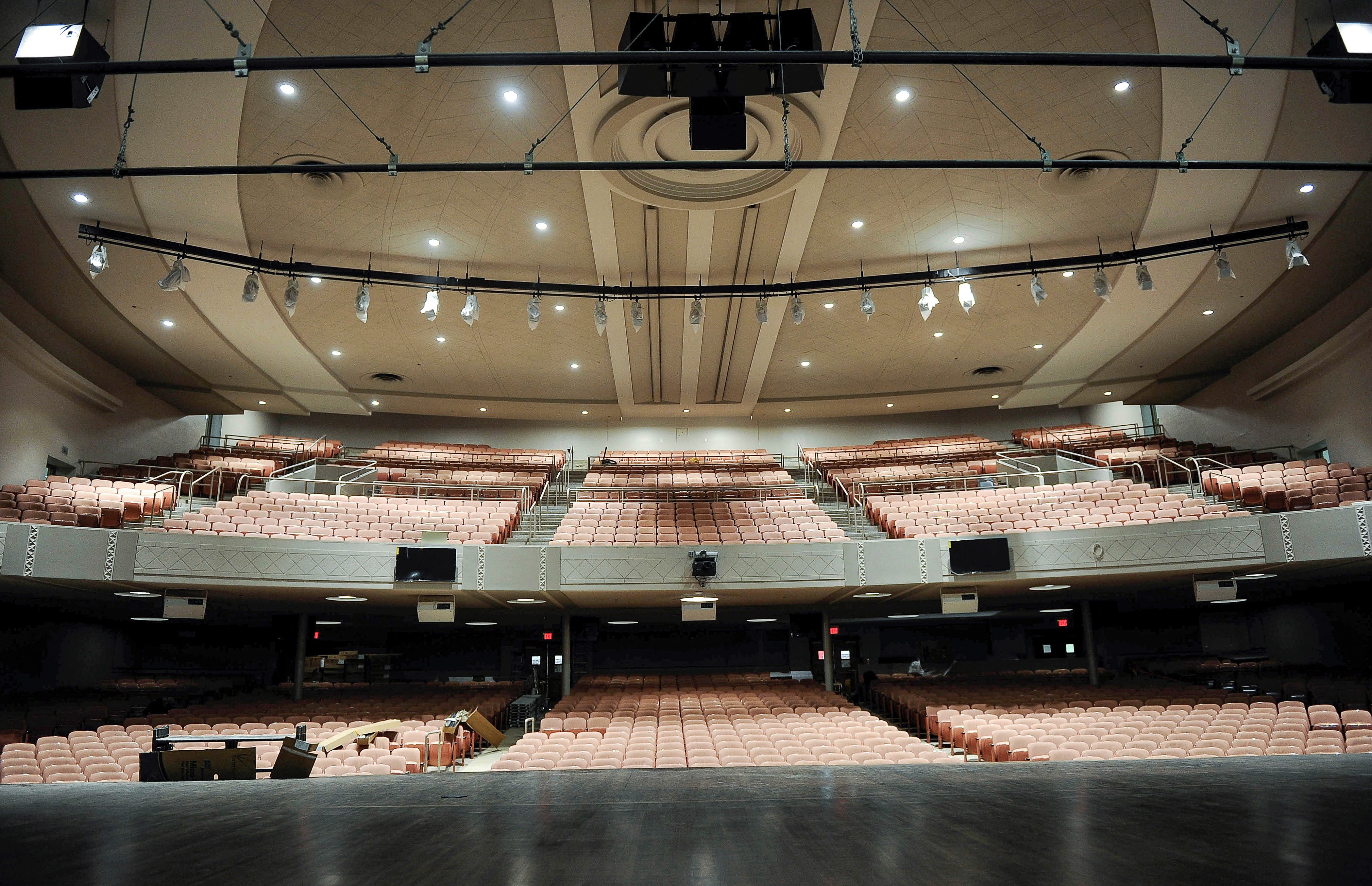

    Knowlton Auditorium Austin MN 01
